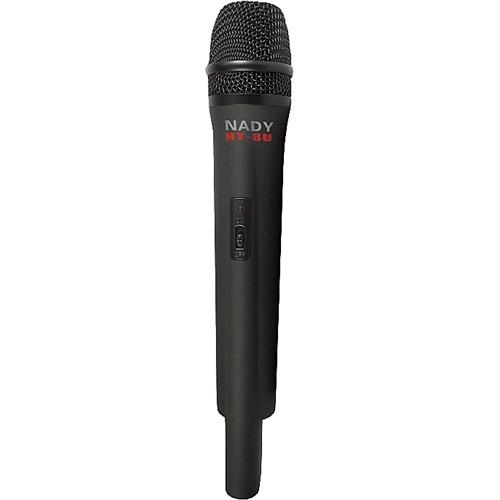

Product description The HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System (Channel 20) by Nady Systems is for capturing audio. It is used in various environments for audio applications such as live shows, DJ setups, rehearsals, school auditoriums and more. It features a unidirectional neodymium dynamic cartridge and has a 50Hz to 16kHz frequency response. The HT-8U handheld transmitter is a fixed single-channel UHF format. The operational range is up to 300' line-of-sight from the receiver. The HT-8U is built with an off/standby/on switch and allows convenient audio muting while the transmitter is on. It also features a status LED indicator that flashes once when the unit is turned on and lights steady for a low-battery alert. The rugged ABS and rubber-coated non-slip housing features an integrated antenna. The unit can be powered by two AA alkaline or NiMH batteries. - Features the Nady DM-10D unidirectional neodymium dynamic cartridge for clear sound, maximum feedback rejection with minimal handling noise
- Compact and simple to operate
- Nady's proprietary companding circuitry provides 120dB dynamic range
UPC: 634343280883 In the Box Nady HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System (Channel 20) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady HT-8U Specs | Frequency Response | 50 Hz to 16 kHz, - 3 dB | | Dynamic Range | 120 dB | | Total Harmonic Distortion (THD) | < 1% | | RF Carrier Frequency Range | UHF, choice of single frequencies on separate bands
902 to 928 MHz and 944 to 952 MHz | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM +/- 20 kHz normal | | Operating Range | Up to 250' typical (depending on site conditions)
Up to 500+' optimum line-of-sight | | | | Controls | Off/standby/on | | RF Power Output | 20 mW normal (50 mW maximum allowed by FCC) | | Harmonic and Spurs | < -50 dB | | Antenna | Internal | | Indicators | Single LED, flash once "on," low battery "steady on" | | Battery | 2 x AA alkaline or NiMH batteries | | Battery Life | 8 to 10 hours (alkaline) | | Frequency Band | Channel 20 | | Dimensions (L x W) | 10.5 x 1.9" (26.7 x 4.8 cm) | | Weight | 7.5 oz (213 g) without batteries | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 11.6 x 3.8 x 2.0" |
