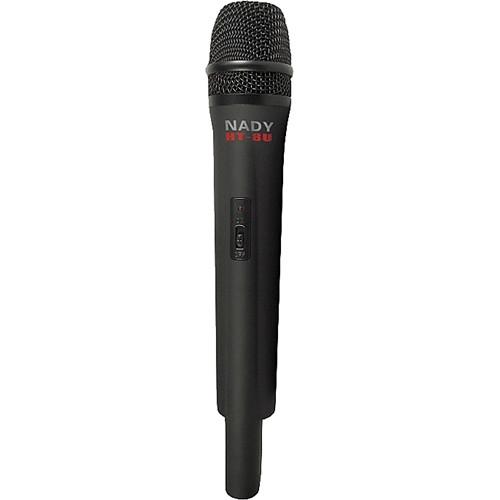

User Manual for Nady HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System Click to enlarge the picture
Contents of the user manual for the Nady HT-8U UHF Single-Channel Wireless Handheld
- Product category: Wireless Transmitters Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Transmitters
|
User manual for the Nady HT-8U UHF Single-Channel Wireless Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System (Channel 17) by Nady Systems is for capturing audio. It is used in various environments for audio applications such as live shows, DJ setups, rehearsals, school auditoriums and more. It features a unidirectional neodymium dynamic cartridge and has a 50Hz to 16kHz frequency response. The HT-8U handheld transmitter is a fixed single-channel UHF format. The operational range is up to 300' line-of-sight from the receiver. The HT-8U is built with an off/standby/on switch and allows convenient audio muting while the transmitter is on. It also features a status LED indicator that flashes once when the unit is turned on and lights steady for a low-battery alert. The rugged ABS and rubber-coated non-slip housing features an integrated antenna. The unit can be powered by two AA alkaline or NiMH batteries. - Features the Nady DM-10D unidirectional neodymium dynamic cartridge for clear sound, maximum feedback rejection with minimal handling noise
- Compact and simple to operate
- Nady's proprietary companding circuitry provides 120dB dynamic range
UPC: 634343280869 In the Box Nady HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System (Channel 17) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady HT-8U UHF Single-Channel Wireless Handheld Microphone Transmitter for DKW-8U System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady HT-8U Specs | Frequency Response | 50 Hz to 16 kHz, - 3 dB | | Dynamic Range | 120 dB | | Total Harmonic Distortion (THD) | < 1% | | RF Carrier Frequency Range | UHF, choice of single frequencies on separate bands
902 to 928 MHz and 944 to 952 MHz | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM +/- 20 kHz normal | | Operating Range | Up to 250' typical (depending on site conditions)
Up to 500+' optimum line-of-sight | | | | Controls | Off/standby/on | | RF Power Output | 20 mW normal (50 mW maximum allowed by FCC) | | Harmonic and Spurs | < -50 dB | | Antenna | Internal | | Indicators | Single LED, flash once "on," low battery "steady on" | | Battery | 2 x AA alkaline or NiMH batteries | | Battery Life | 8 to 10 hours (alkaline) | | Frequency Band | Channel 17 | | Dimensions (L x W) | 10.5 x 1.9" (26.7 x 4.8 cm) | | Weight | 7.5 oz (213 g) without batteries | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 11.732 x 3.228 x 2.441" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
