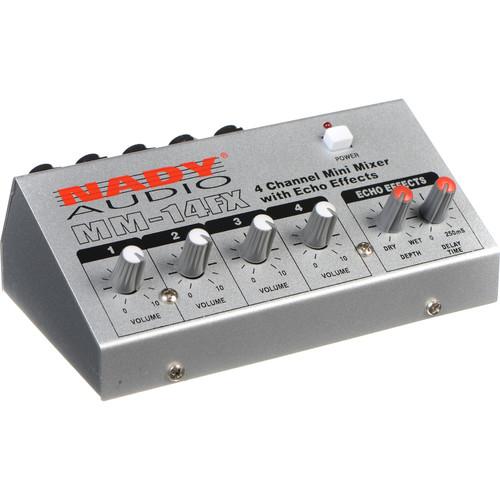

User Manual for Nady MM-14FX 4-Channel Mini Mixer with Echo Effects Click to enlarge the picture
Contents of the user manual for the Nady MM-14FX 4-Channel Mini Mixer with
- Product category: Analog Utility Mixers Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Analog Utility Mixers
|
User manual for the Nady MM-14FX 4-Channel Mini Mixer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The Nady MM-14FX is a mono, four-channel mixer in a compact form factor. The mixer gives you four 1/4" inputs designed for microphones, and a single 1/4" output. Thanks to a built-in echo ESP, you can apply a variety of time-based echo effects to give the inputs a bit of ambiance. Each channel provides up to 50 dB of gain. The mixer is battery powered by means of a 9V battery for up to 20 hours. It will also work with a separately available power adapter. - Key Features at a Glance
-
- 4 Mono 1/4" microphone inputs with individual volume controls
- Built-in Echo Effects DSP with Delay Time and Depth controls emulates room and hall to stadium decay reverbs
- 1/4" unbalanced output
- Up to 50 dB of gain per
- Power on/off switch with LED indicator
- Powered with either 9V alkaline battery or optional PAD-1 AC/DC external adapter
UPC: 634343270129 In the Box Nady MM-14FX 4-Channel Mini Mixer with Echo Effects Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady MM-14FX 4-Channel Mini Mixer with Echo Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady MM-14FX Specs | Controls | 4 x Channel level controls
1 x Depth control (echo effect)
1 x Delay time control (echo effect) | | I/O | 4 x 1/4" mic input, phone type
1 x 1/4" unbalanced output, phone type | | Input Impedance | 5 kOhms | | Maximum Input | -13 dBm (200 mV) | | Output Impedance | 800 Ohms | | Maximum Output | +6.5 dBm (2 V) | | Gain | 49.1 dB | | Sensitivity | -45 dBm (8 mV) | | Frequency Response | 20 Hz to 18 kHz ±3 dB | | Total Harmonic Distortion (THD) | 0.09% | | Signal to Noise Ratio | -78 dB | | Noise Floor | 300 µV | | Power | 1 x 9 V battery or optional PAD-1 adapter | | Battery Life | Up to 20 hours | | Current Drain | 35 mA | | Dimensions (W x D x H) | 6.0 x 3.3 x 2.0" / 152.0 x 84.0 x 52.0 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 1.14 lb | | Box Dimensions (LxWxH) | 9.55 x 4.05 x 2.95" |
