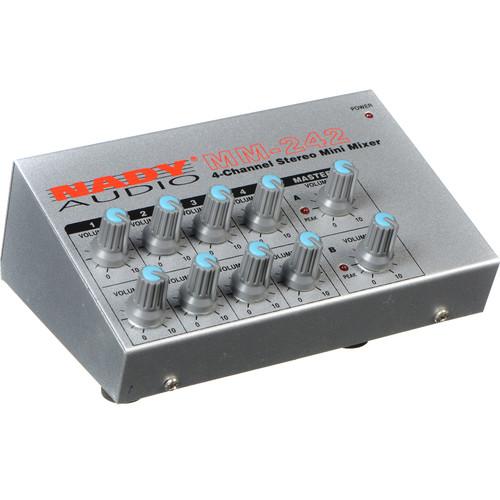

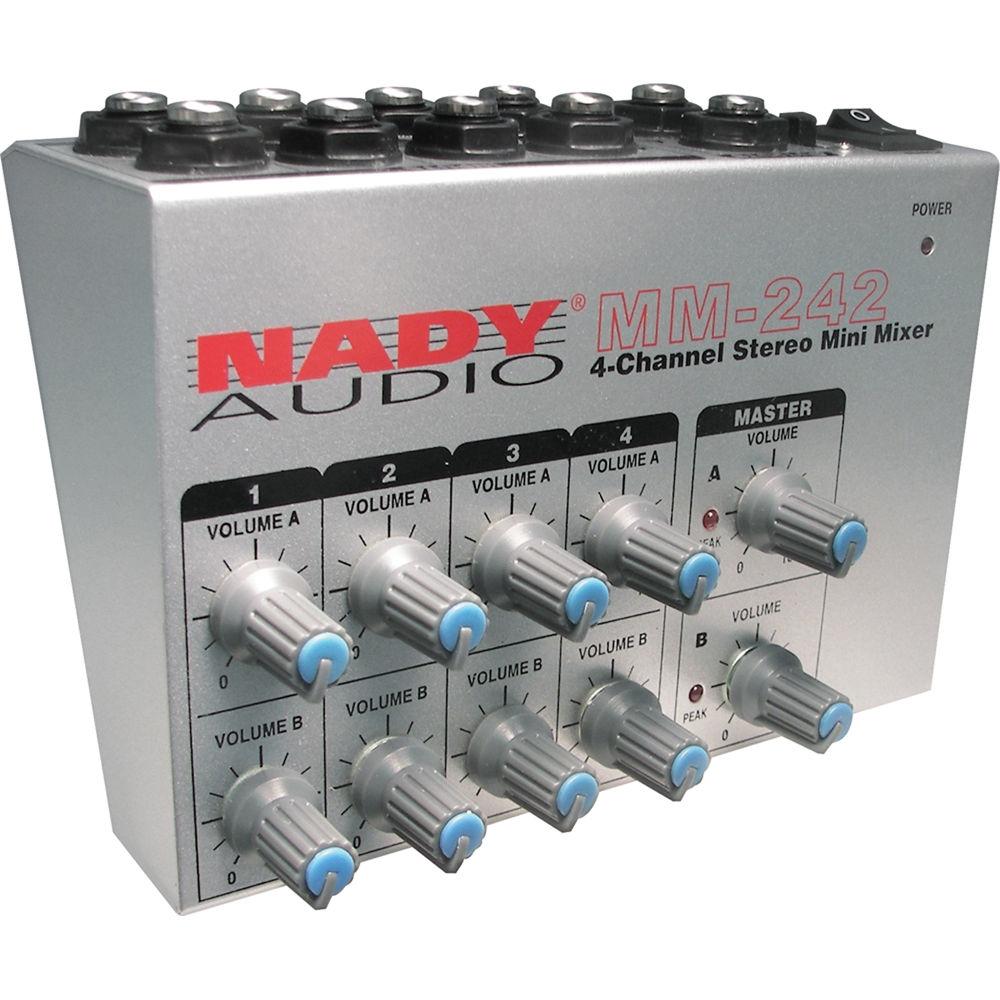

User Manual for Nady MM-242 4 8-Channel Mono Stereo Mini Mixer Click to enlarge the picture
Contents of the user manual for the Nady MM-242 4 8-Channel Mono Stereo
- Product category: Analog Utility Mixers Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Analog Utility Mixers
 |
User manual for the Nady MM-242 4 8-Channel Mono Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

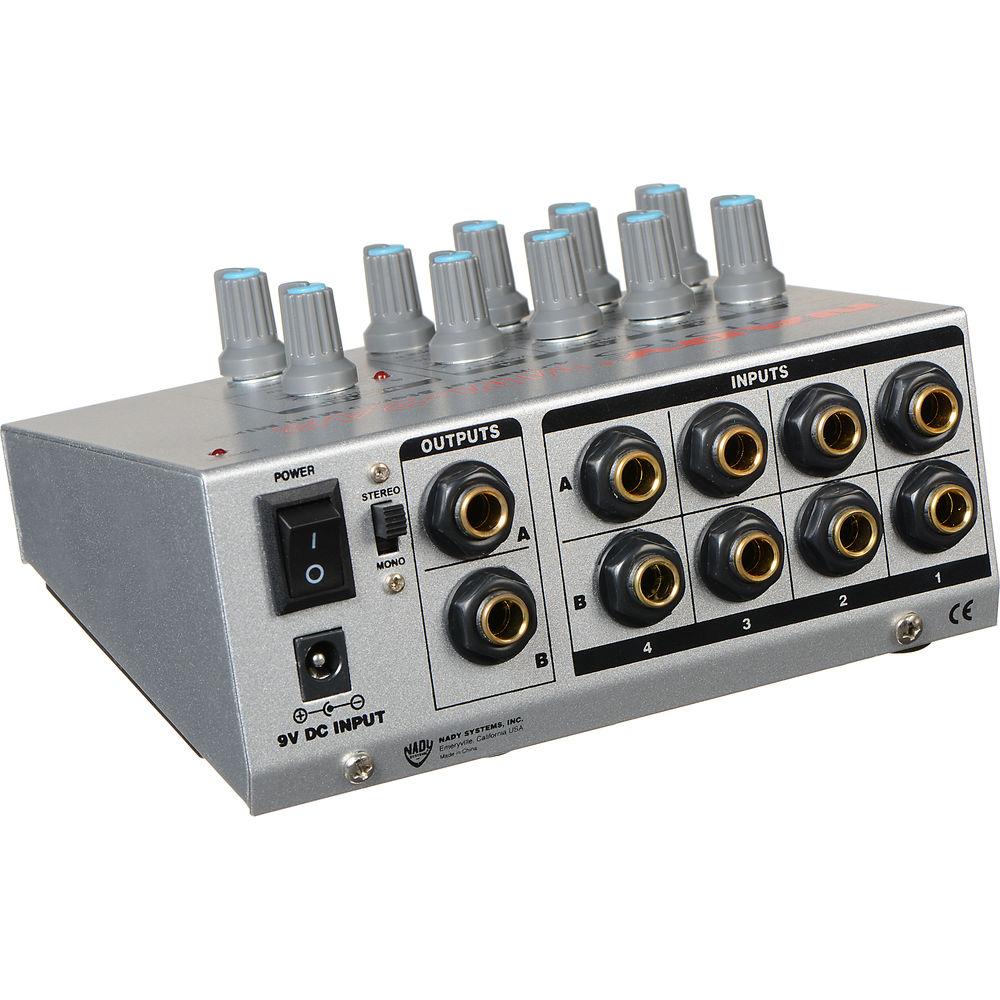

Product description The Nady MM-242 is a line-level mixer capable of handling eight unbalanced mono inputs or four unbalanced stereo inputs in stereo pairs. At 5.8 x 4.3 x 2.1", the unit provides a compact and durable design, constructed as it is out of heavy-duty steel, and boasting smooth-turn, stable pots.The device offers eight 1/4" line inputs, which can be assigned to the 1/4" stereo A/B outputs, or summed together and sent to the A and B outputs simultaneously. A mono/stereo selector switch determines the operating mode.Individual level controls are provided for each input channel, and each output has its own master volume control. Peak LEDs provide status info at a glance. The mixer delivers high-quality audio with over 25 dB of gain, low distortion, a high signal-to-noise ratio, and 20 Hz to 30 kHz frequency response to deliver your audio in crisp detail. The rear panel has a power switch with an LED indicator, and the mixer can operate on a 9V battery or via an optional external AC/DC adapter for versatility. - Key Features at a Glance
-
- 8 x mono 1/4” inputs with individual volume controls
- Can be assigned to stereo A and B outputs or summed together and sent to both A and B outputs
- Stereo 1/4” master outputs
- Separate master volume controls
- S/N ratio of 95 dB
- Frequency response of 20 Hz to 30 kHz
- Peak LEDs for each group of input channels
- Mono/stereo mode selector switch
- Heavy-duty steel construction with smooth-turn and stable pots
- Power on/off switch with LED indicator
- 9V powered with either 9V alkaline battery or separately available PAD-1 AC/DC external adapter
UPC: 634343264340 In the Box Nady MM-242 4/8-Channel Mono/Stereo Mini Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady MM-242 4 8-Channel Mono Stereo Mini Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady MM-242 Specs | Input Impedance | 50 kOhms | | Maximum Input | > 10 V (controls at minimum)
225 mV (controls at max) | | Output Impedance | 120 Ohms | | Maximum Output | +7 dBm (1.75 V) | | Gain | > 25 dB | | Frequency Response | 20 Hz to 30 kHz | | Total Harmonic Distortion (THD) | 0.07% | | Signal to Noise Ratio | -95 dB | | Noise Floor | 120 µV | | Controls | 2 x master volume knobs
8 x channel level controls | | Connectors | 8 x 1/4" TS line inputs, phone type
2 x 1/4" TS line outputs, phone type (A/B) | | Power Supply | 1 x 9 V battery or separately available PAD-1 adapter | | Battery Life (approx.) | Up to 35 hours | | Current Drain | 19 mA | | Dimensions (WxDxH) | 5.8 x 4.3 x 2.1" (147.0 x 109.0 x 53.0 mm) | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.7 x 4.7 x 2.8" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
