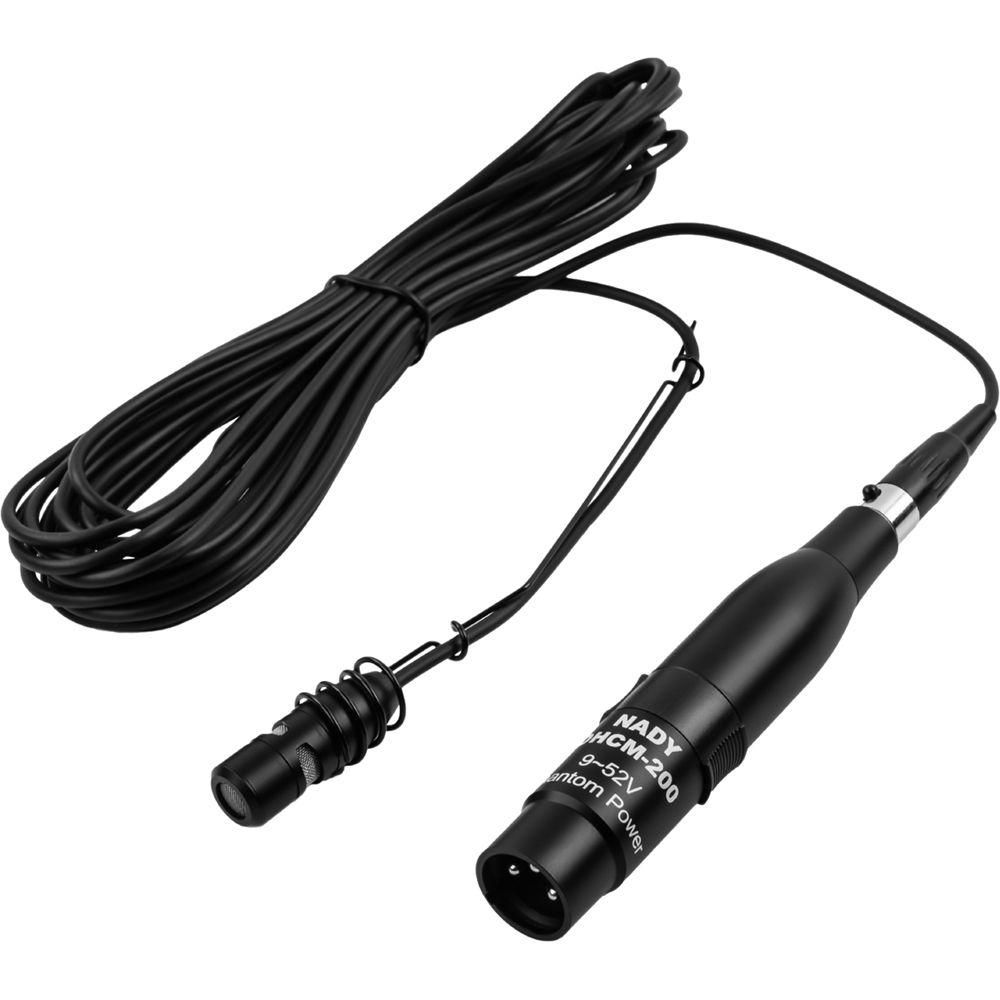

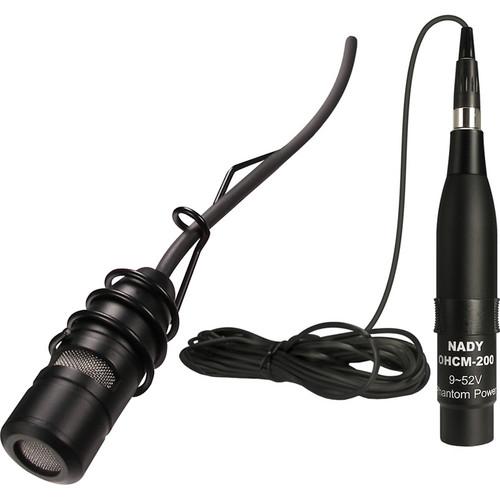

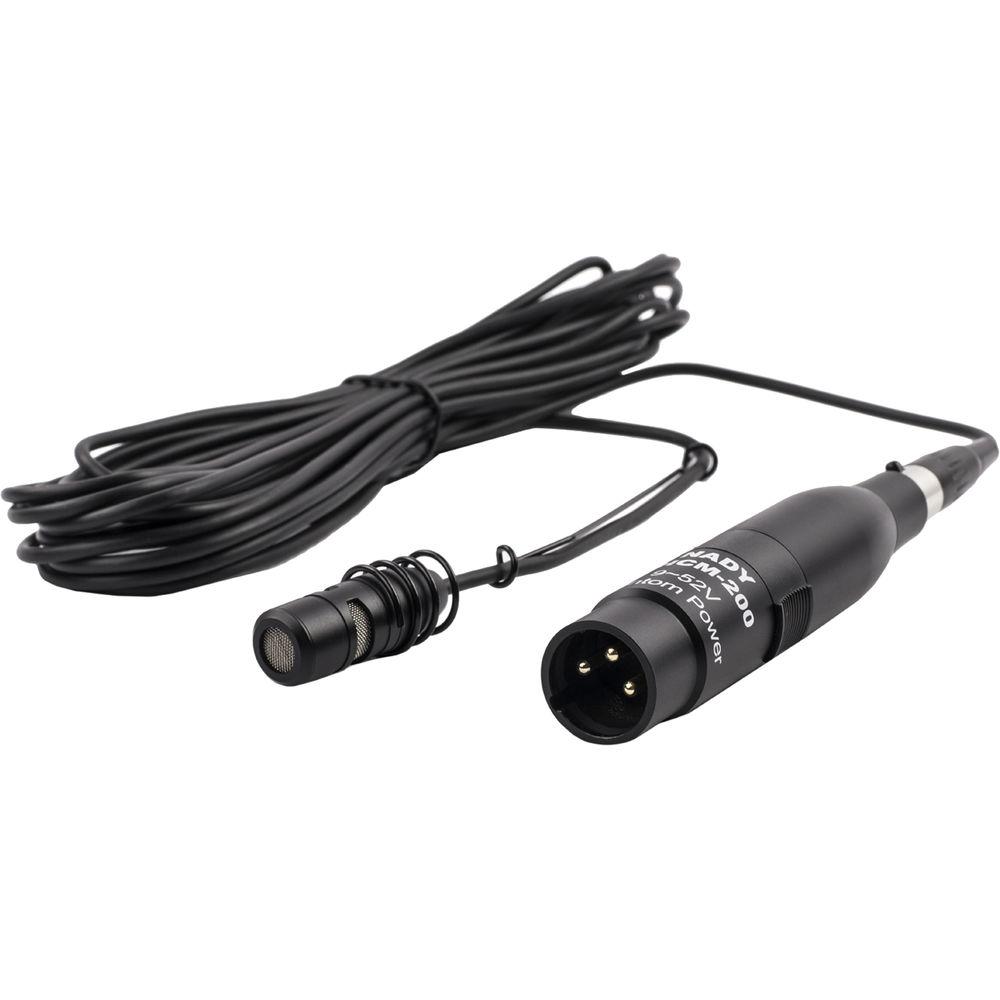

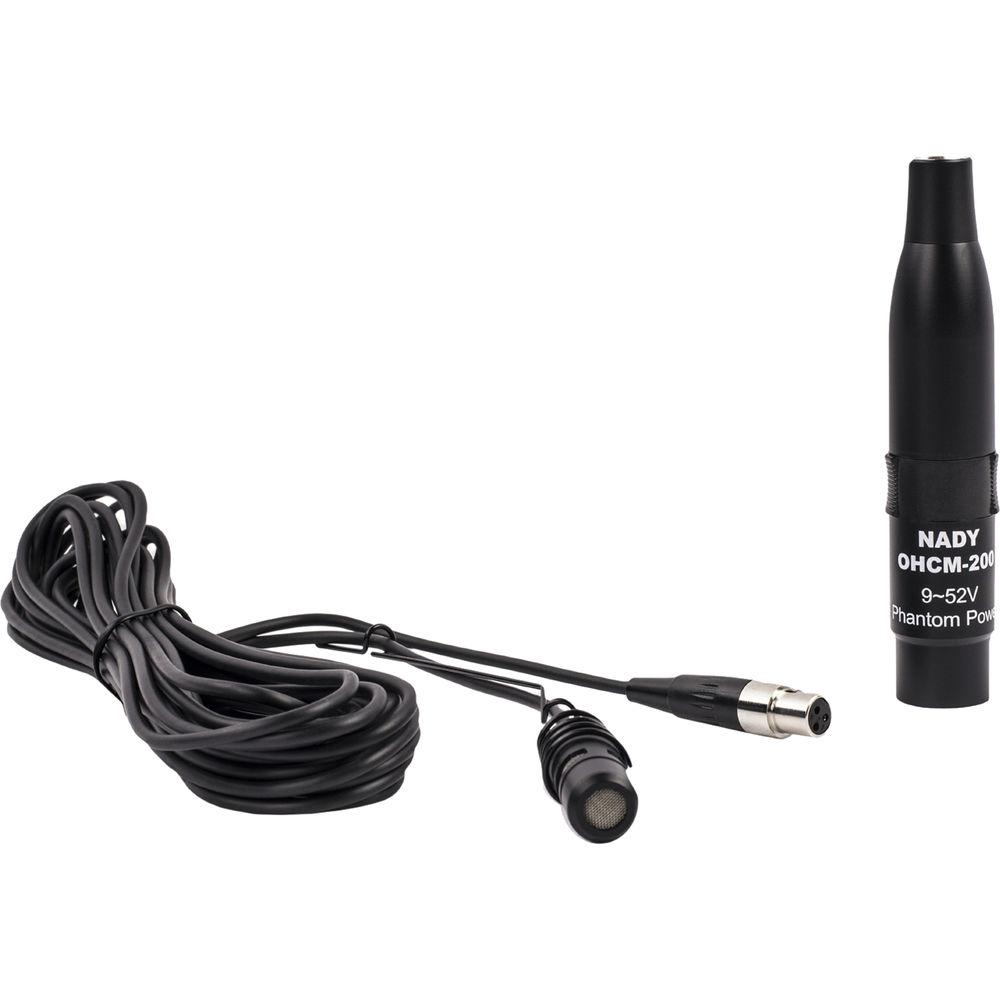

User Manual for Nady OHCM-200 Overhead Hanging Microphone Click to enlarge the picture
Contents of the user manual for the Nady OHCM-200 Overhead Hanging Microphone
- Product category: Hanging Microphones Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Hanging Microphones
 |
User manual for the Nady OHCM-200 Overhead Hanging Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The Nady OHCM-200 Overhead Hanging Microphone is optimized for capturing overhead signals during performances, sermons, plays, conferences and anywhere a quality hanging microphone is needed. The OHCM-200 features an extended smooth frequency response and excellent SPL handling. The low-mass condenser element features a cardioid polar pattern for focused pickup, while rejecting extraneous noise, ambiance and feedback. The microphone's 20' long, permanently attached cable features a 3-pin XLR connection. The OHCM-200 requires 9 ~ 52VDC phantom power and includes a wire hanger for optimum capsule positioning. - Extended smooth, flat frequency response; ultra sensitivity and high SPL capacity for clearest audio performance in any application - from miking choral groups to stage performances
- Low-mass back electret condenser element for most accurate, detailed audio
- Cardioid pattern for frontal audio pickup without feedback and unwanted side and rear fill
- Permanently attached 20' (6.1M) cable with convenient integrated power module/XLR (M) connector
- Rugged construction for optimum reliability. Integrated hanging wire for ease of mounting
- Conveniently powered by external 9~52 phantom power, no batteries required
UPC: 634343267532 In the Box Nady OHCM-200 Overhead Hanging Microphone (Black) Hanging Wire Mount 1 Year Warranty User Manual PDF 99.9kbbyudvscasc Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady OHCM-200 Overhead Hanging Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady OHCM-200 Specs | Transducer | Back electret condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz to 16kHz, +/- 3dB | | Sensitivity | -37dB,+/-3dB (0dB=1V/Pa @ 1kHz) | | Power Requirements | 9-52VDC | | Output Impedance | 200ohms +/-30% (@ 1kHz) | | Output Connectors | 3-pin XLR | | Dimensions (LxDiameter) | 1.5 x 0.50" (3.8 x 1.3cm)
Cable: 20' (6.1m) | | Weight | 0.7oz (20g) | | | | Package Weight | 0.495 lb | | Box Dimensions (LxWxH) | 7.95 x 3.25 x 1.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
