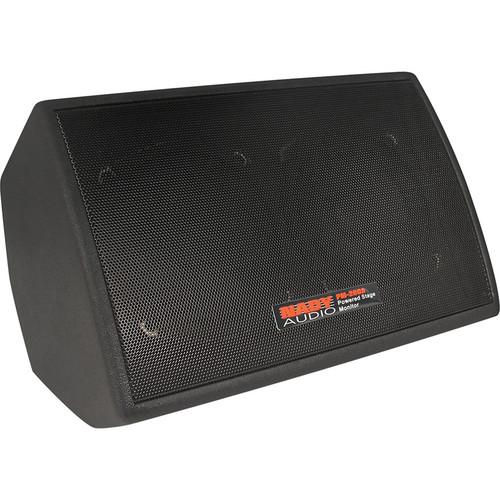

User Manual for Nady PM-200A 5" Active Nearfield Personal Stage Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Nady PM-200A 5" Active Nearfield Personal
- Product category: PA Speakers Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady PA Speakers
|
User manual for the Nady PM-200A 5" Active Nearfield Personal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The PM-200A from Nady is a compact and durable personal stage monitoring speaker ideal for traveling musicians. The speaker features a pair of 5" ferrofluid drivers that offer clear, powerful sound with high SPL levels, low distortion, and excellent feedback rejection. The internal 150W RMS amplifier powers the internal drivers, and can also power up to 4 PM-100 passive monitors by using the 2 external speaker 1/4" outputs.
The speaker has XLR and 1/4" inputs that can be used simultaneously, allowing you to connect to a variety of sound devices and systems. In addition to the 1/4" speaker outputs, there is also a 1/4" line output for daisy-chaining monitors or connecting mixers and PAs. A 1/4" headphone jack provides private monitoring. A volume control and 3-band EQ let you adjust the speaker's response and tone to match your environment and application. Integrated protection circuitry includes thermal, short circuit, and anti-thump on/off protection to keep the speaker operating smoothly. The speaker can be positioned at 4 different angled for optimum placement, and also has an integrated 5/8" socket so you can attach it to a mic stand. - Compact and durable design, ideal for road use
- A pair of 5" ferrofluid drivers offer clear, powerful sound with high SPL levels, low distortion, high intelligibility, and excellent feedback rejection
- The internal 150W RMS amplifier powers the internal drivers, and can also power up to 4 PM-100 passive monitors by using the 2 external speaker 1/4" outputs
- The speaker has XLR and 1/4" inputs that can be used simultaneously, allowing you to connect to a variety of sound devices and systems. In addition to the 1/4" speaker outputs, there is also a 1/4" line output for daisy-chaining monitors or connecting mixers and PAs
- A 1/4" headphone output lets you monitor audio privately. The internal speakers can operate simultaneously or be turned off via a Speaker Enable switch
- A volume control and 3-band EQ let you adjust the speaker's response and tone to match your environment and application
- Indicator LEDs for power and clip provide at-a-glance status updates
- The amplifier's integrated MOSFET outputs offer integrated protection circuitry that includes thermal, short circuit, and anti-thump on/off protection to keep the speaker operating smoothly.
- Selectable 115/230VAC operation for international use
- The speaker can be positioned at 4 different angled for optimum placement, and also has an integrated 5/8" socket so you can attach it to a mic stand
UPC: 634343267501 In the Box Nady PM-200A 5" Active Nearfield Personal Stage Monitor Speaker Power Cord 1-Year Limited Warranty User Manual PDF 855.9kbtwbrrbyrxeuuef Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady PM-200A 5" Active Nearfield Personal Stage Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady PM-200A Specs | | | Configuration | Active Full-Range | | Total Power Capacity | 150 W RMS | | Amplifier Power Rating | 2 x 50 W RMS (at 8 Ohms)
2 x 75 W RMS (at 4 Ohms) | | | | Full-Range Driver | 2 x 5" / 127 mm Cone | | LF Voice Coil | 1" / 25.4 mm | | | | Frequency Response | 20 Hz to 50 kHz | | Maximum SPL | 125 dB | | Input Sensitivity | Mic Input:
-40 dBm
Line Input:
-10 dBm | | Max Input Level | Mic Input:
-10.2 dBm
Line Input:
+22 dBm | | I/O Impedance | Mic Input:
2 kOhms
Line Input:
20 kOhms
Output:
1.4 kOhms | | THD | 0.055% | | SNR | -81 dB | | Protections | On/Off Protection, Short Circuit, Thermal | | | | Audio I/O | 1 x XLR Input
1 x 1/4" Input
2 x 1/4" Output
1 x 1/4" Line Output
1 x 1/4" Headphone Output | | | | EQ | HF Shelf:
±12 dB at 10 kHz
MF Notch/Peak:
±12 dB at 2.5 kHz
LF Shelf:
±12 dB at 120 Hz | | | | AC Input Power | User Selectable:
115 VAC, 60 Hz (6 A 250 V)
230 VAC, 50 Hz (3 A 250 V) | | | | Dimensions | 11.1 x 7.0 x 6.1" / 280.0 x 180.0 x 155.0 mm | | Weight | 9.6 lb / 4.4 kg | | | | Package Weight | 10.6 lb | | Box Dimensions (LxWxH) | 13.2 x 8.9 x 8.0" |
