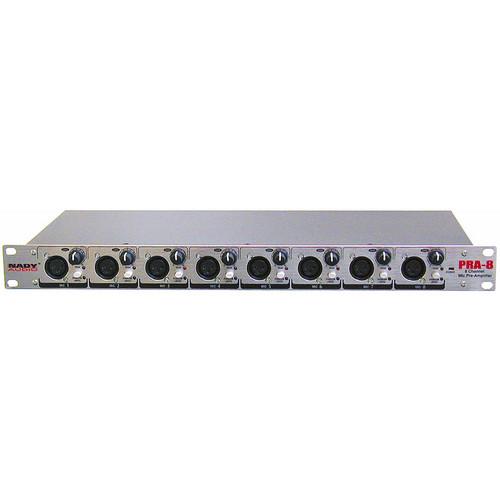

User Manual for Nady PRA-8 - Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Nady PRA-8 - Microphone Preamp
- Product category: Microphone Preamps Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Microphone Preamps
|
User manual for the Nady PRA-8 - Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The PRA-8 from Nady is an 8-channel microphone preamp housed in a single rack-space chassis. The unit is a professional, multi-purpose preamplifier designed for the most exacting studio applications, yet affordable enough for home project studios.
It solves many of the connectivity problems arising in studio and live sound applications that arise from using digital audio interfaces which may only consist of unbalanced line inputs or very low (or no microphone pre) gain structure.
Each channel features individually switchable phantom power with LED indicators and individual clip LEDs. The rugged chassis includes an internal, universal power supply. - Eight totally independent preamps in a single rack chassis with servo-balanced XLR inputs and 1/4" TRS outputs for each preamp
- Ultra-linear, high bandwidth operational amps for no-compromise crystal clear audio
- Exceptionally low noise and negligible distortion
- Individual gain control and peak LED indicator on each channel with up to 75dB of gain
- +48V phantom power with individual On/Off switches and phantom power On LED indicators for each channel
- Rugged construction for maximum long-term reliability
- Shielded internal dual regulated power supply with voltage select switch and fused IEC power cord connector
UPC: 634343001617 In the Box Nady PRA-8 - Microphone Preamp AC Power Cable One (1) Year Warranty User Manual PDF 320.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady PRA-8 - Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady PRA-8 Specs | Number of Channels | 8 | | Inputs | 8 x XLR | | Output | 8 x 1/4" TRS phone | | Phantom Power | +48V individually switchable | | Multi Function | No | | Gain Range | 75dB (50dB gain control range) | | Input Impedance | 2kΩ | | Minimum Sensitivity | -40dB | | Maximum Input Level | +5dB | | Output Impedance | 600Ω | | Maximum Output Level | +18.5dB | | Frequency Response | 20Hz to 20kHz, 0.0dB/-2.0dB | | Noise | SNR: Better than 80dB | | Distortion | 0.02% | | Crosstalk | >70dB @ 1kHz, -20dB input | | Power Requirements | 100/120VAC~200/240VAC, 50/60Hz | | Dimensions (WxDxH) | 19 x 8.5 x 1.75" (483 x 217 x 45mm) | | Weight | 7.5 lb (3.4kg) | | Specialties | Channel peak (clip) LED indicators | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 20.6 x 9.5 x 3.8" |
Rating30% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
