User Manual for Nady RFD Hearing Assistance Receiver Click to enlarge the picture
Contents of the user manual for the Nady RFD Hearing Assistance Receiver
- Product category: Components & Accessories Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Components & Accessories
 |
User manual for the Nady RFD Hearing Assistance Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

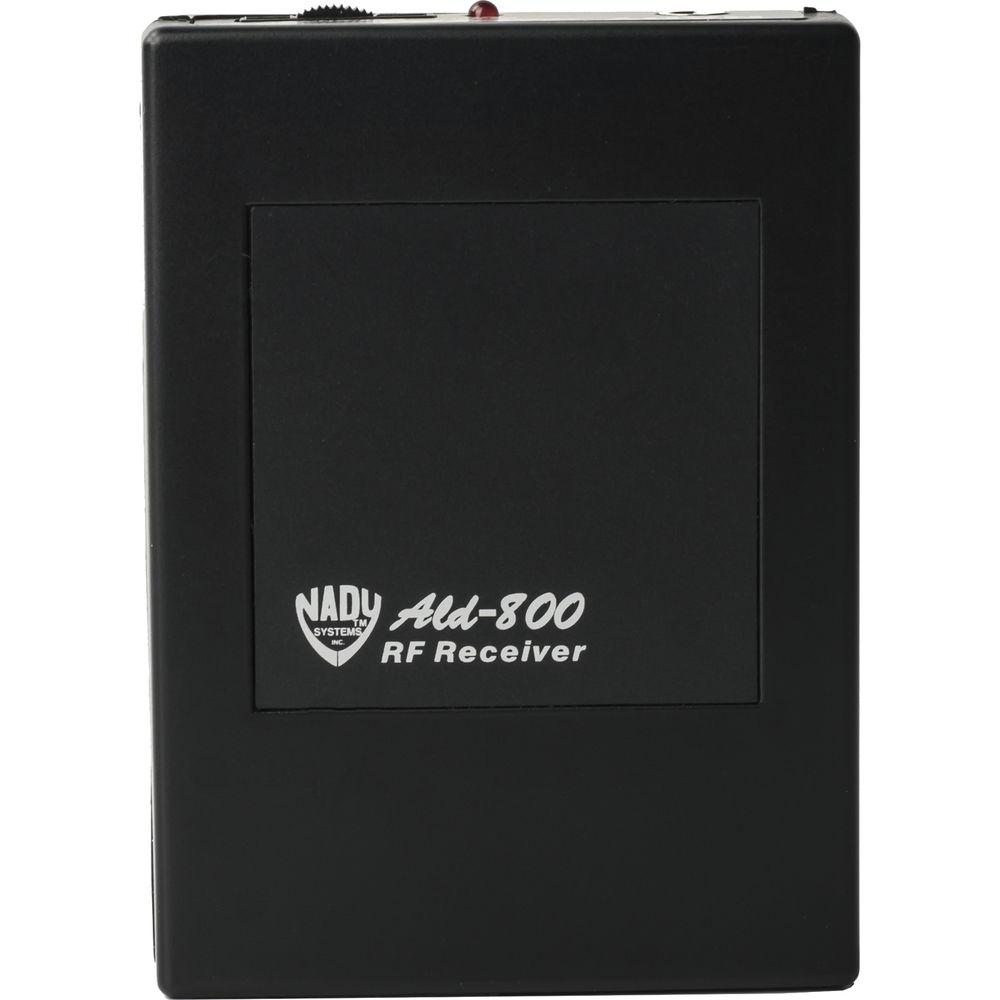

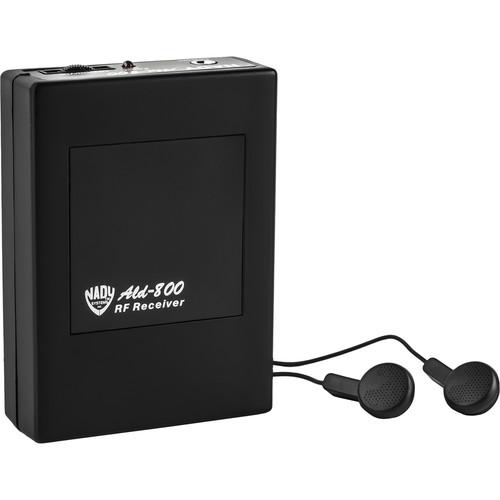

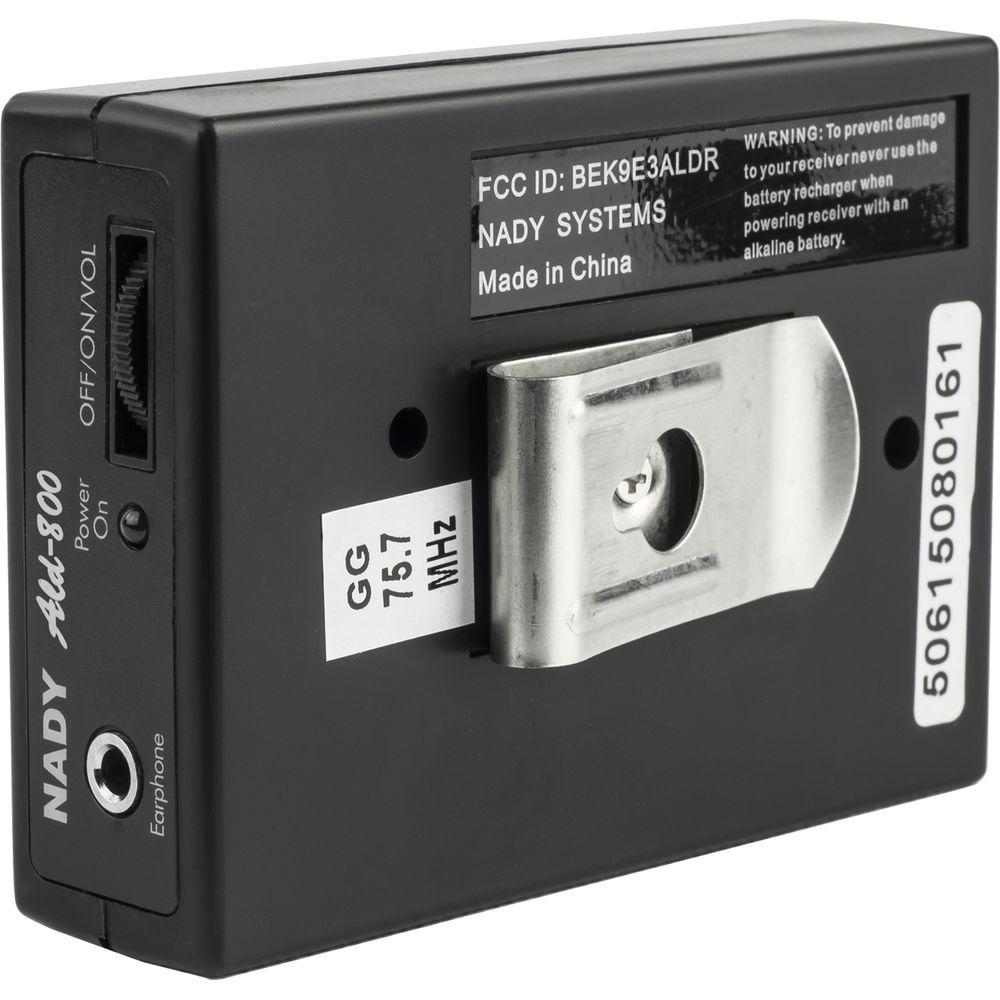

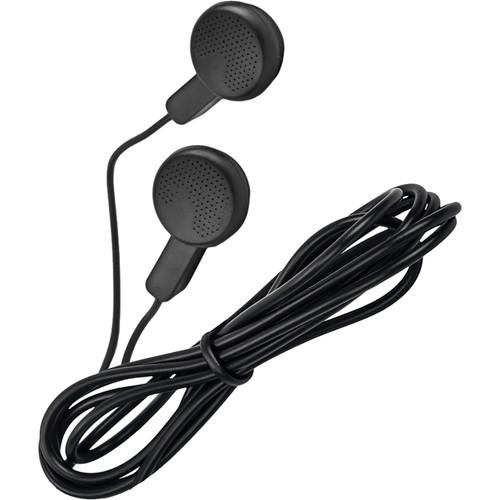

Product description The Nady Systems RFD Hearing Assistance Receiver (HH Channel) features advanced design and high-quality construction and is fully compliant with ADA regulations. The pre-tuned portable wireless receiver is a single-channel unit that operates on 1 of 8 frequencies in the 72 to 76 MHz radio band, with wideband modulation for high quality audio. The RFD Hearing Assistance Receiver can be used both outdoors and indoors in bright light without affecting performance.Frequency stability is controlled by a phase locked loop synthesizer with crystal reference and accurate within ±.005% over 32 to 122°F (0 to 50°C). The receiver de-emphasis is 75 µs. The receiver provides a 3.5mm headphone output jack mounted on the top panel.This pocket-sized Nady receiver works in conjunction with the ALD-800T HH-Channel Transmitter (sold separately) and has adjustable volume control and comfortable, high performance earphones.The receiver is powered by a 9V alkaline battery. It has an Off/On/volume control mounted on the top panel LED lamp to indicate battery strength, and an antenna is integral to the earphone/earbud cord. UPC: 634343257915 In the Box Nady RFD Hearing Assistance Receiver (HH Channel) EB-3 Earbuds Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady RFD Hearing Assistance Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ALD-800 Specs | Control | Combination volume / On-Off wheel | | Audio Output | 250 mW maximum into 16 Ω | | Connector | 3.5 mm mini jack for earphone output | | Earphone | Mini binaural earbuds | | Antenna | Integral with earphone cord | | Indicators | LED power on indicator | | Sensitivity | 2 µV for 12 dB Sinad with squelch defeated
Squelches at 10 µV for minimum 50 dB S-N ratio | | Threshold | Mute: 8 to10 µV | | Power Requirement | 9 V alkaline | | Battery Life | 17 to 20 hours with alkaline battery | | Dimensions (H x W x D) | 3.35 x 2.75 x 0.75" (8.50 x 6.50 x 2.25 cm) | | Weight | 2.65 oz (73.00 g) without battery | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.1 x 3.3 x 1.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
