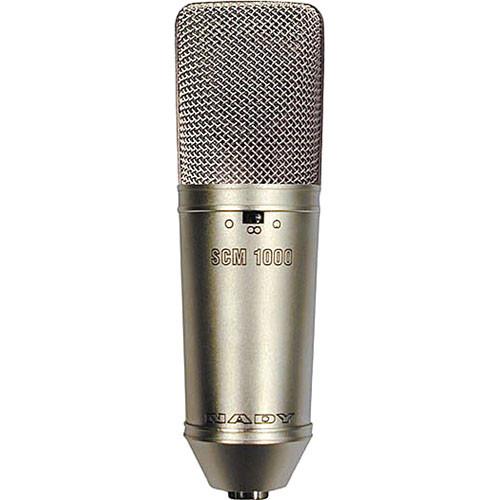

User Manual for Nady SCM-1000 Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Nady SCM-1000 Studio Condenser Microphone
- Product category: Large Diaphragm Condenser Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Large Diaphragm Condenser
|
User manual for the Nady SCM-1000 Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The SCM-1000 Studio Condenser Microphone from Nady is designed for project studio recording, podcasts, light broadcast applications, and similar scenarios. The large diaphragm condenser microphone features 3 user switchable polar patterns: omnidirectional, cardioid and figure-8. A -10 dB pad switch maximizes headroom and minimizes noise when capturing transient peaks. The low frequency roll-off switch further minimizes low-frequency noise caused by hum, proximity effect, air conditioning systems, and other devices. - Large, pressure-gradient condenser, gold-sputtered diaphragm and FET preamplifier
- Internal shockmount construction for structural integrity and rugged reliability
- Selectable 10 dB attenuation pad and low-cut filter
- Multiple selectable polar patterns: omni, cardioid, figure-8
- Requires 48V of phantom power
UPC: 634343000276 In the Box Nady SCM-1000 Studio Condenser Microphone Limited 1-Year Warranty User Manual PDF 92.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady SCM-1000 Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady SCM 1000 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.1" / 27.94 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 26 dB | | Maximum SPL | 134 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 40 dBV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 48 V | | Operating Temperature | 14 to 140°F / -10.00 to 60.00°C | | Operating Humidity | 90 | | Length | 6.50" / 165 mm | | Diameter | 2.17" / 55 mm | | Weight | 15.17 oz / 430 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.5 x 4.4 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
