User Manual for Nady SM-300A 8" 2-Way Active Studio Monitor Speakers Click to enlarge the picture
Contents of the user manual for the Nady SM-300A 8" 2-Way Active Studio
- Product category: Studio Monitors Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Studio Monitors
|
User manual for the Nady SM-300A 8" 2-Way Active Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

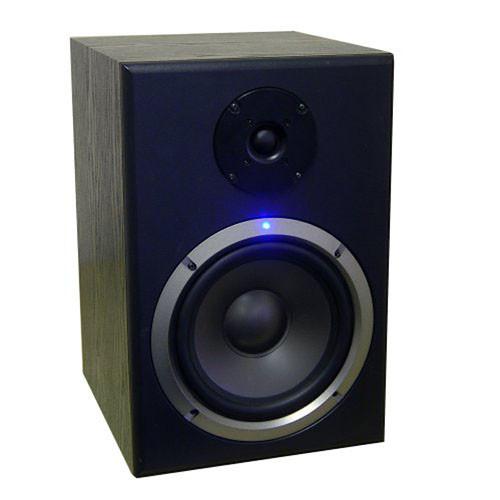

Product description The SM-300A active nearfield monitor speakers from Nady provide high-quality audio in a compact and durable design, ideal for home recording, computer music, and multimedia applications. The bass-reflex cabinet has a 1.5" thick curved front baffle to reduce diffraction and provide excellent imaging. A 2.5" cylindrical bass port delivers tight, punchy bass. The 8" woofer and 1" ferrofluid-cooled soft dome tweeter provide accurate audio with a full frequency response.
The speakers have a bi-amplified design with 150W of total power to deliver strong volume levels with low distortion. XLR and 1/4" inputs provide wide compatibility with a variety of audio systems and devices. The rear panel features a volume control as well as a voltage selector switch for international use. Power and clip LEDs provide visual indication of speaker status. The speakers are magnetically shielded for safe use near video monitors and other electronics. - Compact design is ideal for home recording, computer music, and multimedia applications where space is at a premium
- The bass-reflex cabinet has a 1.5" thick curved front baffle to reduce diffraction and provide excellent imaging
- A 2.5" cylindrical bass port delivers tight, punchy bass
- The vertically-aligned 8" woofer and 1" ferrofluid-cooled soft dome tweeter provide accurate audio with a full frequency response
- The bi-amplified design provides 150W of total power to deliver strong volume levels with low distortion
- XLR and 1/4" inputs provide wide compatibility with a variety of audio systems and devices
- The rear panel features a volume control as well as a voltage selector switch for international use
- Power and clip LEDs provide visual indication of speaker status
- The speaker is magnetically shielded for safe use near video monitors and other electronics
UPC: 634343267754 In the Box Nady SM-300A 8" 2-Way Active Studio Monitor Speakers (Pair) 2 x Power Cords Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady SM-300A 8" 2-Way Active Studio Monitor Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady SM-300A Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Soft Dome Tweeter
LF Driver: 1 x 8" / 203 mm Woofer | | Amplification | HF Amplifier: Rated at 65 W
LF Amplifier: Rated at 85 W | | | | Frequency Range | 40 Hz to 20 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x 1/4" (6.3 mm) TRS Balanced Analog Input | | | | AC Input Power | 115 to 230 VAC at 50/60 Hz | | | | Dimensions (W x H x D) | 9.5 x 16.0 x 11.8" / 265.0 x 400.0 x 304.0 mm | | Weight | 29.5 lb / 13.4 kg | | | | Package Weight | 59.55 lb | | Box Dimensions (LxWxH) | 24.7 x 18.3 x 14.4" |
