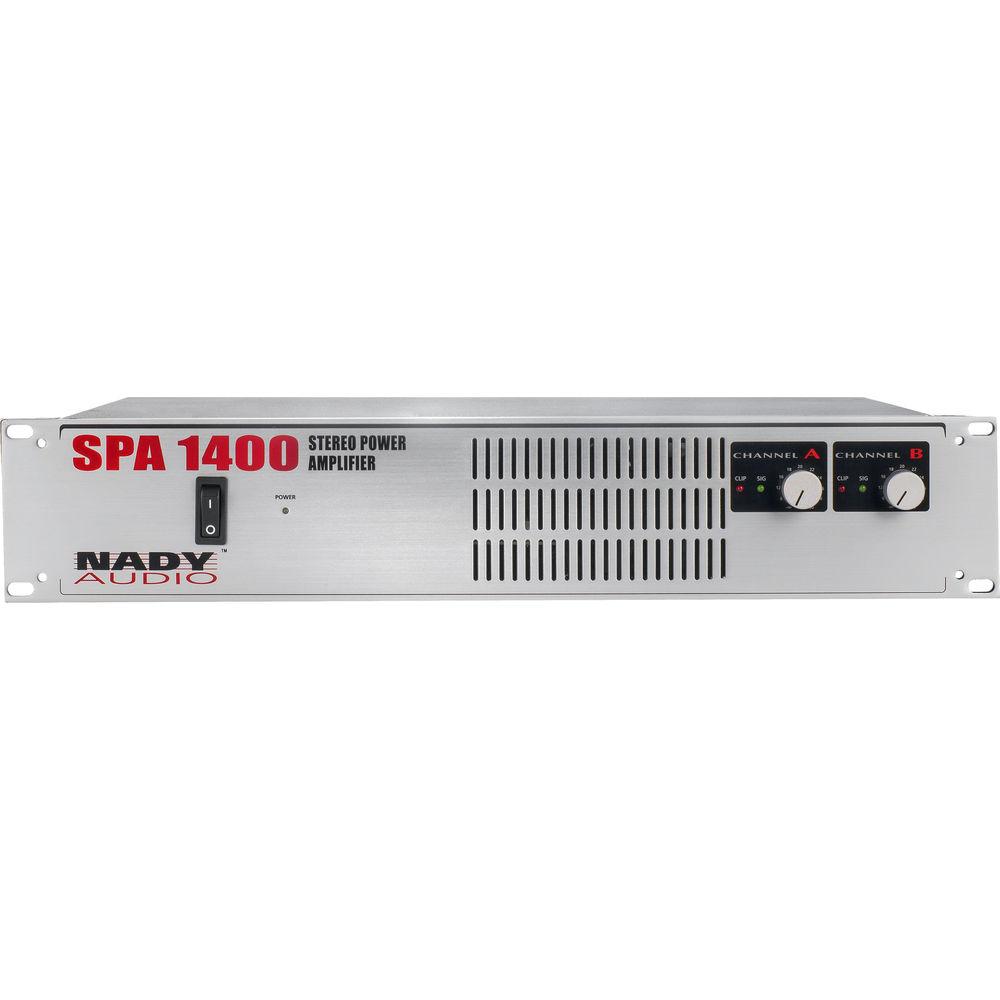

User Manual for Nady SPA 1400 Rackmount Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Nady SPA 1400 Rackmount Stereo Power
- Product category: Power Amplifiers Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Power Amplifiers
 |
User manual for the Nady SPA 1400 Rackmount Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

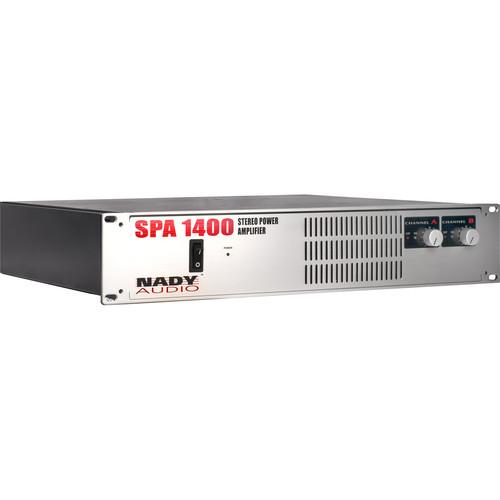

Product description The SPA 1400 from Nady is a professional power amplifier that offers reliable performance and terrific versatility in a compact rackmount design. The amplifier can operate in stereo, parallel, or bridged mono modes to meet the demands of a variety of applications. It offers XLR and 1/4" TRS inputs along with Neutrik Speakon and binding post outputs, allowing you to connect to a wide variety of sound devices and systems. Parallel output connectors let you daisy-chain multiple amplifiers for additional power.
In order to deliver the best sound and reliability possible, the amplifier is equipped with a ground-lift switch and a 30Hz low-cut filter to eliminate low frequency hum. A defeatable clip limiter prevents audio from distorting. A complete array of protection circuitry includes a soft-start turn on, noise-free on/off, DC offset, DC and thermal overload protection, DC servo operation, short circuit and speaker protection, and a current limiter. All of these functions protect your amplifier and your speakers from damage and keep them operating smoothly. A variable-speed cooling fan with back-to-front airflow keeps internal components from overheating. - Durable steel chassis fits in a standard equipment rack
- Switchable stereo, parallel, and bridged mono modes meet the demands of a variety of applications
- XLR and 1/4" TRS inputs, along with Neutrik Speakon and binding post outputs allow you to connect to a wide variety of sound devices and systems
- Parallel output connectors let you daisy-chain multiple amplifiers for additional power
- Detented volume controls let you make precise adjustments
- A ground-lift switch and a 30Hz low-cut filter eliminate low frequency hum
- A defeatable clip limiter is provided to minimize distortion
- Clip and signal LED indicators on each channel
- Protection circuitry includes a soft-start turn on, noise-free on/off, DC offset, DC and thermal overload protection, DC servo operation, short circuit and speaker protection, and a current limiter. All of these functions protect your amplifier and your speakers from damage and keep them operating smoothly
- A variable-speed cooling fan with back-to-front airflow keeps internal components from overheating
- Switchable 115/230VAC power for international use
In the Box Nady SPA 1400 Rackmount Stereo Power Amplifier (500W/Channel @ 4 Ohms) Power Cord 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady SPA 1400 Rackmount Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady SPA 1400 Specs | Power Rating | 800W @ 2 Ohms
500W/Channel @ 4 Ohms Stereo
300W/Channel @ 8 Ohms Stereo
1000W @ 8 Ohms Bridged
1400W @ 4 Ohms Bridged | | Input Sensitivity | 1.15V (+3.4dBu) | | Input Impedance | 10 kOhms, Balanced and Unbalanced | | Gain | 32dB | | Frequency Response | 25Hz - 25kHz +0/-1dB | | Signal-to-Noise Ratio | 100dB | | Total Harmonic Distortion (THD) | < 0.03% | | Input Connectors | 2 x XLR Inputs
2 x 1/4" TRS Inputs
1 x AC Power Input | | Output Connectors | 2 x Neutrik Speakon Outputs
2 x Binding Post Outputs (2 Terminals Each) | | Controls Front Panel | 1 x Power Switch

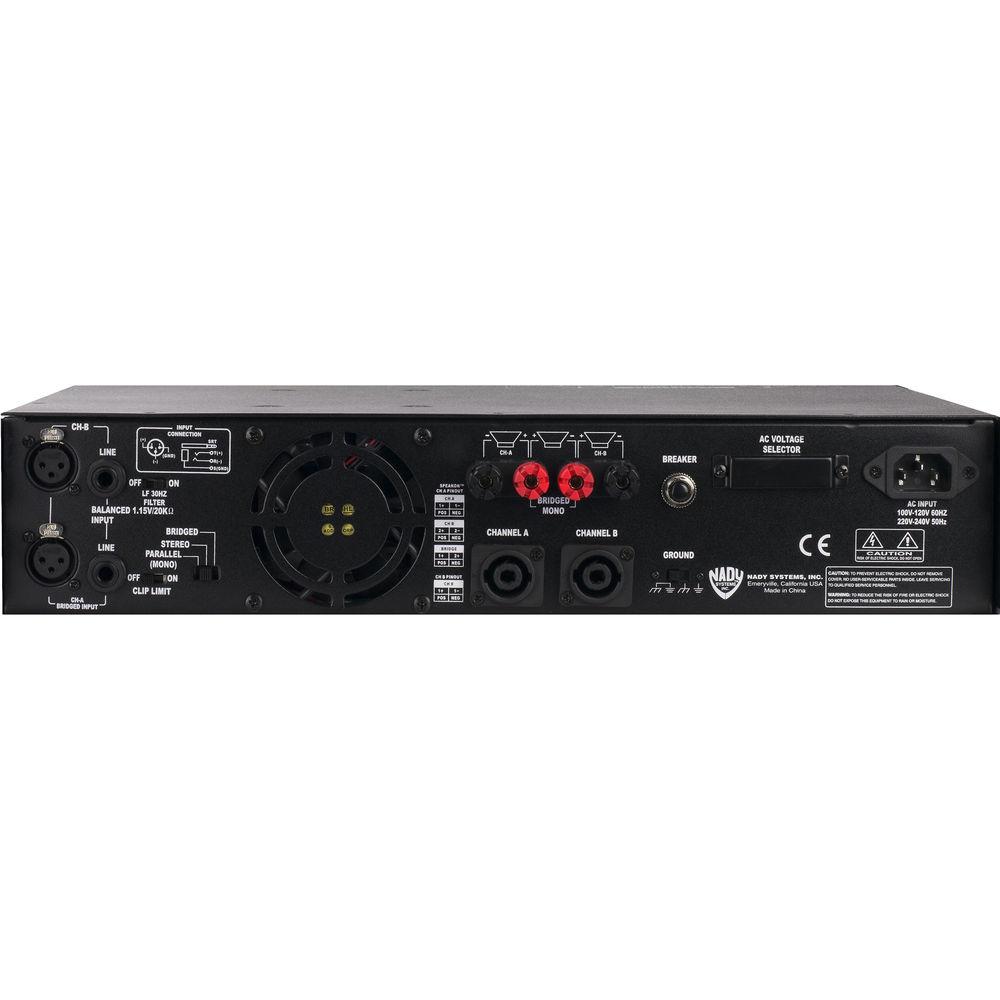

2 x Detented Volume Control Knobs | | Controls Rear Panel | 1 x Mode Selector Switch
1 x Ground-Lift Switch
1 x Voltage Selector Switch
1 x Clip Limiter Switch
1 x LF Filter Switch | | Indicators | 1 x Green Power LED
2 x Green Signal LEDs
2 x Red Clip LEDs | | Cooling | Variable-Speed Fan, Back-to-Front Airflow | | Protection | Full Short Circuit, Open Circuit, Thermal, Ultrasonic, and RF Protection; Stable into Reactive or Mismatched Loads; On/Off Muting; Current Limiter (Crowbar) | | Power Requirements | 110-120VAC or 220-240VAC, 50/60Hz
15A Fuse | | Dimensions (WxDxH) | 19 x 15.7 x 3.5" (483 x 400 x 89mm) | | Weight | 34.3 lbs (15.6kg) | | | | Package Weight | 40.65 lb | | Box Dimensions (LxWxH) | 23.0 x 21.0 x 7.0" |
