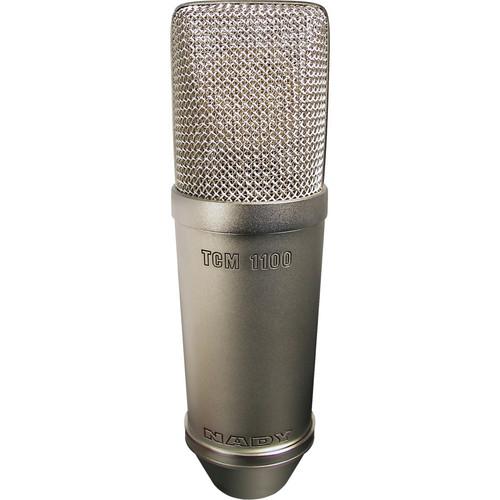

User Manual for Nady TCM-1100 Cardioid Vacuum Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Nady TCM-1100 Cardioid Vacuum Tube Condenser
- Product category: Tube Microphones Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Tube Microphones
|
User manual for the Nady TCM-1100 Cardioid Vacuum Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The TCM-1100 Cardioid Vacuum Tube Condenser Microphone from Nady is a cost-effective yet versatile large-diaphragm microphone for general recording applications. Its tube output stage features a 6072 (selected from 12AT7) vacuum tube, for vintage warmth, color, and analog saturation. The cardioid polar pattern minimizes off-axis noise and feedback. The external TMPS-1 power supply is included. The TCM 1100 is ideal for recording vocals, general instruments, PA cabinets, and more. - Cardioid pattern pickup and faithful sound reproduction - suitable for the most critical (vocal or instrumental) live sound or studio recording and broadcasting applications
- Hand-tooled brass capsule with a 3-micron gold-sputtered Mylar diaphragm (1.1") for maximum sensitivity, long life, subtle sonic detail, and excellent tone
- Unique, specially designed gold-plated center element creates a gentle extension of the top octaves and an enhanced transient response
- 6072 (classic 12AT7) vacuum tube and special output transformer deliver pristine sound with ultra-transparency
- Almost all-brass parts construction ensures years of rugged reliability
- Supplied with sturdy portable plastic carrying case and 16' / 7-pin XLR cable and TMPS-1 power supply (with switchable 115/230V operation and balanced output)
UPC: 634343002195 In the Box Nady TCM-1100 Cardioid Vacuum Tube Condenser Microphone TMPS-1 Remote Power Supply 7-Pin XLR Microphone Cable (XC-7P) Plastic Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady TCM-1100 Cardioid Vacuum Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady TCM 1100 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.1" / 27.94 mm | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 26 dB CCIR
116 dB A-Weighted | | Maximum SPL | 122 dB SPL | | THD | 1% | | Impedance | 250 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 34 dBV/Pa | | | | Output Connectors | 1 x 7-Pin XLR | | Operating Temperature | 14 to 140°F / -10.00 to 60.00°C | | Operating Humidity | 90% | | Length | 6.50" / 165 mm | | Diameter | 2.17" / 55 mm | | Weight | 14.82 oz / 420 g | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 13.7 x 11.8 x 3.5" |
