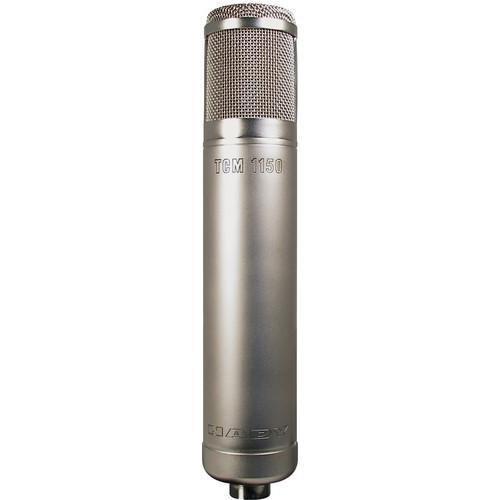

User Manual for Nady TCM-1150 Multi-Pattern Vacuum Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Nady TCM-1150 Multi-Pattern Vacuum Tube Condenser
- Product category: Tube Microphones Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Tube Microphones
|
User manual for the Nady TCM-1150 Multi-Pattern Vacuum Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The TCM-1150 Multi-Pattern Vacuum Tube Condenser Microphone from Nady is a cost-effective yet versatile large-diaphragm microphone for general recording applications. Its tube output stage features a 6072 (selected from 12AT7) vacuum tube, for vintage warmth, color, and analog saturation. There are selectable cardioid, omnidirectional, and figure-8 polar patterns with 6 variations of each. The external TMPS-2 power supply is included. The TCM-1150 is ideal for recording vocals, general instruments, PA cabinets, and more. - Ideal for the most demanding applications, including all types of vocal and instrument pickup
- Nine different polar patterns remotely selectable on power supply for ultimate versatility in use and ease of operation: omnidirectional, cardioid, figure-8, and six intermediate stages
- Gold-sputtered, ultra-thin (1.0" diameter) mylar dual-diaphragm
- Tube preamplifier circuitry with 6072 vacuum tube (a classic 12AT7 specially selected for low distortion, superior signal-to-noise ratio and minimum sensitivity to mechanical vibrations)
- Special output transformer designed for ultra transparency and natural warm reproduction of sound
- Almost all brass parts for years of studio-workhorse reliability
- Power provided by a dedicated AC power supply with balanced XLR output for connection to any mixing console; no phantom power required
In the Box Nady TCM-1150 Multi-Pattern Vacuum Tube Condenser Microphone TMPS-2 Remote Power Supply Power Cord SSM-1150 Elastic Suspension Shockmount XC-7P 30' (10 m) Connecting Cable with 7-pin XLR FW-1150 Foam Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady TCM-1150 Multi-Pattern Vacuum Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady TCM-1150 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 74 dB | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 134 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -36 dBV/Pa at 1 kHz | | Dynamic Range | 116 dB | | | | Output Connectors | 1 x 7-Pin XLR | | Operating Temperature | 14 to 140°F / -10.00 to 60.00°C | | Operating Humidity | 90% | | Length | 9.45" / 240 mm | | Diameter | 1.81" / 46 mm | | Weight | 1.89 lb / 860 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
