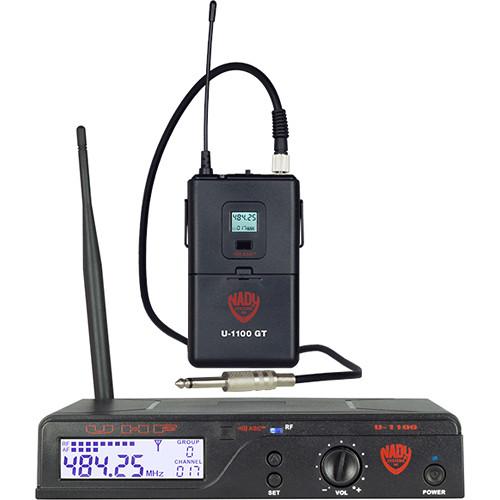

Product description The U-1100 GT Instrument Bodypack System from Nady is designed for guitar players who wish to roam about the stage wirelessly. It includes a U-1100 receiver, power supply, a U-1100GT transmitter, and a cable to attach your transmitter to your instrument. This system gives you 100 selectable UHF frequencies, providing a clear transmission and full frequency response in the process. The system provides uninterrupted PLL UHF performance, giving you 120 dB of dynamic range, and a range of up to 500' line of sight. A built-in auto-scan function allows you to ascertain open channels and then pair the components of your system quickly and conveniently. Auto-scan can also be used to set-up multiple systems for simultaneous operation within the same space. The units feature a rugged ABS housing to ensure durability. U-1100 Wireless Receiver - Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear panel removable swivel BNC antenna
- Front panel touch control buttons for ease of channel selection and ASC operation

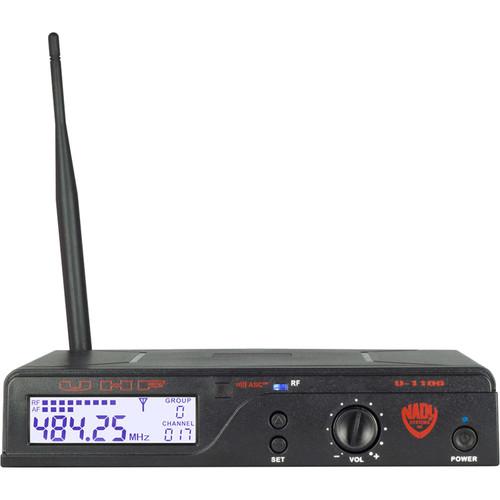

- Full front panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

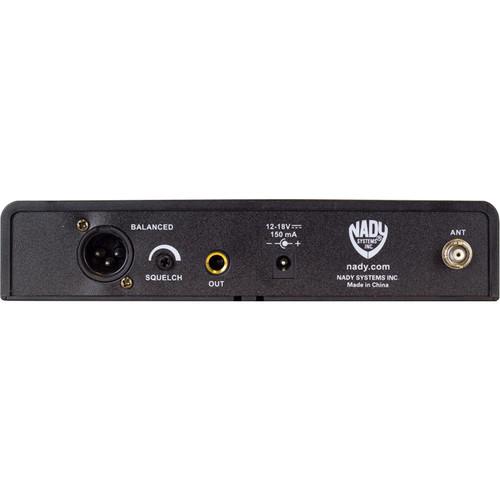

- Back panel, balanced XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack
- Externally powered with included universal voltages 110-220 VAC / 13.5 VDC 400 mA adapter
- Rugged all ABS plastic housing for long-term durability
U-1100GT Guitar/Instrument Transmitter - Touch buttons for On/Off power and Mute allow convenient audio muting with the transmitter on
- LCD display (with backlighting) including Channel and Frequency Selected, Battery Level status
- Manual selectable channel with Up/Down recessed buttons or ASC sync with RX selected Channel and Frequency
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Compact housing, durable external attached antenna and unique locking 3.5mm mini plug connector for instrument cable
UPC: 634343285550 In the Box Nady U-1100 GT Instrument Bodypack System U-1100 Receiver U-1100GT Bodypack Transmitter Instrument Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-1100 GT Instrument Bodypack System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-1100 GT Specs | | | Operating Frequency Range | (A) 480-504.75 MHz and (B) 505-529.75 MHz | | Frequency Synthesizer | PLL (100 channels selectable) 250 kHz/step | | System Frequency Selection | <0.005% stability | | Frequency Response | 50 Hz to 18 kHz ±3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) ±25 kHz normal, ±75 kHz max | | Operating Range | 150 to 250' / 45.7 to 76.2 m typical, 500' / 152.4 m max line-of-sight | | | | Receiver Type | Dual conversion Super Heterodyne | | Selectivity | 60 dB, normal ±75 kHz offset | | Image Rejection | -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | GROUP / CHANNEL / AUTOSCAN, IR ASC Sync buttons, Power ON / OFF, Switch, MUTE level pot, VOLUME level pot | | Display | Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line-out unbalanced, adjustable line audio output; Mic-out balanced, fixed mic level audio output | | Output Impedance | Unbalanced, 1 kOhm; and Balanced; for 600 Ohms loads | | Power Requirements | 13.5 VDC / 0.4 A | | Antenna | One removable swivel BNC antenna | | Housing Material | ABS Plastic | | Dimensions (W x D x H) | 8.0 x 6.0 x 1.3" (20.4 x 15.3 x 3.2 cm) | | Weight | 17.9 oz (556.8 g) | | | | RF Output Power | +14 dBm (25 mW typical)/50 Ohms | | Harmonic & Spurious Emissions | -50 dBc normal | | Input Impedance | 500 kOhms | | Controls | Power OFF/ON, MUTE | | LED Display | Channel/Frequency, Battery status, Mute LED | | Antenna Type | External, attached | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8 to 10 hours typical, alkaline | | Housing Material | ABS Plastic | | Dimensions | 2.5 x 0.75 x 4.2" / 6.35 x 1.9 x 10.7 cm | | Weight | 2.6 oz / 80.87g without batteries | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 2.9" |
