Product description The U-1100/HM-3 UHF Omnidirectional Condenser Wireless System with 1 x HM-3 Headworn Microphone from Nady Systems includes a 100-channel U-1100 single receiver, an AC-1100 power supply, one HT-1100 handheld microphone transmitter, and one HM-3 Headmic Headworn Omnidirectional Condenser Microphone. The U-1100 has 100 selectable UHF frequencies to provide clear and transparent audio with full-frequency response. The rugged ABS housing doesn’t give way for a long time. The system offers uninterrupted PLL UHF performance with 120 dB dynamic range and line-of-sight operation up to 500'.The HM-3 Headmic Microphone is specifically designed to provide close-mic'd vocal pickup in applications for which hands-free operation is required. The microphone features an adjustable boom that can be set at any angle required by the user. Its ear rests and temple provide maximum stability during use, even while moving or shaking the head. The durable cable assembly and internal construction are designed to minimize handling noise from contact and movement. The advanced design offers improved reliability under adverse operating conditions and stable performance. The HM-3 requires no troublesome batteries and is phantom powered from the input connector to the transmitter. U-1100 Wireless Receiver - Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear-panel removable swivel-BNC antennas

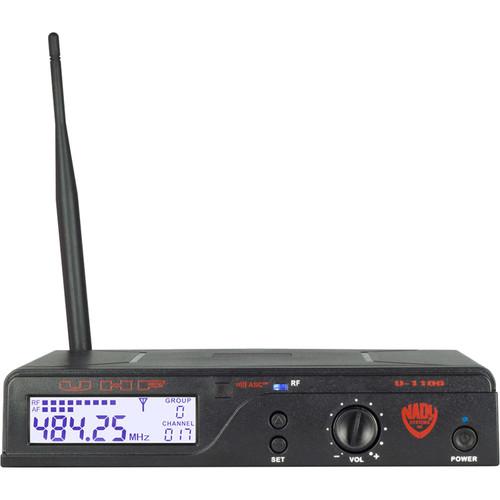

- Front-panel touch-control buttons for ease of channel selection and ASC operation
- Full front-panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

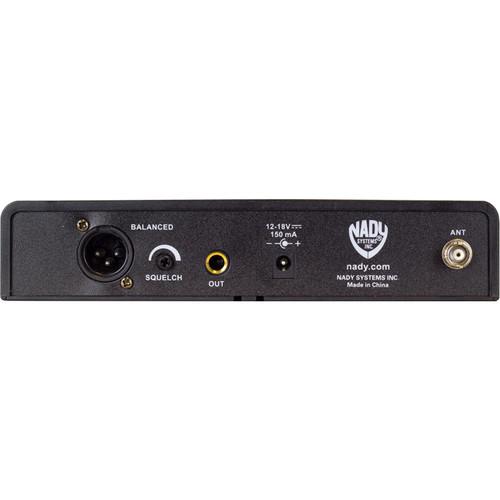

- Back-panel, balanced-XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line-Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
- Externally powered with included universal voltages 110V-220 VAC / 13.5 VDC 400 mA adapter
- Rugged all-ABS plastic housing for long-term durability
- Includes one U-1100HT handheld microphone with neodymium dynamic cartridge for optimal true sound, maximum feedback rejection, and minimal handling noise
U-1100 HT Handheld Microphone Transmitter - Touch buttons for On/Off power and Mute allow convenient audio muting with the transmitter on
- LCD display (with backlighting) including Channel and Frequency Selected, Battery-Level status
- Manual selectable channel with Up/Down recessed buttons or ASC sync with RX selected Channel and Frequency
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Features a unidirectional neodymium dynamic cartridge for optimal true sound, maximum feedback rejection and minimal handling noise
- Sleek housing with internal antenna for durable long life and optimum aesthetics
HM-3 Headset - Omnidirectional condenser element provides exceptional audio with excellent transparency and gain before feedback
- Lightweight construction is designed for long, comfortable wear
- Requires low-voltage phantom power as supplied by most wireless bodypack transmitters

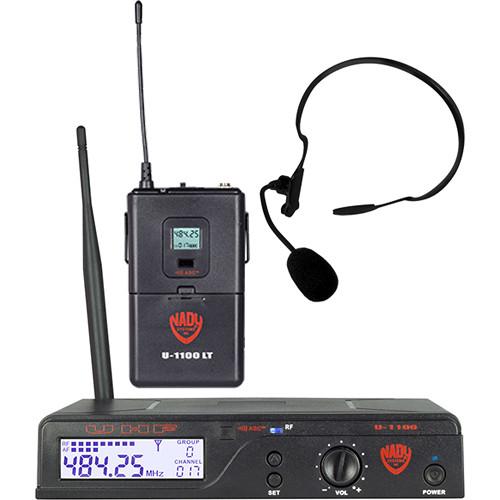

UPC: 634343287219 In the Box Nady U-1100/HM-3 UHF Omnidirectional Condenser Wireless System with 1 x HM-3 Headworn Microphone U-1100 Receiver HT-1100 Transmitter HM-3 Headmic Condenser Microphone Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-1100 HM-3 UHF Omnidirectional Condenser Wireless System with 1 x HM-3 Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-1100/HM-3 Specs | | | Operating Frequency Range | (A) 480-504.75 MHz and (B) 505-529.75 MHz | | Frequency Synthesizer | PLL (100 channels selectable) 250 kHz/step | | System Frequency Selection | <0.005% stability | | Frequency Response | 50 Hz - 18 kHz +/-3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) +/-25 kHz normal, +/-75 kHz max | | Operating Range | 150-250' (45.7-76.2 m) typical, 500' (152.4 m) max line-of-sight | | | | Receiver Type | Dual-conversion Super Heterodyne | | Selectivity | 60 dB, normal +/-75 kHz offset | | Image Rejection | -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot | | Display | Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line Out Unbalanced, adjustable line-audio output; Mic Out Balanced, fixed mic-level audio output | | Output Impedance | Unbalanced, 1 kOhm and Balanced; for 600-Ohm loads | | Power Requirements | 13.5 VDC/0.4 A | | Antennas | Dual removable swivel-BNC antenna | | Housing Material | ABS Plastic | | Dimensions (W x D x H) | 8 x 6 x 1.25" (20.4 x 15.3 x 3.2 cm) | | Weight | 17.9 oz (556.8 g) | | | | RF Output Power | +14 dBm (25 mW typical)/50 Ohms | | Harmonic & Spurious Emissions | -50 dBc normal | | Input Impedance | 10 kOhms | | Controls | Power OFF/ON, MUTE | | LED Display | Channel/Frequency, Battery status, Mute LED | | Antenna Type | Integral | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8-10 hours typical, alkaline | | Housing Material | ABS Plastic | | Dimensions (L x D) | 9.5 x 1.5" (24.1 x 5.1 cm) | | Weight | 10.4 oz (323.5 g) without batteries | | | | Element | Condenser | | Pattern | Cardioid (Omnidirectional) | | Frequency Response | 100 Hz to 13 kHz | | Sensitivity | -40 dB ±3 dB (At 1 kHz, 74 dB SPL) | | Impedance | 2.2 kOhms: ±30% at 1 kHz | | Cable Length | 43" (1.1 m) | | Dimensions | Headset: 5.66" (144 mm)
Nominal at widest point: 4.50" (114 mm)
Flexible boom: 0.155" (3.9 mm) diameter | | Weight | 1.10 oz (30.8 g) with cable | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 14.1 x 12.0 x 3.0" |
