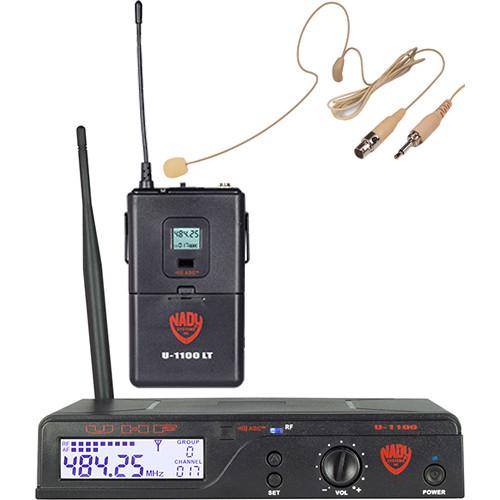

Product description The U-1100/HM-45U Over-Ear Unidirectional Condenser with 1 x HM-45U Unidirectional Headset Microphone from Nady Systems includes a 100-channel U-1100 dual receiver, an AC-1100 power supply, one LT-1100 bodypack transmitter microphone, and one HM-45U Unidirectional Headset microphone. The U-1100 has 100 selectable UHF frequencies to provide clear and transparent audio with full-frequency response. The rugged ABS housing doesn't give way for a long time. The system offers uninterrupted PLL UHF performance with 120 dB of dynamic range and up to 500' line-of-sight operation.The HM-45U Headset microphone's arch-shaped ear rest is placed over whichever ear you choose. The tip of the supporting arches rests behind the ear, providing the necessary stability during use. The mic boom descends from the ear and should be placed close to the mouth in a favorable audio position. You can bend the boom and headset slightly for optimal fit. You can also connect the Mini-XLR or 3.5mm phone plug of the microphone cable to the input jack of the bodypack transmitter or power supply adaptor. When using a power supply adaptor, you can connect it to the microphone input of an audio preamp that provides phantom power. - U-1100 Wireless Receiver
-
- Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear-panel removable swivel-BNC antennas
- Front-panel touch-control buttons for ease of channel selection and ASC operation

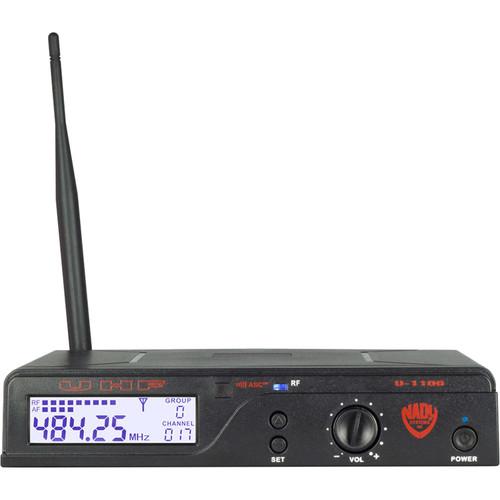

- Full front panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

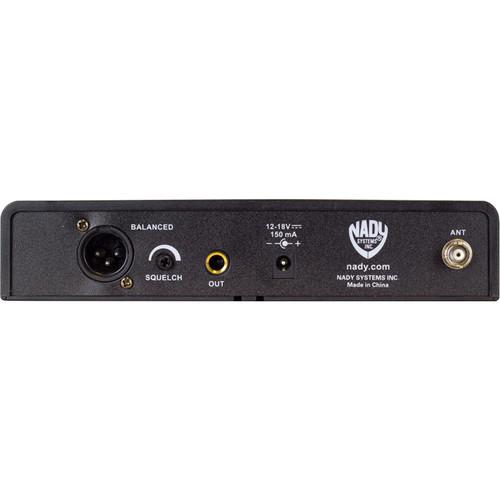

- Back-panel, balanced-XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line-Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
- Externally powered with included universal voltages 110 to 220 VAC / 13.5 VDC 400mA adapter
- Rugged all-ABS plastic housing for long-term durability
- Includes one U-1100LT bodypack microphone
- U-1100 LT Bodypack Microphone Transmitter
-
- Sliding power switch off/ mute/on allows convenient audio muting with the transmitter on
- LCD display (with back lighting) including channel and frequency selected, battery-level status
- Manual selectable channel with Up/Down recess buttons or ASC sync with RX selected Channel and frequency
- Input level pot
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Compact housing, durable external attached antenna and unique locking 3.5mm mini plug connector for Instrument cable or MIC plug
- HM-45U Headset
-
- Wide bandwidth, unidirectional electret condenser mic ensures clean transparent audio and enhanced vocal pickup with improved gain before feedback
- Durable, thin metal frame can be easily molded to any user
- Ergonomic single-ear design and comfortable fit with or without glasses, hats, or headphones (also no hairstyle hindrance)
- Tiny capsule with diameter of 5mm for lightest weight and hours of comfortable use
- Three sizes of foam windscreen included to reduce wind and popping noise
- Extendable boom fully adjustable 100° for optimum mic-capsule placement
- Available with mini-XLR or 3.5mm phone plug for wired and wireless applications (fits most standard wireless bodypack transmitters)
- Low-voltage phantom power required (1.5 to 6 VDC)
In the Box Nady U-1100/HM-45U Over-Ear Unidirectional Condenser with 1 x HM-45U Unidirectional Headset Microphone U-1100 Receiver LT-1100 Transmitter HM-45U Headset Microphone 1100 AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-1100 HM-45U Over-Ear Unidirectional Condenser with 1 x HM-45U Unidirectional Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-1100/HM-45U Specs | | | Operating Frequency Range | A: 480 to 504.75 MHz
B: 505 to 529.75 MHz | | Frequency | Synthesized: PLL (100 channels selectable) 250 kHz/step | | Frequency Stability | PII System: <0.005% | | Frequency Response | 50 Hz to 18 kHz +/-3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) +/-25 kHz normal, +/-75 kHz maximum | | Operating Range | Typical: 150 to 250' (45.7 to 76.2 m) Maximum Line of Sight: 500.0' (152.4 m) | | | | System | Dual conversion Super Heterodyne | | Selectivity | 60 dB, normal +/-75 kHz offset | | Image Rejection | -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | Group/channel/autoscan, IR ASC sync buttons, power on/off, switch, mute level pot, volume level pot | | Display | LCD/LED: Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line-out unbalanced, adjustable line-audio output; Mic Out balanced, fixed mic-level audio output | | Output Impedance | Unbalanced: 1 kOhm
Balanced: 600-ohm loads | | Power Requirement | 13.5 VDC/0.4 A | | Antennas | Dual removable swivel-BNC antenna | | Construction | Housing: ABS plastic | | Dimensions (W x D x H) | 8.0 x 6.0 x 1.2" (20.4 x 15.3 x 3.2 cm) | | Weight | 17.9 oz (556.8 g) | | | | RF Output Power | 14 dBm (25 mW typical)/50 ohms | | Emission | Harmonic/Spurious: -50 dBc normal | | Input Impedance | 5 kOhms | | Controls | Power off/on, mute | | Input Connector | Locking 3.5 mm mini-jack | | Display | LCD/LED: Channel/frequency, BATT status, mute LED | | Antenna Type | External | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8 to 10 hours typical, alkaline | | Construction | Housing: ABS plastic | | Dimensions (W x H x D) | 2.5 x 0.7 x 4.2" (6.3 x 1.9 x 10.7 cm) | | Weight | 2.6 oz (80.8 g) without batteries | | | | Element | Back electret condenser | | Output Connector | 3-pin mini XLR connector | | Polar Pattern | Unidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -42 ±3 dB | | Output Impedance | 1 kOhm ±5% | | SPL | Maximum: 130 dB | | Power Supply | 1.5 to 10 VDC | | Cable | 0.05" (1.5 mm) | | Wiring | GND= Pin 1, hot (+), pin 3, 2 kOhms, pin 2 | | Microphone Dimensions | 0.197" (0.48 mm) | | Weight | 1.65 oz (46.77 g) | | | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 3.0" |
