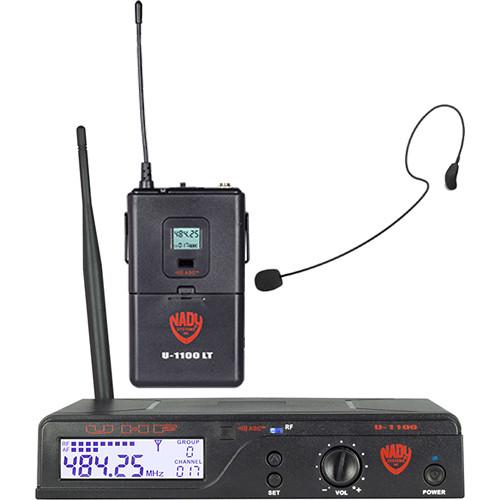

Product description The U-1100 Over-the-Ear UHF Wireless System with HM-35 Headworn Omnidirectional Condenser Microphone from Nady includes a U-1100 100-channel UHF receiver, a U-1100LT bodypack transmitter, and HM-35 Headmic headworn omnidirectional condenser microphone. The U-1100 has 100-selectable UHF frequencies to provide clear and transparent audio with full frequency response. The system offers PLL UHF performance with clear, interference-free audio, 120 dB dynamic range, and line-of-sight operation up to 500'.The HM-35 Headmic microphone is optimally designed for singing and speech applications. The HM-35's small size and light weight make it ideal for all hands-free use with minimum visibility. It is suitable for singers/musicians (drummers, keyboard players), vocal/dance performers, DJs, television announcers, public speakers, and aerobics instructors. U-1100 Wireless Receiver - Interference-free PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly and conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear-panel removable swivel-BNC antennas
- Front-panel touch-control buttons for ease of channel selection and ASC operation

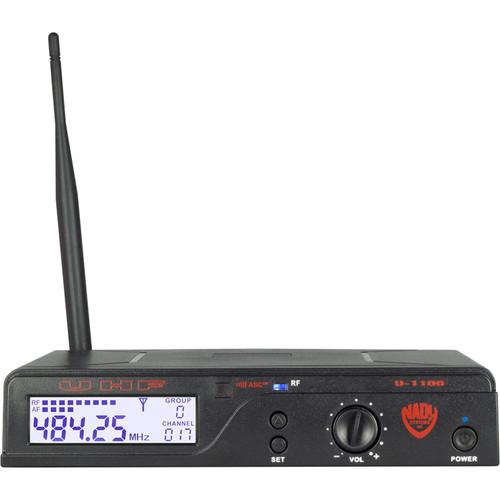

- Full front-panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

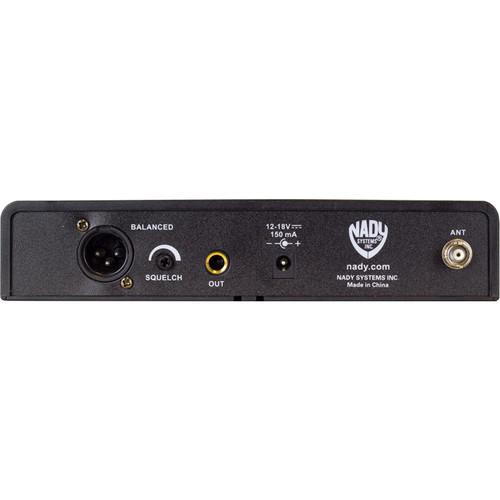

- Back-panel balanced XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line-Level SUM outputs, squelch (RF mute) adjust, DC input jack, Antenna Jacks
- Receiver is externally powered with included universal voltages 110-220 VAC / 13.5 VDC 400 mA adapter
- Rugged all-ABS plastic housing for long-term durability
- Includes one U-1100LT bodypack transmitter with HM-35 Headmic microphone
U-1100LT Bodypack Transmitter - Sliding power switch off/mute/on allows convenient audio muting with the transmitter on
- LCD display (with back lighting) including channel and frequency selected, battery-level status
- Manual selectable channel with Up/Down recess buttons or ASC sync with RX selected channel and frequency
- Input level potentiometer
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Compact housing, durable external attached antenna, and unique locking 3.5mm mini-plug connector for instrument cable or MIC plug
HM-35 Headmic Microphone - Wide bandwidth, omnidirectional electret condenser microphone ensures clean, transparent audio and enhanced vocal pickup with improved gain before feedback
- Durable, thin metal frame can be easily molded to any user
- Ergonomic single-ear design and comfortable fit with or without glasses, hats, or headphones (also no hairstyle hindrance)
- Tiny capsule with diameter of 5mm for light weight and hours of comfortable use
- Three sizes of foam windscreens included to reduce wind and popping noise
- Extendable boom fully adjustable 100° for optimum mic-capsule placement
- Low-voltage phantom power required (1.5-6 VDC)
UPC: 634343287806 In the Box Nady U-1100 Over-the-Ear UHF Wireless System with HM-35 Headworn Omnidirectional Condenser Microphone U-1100 Receiver U-1100LT Bodypack Transmitter HM-35 Omnidirectional Headmic Microphone Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-1100 Over-the-Ear UHF Wireless System with HM-35 Headworn Omnidirectional Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-1100/HM-35 Specs | | | Operating Frequency Range | A: 480-504.75 MHz
B: 505-529.75 MHz | | Frequency Synthesizer | PLL (100 selectable channels) 250 kHz/step | | System Frequency Selection | <0.005% stability | | Frequency Response | 50 Hz - 18 kHz ±3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) ±25 kHz normal, ±75 kHz max | | Operating Range | 150-250' (45.7-76.2 m) typical, 500' (152.4 m) max line-of-sight | | | | Receiver Type | Dual conversion Super Heterodyne | | Selectivity | 60 dB, normal ±75 kHz offset | | Image Rejection | -70 dB, minimum Sensitivity, -107 dBm, normal
Spurious rejection 65 dB, normal | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot | | Display | Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line-out unbalanced, adjustable line-audio output; Mic-out balanced, fixed mic-level audio output | | Output Impedance | Unbalanced, 1 kOhm and Balanced for 600 Ohm loads | | Power Requirements | 13.5 VDC/0.4 A | | Antennas | Dual removable swivel-BNC antenna | | Housing Material | ABS plastic | | Dimensions (W x D x H) | 8 x 6 x 1.25" (20.4 x 15.3 x 3.2 cm) | | Weight | 17.9 oz (556.8 g) | | | | RF Output Power | +14 dBm (25 mW typical)/50 Ohms | | Harmonic & Spurious Emissions | -50 dBc normal | | Input Impedance | 5 kOhms | | Controls | Power OFF/ON, MUTE | | LED Display | Channel/Frequency, Battery status, Mute LED | | Antenna Type | External | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8-10 hours typical, alkaline | | Housing Material | ABS plastic | | Dimensions (W x H x D) | 2.5 x 0.7 x 4.2" (6.3 x 1.9 x 10.7 cm) | | Weight | 2.6 oz (80.8 g) without batteries | | | | Element | Back electret condenser | | Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -42 ±3 dB | | Impedance | 1 kOhm: ±5% | | Power Supply | 1.5-10 VDC | | Max SPL Level | 130 dB | | Cable Length | 0.059" (1.5 mm) | | Wiring | GND = Pin 1, Hot (+) = Pin 3 -> 2 kOhms -> Pin 2 | | Output Connector | 3.5 mm phono plug | | Dimensions | 0.197" (5 mm) Capsule Diameter | | Weight | 1.65 oz (23 g) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 14.3 x 12.0 x 2.9" |
