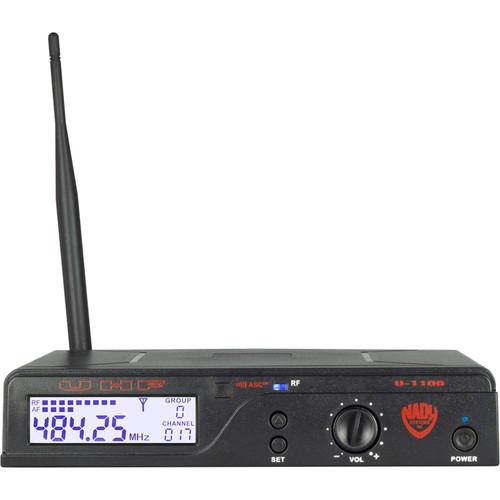

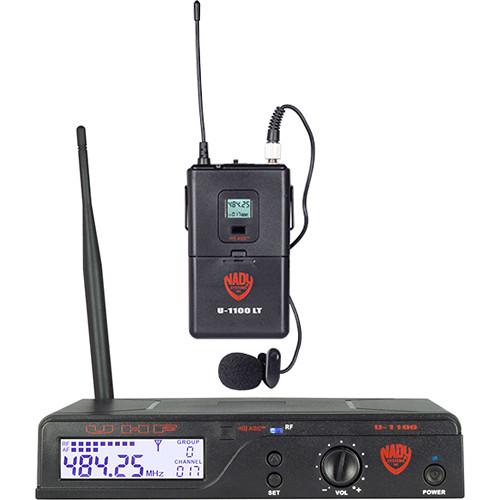

Product description The U-1100 Single Receiver UHF Wireless System from Nady includes a 100-channel U-1100 single receiver, power supply, one U-1100LT bodypack transmitter, and one LM-14/O omnidirectional lavalier microphone with 3.5mm locking plug. The U-1100 has 100 selectable UHF frequencies to provide clear and transparent audio with full frequency response. The rugged ABS housing doesn't give away for a long time. The system offers uninterrupted PLL UHF performance up to 500' (line-of-sight) with 120 dB dynamic range and operation. - U-1100 Wireless Receiver
-
- Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear panel removable swivel BNC antenna
- Front panel touch control buttons for ease of channel selection and ASC operation
- Full front panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

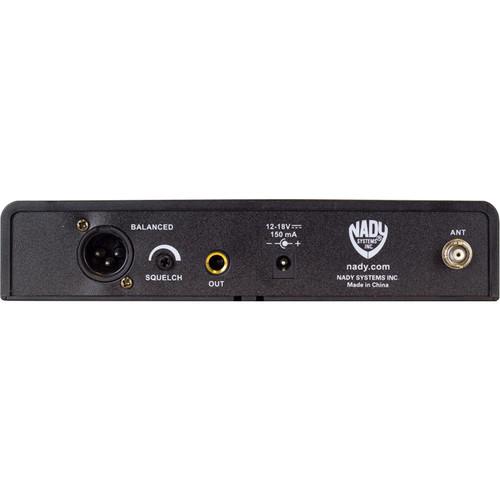

- Back panel, balanced XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line Level outputs; squelch (RF mute) adjust; DC input jack, Antenna Jack.
- Externally powered with included universal voltages 110 to 220 VAC / 13.5 VDC 400mA adapter
- Rugged all ABS plastic housing for long-term durability
- Includes one U-1100LT bodypack transmitter
- U-1100LT Bodypack Transmitter
-
- Sliding power switch off/ mute/on allows convenient audio muting with the transmitter on
- LCD display (with back lighting) including channel and frequency selected, battery level status
- Manual selectable channel with Up/Down recess buttons or ASC sync with RX selected Channel and frequency
- Input level pot
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Compact housing, durable external attached antenna and unique locking 3.5mm mini plug connector for Instrument cable or MIC plug
- LM-14/O Omnidirectional Microphone
-
- Omnidirectional pick-up pattern
- 3.5mm locking plug
UPC: 634343285536 In the Box Nady U-1100 Single Receiver UHF Wireless System with 1 x LM-14/O Omnidirectional Lavalier Microphone U-1100 Receiver U-1100LT Bodypack Transmitter LM-14/O Omnidirectional Lavalier Microphone Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-1100 Single Receiver UHF Wireless System with 1 x LM-14 O Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-1100 LT/O Specs | | | Operating Frequency Range | A: 480 to 504.75 MHz
B: 505 to 529.75 MHz | | Frequency | Synthesized: PLL (100 channels selectable) 250 kHz/step | | Frequency Stability | PII System: <0.005% | | Frequency Response | 50 Hz to 18 kHz +/-3dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) +/-25 kHz normal, +/-75 kHz maximum | | Operating Range | Typical: 150 to 250' (45.7 to 76.2 m)
Maximum Line of Sight: 500' (152.4 m) | | | | System | Dual conversion Super Heterodyne | | Selectivity | Normal: 60 dB
Offset: +/-75 kHz | | Image Rejection | -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | Group/channel/autoscan, IR ASC sync buttons, power on/off, switch, mute level pot, volume level pot | | Display | LCD/LED: Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line-out unbalanced, adjustable line audio output; mic-out balanced, fixed mic level audio output | | Output Impedance | Unbalanced: 1 kOhm
Balanced: 600 Ohms loads | | Power Requirement | 13.5 VDC/0.4 A | | Antennas | Removable swivel BNC antenna | | Construction | Housing: ABS plastic | | Dimensions (W x D x H) | 8.0 x 6.0 x 1.2" (20.4 x 15.3 x 3.2 cm) | | Weight | 17.9 oz (507.5 g) | | | | RF Output Power | 14 dBm (25 mW typical)/50 Ohms | | Emission | Harmonic/Spurious: -50 dBc normal | | Input Impedance | 5 kOhms (lavalier); 500 kOhms (instrument) | | Controls | Power off/on, mute | | Input Connector | Locking 3.5 mm mini-jack | | Display | LCD/LED: Channel/frequency, BATT status, mute LED | | Antenna Type | External | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8 to 10 hours typical, alkaline | | Construction | Housing: ABS plastic | | Dimensions (W x H x D) | 2.5 x 0.7 x 4.2" (6.3 x 1.9 x 10.7 cm) | | Weight | 2.6 oz (80.8 g) without batteries | | | | Plug | 3.5 mm locking plug | | Directivity | Omnidirectional | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 14.1 x 11.9 x 2.9" |
