User Manual for Nady U-2100 Dual Receiver UHF Wireless System with Two LM-14U Unidirectional Lavalier Microphones Click to enlarge the picture
Contents of the user manual for the Nady U-2100 Dual Receiver UHF Wireless
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady U-2100 Dual Receiver UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

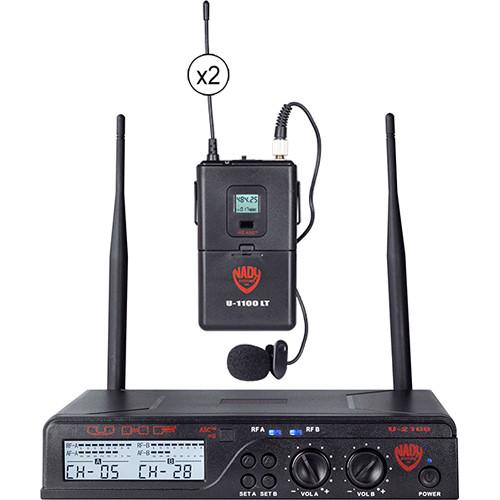

Product description The U-2100 Dual Receiver UHF Wireless System from Nady includes a 100-channel U-2100 dual receiver, two LT-1100 bodypack transmitters, and two LM-14U unidirectional lavalier microphones with 3.5mm locking plug. Also included is an AC-2100 power supply. The U-2100 has 100 selectable UHF frequencies to provide clear and transparent audio with full frequency response. The rugged ABS housing doesn't give way for a long time. The system offers uninterrupted PLL UHF performance with 120 dB dynamic range and line-of-sight operation up to 500'. - U-2100 Wireless Receiver
-
- Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear panel removable swivel BNC antennas

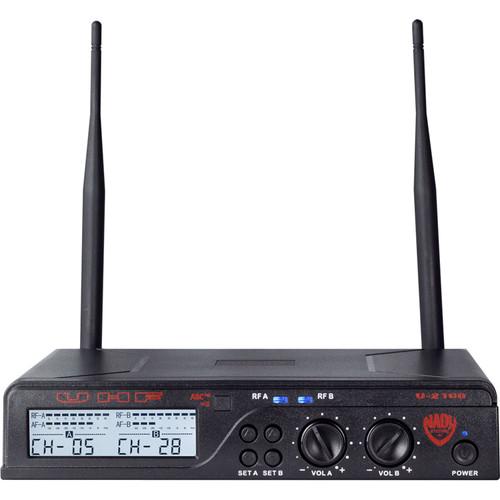

- Front panel touch control buttons for ease of channel selection and ASC operation
- Full front panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

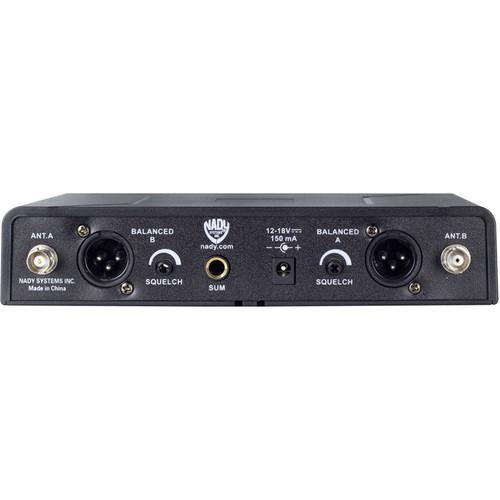

- Back panel, balanced XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks
- Externally powered with included universal voltages 110 to 220 VAC / 13.5 VDC 400mA adapter
- Rugged all ABS plastic housing for long-term durability
- U-1100 LT Bodypack Transmitter
-
- Sliding power switch off/mute/on allows convenient audio muting with the transmitter on
- LCD display (with back lighting) including channel and frequency selected, battery level status
- Manual selectable channel with Up/Down recess buttons or ASC sync with RX selected Channel and frequency
- Input level pot
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Compact housing, durable external attached antenna and unique locking 3.5mm mini plug connector for instrument cable or mic plug
- LM-14U Microphone
-
- Unidirectional pick-up pattern
- 3.5mm locking plug
UPC: 634343287936 In the Box Nady U-2100 Dual Receiver UHF Wireless System with Two LM-14U Unidirectional Lavalier Microphones U-2100 Receiver 2 x U-1100LT Bodypack Transmitter 2 x LM-14/O Omnidirectional Lavalier Microphone 2100 AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-2100 Dual Receiver UHF Wireless System with Two LM-14U Unidirectional Lavalier Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-2100 LT/U Specs | | | Operating Frequency Range | A: 480 to 504.75 MHz
B: 505 to 529.75 MHz | | Frequency | Synthesized: PLL (100 channels selectable) 250 kHz/step | | Frequency Stability | PLL System: <0.005% | | Frequency Response | 50 Hz to 18 kHz ±3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) ±25 kHz normal, ±75 kHz maximum | | Operating Range | Typical: 150 to 250' (45.7 to 76.2 m)
Maximum Line of Sight: 500' (152.4 m) | | | | System | Dual conversion Super Heterodyne | | Selectivity | Normal: 60 dB
Offset: ±75 kHz offset | | Image Rejection | Minimum Sensitivity: -70 dB
Normal Spurious Rejection: -107 dBm
Normal: 65 dB | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | Group/channel/autoscan, IR ASC sync buttons, power on/off, switch, mute level pot, volume level pot | | Display | LCD/LED: Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line-out unbalanced, adjustable line audio output; mic-out balanced, fixed mic level audio output | | Output Impedance | Unbalanced: 1 kOhms
Balanced: 600 Ohms loads | | Power Requirement | 13.5 VDC, 0.4 A | | Antennas | Dual removable swivel BNC antenna | | Construction | Housing: ABS plastic | | Dimensions (W x D x H) | 8 x 6 x 1.25" (20.4 x 15.3 x 3.2 cm) | | Weight | 15.1 oz (469.7 g) | | | | RF Output Power | +14 dBm (25 mW typical)/50 Ohms | | Emission | Harmonic/Spurious: -50 dBc normal | | Input Impedance | 5 kOhms | | Controls | Power off/on, mute | | Input Connector | Locking 3.5 mm mini-jack | | Display | LCD/LED: Channel/frequency, battery status, mute LED | | Antenna Type | External | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8 to 10 hours typical, alkaline | | Construction | Housing: ABS plastic | | Dimensions (W x H x D) | 2.5 x 0.7 x 4.2" (6.3 x 1.9 x 10.7 cm) | | Weight | 2.6 oz (80.8 g) without batteries | | | | Plug | 3.5 mm locking plug | | Directivity | Unidirectional | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 14.1 x 12.0 x 2.6" |
