User Manual for Nady U-2100 Unidirectional UHF Wireless System with 2 x HM-20U Headmic Condenser Microphones Click to enlarge the picture
Contents of the user manual for the Nady U-2100 Unidirectional UHF Wireless System
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady U-2100 Unidirectional UHF Wireless System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

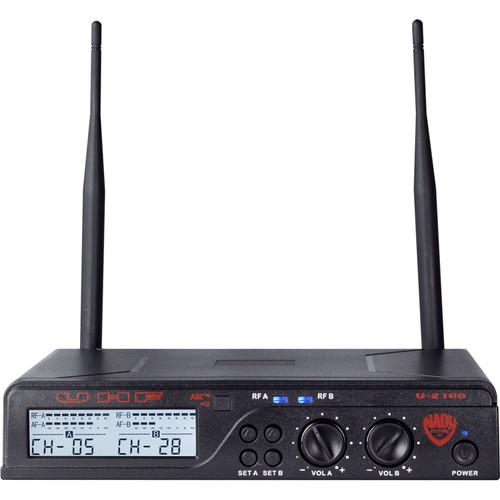

Product description The U-2100/HM-20U Unidirectional UHF Wireless System from Nady includes a 100-channel U-2100 dual receiver, an AC-2100 power supply, two HT-1100 handheld transmitter microphones, and two HM-20U unidirectional headworn microphones. The U-2100 has 100 selectable UHF frequencies to provide clear and transparent audio with full frequency response. The rugged ABS housing doesn’t give way for a long time. The system offers uninterrupted PLL UHF performance with 120 dB of dynamic range and line-of-sight operation up to 500'.The HM-20U unidirectional headmic condenser microphone is optimally designed for singing and speech applications. The HM-20U's small size and light weight make it ideal for hands-free use with minimum visibility. It is suitable for singers/musicians (drummers, keyboard players), vocal/dance performers, DJs, television announcers, public speakers, and aerobics instructors. U-2100 Wireless Receiver - Uninterrupted PLL UHF performance with 120 dB dynamic range and up to 500' line-of-sight operation
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear-panel removable swivel-BNC antennas
- Front-panel touch-control buttons for ease of channel selection and ASC operation
- Full front-panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

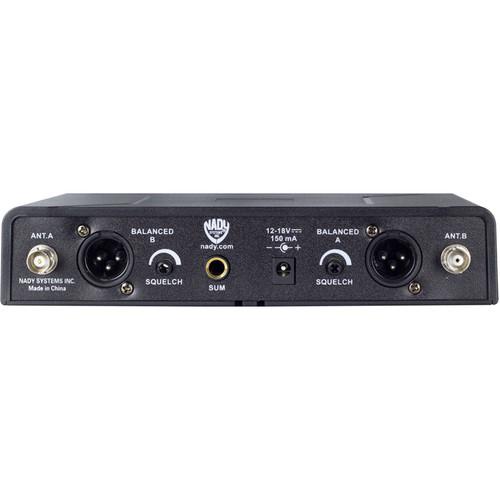

- Back-panel, balanced-XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
- Externally powered with included universal voltages 110V-220 VAC / 13.5 VDC 400 mA adapter
- Rugged all-ABS plastic housing for long-term durability
- Includes two U-1100HT handheld microphones with neodymium dynamic cartridge for optimal true sound, maximum feedback rejection, and minimal handling noise
U-1100 HT Handheld Microphone Transmitter - Touch buttons for On/Off power and Mute allow convenient audio muting with the transmitter on
- LCD display (with backlighting) including Channel and Frequency Selected, Battery-Level status
- Manual selectable channel with Up/Down recessed buttons or ASC sync with RX selected Channel and Frequency
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Features a unidirectional neodymium dynamic cartridge for optimal true sound, maximum feedback rejection and minimal handling noise
- Sleek housing with internal antenna for durable long life and optimum aesthetics

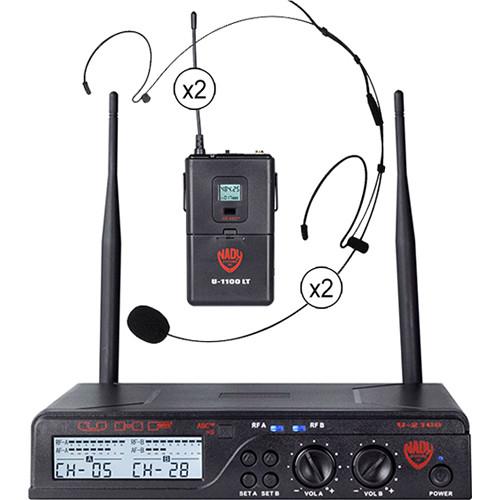

UPC: 634343287882 In the Box Nady U-2100 Unidirectional UHF Wireless System with 2 x HM-20U Headmic Condenser Microphones U-2100 Receiver 2 x HT-1100 Transmitter 2 x HM-20U HEADMIC Series Headworn Condenser Microphone with 3-Pin Mini-XLR Connector (Black) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-2100 Unidirectional UHF Wireless System with 2 x HM-20U Headmic Condenser Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-2100 / HM-20U Specs | | | Operating Frequency Range | (A) 480-504.75 MHz and (B) 505-529.75 MHz | | Frequency Synthesizer | PLL (100 channels selectable) 250 kHz/step | | System Frequency Selection | <0.005% stability | | Frequency Response | 50 Hz - 18 kHz +/-3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM (F3E) +/-25 kHz normal, +/-75 kHz max | | Operating Range | 150-250' (45.7-76.2 m) typical, 500' (152.4 m) max line-of-sight | | | | Receiver Type | Dual-conversion Super Heterodyne | | Selectivity | 60 dB, normal +/-75 kHz offset | | Image Rejection | -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal | | Mute Threshold | Adjustable (-65 to -95 dBm) | | Controls | GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot | | Display | Two Digits LCD panel indicating selected Channel; RF/AF bar-graph indicator, Battery levels, TX Channel A and B LED indicators | | Audio Outputs | Line Out Unbalanced, adjustable line-audio output; Mic Out Balanced, fixed mic-level audio output | | Output Impedance | Unbalanced, 1 kOhm and Balanced for 600-Ohm loads | | Power Requirements | 13.5 VDC/0.4 A | | Antennas | Dual-removable swivel-BNC antenna | | Housing Material | ABS Plastic | | Dimensions (W x D x H) | 8 x 6 x 1.25" (20.4 x 15.3 x 3.2 cm) | | Weight | 15.1 oz (469.7 g) | | | | RF Output Power | +14 dBm (25 mW typical)/50 Ohms | | Harmonic & Spurious Emissions | -50 dBc normal | | Input Impedance | 10 kOhms | | Controls | Power OFF/ON, MUTE | | LED Display | Channel/Frequency, Battery status, Mute LED | | Antenna Type | Integral | | Battery Type | 2 x AA alkaline or NiMH | | Battery Life | 8-10 hours typical, alkaline | | Housing Material | ABS Plastic | | Dimensions (L x D) | 9.5 x 1.5" (24.1 x 5.1 cm) | | Weight | 10.4 oz (323.5 g) without batteries | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 14.1 x 11.9 x 2.9" |
