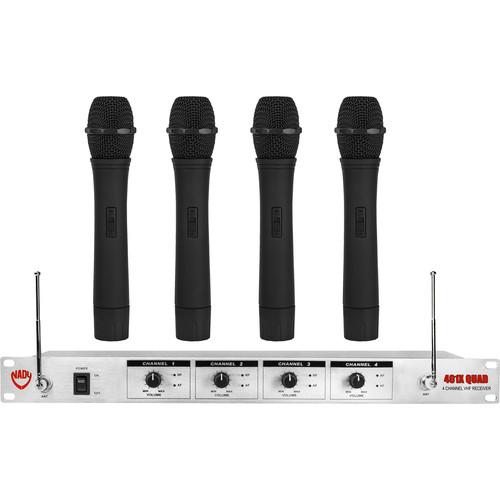

User Manual for Nady U-41 QUAD HT Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Nady U-41 QUAD HT Wireless Microphone
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
|
User manual for the Nady U-41 QUAD HT Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The Nady U-41 QUAD HT Wireless Microphone System features UHF operation and simultaneous use of the 4 included UH-4 handheld transmitters. The U-41 QUAD receiver is 19" rackmountable and features 4 separate volume controls, LED displays for audio level and AF strength, and 4 discrete outputs over XLR (mic level) and 1/4" phone (line level) connections. Its 19" all-metal frame will easily install into an audio rack, and is an ideal solution for schools, theaters, houses-of-worship, bars, nightclubs and more. - Four discrete UHF wireless receivers in a single rugged 19" all-metal rackmount housing for simultaneous operation of up to four transmitters
- Back panel balanced XLR mic level outputs; unbalanced ¼" jack line level sum output with separate volumes; and external adjustable mute control for each channel
- Front panel LED display indicating TX On (single LED) and 5-segment AF levels for each channel
- Nady's exclusive patented companding circuitry and highest quality audio for an unsurpassed UHF performance with 120dB dynamic range
- Tone Squelch circuitry for protection from RF interference
- Externally powered with DC adapter included (16.5VDC/0.4A)
UH-4 Handheld Microphone Transmitter - Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting while transmitter on
- Status LED indicator flashes once for unit on; lights steady for low-battery alert
- Single 9V alkaline or NiMH battery operation
UPC: 634343276961 In the Box Nady U-41 QUAD HT Wireless Microphone System 4 x UH-4 Handheld Microphone Transmitters U-41 QUAD UHF Receiver 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-41 QUAD HT Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-41 QUAD HT Specs | | | Type of System | 4-Channel UHF Handheld | | RF Carrier Frequency Range | Factory installed channels between
902-928MHz and 944-952MHz | | Approx. Working Range | 250 feet typical - up to 500+ feet optimum line-of-sight | | Overall Frequency Response | 30Hz - 18kHz (-3dB) | | # Of Channels | 4 | | | | Type of Receiver | 4-Channel VHF Rackmountable | | Type of Outputs | XLR Microphone Level
1/4" Phone Line Level | | Power Requirements | 16.5VDC/0.4A , AC/DC adapter supplied | | Display | Power On, TX and AF LEDs | | Mounting Options | 19" Rackmountable | | Antenna Type | Dual female BNC connectors | | Dimensions (WxDxH) | 17 x 6.25 x 1.75" (43.18 x 15.88 x 4.45cm) | | Weight | 4.10 lbs (1.86 kg) | | | | Type of Transmitter | UH-4 Handheld | | Type of Microphone | DM-10D Neodymium Dynamic Cartridge | | Polar Pattern | Cardioid (Unidirectional) | | Battery Type/Approx. Life | 9V Alkaline
Up to 10 hours | | Mute Switch | ON / Mute / Off Switch | | RF Output | 50mW (Max. allowed by FCC) | | Display | Power & Low Battery LEDs | | Dimensions | 9.5 x 2.0" (24.13 x 5.08cm) | | Weight | 6.6oz (187g) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 20.6 x 9.9 x 4.8" |
