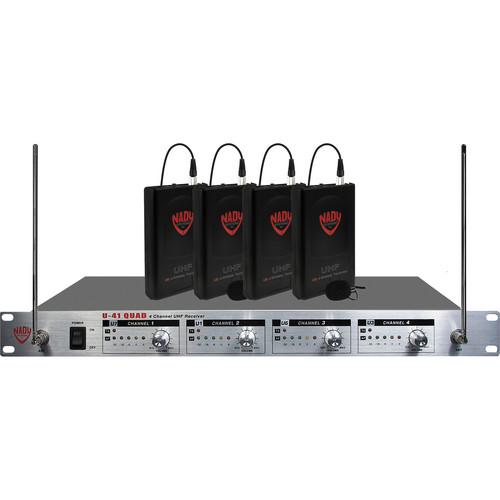

Product description The Nady U-41 QUAD LT Wireless Microphone System features UHF operation and simultaneous use of the 4 included UB-4 bodypack transmitters and lavalier microphones. The U-41 QUAD receiver is 19" rackmountable and features 4 separate volume controls, LED displays for audio level and AF strength, and 4 discrete outputs over XLR (mic level) and 1/4" phone (line level) connections. Its 19" all-metal frame will easily install into an audio rack, and is an ideal solution for schools, theaters, houses-of-worship, bars, nightclubs, and more. U-41 QUAD Receiver - Four discrete UHF wireless receivers in a single rugged 19" all-metal rackmount housing for simultaneous operation of up to four transmitters
- Back-panel balanced XLR mic level outputs; unbalanced ¼" jack line level sum output with separate volumes; and external adjustable mute control for each channel
- Front-panel LED display indicating TX On (single LED) and 5-segment AF levels for each channel
- Nady's exclusive patented companding circuitry and highest quality audio for an unsurpassed UHF performance with 120 dB dynamic range
- Tone Squelch circuitry for protection from RF interference
- Externally powered with DC adapter included (16.5 VDC/0.4A)
UB-4 Bodypack Transmitter - Choice of instrument, headworn or lavalier mic operating modes in a single bodypack transmitter
- Off/Standby/On switch allows convenient audio muting while transmitter on
- Status LED indicator flashes once for unit on; lights steady for low-battery alert
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Easily accessible input level adjust control for optimum sound (HM/LT operating modes only)
- Uses a single 9V alkaline or NiMH battery
UPC: 634343276978 In the Box Nady U-41 QUAD LT Wireless Microphone System U-41 QUAD UHF Receiver 4 x UB-4 Bodypack Microphone Transmitters 4 x Omnidirectional Lavalier Microphones 2 x Antennas Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-41 QUAD LT Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-41 QUAD LT/O Specs | | | Type of System | 4-Channel UHF Handheld | | RF Carrier Frequency Range | Factory installed channels between
902-928 MHz and 944-952 MHz | | Total Harmonic Distortion | < 0.5% THD, normal | | Frequency Stability | +/-0.005% Crystal Controlled
TSQ Frequency: 32.768 kHz | | Operating Range | 250' (76.2 m) normal, 500' (152.4 m) max line of sight | | Modulation | FM +/-20 kHz normal, +/-50 kHz maximum | | Approx. Working Range | 250 feet typical - up to 500+ feet optimum line of sight | | Overall Frequency Response | 30 Hz - 18 kHz (-3 dB) | | # Of Channels | 4 | | | | Controls | Power ON/OFF buttons, Volume/Mute controls | | Audio Output Level | Unbalanced Sum output: 360 mV variable level
Balanced outputs; +/-24 mV fixed level | | Type of Receiver | 4-Channel UHF Rackmountable | | Type of Outputs | Balanced: XLR.
Unbalanced: 1/4" TS DC in: 2.1 mm barrel type | | Mute | Mute Threshold: -65 to -95 dBm (adjustable)
Image Rejection: 70 dB, minimum | | Image Rejection | 70 dB, minimum | | Power Requirements | 16.5 VDC/0.4 A , AC/DC adapter supplied | | Display | Power On, TX and AF LEDs | | Mounting Options | 19" Rackmountable | | Antenna Type | 4.0" (10.2 cm) Dual telescopic antennas | | Dimensions (WxDxH) | 17 x 6.25 x 1.75" (43.18 x 15.88 x 4.45 cm) | | Weight | 4.10 lb (1.86 kg) | | | | Type of Transmitter | UB-4 Bodypack | | Type of Microphone | Lavalier | | Polar Pattern | Cardioid (Unidirectional) | | Battery Type/Approx. Life | 9 V Alkaline
Up to 10 hours | | Mute Switch | ON / Mute / Off Switch | | RF Output | 50 mW (Max. allowed by FCC) | | Harmonic & Spurious Emissions | -50 dBc normal | | Antenna Type | External permanent attached | | Controls | Transmitter ON/Mute/OFF switch, Audio Input level control (LT/HM) | | Audio Input Level | 225 mV (Instr.), 310 mV (HM), 75 mV (Lav.) | | Input Impedance | 500 kOhms (Instr.), 2 kOhms (HM/Lav.) | | Connector | 3.5 mm locking jack | | Display | Power & Low Battery LEDs | | Dimensions | 2.5 x 4.25 x 1.0" (6.35 x 10.80 x 2.45 cm) | | Weight | 3.1 oz (88 g) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 20.6 x 9.8 x 4.9" |
