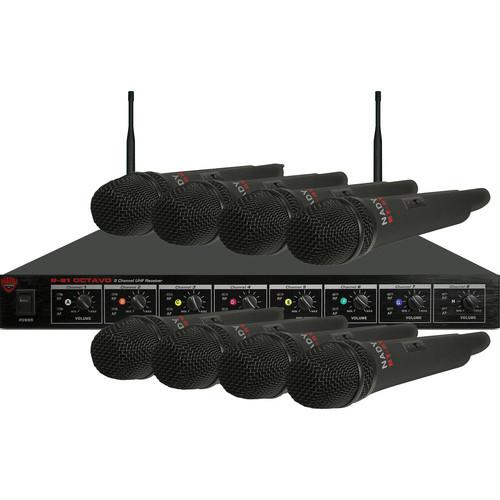

User Manual for Nady U-81 Octavo HT Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Nady U-81 Octavo HT Wireless Microphone
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
|
User manual for the Nady U-81 Octavo HT Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The Nady U-81 Octavo HT Wireless Microphone System features UHF operation and simultaneous use of the 8 included HT-8U handheld transmitters. The U-81 receiver is 19" rackmountable and features 8 separate volume controls, LED displays for audio level and AF strength, and 8 discrete outputs over XLR (mic level) and 1/4" phone (line level) connections. Its 19" all-metal frame will easily install into an audio rack, and is an ideal solution for schools, theaters, houses-of-worship, bars, nightclubs and more. - Operates on select UHF frequencies
- Eight independent single-channel UHF wireless receivers in a single housing for simultaneous operation of up to eight transmitters
- Front panel LED display indicates the RF and AF status for each channel
- Ch. 1-8 individually balanced XLR Mic Level outputs and unbalanced Line Level sum ¼" jack output for 8-in-1 mix audio output with separate volume control for each channel
- Nady's exclusive patented companding circuitry with 120dB dynamic range and highest quality audio for unsurpassed UHF performance
- Dual removable high gain antennas with TNC connector, front or back mounting
- Standard 19" 1U, all-metal rackmount housing
- Externally powered with AC/DC adapter (included)
HT-8U Handheld Microphone Transmitter - Nady DM-50D neodymium cartridge delivers transparent vocals, maximum feedback rejection and minimal handling noise
- On/Standby/Off switch allows convenient audio muting while transmitter on
- Status LED indicator flashes once for Unit On; lights steady for Low Battery Alert
- Uses two AA alkaline or NiMH batteries
- Rugged ABS and rubber-coated housing with integral antenna
UPC: 634343283266 In the Box Nady U-81 Octavo HT Wireless Microphone System 8 x HT-8U Handheld Transmitter U-81 Octavo Receiver 2 x Rackmout Brackets 2 x Antennas 2 x Antenna Cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady U-81 Octavo HT Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady U-81 OCTAVO HT Specs | | | Type of System | 8-Channel UHF Handheld | | RF Carrier Frequency Range | Factory installed channels between
902-928MHz and 944-952MHz | | Approx. Working Range | 250 feet typical - up to 500+ feet optimum line-of-sight | | Frequency Stability | +/-0.005% (Crystal Controlled) | | Deviation | FM +/-20kHz normal, +/-50kHz maximum | | Frequency Response | 20Hz-20kHz, -3dB | | Dynamic Range | 120dB | | THD | 0.5% THD, normal | | Operating Range | 250' (76.2m) normal, 500' (152.4m) max line of sight | | # Of Channels | 4 | | | | Type of Receiver | 8-Channel UHF Rackmountable | | Reception Mode | Mono antenna reception | | Threshold Range | -95dBm (none-adjustable) | | Image Rejection | -70dB, minimum | | Type of Outputs | Balanced: XLR, Unbalanced: 1⁄4" TS, Antennas:
TNC connector. DC in: 2.1mm barrel type Balanced output: Audio outputs: +/-24mV fixed level (600 Ohms)
Unbalanced MIX output: Audio output: 360mV variable level (Open load) | | Power Requirements | 15VDC/1200mA | | Display | Power On, RF and AF LEDs | | Controls | Power ON/OFF buttons, Volume Controls | | Antenna Type | 10" (25.4 cm) Dual adjustable angle | | Dimensions (WxDxH) | 4.25 x 12 x 1.75" (36.20 x 30.50 x 4.45cm) | | Weight | 7.20 lbs (3.37kg) | | | | Type of Transmitter | HT-8U Handheld | | Controls | Power ON/STDBY/OFF | | RF Power | 20mW normal (50mW Maximum allowed by FCC) | | Harmonics | < -50 dB | | Antenna | Internal | | Power Supply | 2xAA Alkaline or NiMH batteries
8-10 Hours (Alkaline) | | Display | Power & Low Battery LEDs | | Dimensions | 10.5 x 1.875" (26.7 x 4.8cm) | | Weight | 7.5 oz (213g) without battery | | | | Package Weight | 14.7 lb | | Box Dimensions (LxWxH) | 21.1 x 13.5 x 5.3" |
