User Manual for Nady UHF-3 UHF Wireless Diversity Guitar System Click to enlarge the picture
Contents of the user manual for the Nady UHF-3 UHF Wireless Diversity Guitar
- Product category: Guitar Wireless Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Guitar Wireless
 |
User manual for the Nady UHF-3 UHF Wireless Diversity Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

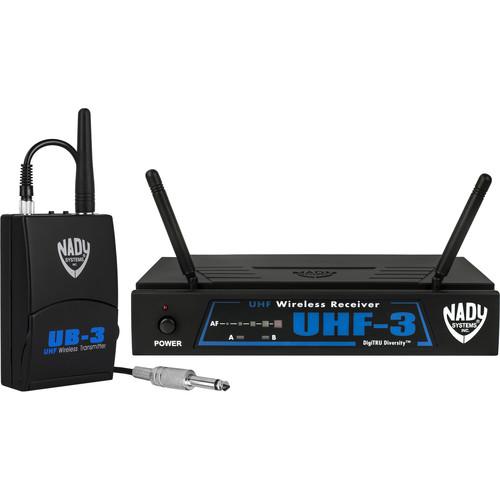

Product description The UHF-3 UHF Wireless Diversity Guitar System by Nady brings you a complete wireless solution for guitar. The system is straightforward and easy to operate with the UHF-3 receiver and UB-3 Bodypack transmitter. These two are a match made in heaven. Now you can play rhythm guitar or shred a killer lead without being restricted by a long, cumbersome cable.The UHF (Ultra-High Frequency) range avoids crowded VHF bandwidth and features DigiTRU diversity technology offering low noise, maximum range and dropout protection for long-lasting and reliable reception. - Clear channel UHF operation for optimum interference-free performance in any application or locale
- Half-rack receiver design with folding front panel dual antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
- Nady's proprietary companding circuitry for an industry best 120dB dynamic range, and the clearest, most natural sound available
- Tone Squelch for locking out potential interference

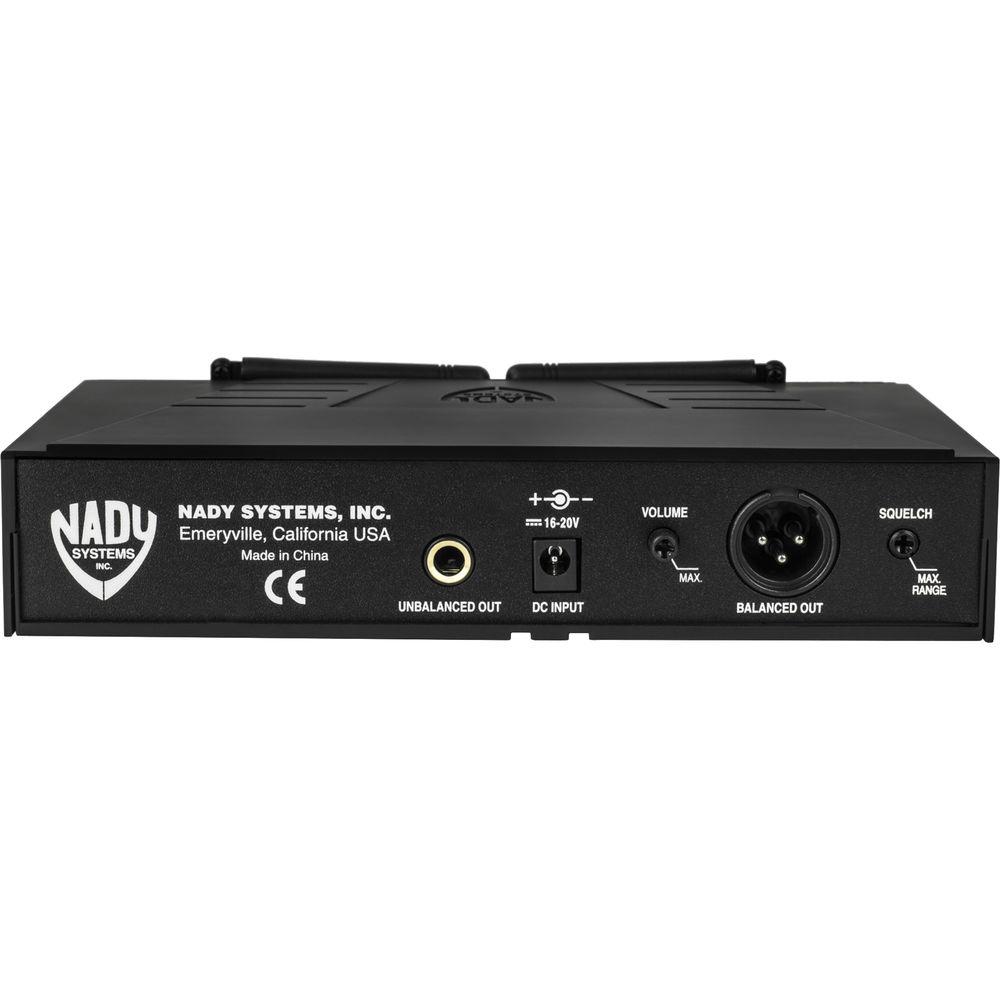

- UHF-3 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ¼" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
- UB-3 bodypack transmitter included

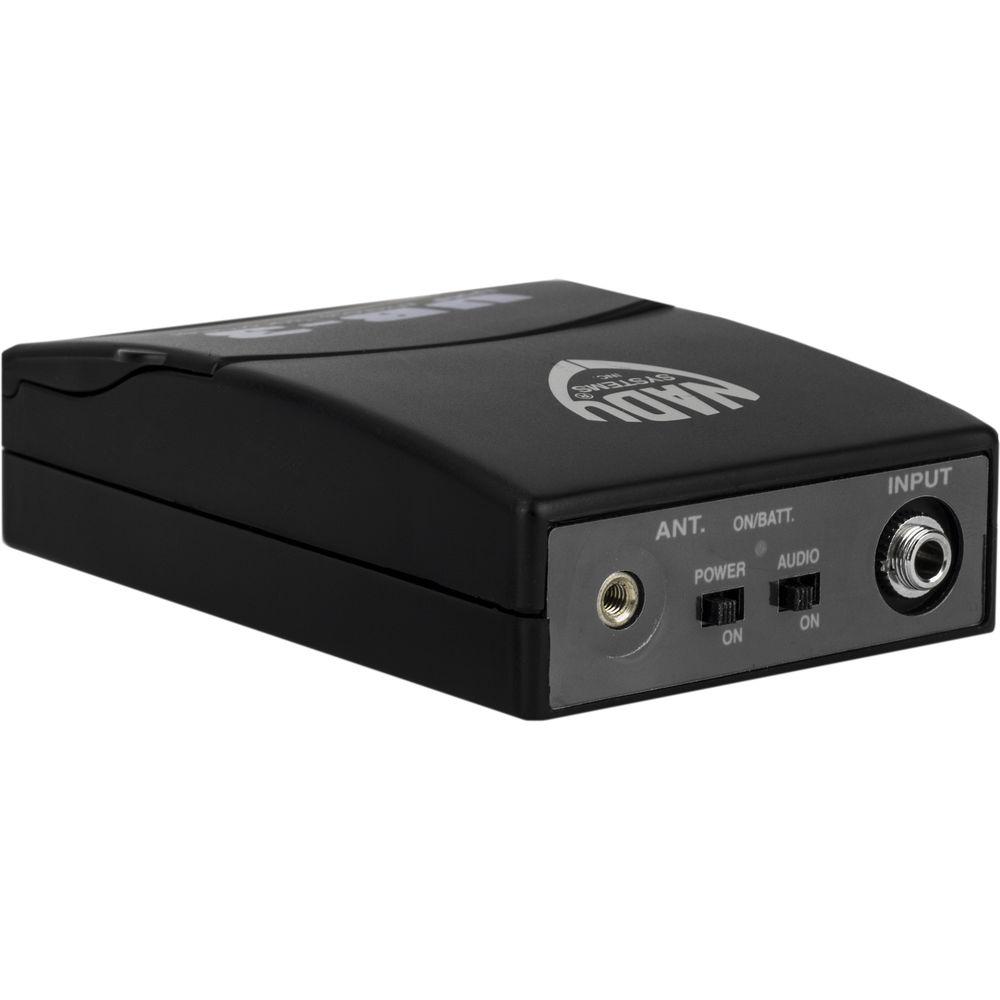

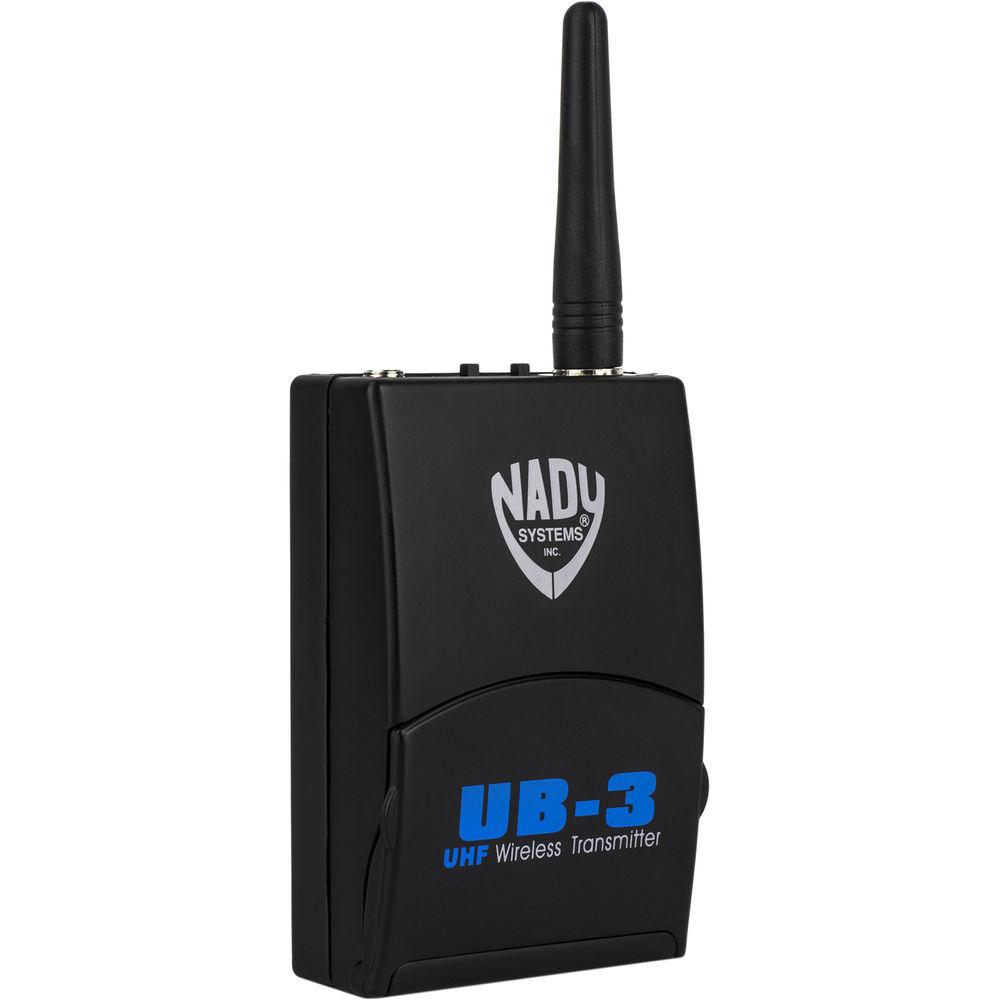

UB-3 Bodypack Transmitter - Audio mute switch allows convenient audio muting with the transmitter on
- Bi-color LED status indicator: Unit On (green); low-battery alert (orange)
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Uses two AAA alkaline or NiMH batteries
UPC: 634343259629 In the Box Nady UHF-3 UHF Wireless Diversity Guitar System UB-3 Bodypack Transmitter Instrument Cord 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady UHF-3 UHF Wireless Diversity Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady UHF-3 Specs | | | Type of System | Bodypack UHF | | RF Carrier Frequency Range | UHF, choice of single frequencies from 470-500MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions)
Up to500+ feet optimum line-of-sight | | Overall Frequency Response | 30Hz - 18KHz
+/- 3dB | | Total Harmonic Distortion (THD) | < 0.6% | | Frequency Stability | +/- 0.005%
crystal controlled | | Modulation | FM (F3E)
+/-20KHz normal | | | | Type of Outputs | DC in
1/4"(6.3 mm) unbalanced phone jack (360 mV/no load)
XLR balanced output (+/-24 mV/600 Ohm load) | | Power Requirements | DC 18V @ 250 mA, AC/DC adapter included | | Display | Power ON, Diversity A/B, Audio Peak | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm) | | Weight | 1.6 lbs (0.73 kg) | | | | Type of Transmitter | Nady UB-3 Bodypack | | Battery Type/Approx. Life | 2 x AAA Alkaline
4 to 5 Hours | | Mute Switch | POWER/MUTE ON/OFF, INSTRUMENT/
HEADWORN MIC/LAV MIC, INPUT LEVEL | | LED Indicator | Bicolor, Unit "ON" (green), Low BatteryAlert (orange) | | Dimensions | 3.25 x 2.18 x 1" (8.25 x 5.53 x 2.54 cm) | | Weight | 2.25 oz (63.78 g) without battery | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 2.0" |
