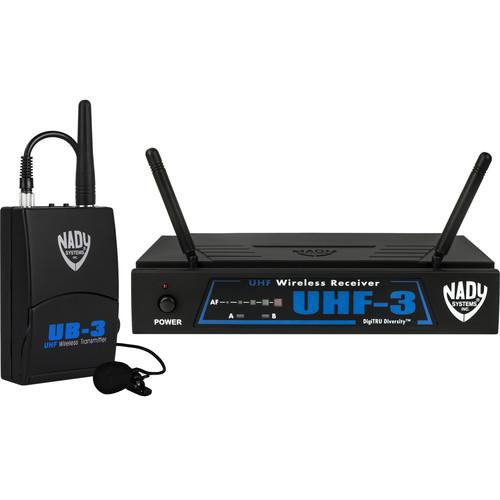

Product description The Nady UHF-3 UHF Wireless Lavalier Microphone System incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke, and much more. The UHF-3 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UB-3 bodypack transmitter, lavalier microphone and UHF-3 receiver. The bodypack transmitter and lavalier microphone provide reliable, hands-free microphone operation during presentations, sermons, performances and more. The receiver features DigiTRU diversity technology for stable reception. - Clear channel UHF operation for optimum interference-free performance in any application or locale
- Half-rack receiver design with folding front panel dual antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
- Nady's proprietary companding circuitry for an industry best 120dB dynamic range, and the clearest, most natural sound available
- Tone Squelch for locking out potential interference

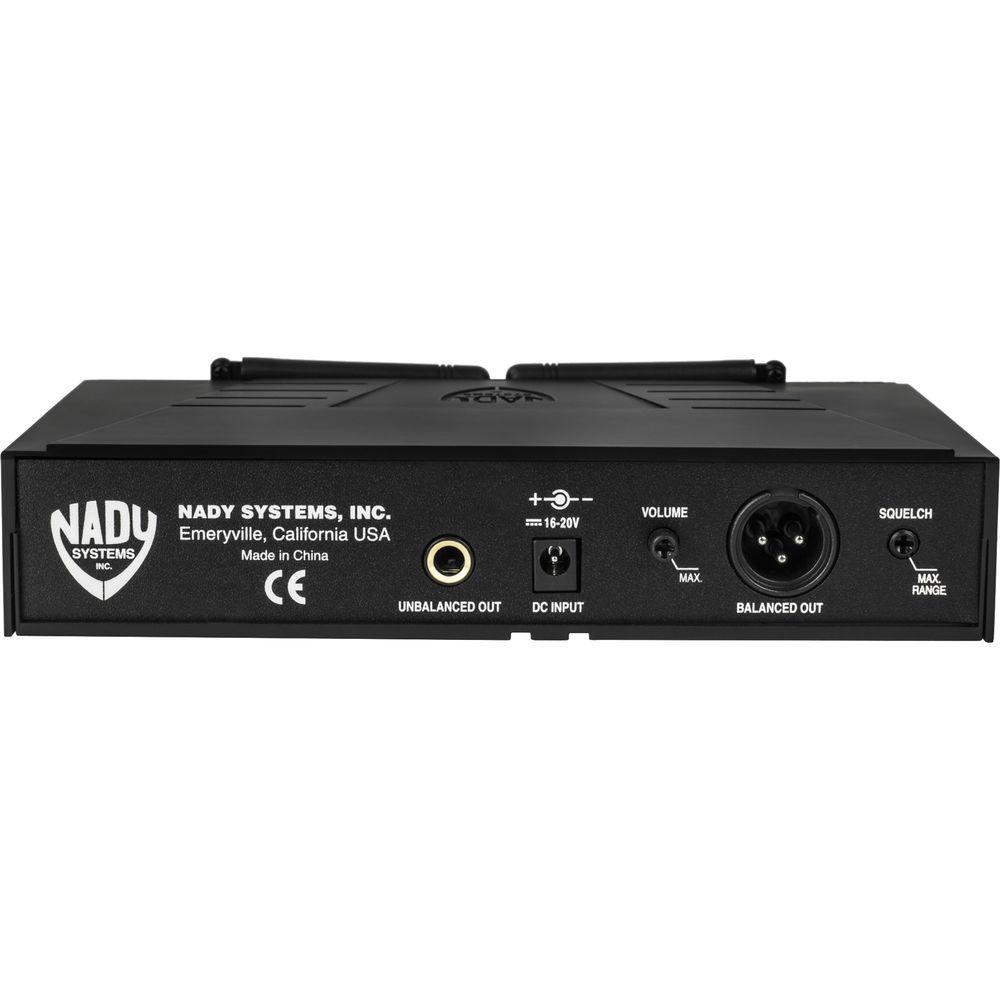

- UHF-3 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ¼" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
- Includes the UB-3 bodypack transmitter. The UH-3 handheld is sold separately

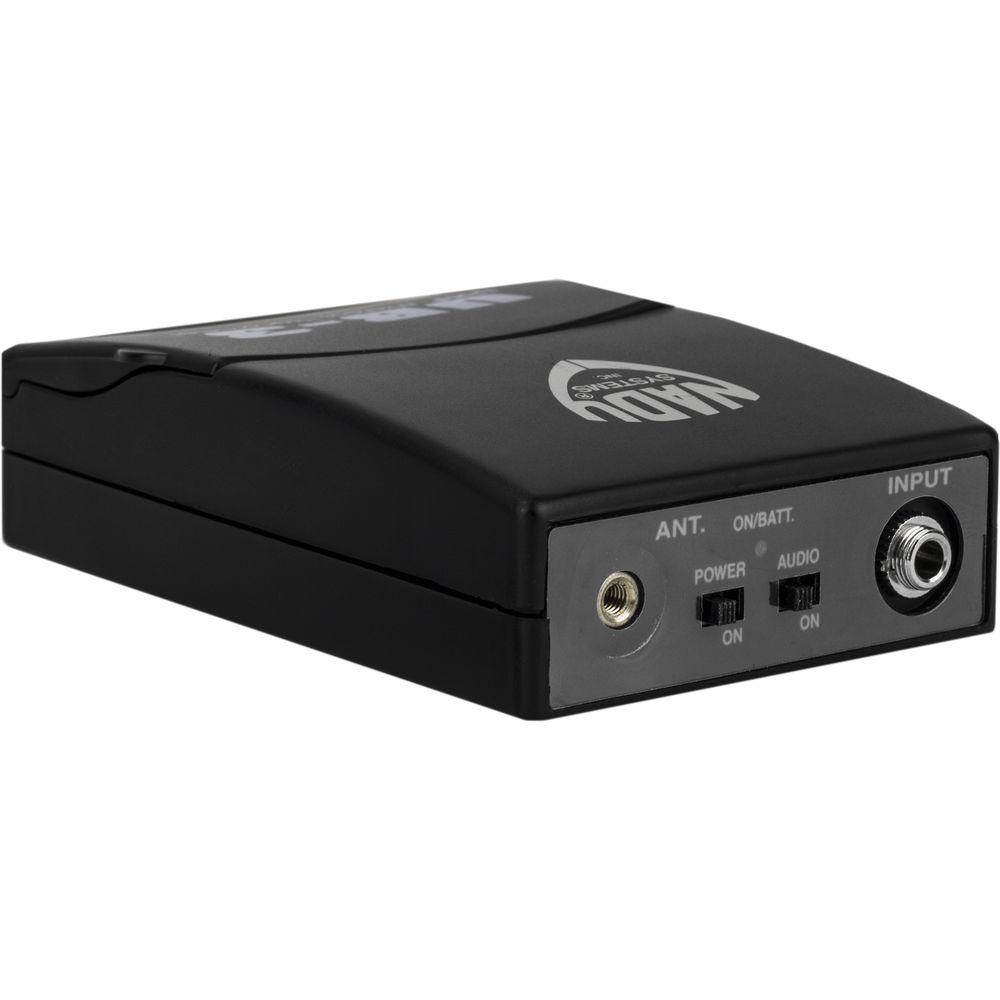

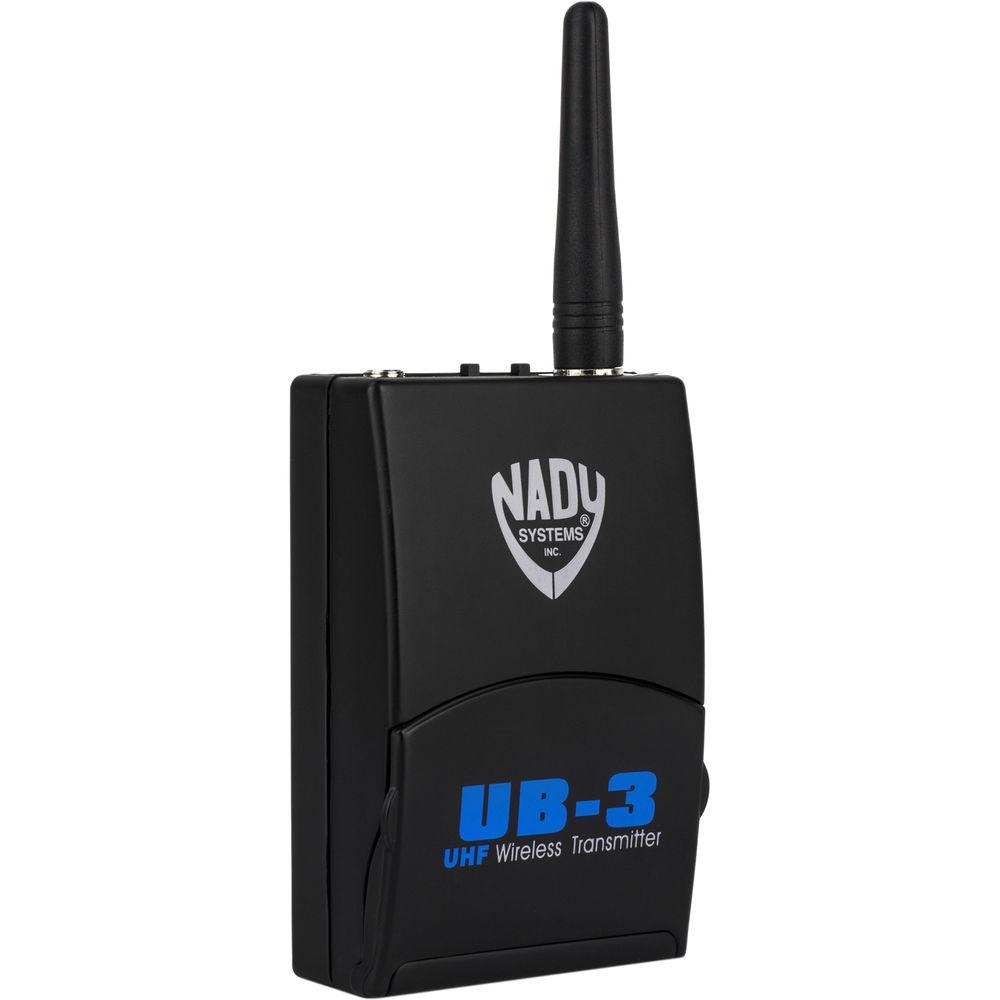

UB-3 Bodypack Transmitter - This system includes a lavalier microphone. A headset microphone is optional.
- Audio mute switch allows convenient audio muting with the transmitter on
- Bi-color LED status indicator: Unit On (green); low-battery alert (orange)
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Uses two AAA alkaline or NiMH batteries
UPC: 634343259704 In the Box Nady UHF-3 UHF Wireless Lavalier Microphone System UB-3 Bodypack Transmitter Lavalier Microphone 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady UHF-3 UHF Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady UHF-3 LT/MU1 Specs | | | Type of System | Bodypack/Lavalier UHF | | RF Carrier Frequency Range | UHF, choice of single frequencies from 470-500MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions); up to500+ feet optimum line-of-sight | | Overall Frequency Response | 30Hz - 18KHz, +/- 3dB | | Total Harmonic Distortion (THD) | < 0.6% | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM (F3E), +/-20KHz normal | | | | Type of Outputs | DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load) | | Power Requirements | DC 18V @ 250 mA, AC/DC adapter included | | Display | Power ON, Diversity A/B, Audio Peak | | Antenna Type | 11.2" (28.5 cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7cm) | | Weight | 1.6 lbs (0.73 kg) | | | | Type of Transmitter | Nady UB-3 Bodypack | | Type of Microphone | Lavalier | | Battery Type/Approx. Life | AAA Alkaline (2x)
4-5 Hours | | Mute Switch | POWER/MUTE ON/OFF, INSTRUMENT/
HEADWORN MIC/LAV MIC, INPUT LEVEL | | Display | Bicolor, Unit "ON" (green), Low BatteryAlert (orange) | | Dimensions | 3.25 x 2.187 x 1" (8.25 x 5.53 x 2.54cm) | | Weight | 2.25 oz (63.78 g) without battery | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 11.9 x 11.2 x 2.4" |
