User Manual for Nady UHF-4 Handheld UHF Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Nady UHF-4 Handheld UHF Wireless Microphone
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady UHF-4 Handheld UHF Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

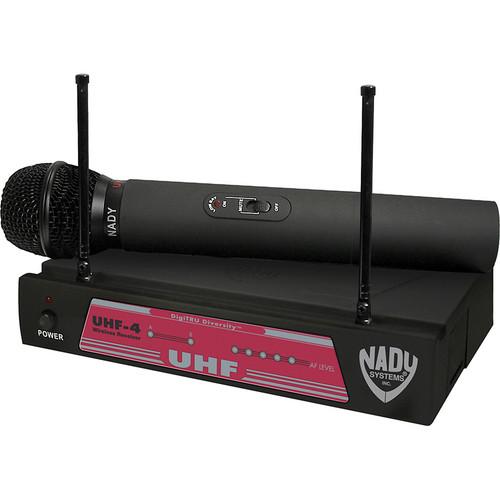

Product description The Nady UHF-4 Handheld UHF Wireless Microphone System incorporates stable UHF reception in a cost effective package for DJs, presentations, houses-of-worship, karaoke, and much more. The UHF-4 avoids the crowded VHF bandwidth, resulting in low noise and fewer drop-outs. The system is straightforward and easy to operate, with the UH-4 handheld microphone transmitter and UHF-4 receiver. The UH-4 handheld transmitter features Nady's DM-10D neodymium, cardioid capsule for professional sound in any application. The receiver features DigiTRU diversity technology for stable reception. - Unprecedented value in a full-featured, single-channel UHF wireless mic system
- Interference-free operation in any application or locale on select UHF frequencies
- Half-rack receiver design with folding front panel dual antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
- Tone Squelch for locking out potential interference
- Nady's proprietary companding circuitry for an industry-best 120dB dynamic range, and the clearest, most natural sound available

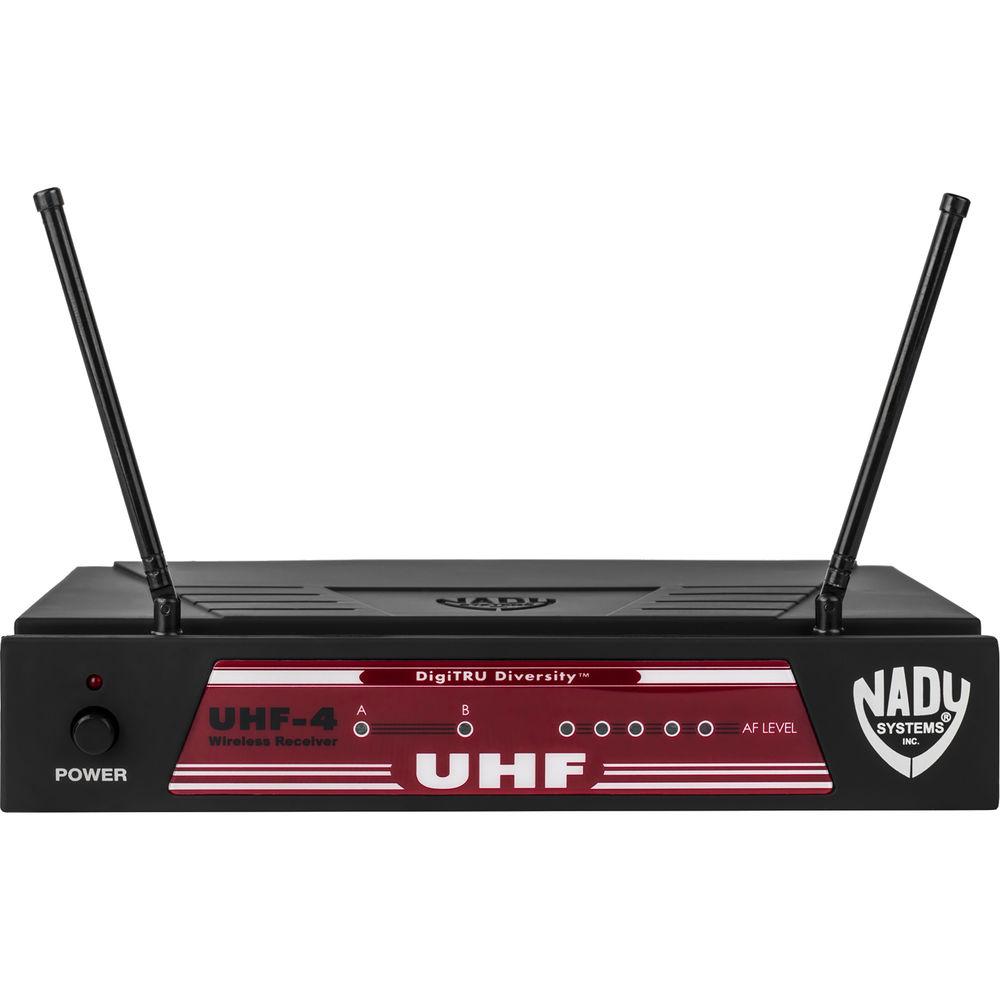

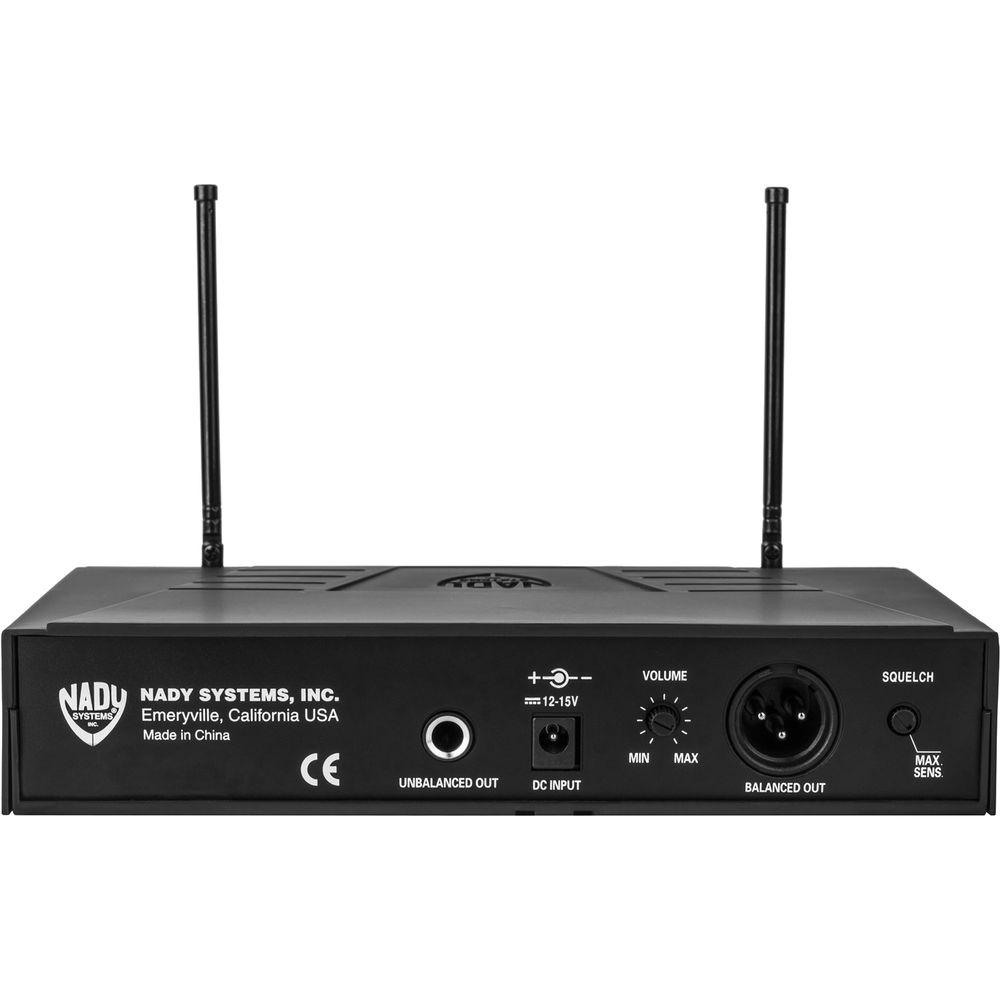

- UHF-4 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ¼" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
- The UH-4 handheld transmitter is included. The UB-4 bodypack is sold separately

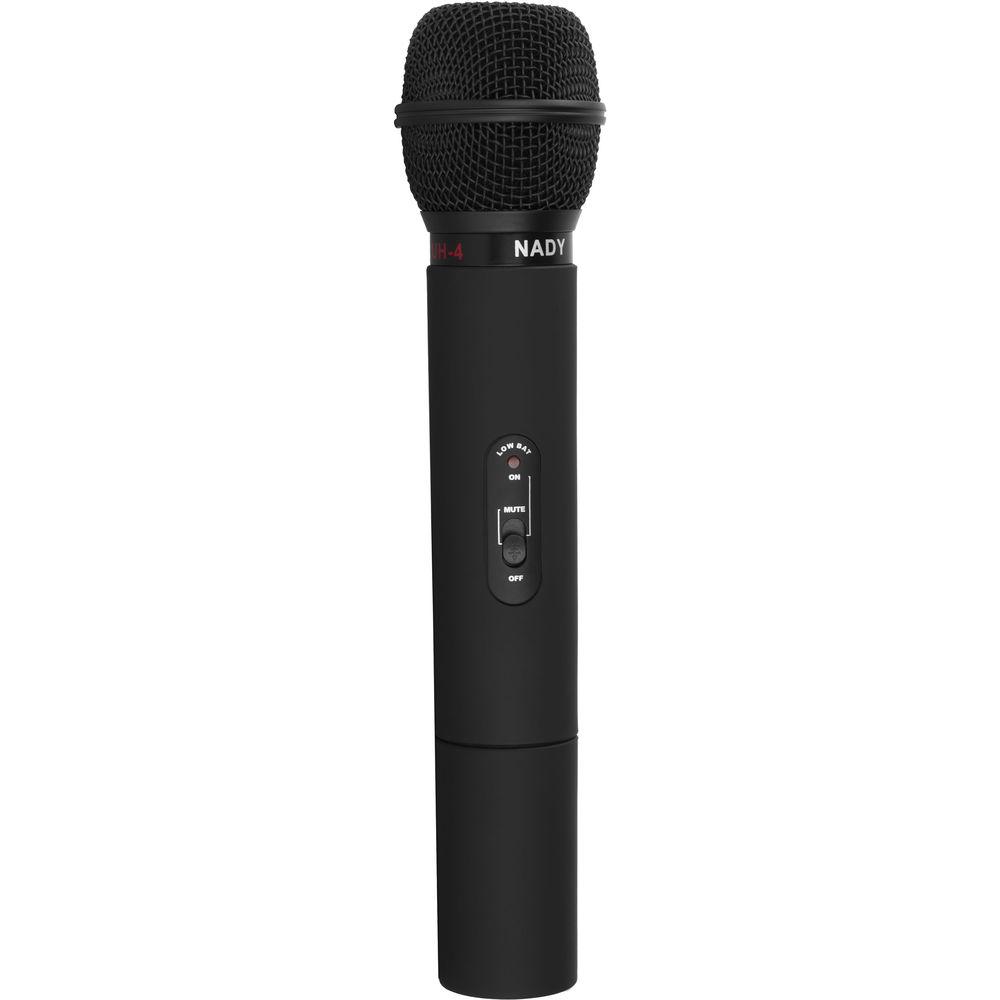

UH-4 Handheld Microphone Transmitter - Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
- Off/Standby/On switch allows convenient audio muting while transmitter on
- Status LED indicator flashes once for Unit On; lights steady for low-battery alert
- Single 9V alkaline or NiMH battery operation
UPC: 634343275421 In the Box Nady UHF-4 Handheld UHF Wireless Microphone System UH-4 Handheld Transmitter 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady UHF-4 Handheld UHF Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady UHF-4 HT/11 Specs | | | Type of System | Handheld UHF | | RF Carrier Frequency Range | UHF, choice of single frequencies within separate bands902-928 and 944-952 MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions); up to500+ feet optimum line-of-sight | | Overall Frequency Response | 30Hz - 18KHz, +/- 3dB | | Total Harmonic Distortion (THD) | < 0.6% | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM (F3E), +/-20KHz normal | | | | Type of Outputs | DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (+/-24 mV/600 Ohm load) | | Power Requirements | DC 15V @ 300 mA, AC/DC adapter included | | Display | Power ON, Diversity A/B, Audio LED Bars + Peak | | Antenna Type | 3.5" (9.0cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.5 x 19 x 20.6cm) | | Weight | 0.9 lbs (0.41 kg) | | | | Type of Transmitter | Nady UH-4 Handheld | | Type of Microphone | DM-10D Neodymium | | Polar Pattern | Cardioid | | Battery Type/Approx. Life | 9V Alkaline10 Hours | | Mute Switch | POWER/STANDBY/OFF/INPUT LEVEL | | Display | Single color (red), Unit "ON" (single flash red), Low BatteryAlert (steady red) | | Dimensions | 9.5 x 2.0" (24 x 5.1cm) | | Weight | 6.6 oz (187 g) without battery | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.1 x 11.4 x 2.3" |
