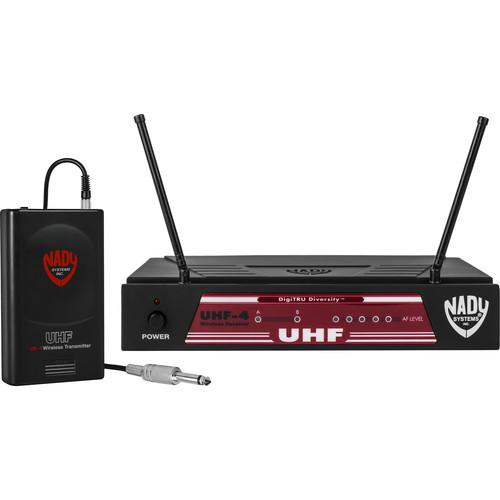

Product description The UHF-4 UHF Wireless Diversity Guitar System by Nady brings you a complete wireless solution for guitar. The system is straightforward and easy to operate with the UHF-4 receiver and UB-4 Bodypack transmitter. These two are a match made in heaven. Now you can play rhythm guitar or shred a killer lead without being restricted by a long, cumbersome cable. The UHF (Ultra-High Frequency) range avoids crowded VHF bandwidth and features DigiTRU diversity technology offering low noise, maximum range and dropout protection for long-lasting and reliable reception. - Unprecedented value in a full-featured, single-channel UHF wireless mic system
- Interference-free operation in any application or locale on select UHF frequencies
- Half-rack receiver design with folding front panel dual antennas
- Unique snap-out panel locking tabs for optional single receiver rackmounting or dual receiver (side-by-side) rackmounting
- Tone Squelch for locking out potential interference
- Nady's proprietary companding circuitry for an industry-best 120dB dynamic range, and the clearest, most natural sound available

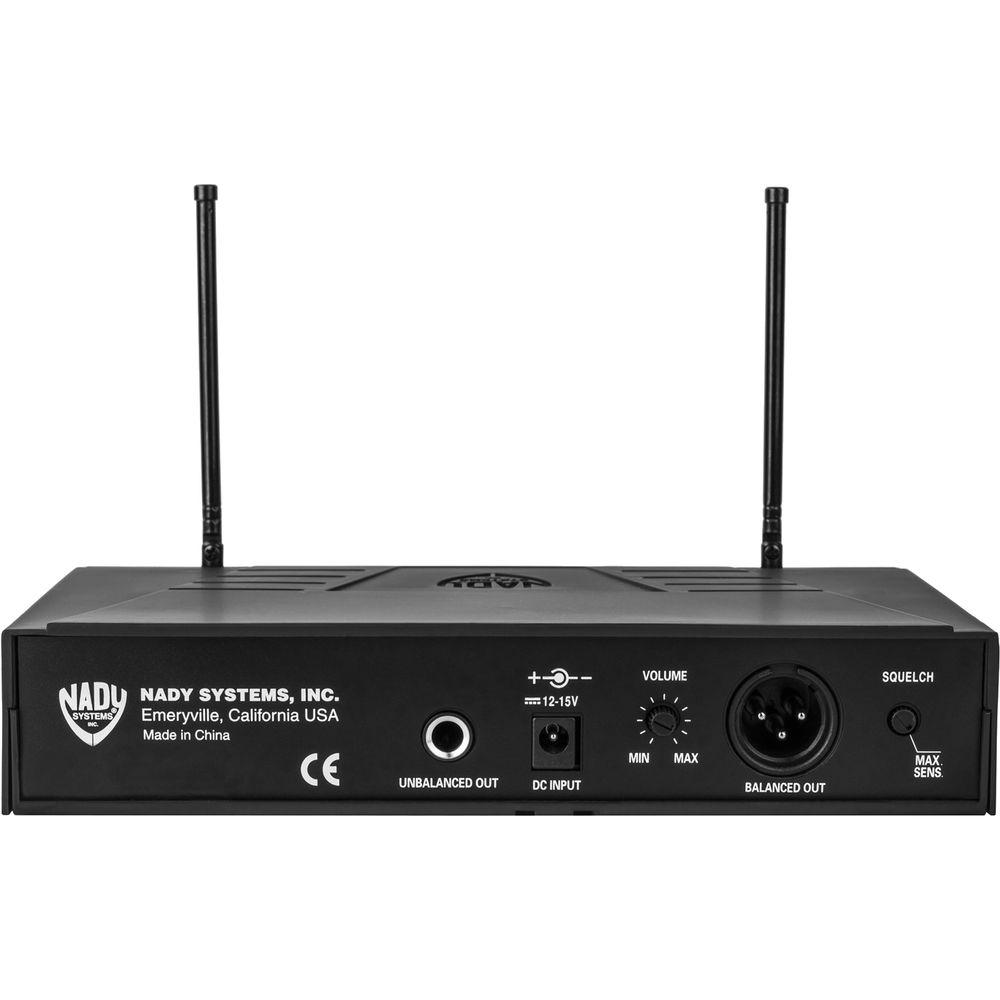

- UHF-4 receiver with DigiTRU Diversity for maximum range and dropout protection, full LED indicators, ¼" unbalanced and XLR balanced outputs; special circuitry for noiseless transmitter On/Off switching
- UB-4 bodypack transmitter

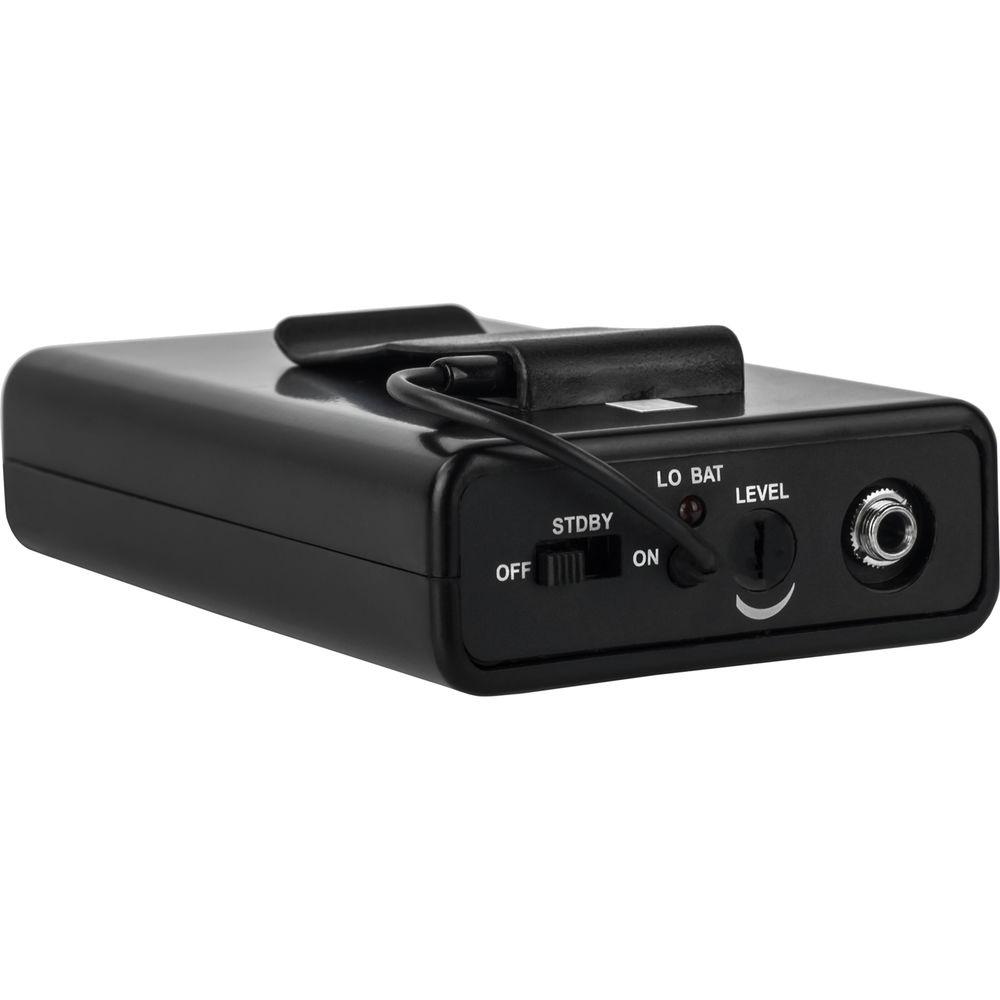

UB-4 Bodypack Transmitter - Choice of instrument, headworn or lavalier mic operating modes in a single bodypack transmitter
- Off/Standby/On switch allows convenient audio muting while transmitter on
Status LED indicator flashes once for Unit On; lights steady for low-battery alert - Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Easily accessible Input Level Adjust for optimum sound (HM/LT operating modes only)
- Uses a single 9V alkaline or NiMH battery
UPC: 634343275384 In the Box Nady UHF-4 UHF Wireless Diversity Guitar System UB-4 Bodypack Transmitter Instrument Cord 2 x Antennas Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady UHF-4 UHF Wireless Diversity Guitar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady UHF-4 Specs | | | Type of System | Bodypack transmitter | | RF Carrier Frequency Range | UHF, choice of single frequencies within separate bands 902-928 and 944-952 MHz | | Approx. Working Range | Up to 250 ft. typical (depending on site conditions)
Up to500+ feet optimum line-of-sight | | Overall Frequency Response | 30Hz - 18KHz, +/- 3dB | | Total Harmonic Distortion (THD) | < 0.6% | | Frequency Stability | +/- 0.005%, crystal controlled | | Modulation | FM (F3E), +/-20KHz normal | | | | Type of Outputs | DC in, 1/4"(6.3 mm) unbalanced phone jack (360 mV/no load)XLR balanced output (+/-24 mV/600 Ohm load) | | Power Requirements | DC 15V @ 300 mA, AC/DC adapter included | | Display | Power ON, Diversity A/B, Audio LED Bars + Peak | | Antenna Type | 3.5" (9.0cm), dual telescopic | | Dimensions | 1.75 x 7.5 x 8.1" (4.5 x 19 x 20.6cm) | | Weight | 0.9 lbs (0.41 kg) | | | | Type of Transmitter | Nady UH-4 Bodypack | | Inputs | 3.5mm locking mini-jack
switchable inputs: instrument, headworn mic or lavalier mic | | Battery Type/Approx. Life | 9V Alkaline 10 Hours | | Controls | Power, Standby, Off, Instrument/Headworn Mic/Lav Mic, Input Level | | LED Indicator | Single color (red), Unit "ON" (single flash red), Low BatteryAlert (steady red) | | RF Power Output | 50 mW nominal (maximum allowed by FCC) | | Harmonic & Spurious Emissions | < -50 dB | | Dimensions | 4.25 x 2.5 x 1.0" (10.8 x 6.4 x 2.5 cm) | | Weight | 3.1 oz (88 g) without battery | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 11.9 x 11.4 x 2.4" |
