User Manual for Nady VHF Transmitter for ALD-800 Wireless System Click to enlarge the picture
Contents of the user manual for the Nady VHF Transmitter for ALD-800 Wireless
- Product category: Components & Accessories Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Components & Accessories
 |
User manual for the Nady VHF Transmitter for ALD-800 Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|

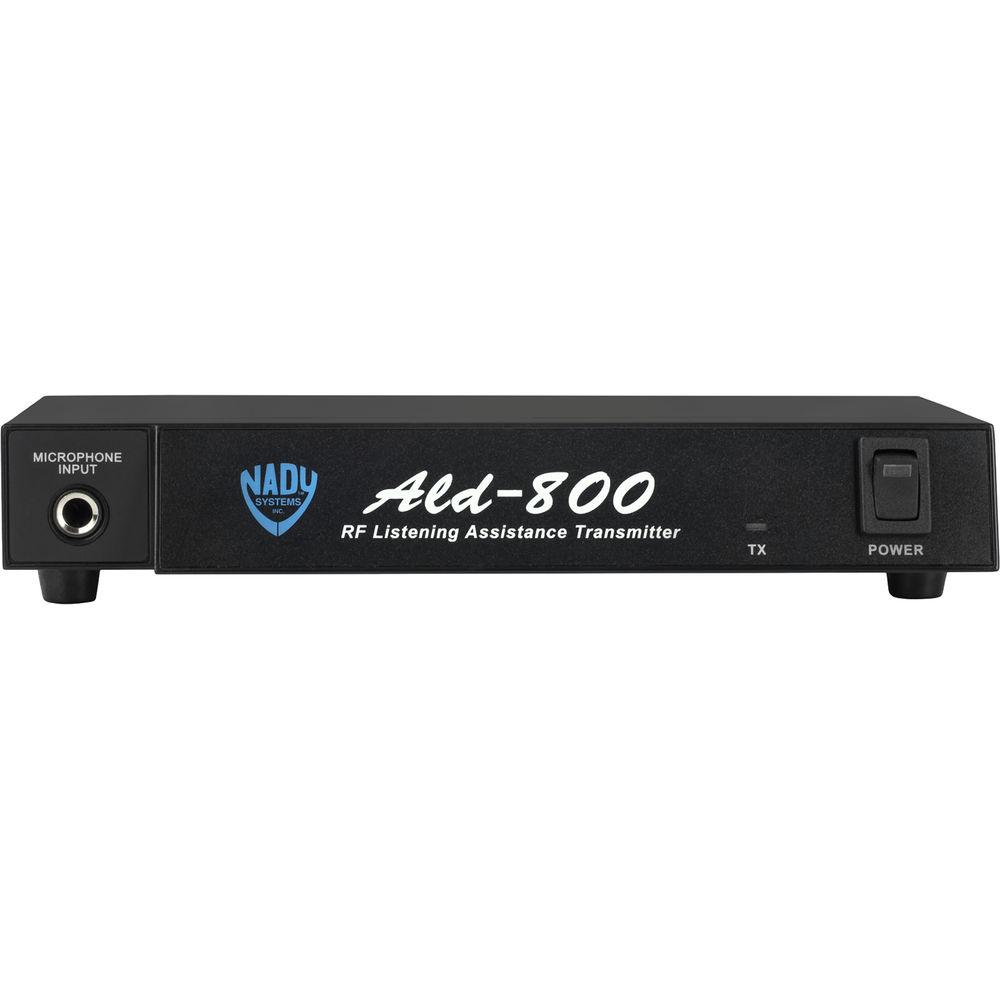

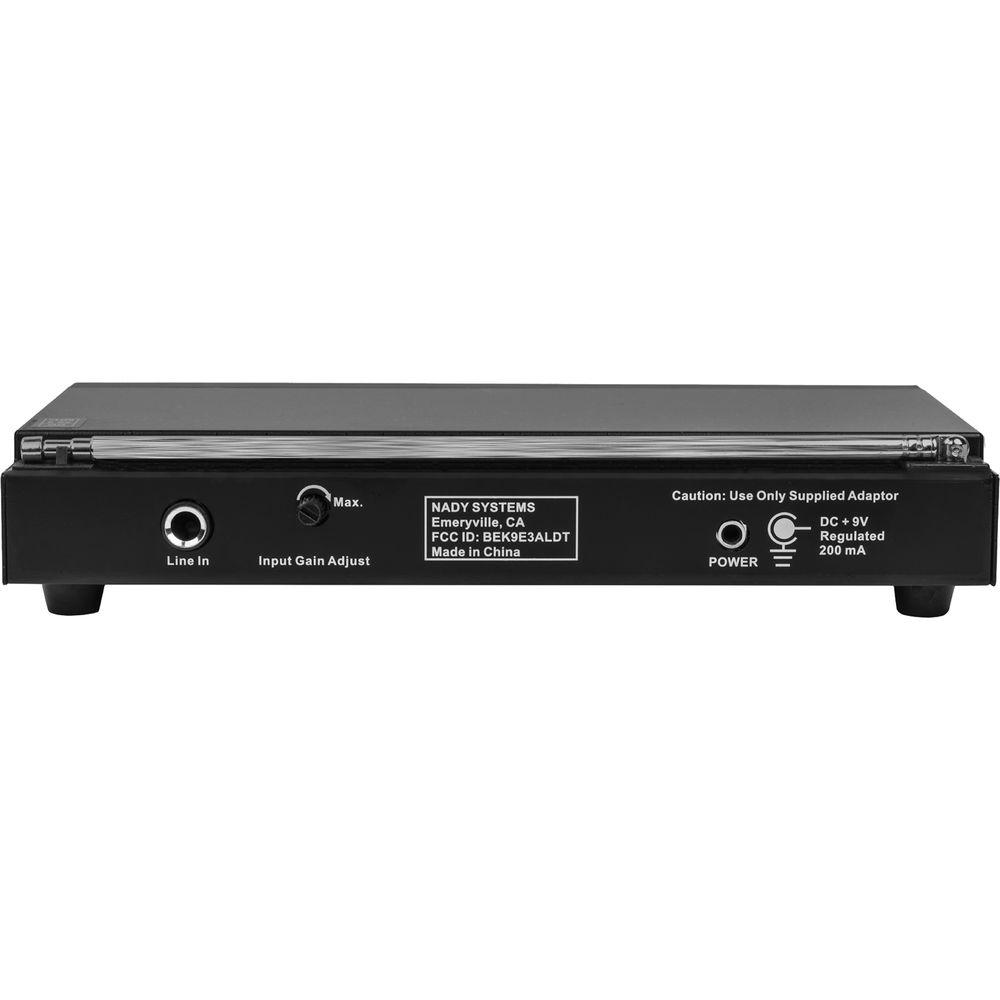

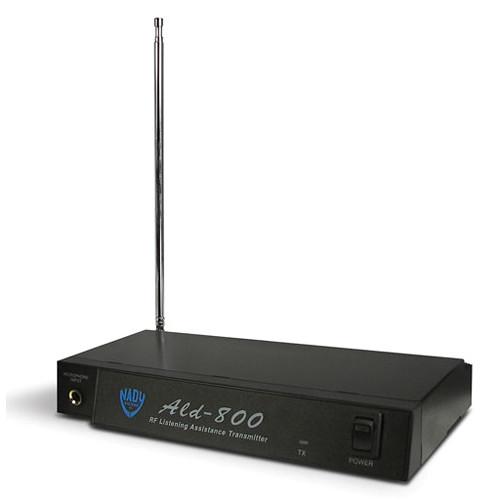

Product description Nady's VHF Transmitter for ALD-800 Wireless System is a wireless transmitter for Nady ALD-800 systems and features full manual controls, automatic level control, an extendable antenna, and Power On/Audio Input Level LED displays. It comes with a power supply. - System operates on one of eight factory switchable channels within the 72-76 MHz band designated for auditory assistance frequencies by the FCC
- Transmitter offers full manual controls and connections (including microphone and line level inputs), automatic level control, extendable antenna, and Power On/Audio Input Level LED displays
- Any number of pocket-sized ALD-800 receivers (sold separately) can be used with a single ALD-800 transmitter
- Uses a single 9V alkaline or rechargeable NiCad or NiMH battery
UPC: 634343258899 In the Box Nady VHF Transmitter for ALD-800 Wireless System AC-ALD800 Power Supply Adapter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady VHF Transmitter for ALD-800 Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady ALD800TFF Specs | Compatibility | Compatible with Nady ALD-800 Wireless System | | Frequency Response | 100 Hz - 15kHz ± 3 dB | | Signal to Noise Ratio | 60 dB | | Total Harmonic Distortion | < 0.5% | | RF Carrier Frequency | Eight channels between 72 - 76 MHz
Channel AA:72.1, BB: 72.3, CC: 72.5, DD: 72.7, EE: 72.9, FF:75.5, GG: 75.7, HH: 75.9 | | Frequency Stability | Better than .005% | | Modulation | FM ± 75 KHz Maximum | | Operating Range | Up to 300 feet Line-of-Sight | | Inputs | Microphone Input:
Connector: 1/4" Phone Jack
Impedance: Low Impedance, Unbalanced, with 9V DC at 1 mA for condenser microphone
Line Input:
Connector: 1/4" Phone Jack
Impedance: 100 K Ω, Unbalanced | | Power Output | 80,000 μV @ 3 Meters | | Controls | Power On/Off, Audio Input Gain Adjust | | Indicators | Power On LED, Audio Modulation LED | | Antenna | Permanently Mounted Telescoping Whip | | Power Requirement | 9 VDC, Regulated @200 mA, AC-ALD800 Adapter Provided | | Dimensions | 1.25 x 8.25 x 4.25" (3.17 x 20.9 x 10.8 cm) | | Weight | 18.2 oz (500 g) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.6 x 9.2 x 5.1" |
