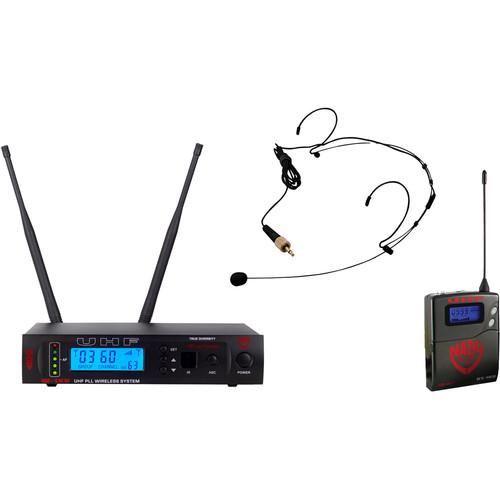

User Manual for Nady W-1KU Single UHF Receiver Wireless System with an HM-10 Head-Worn Microphone Click to enlarge the picture
Contents of the user manual for the Nady W-1KU Single UHF Receiver Wireless
- Product category: Wireless Systems Nady
- Brand: Nady
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nady Wireless Systems
 |
User manual for the Nady W-1KU Single UHF Receiver Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nady product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nady user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nady product will considerably shorten its lifespan!
|
Product description The W-1KU Receiver System from Nady delivers 1000 user-selectable UHF frequency with 120 dB dynamic range and operation up to 500' line-of sight. The system comes with a BT-1KU bodypack transmitter and a black HM-10 head-worn microphone. - True Diversity circuitry with two complete front ends for maximizing range and most effective elimination of dropouts
- AUTO-SCAN for easily locating clear channels and ASC (Auto-Sync Channel) IR download feature which sends selected Group/Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for simultaneous operation of multiple systems in the same location
- Front panel touch control buttons and user-friendly LCD configuration menus
- LCD display indicates selected Group, Channel, RF signal strength meter; A/B Diversity antenna status
- Separate audio LED bar graph display provides instantaneous audio level status from a distance
- Balanced XLR mic level and unbalanced 1/4" SUM line level audio output jacks
- Externally powered with included adapter
UPC: 634343282108 In the Box Nady W-1KU Single UHF Receiver Wireless System with an HM-10 Head-Worn Microphone (Black) W-1KU Receiver BT-1KU LT/HM Bodypack Transmitter HM-10 HEADMIC Series Headworn Microphone (Black) DC Power Supply 2 x Antennas for Receiver 2 x AA Alkaline Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nady W-1KU Single UHF Receiver Wireless System with an HM-10 Head-Worn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNady W-1KU HM-10/BLACK Specs | Frequency Range | 672 - 697 MHz | | Frequency Synthesizer | 25 kHz/step (1000 channels switchable) | | Frequency Stability | PLL System: <0.005% | | Frequency Response | 30 Hz - 18 kHz @ ±3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation FM (F3E) | Normal: ±25 kHz
Maximum: ±75 kHz | | Operating Range | Typical: 150 - 250' (46 - 76 m)
Maximum line-of-sight: 500'+ (152+ m) | | | | System Type | Dual conversion super heterodyne with true diversity | | Selectivity | 60 dB, normal ±75 kHz offset | | Image Rejection | -70 dB, minimum | | Sensitivity | -107 dBm, normal | | Rejection | 65 dB, normal | | Mute Threshold | -65 to -95 dBm (adjustable) | | Connectors | 1 x XLR, mic level output
1 x 1/4" phone jack, unbalanced line level output
2 x BNC, RF antenna input
1 x DC power input | | Controls | Up
Down
Set
IR Sync
Power On/Off
Mute level | | LCD Display | backlight LCD panel indicating selected Group/Channel, Received RF levels, A/B diversity, and unbalanced receiver out volume levels | | LED Display | AF/Peak LED Display: 5-segment LED tree indicating received audio levels from transmitter | | Audio Output Level | Unbalanced output: 360 mV adjustable audio output @ ±25 kHz deviation
Balanced output: 24 mV fixed level audio output @ ±25 KHz deviation | | Output Impedance | Balanced and Unbalanced: 600 Ohms | | Power Requirement | 15 VDC / 0.4 A | | Antennas | Dual BNC right angle | | Housing | Metal | | Dimensions | 8.25 x 6.25 x 1.75" (21.6 x 15.9 x 4.5 cm) | | Weight | 2 lb (0.91 kg) | | | | RF Output Power | HI: +14 dBm (25 mW typical)
LOW: +4 dBm (2.5 mW typical) | | Harmonic & Spurious Emissions | -50 dBc, normal | | Audio Input Level | 310 mV | | Input Impedance | 500 kOhms | | Controls | 1 x switch, Power Off/Mute/On
1 x switch, RF power Hi/Low
3 x button, Up, Down, Set | | Input Connector | 3.5mm locking mini phone jack | | LCD Display | Group / Channels / Input Volume / Battery Levels | | Antenna Type | External fixed | | Battery Type | 2 x AA alkaline batteries operation | | Battery Life | 8 - 10 hours typical | | Housing | Metal | | Dimensions | 2.5 x 3.3 x 0.7" (6.4 x 8.3 x 1.8 cm) | | Weight | 3.8 oz (0.108 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 7.0" |
