Product description

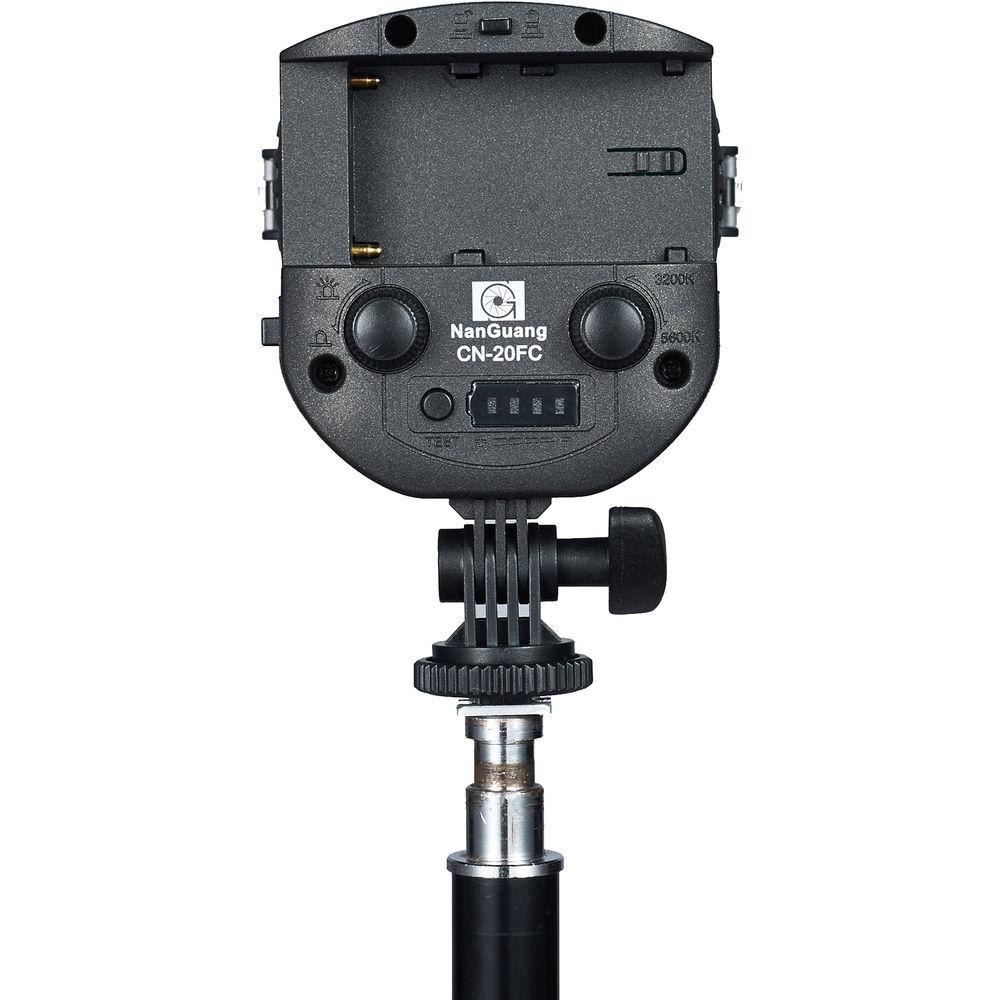

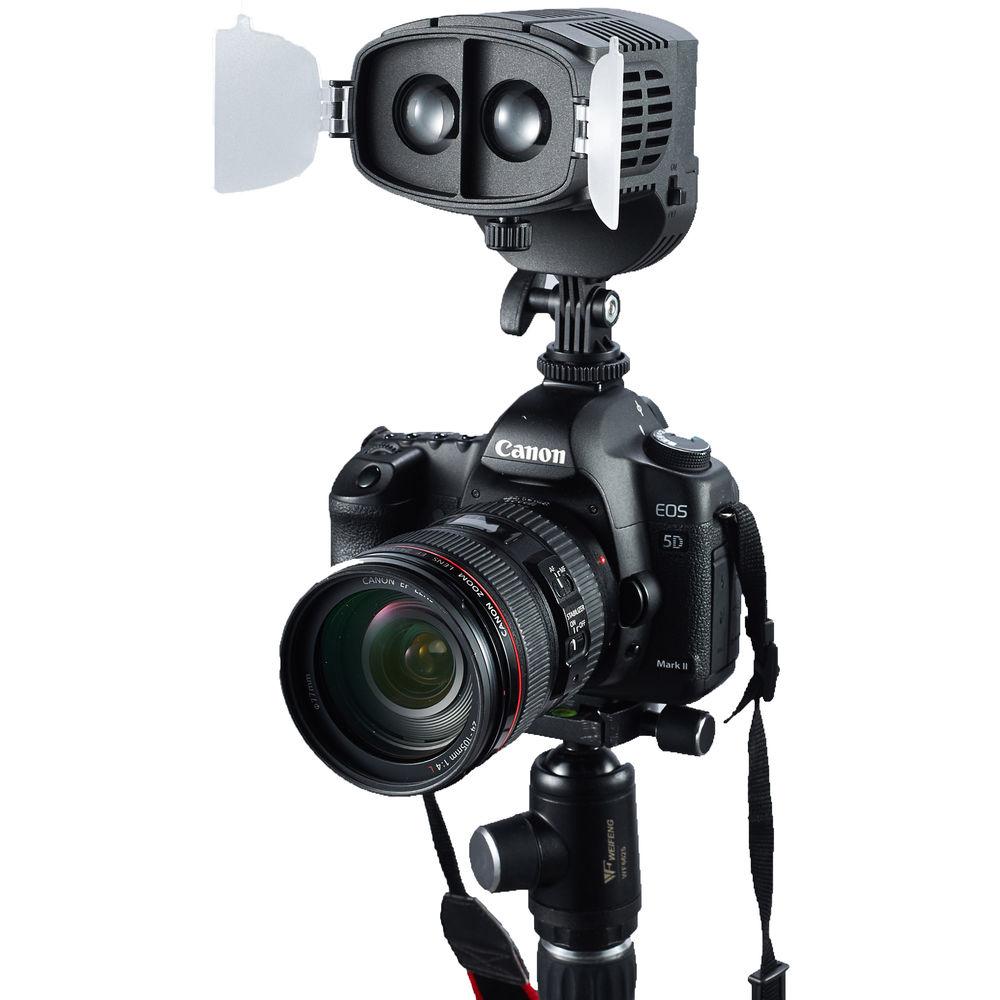

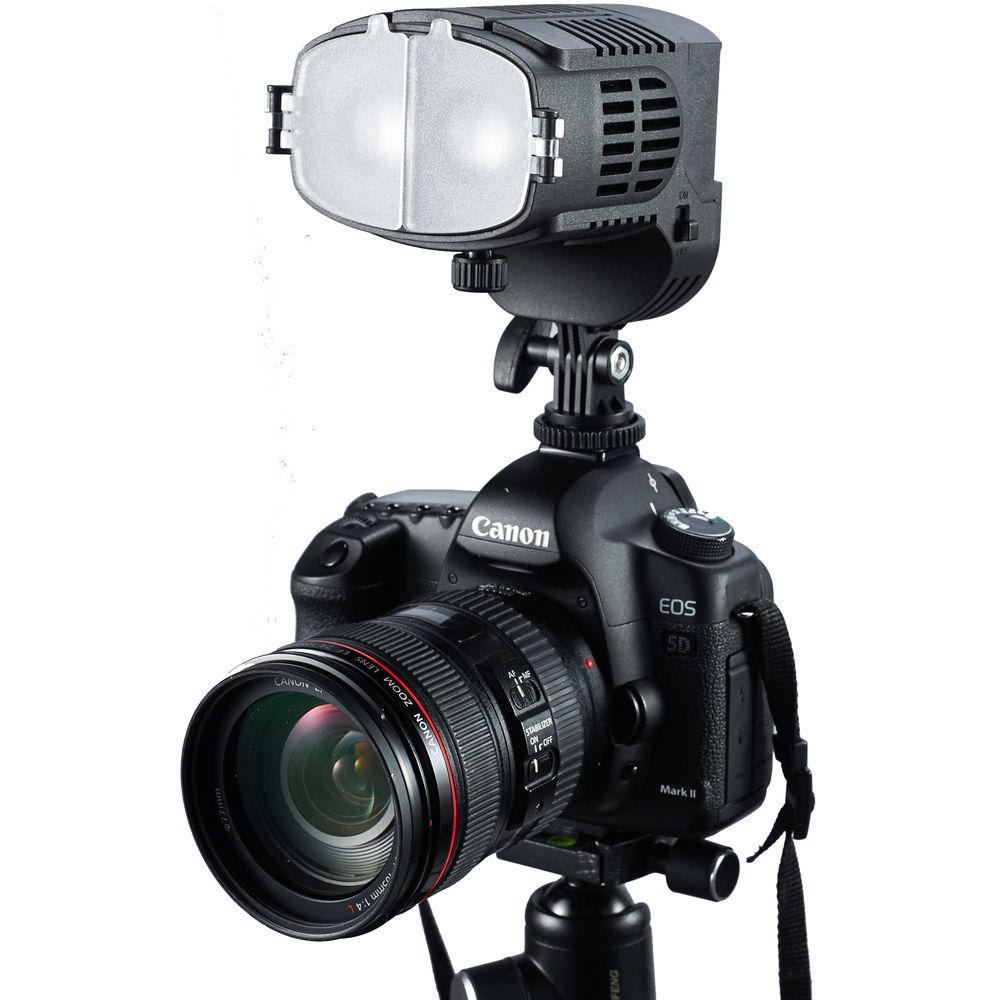

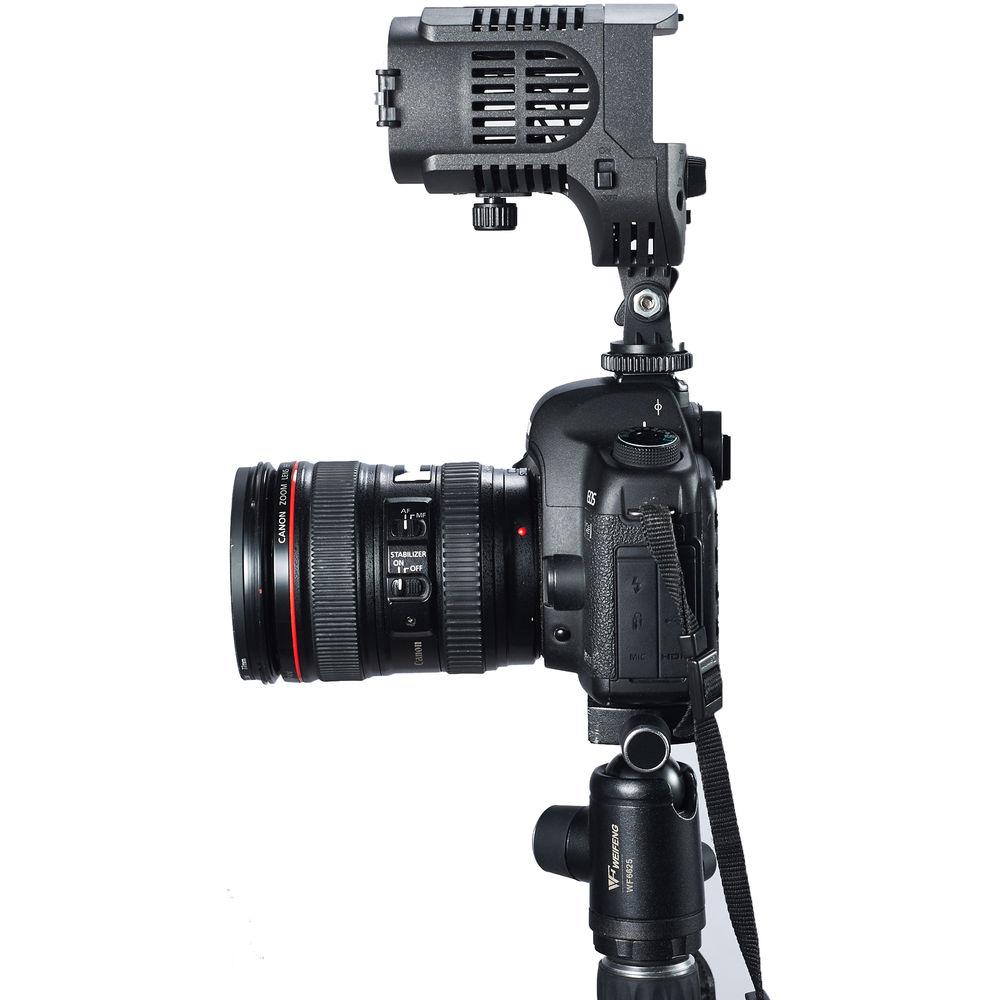

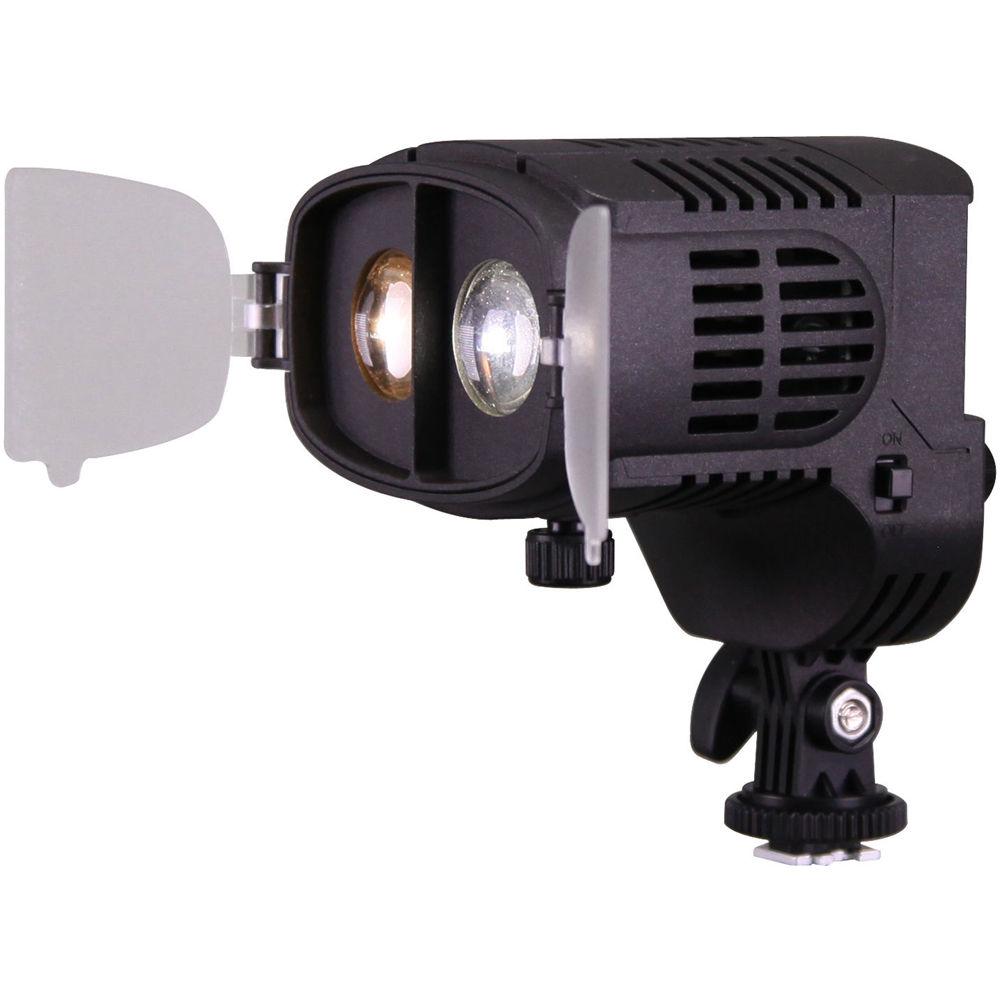

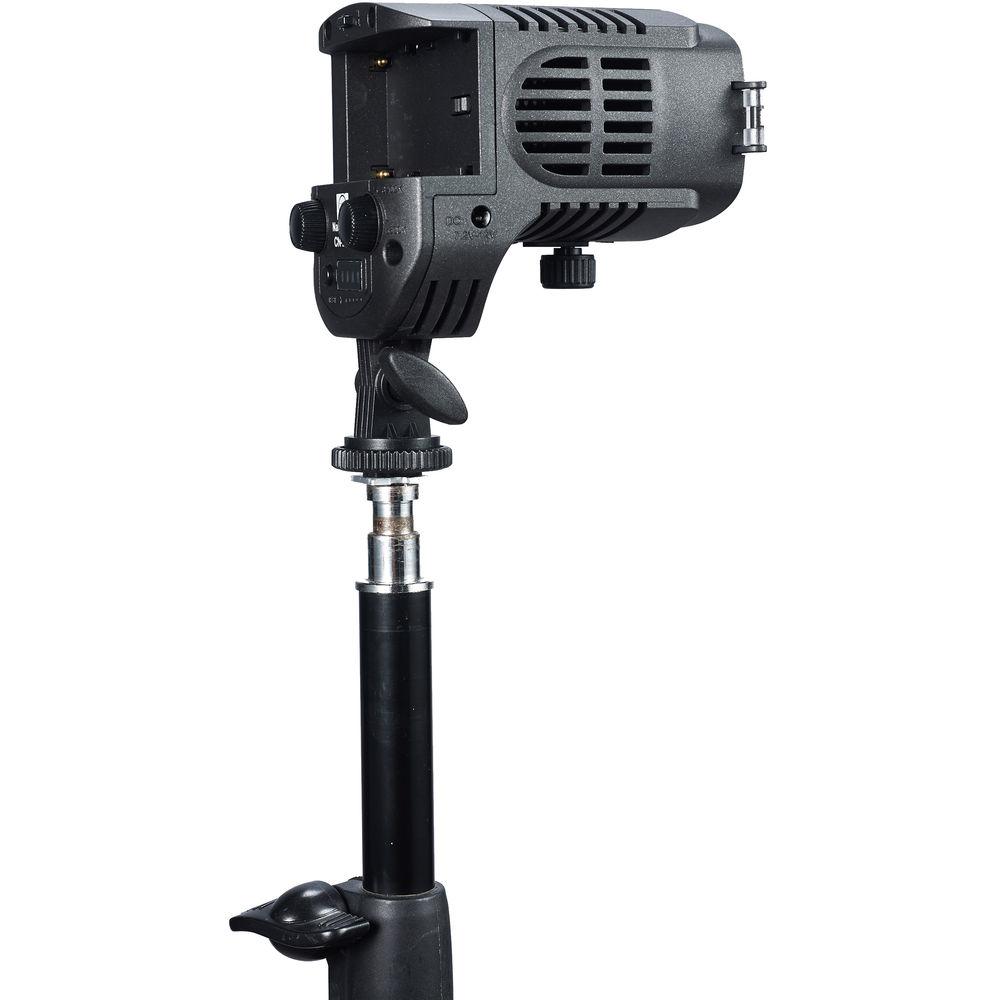

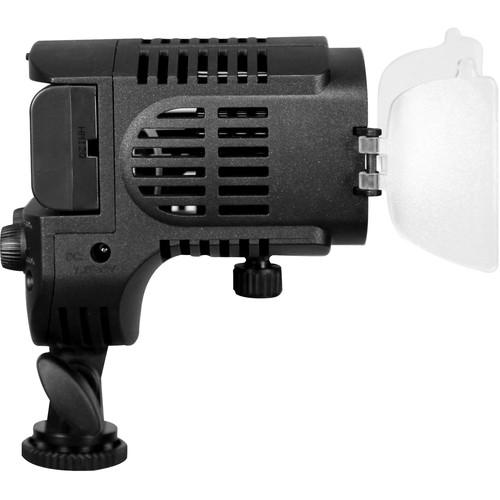

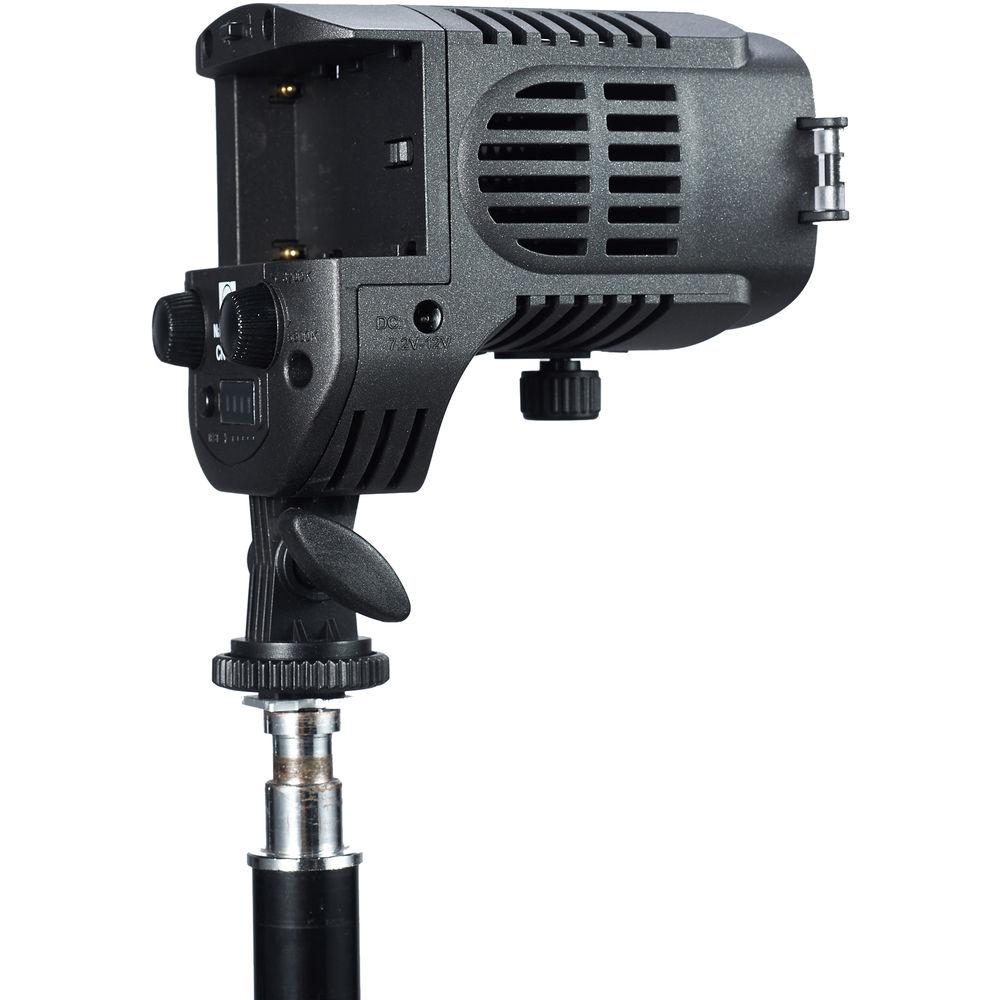

The CN-20FC Bi-Color LED Fresnel Spotlight from Nanguang is a compact, portable 15-55° focusing spotlight. This 5.5 x 4.9 x 4.1" light outputs up to 700 lumens of light and features two COB (chip-on-board) LEDs with individual diffusers that double as barndoors.Vary the color temperature from 3200 to 5600K and dim the fixture from 0 to 100% using the rear control knobs. The light's rendering rate is CRI 95 and TLCI 93 for accurate variable color to allow you to blend with ambient light or with other fixtures.The CN-20FC Bi-Color LED Fresnel features quiet passive cooling, a battery level indicator, and a combo cold shoe and 1/4"-20 thread mount for attaching to your camera rig or stand. This versatile fixture may be powered using a separately available Sony L-series type battery, AC adapter, or six AA batteries. In the Box Nanguang CN-20FC Bi-Color LED Fresnel Spotlight

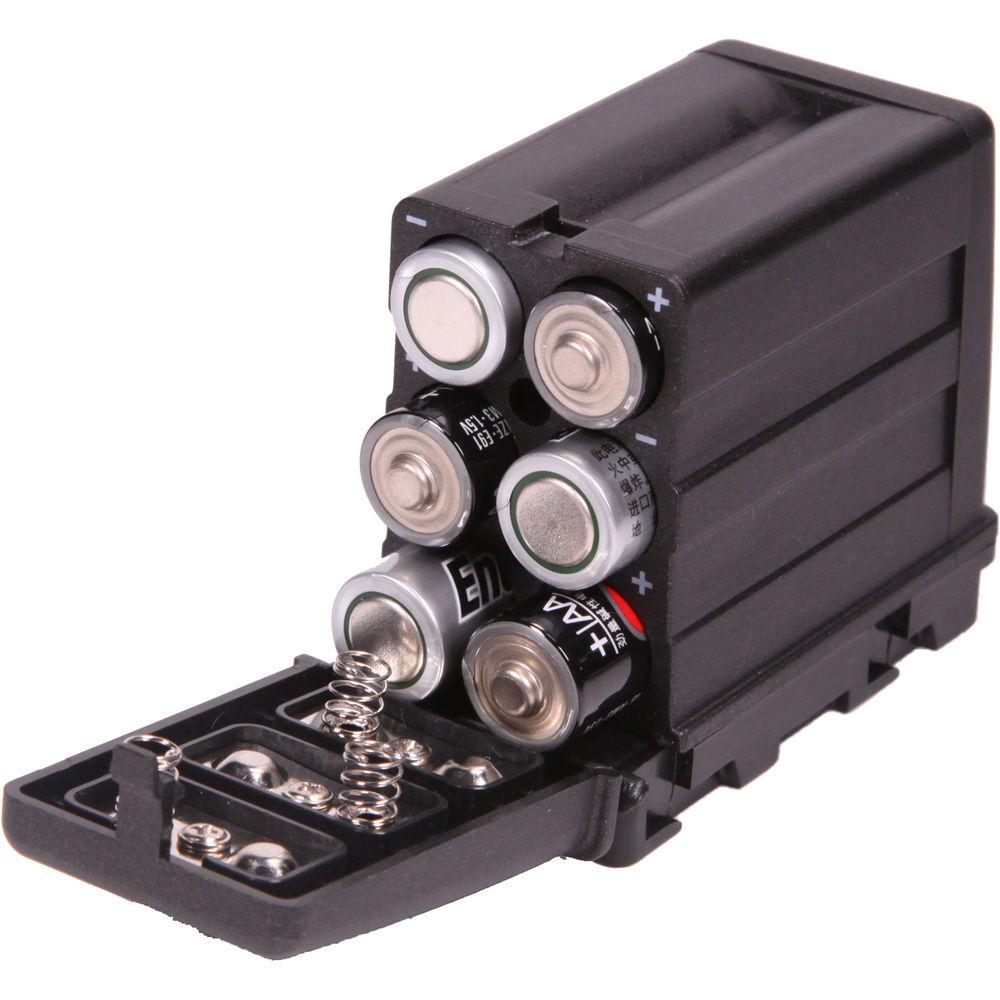

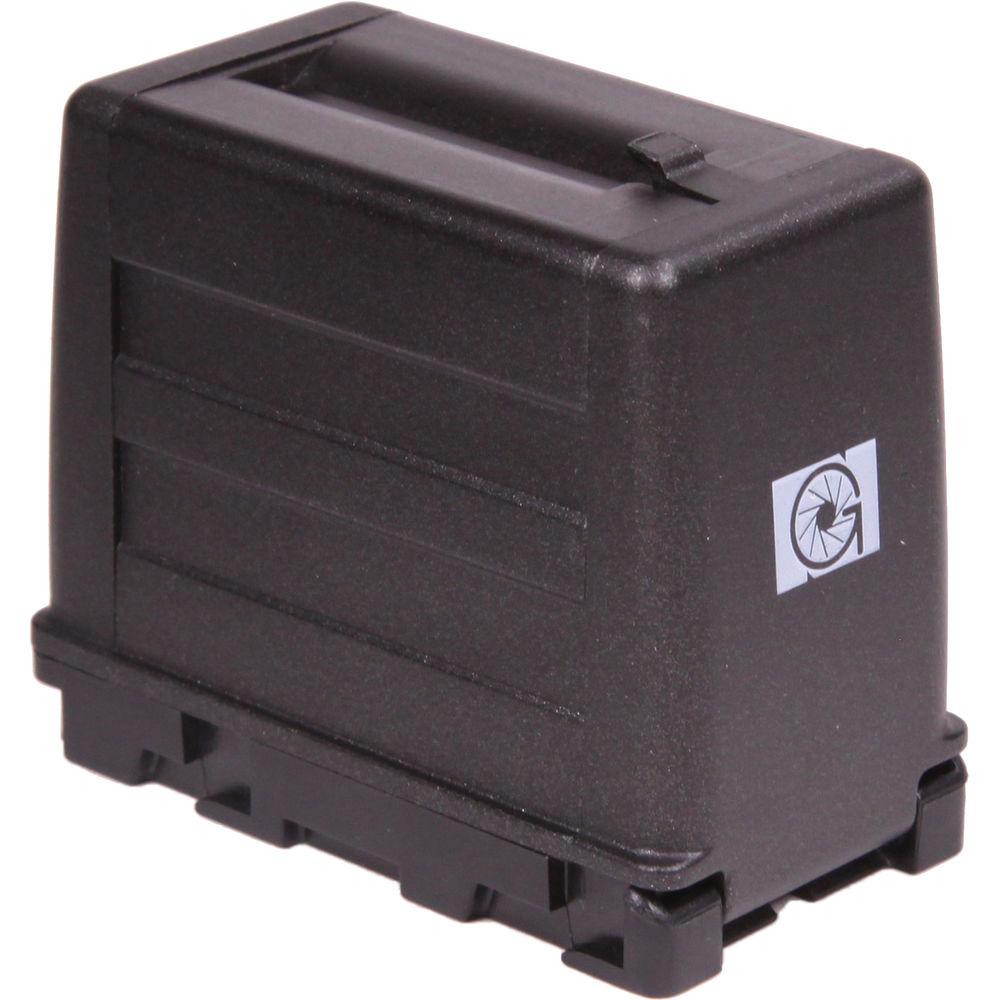

  • AA Battery Adapter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nanguang CN-20FC Bi-Color LED Fresnel Spotlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nanguang CN-20FC Specs

    Beam Angle 15 to 55°
    Color Temperature 3200 to 5600K
    Color Accuracy Standard CRI 95
    TLCI 93
    Lumens 700 (at 5600K)
    Dimming Yes, 0 to 100%
    Cooling System Passive
    Battery Plate 1 x Sony L-Series (NP-F)
    6 x AA
    DC Input Power 7.2 to 12 VDC
    Max Power Consumption 10 W
    Power Input Connector Barrel / Coax For separately available AC adapter.
    Mount Type 1/4"-20 Female, Cold Shoe
    Dimensions 5.5 x 4.9 x 4.1" / 14 x 12.5 x 10.5 cm
    Weight 10.58 oz / 0.3 kg
    Package Weight 1.505 lb
    Box Dimensions (LxWxH) 6.8 x 6.5 x 4.5"
