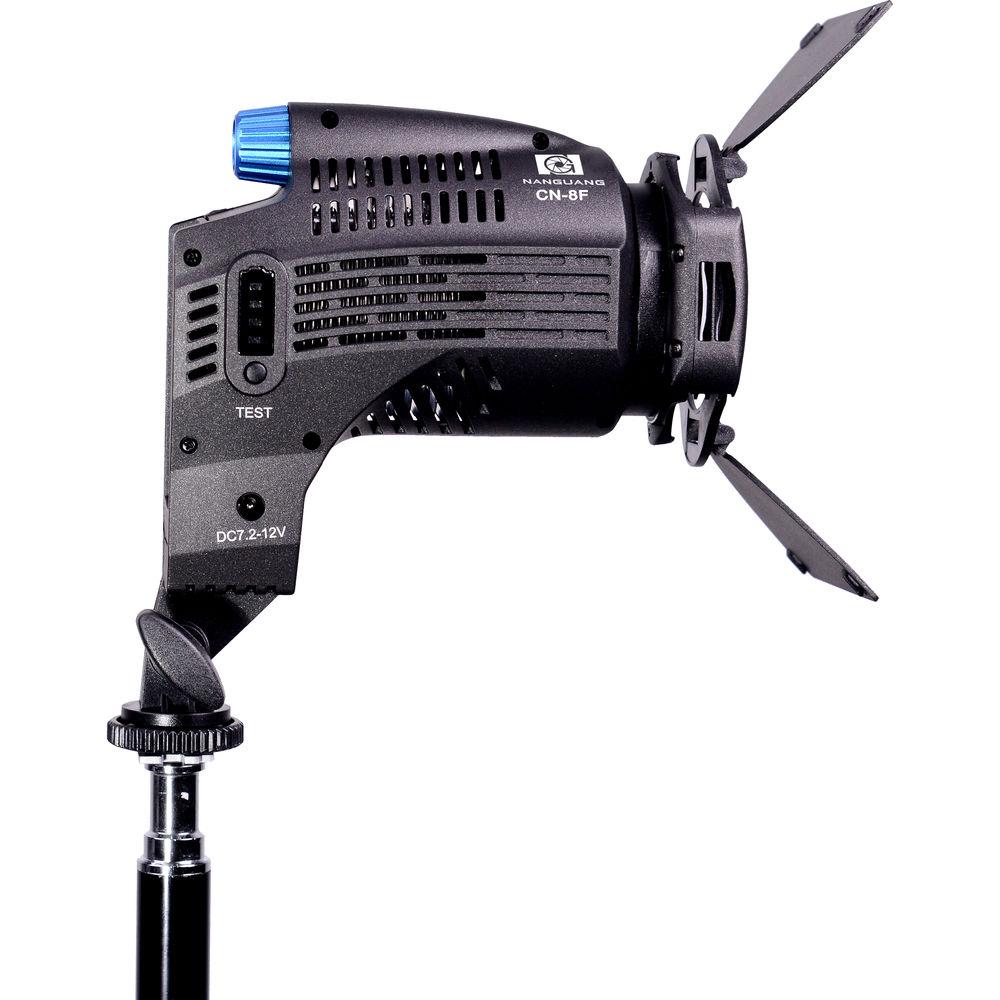

User Manual for Nanguang CN-8F 5600K LED Fresnel Click to enlarge the picture
Contents of the user manual for the Nanguang CN-8F 5600K LED Fresnel
- Product category: On Camera Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang On Camera Lights
 |
User manual for the Nanguang CN-8F 5600K LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

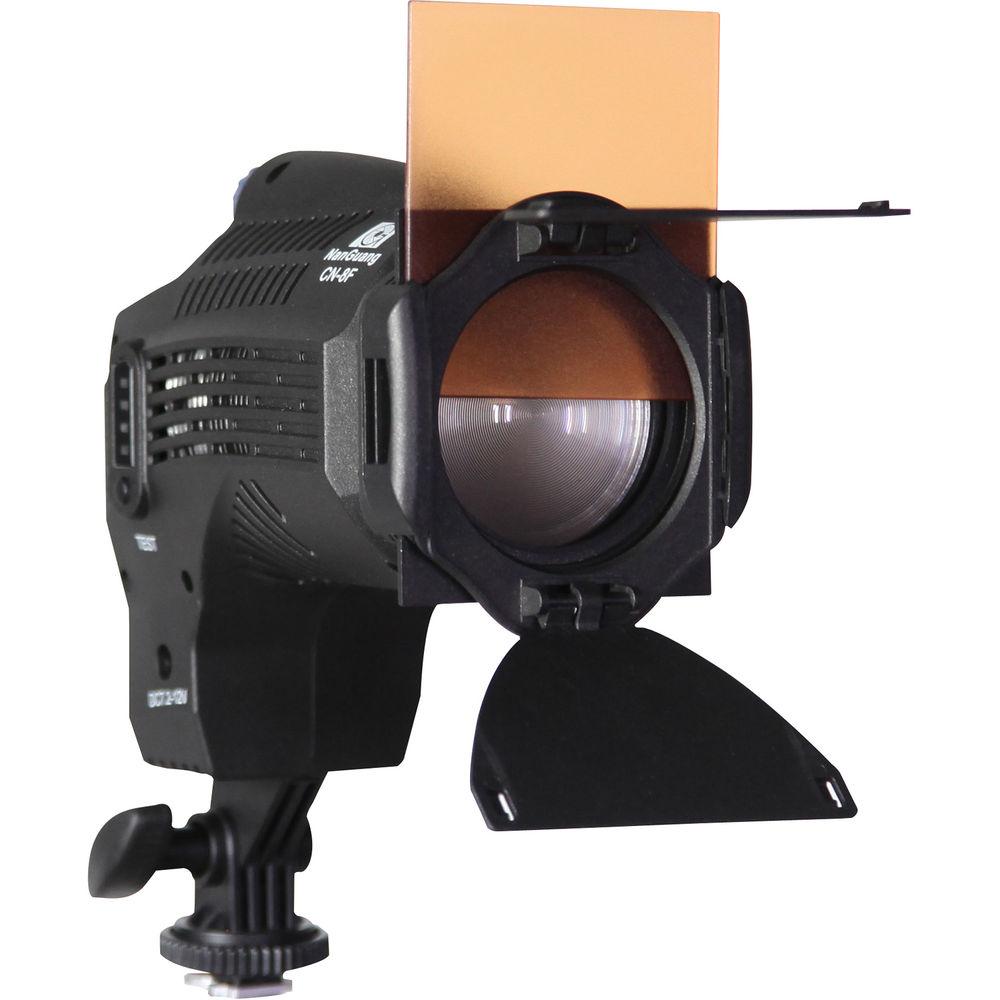

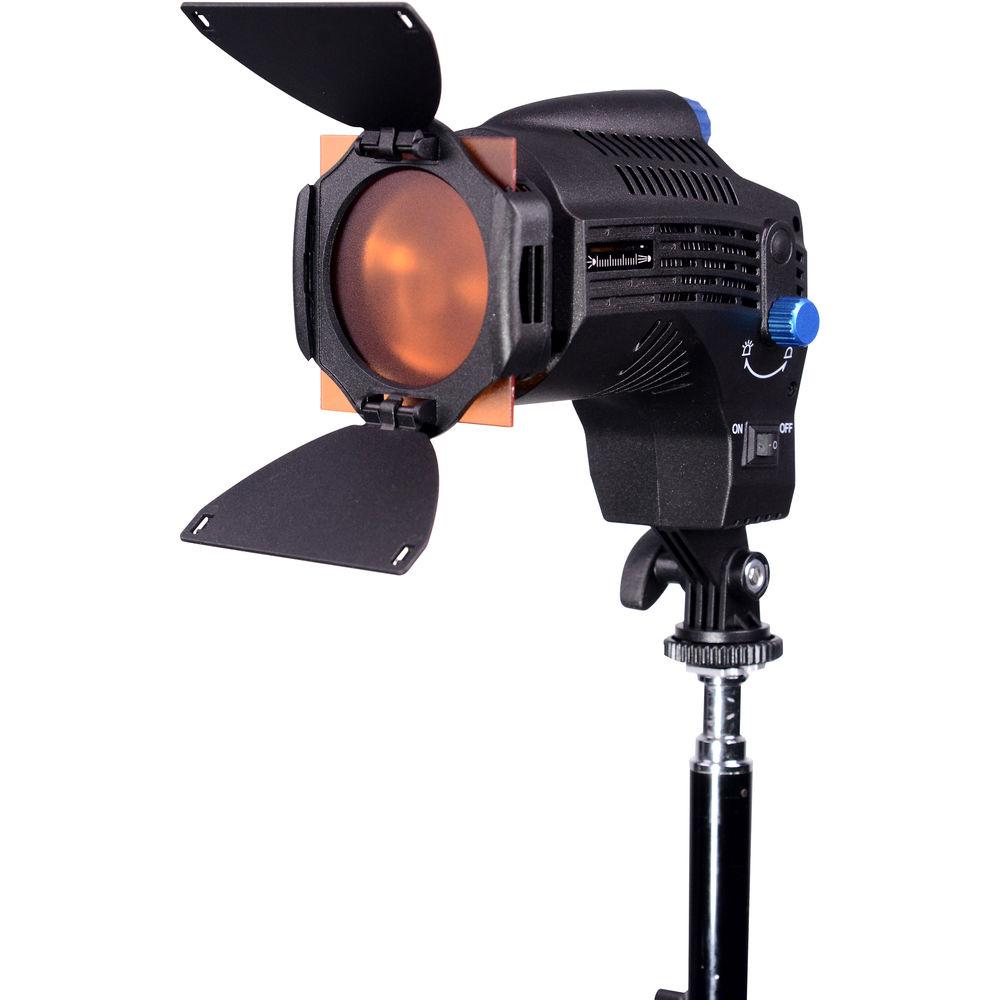

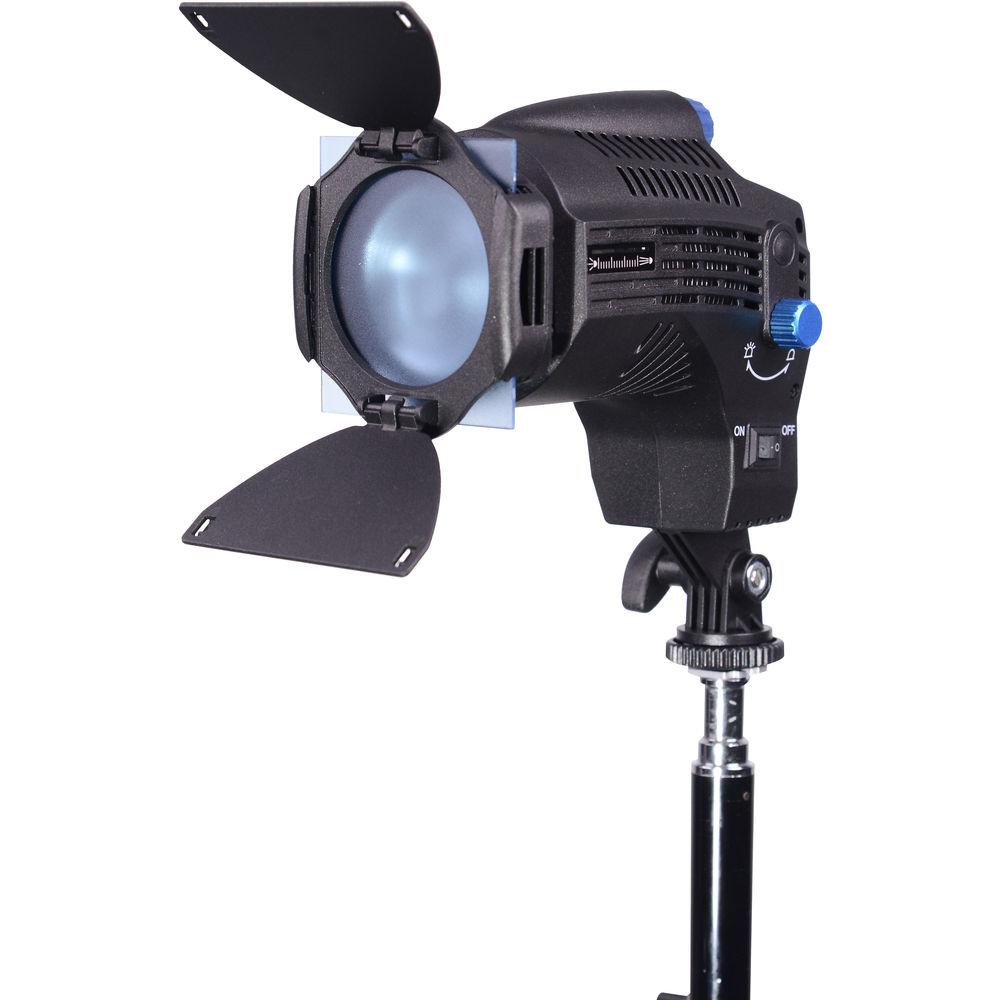

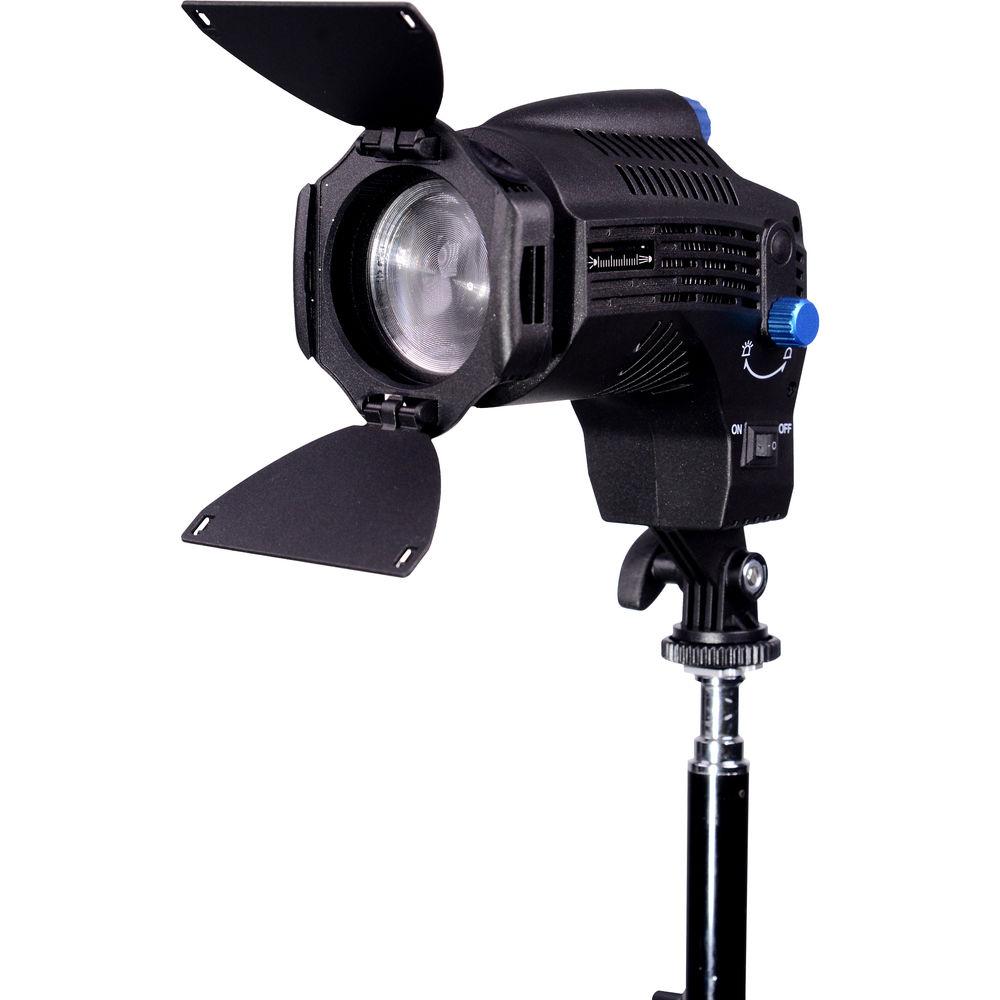

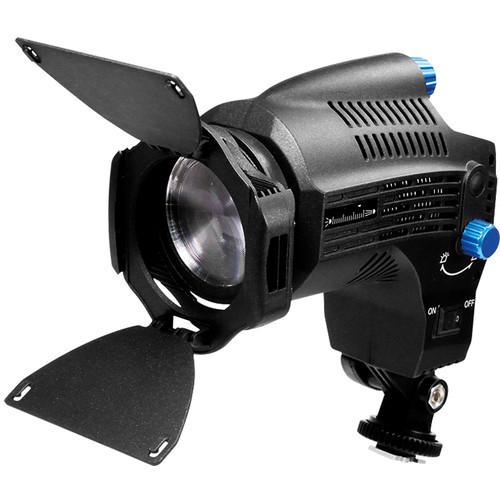

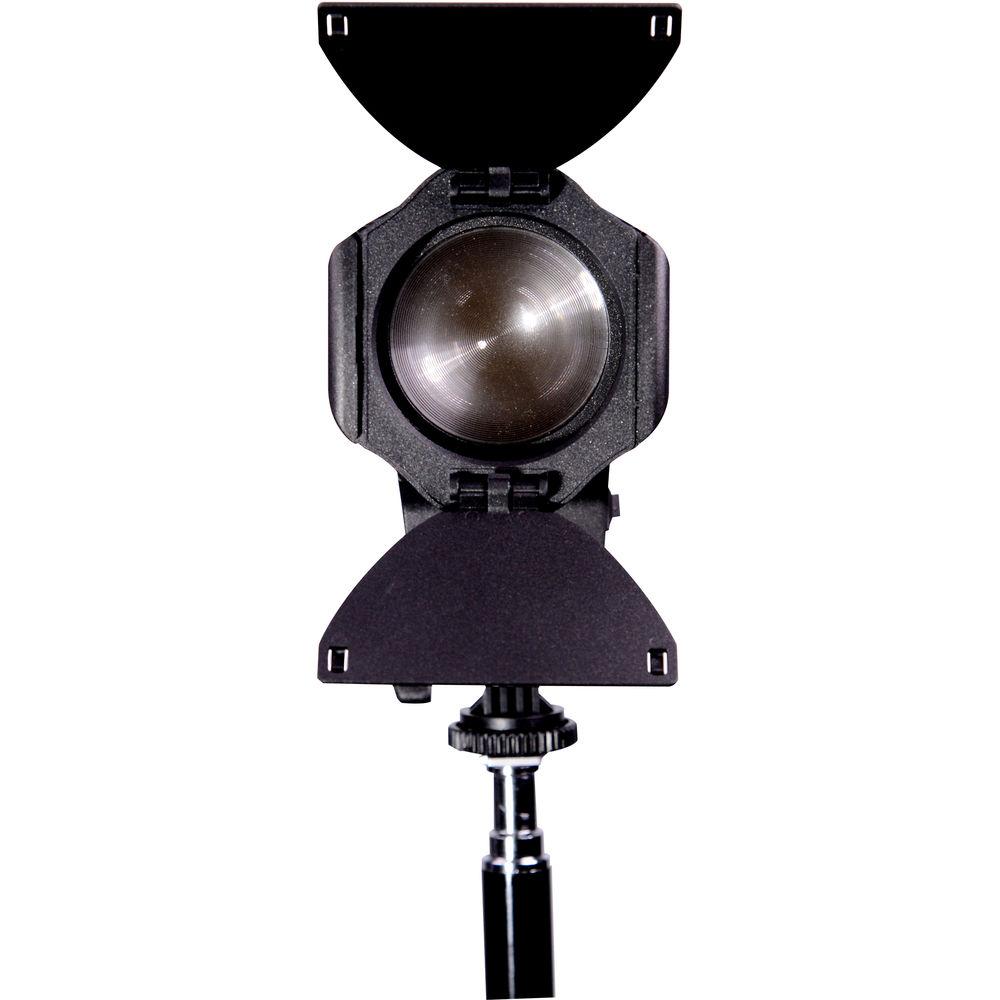

Product description The Nanguang CN-8F 5600K LED Fresnel is a 5600K daylight-balanced light featuring a compact, portable design. Weighing only 11.6 oz, this 95-CRI LED light is powered via a separately available Sony L-Series type battery, or six AA batteries (adapter included). Suitable for both location and studio sets, the CN-8F 5600K Fresnel mounts to your rig or stand via its combo cold shoe-1/4"-20 mount. In addition to the AA adapter, this light includes an integrated holder for up to three filters, one 3200K filter, one 5600K filter, a Cokin filter frame, barndoors, and a carrying case. Features -
- Includes 3200K filter, 5600K filter, barndoors, case, and Cokin filter frame
- Power using 6 x AA batteries using the included adapter

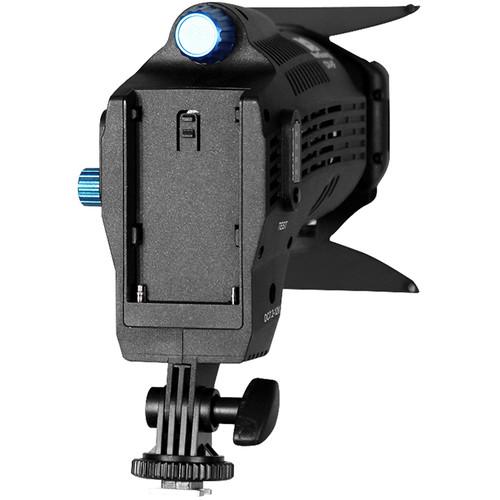

- Optional power via optional Sony L-Series type battery
- Compact, lightweight design
- Knob dims from 0-100%

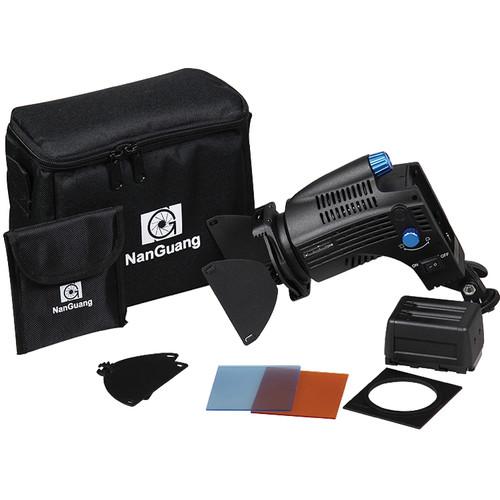

In the Box Nanguang CN-8F 5600K LED Fresnel Adapter for 6 x AA Batteries Set Barndoors 3200K Filter 5600K Filter Cokin Filter Frame Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang CN-8F 5600K LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang CN-8F Specs | | | Beam Angle | 10 to 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 at 5600K
TLCI 93 at 5600K | | Lumens | 560 (at 5600K) | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | | | Battery Plate | 1 x Sony L-Series (NP-F)
6 x AA Includes AA Adapter. | | DC Input Power | 7 to 12 VDC | | Max Power Consumption | 8 W | | | | Mount Type | 1/4"-20 Female, Cold Shoe | | Dimensions | 6.7 x 5.9 x 3.1" / 17 x 15 x 8 cm | | Weight | 10.58 oz / 0.3 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
