User Manual for Nanguang Luxpad 43 Bi-Color LED Panel Click to enlarge the picture
Contents of the user manual for the Nanguang Luxpad 43 Bi-Color LED Panel
- Product category: LED Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang LED Lights
 |
User manual for the Nanguang Luxpad 43 Bi-Color LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

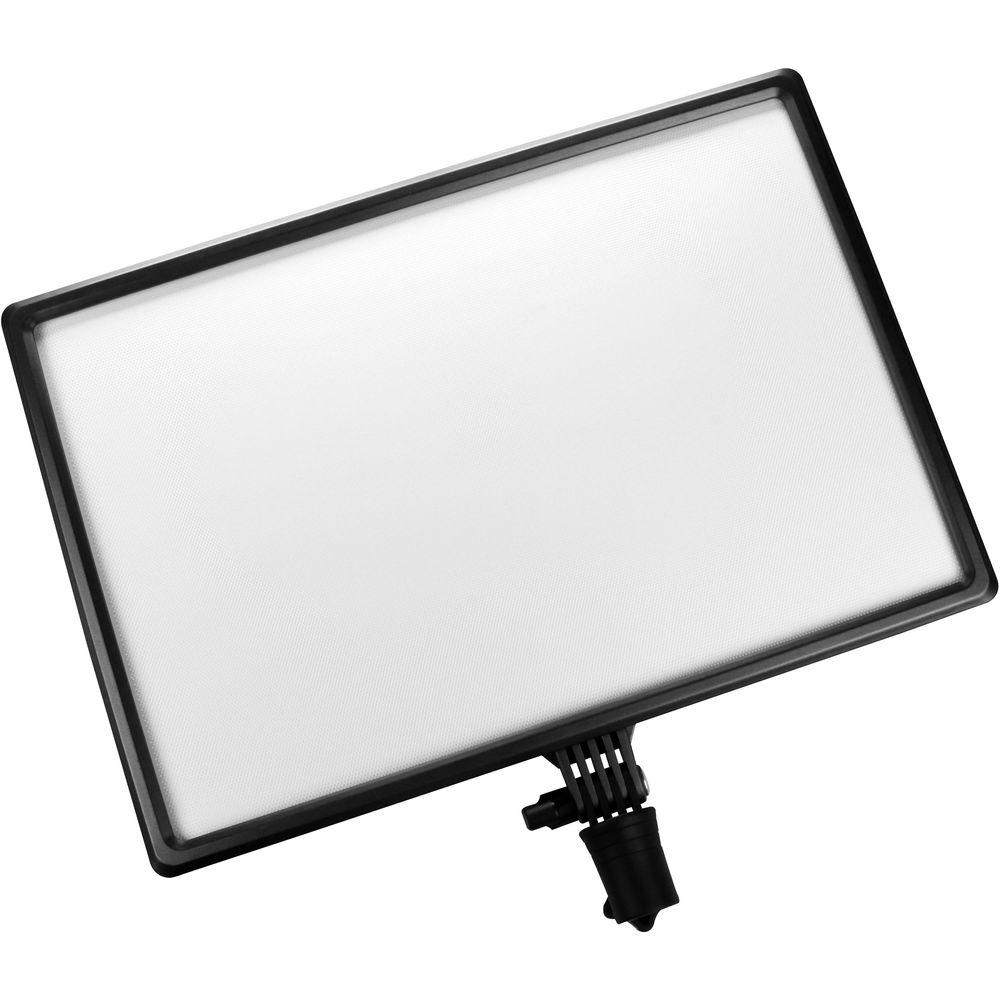

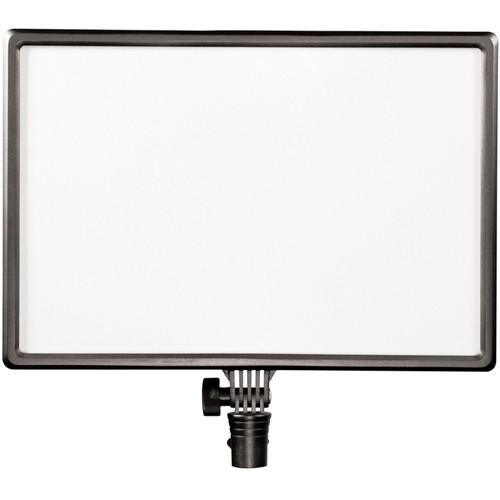

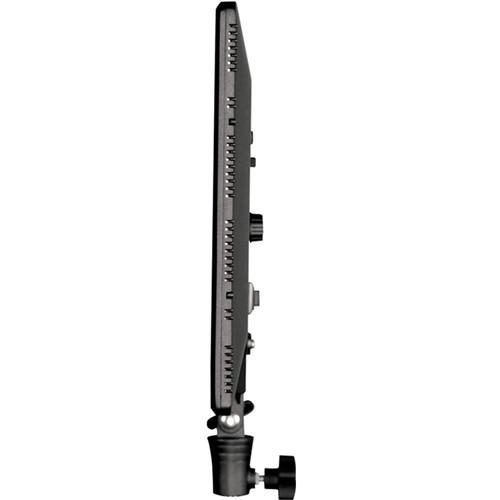

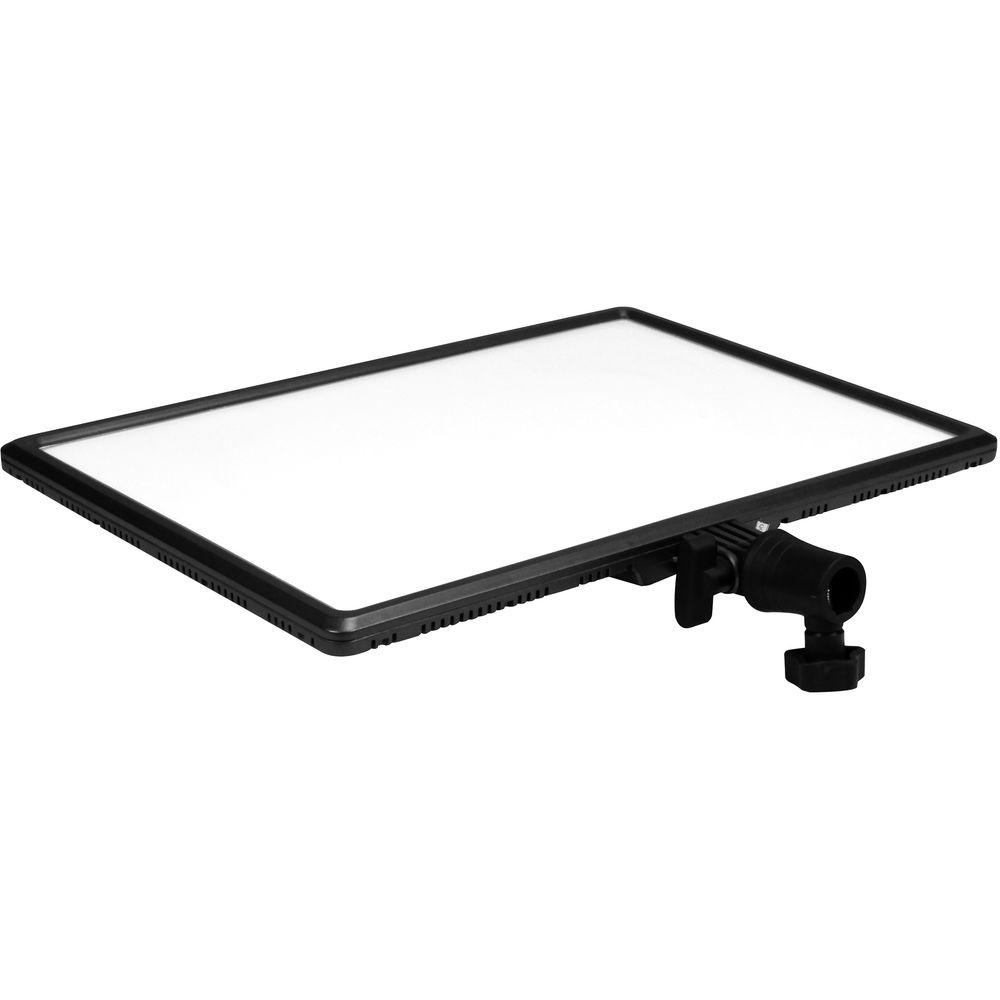

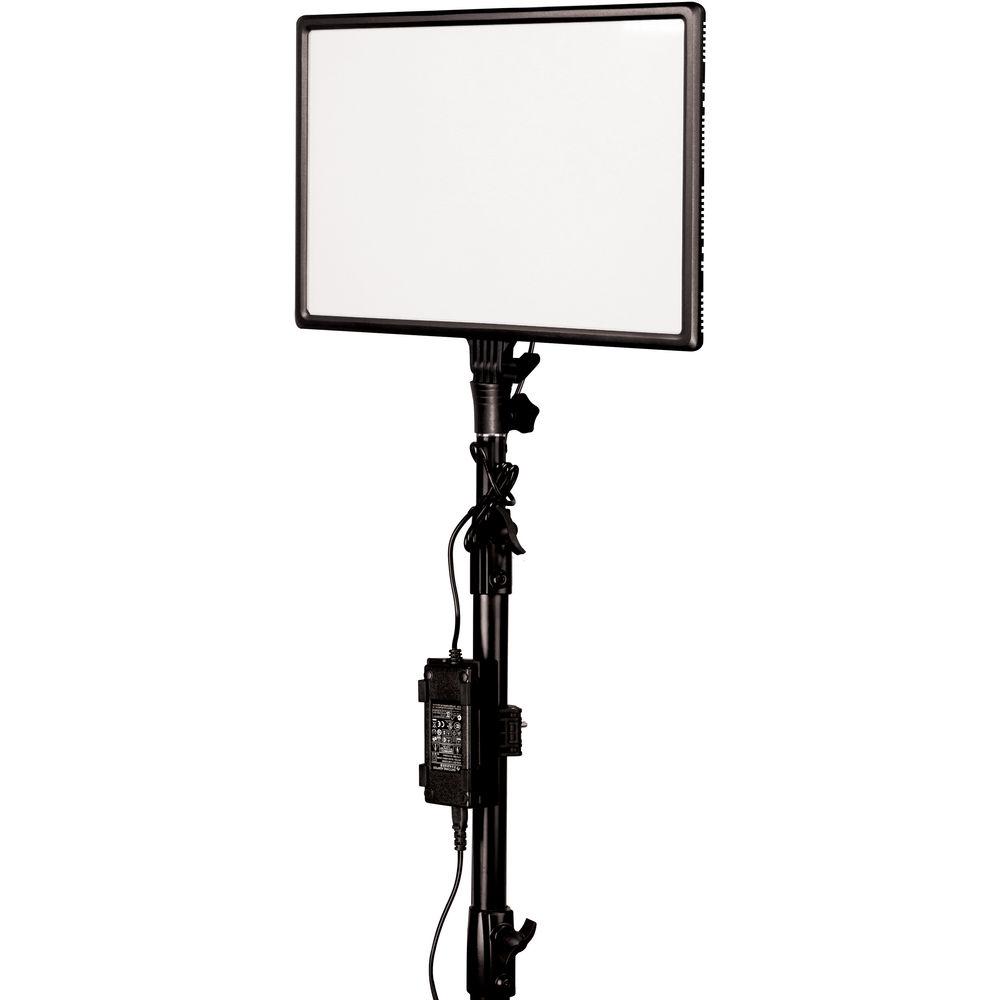

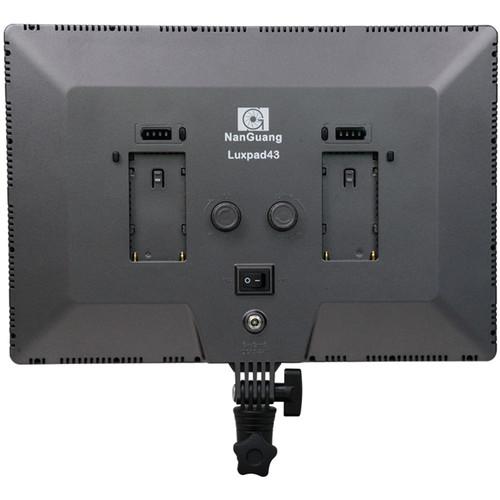

Product description The Luxpad 43 Bi-Color LED Panel from Nanguang is a versatile 13.7 x 9.4 x 0.9" light source with solid control features at a price point that makes it a good choice for both part-time and full-time shooters. Its 120-degree beam spread and soft output are well-suited for portrait, wedding, group video, and photography, while its thin 0.9" profile allows placement where larger lights can't go. The light has color that's CRI-rated at 95 for accurate rendering and variable from 3200 to 5600K to meet any ambient light challenge or to blend in seamlessly with other fixtures. Light intensity is variable from 0 to 100%, while the fixture's quiet air-cooling is an asset, especially in sound-sensitive situations. The Luxpad 43 is ready for worldwide use thanks to its 110-240 VAC power adapter, but it can also run on optional batteries via its dual NP-F battery plate when mains power is unavailable. In the Box Nanguang Luxpad 43 Bi-Color LED Panel Power Adapter Shoe Mount Adapter Dual Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang Luxpad 43 Bi-Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang Luxpad 43 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Lumens | 1412 | | Photometrics | 120°:
8.6 fc / 93 lux at 6.56' / 2 m
2.5 fc / 27 lux at 13.12' / 4 m | | Fixture Dimensions | 13.7 x 9.4 x 0.9" / 348.0 x 238.8 x 22.9 mm | | Fixture Weight | 2 lb / 0.91 kg | | | | Battery Plate | 2 x Sony P-Series | | | | Yoke Mount | None | | Fixture Mount | None | | Mount via Included Adapter | Shoe Mount | | | | Remote Control Type | Wi-Fi | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.2 to 15 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 25.6 W | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.1 x 14.5 x 3.7" |
