User Manual for Nanguang LuxPad22 Bi-Color Slim LED Panel Click to enlarge the picture
Contents of the user manual for the Nanguang LuxPad22 Bi-Color Slim LED Panel
- Product category: On Camera Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang On Camera Lights
 |
User manual for the Nanguang LuxPad22 Bi-Color Slim LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

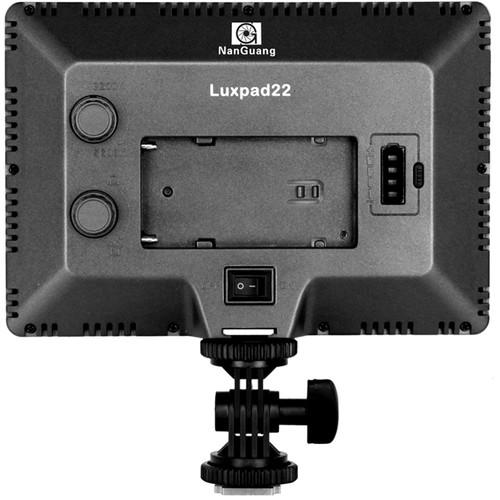

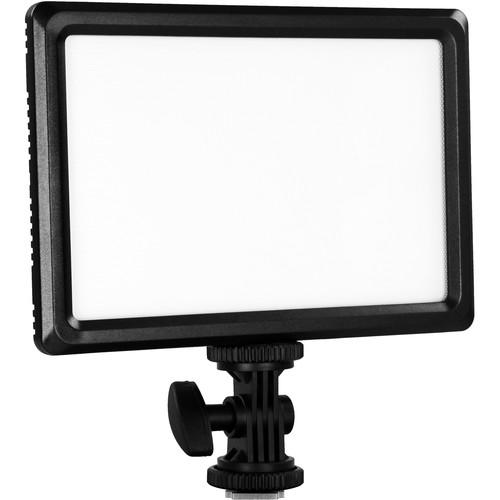

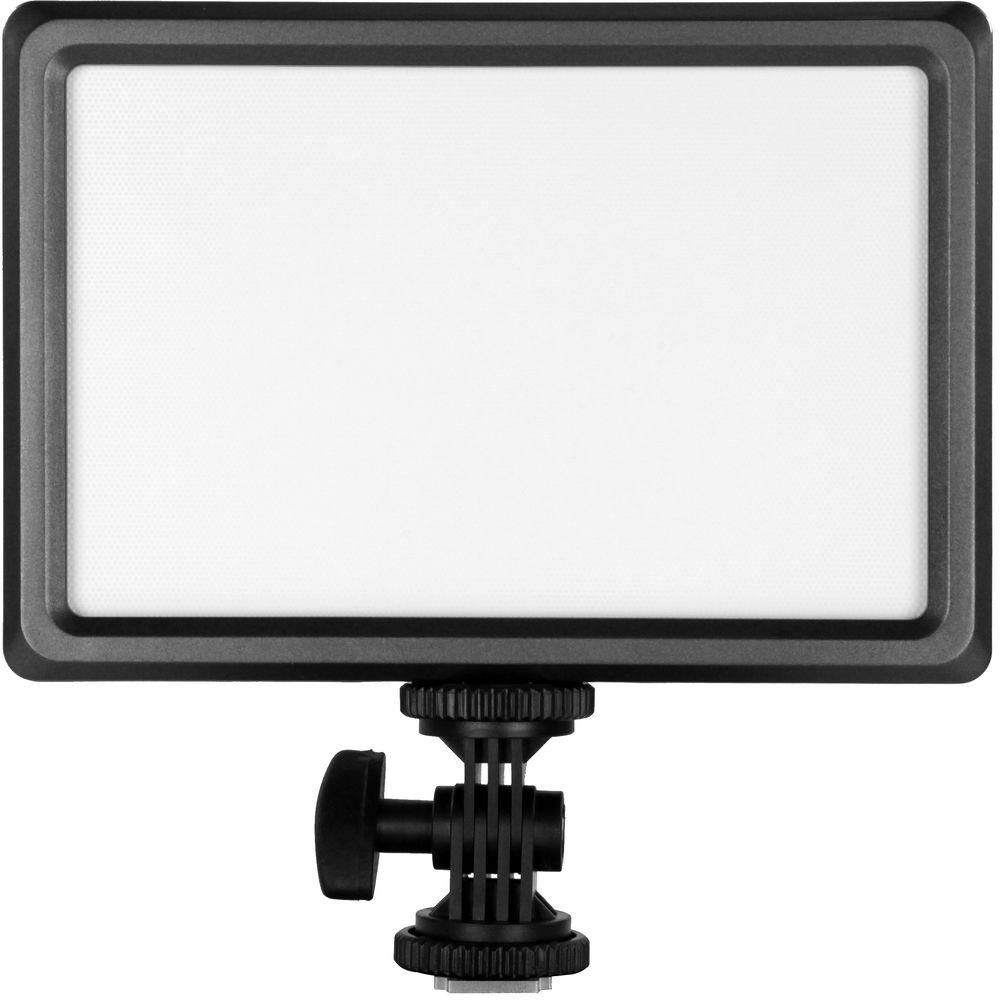

Product description The LuxPad22 Bi-Color Slim LED Panel from Nanguang is a slim, bright yet soft 6.9 x 4.5 x 1.4" light, suitable for live streaming, vlogging, video capture, and photo booths. Rear knobs enable you to vary the color temperature from 3200 to 5600K and to dim the fixture from 0-100%. Its thin 1.4" profile enables use where larger lights would be a hindrance. The light is CRI-rated at 95 for accurate rendering and variable from 3200 to 5600K to blend with ambient light or with other fixtures. The LuxPad22 Bi-Color LED features quiet passive cooling, a battery level indicator, and a combo cold shoe-1/4"-20 thread mount for attaching to your camera rig or stand. Power this fixture using a separately available Sony L-series type battery. Features -
- Variable 3200K-5600K color temperature
- Power using a separately available Sony L-series type battery
- Compact, lightweight design
- Bright yet soft output
- Knob dimming from 1-100%
In the Box Nanguang LuxPad22 Bi-Color Slim LED Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang LuxPad22 Bi-Color Slim LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang LuxPad22 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 93 | | Lumens | 515 (at 5600K) | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.2 to 8.4 VDC | | Max Power Consumption | 11 W | | | | Mount Type | 1/4"-20 Female, Cold Shoe | | Dimensions | 6.9 x 4.5 x 1.4" / 17.5 x 11.4 x 3.5 cm | | Weight | 10.58 oz / 0.3 kg |
