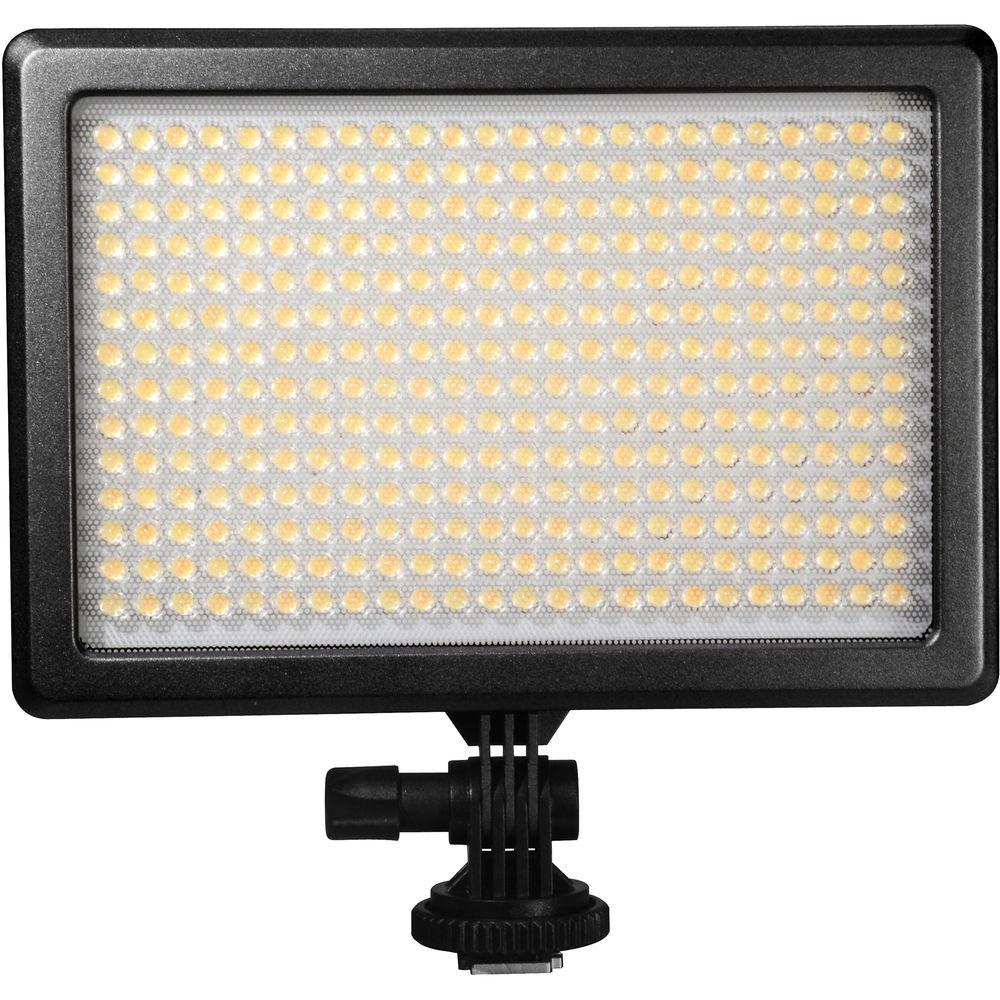

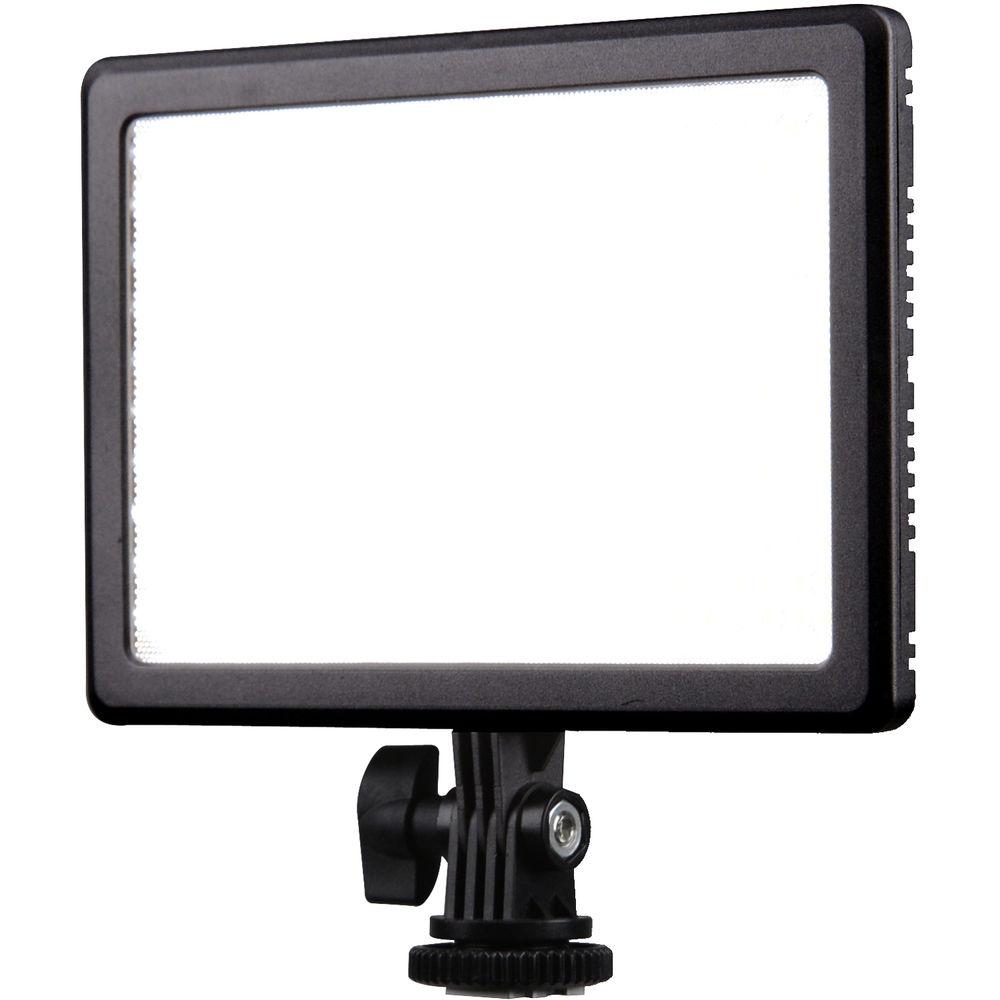

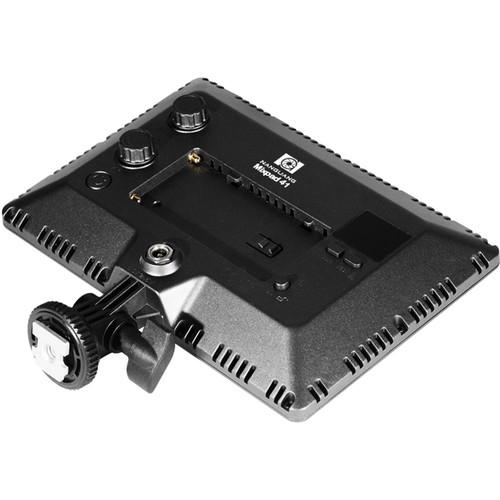

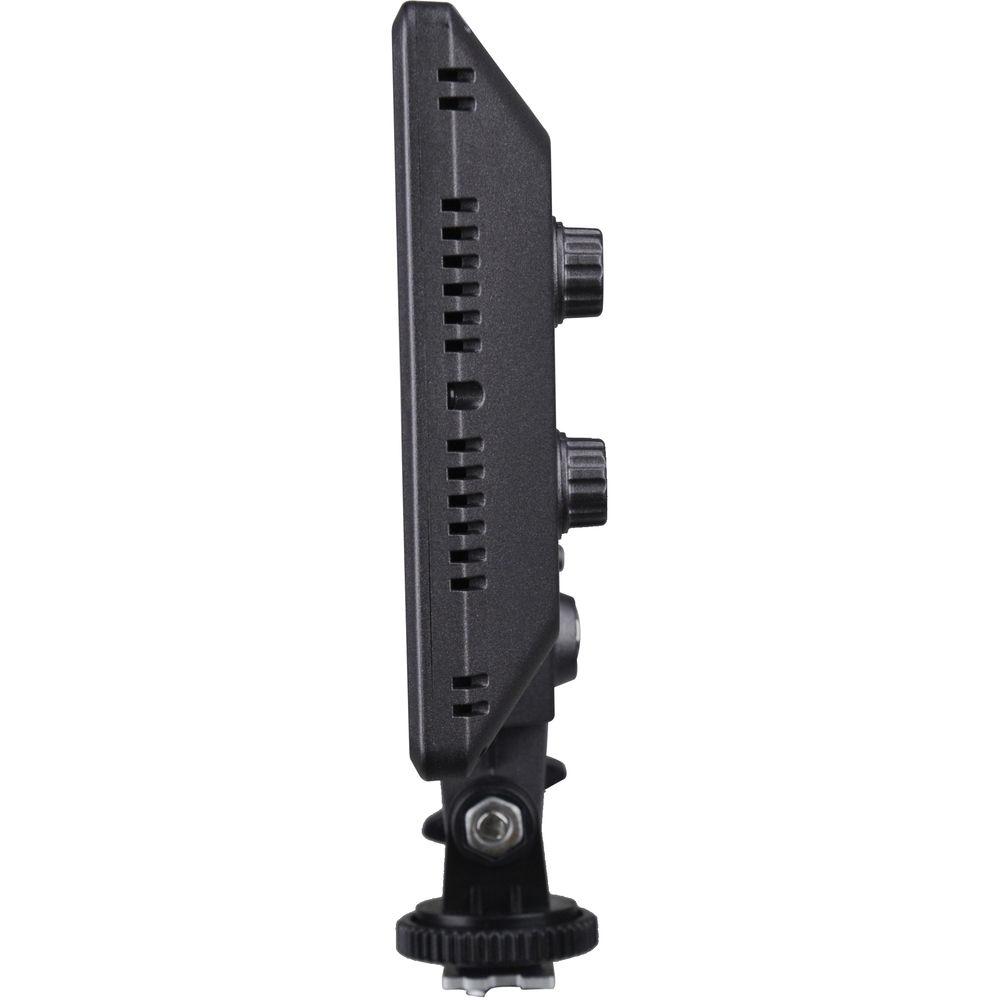

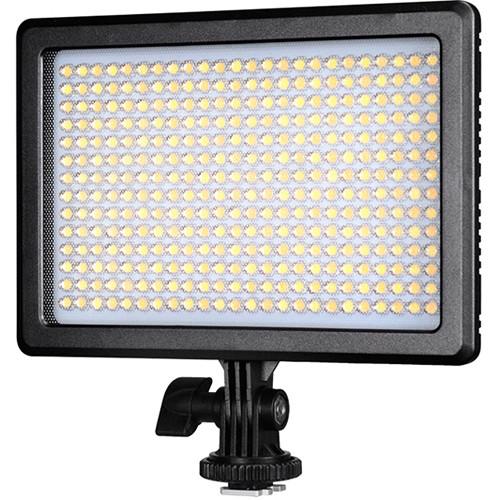

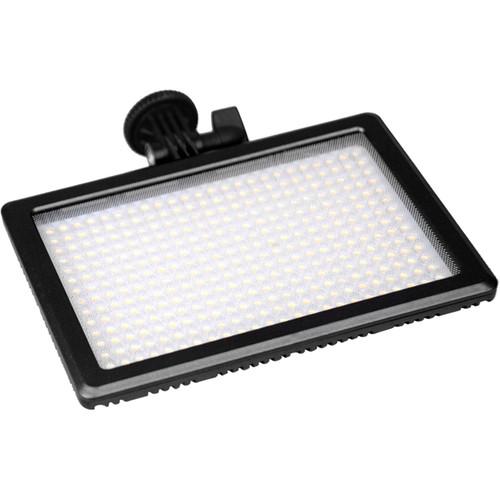

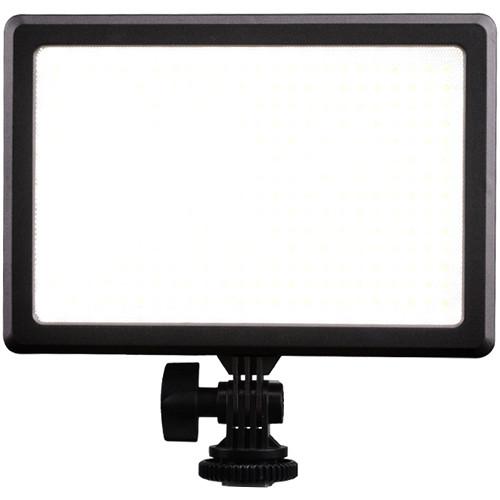

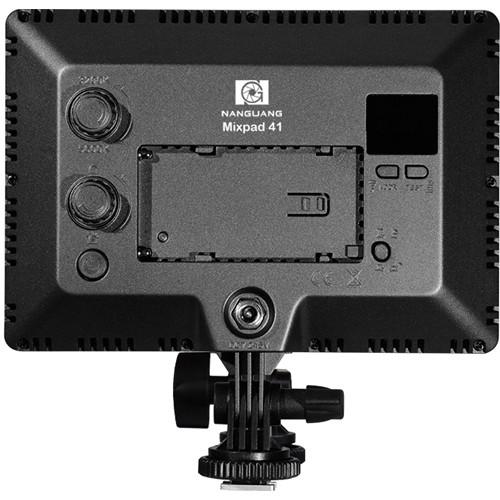

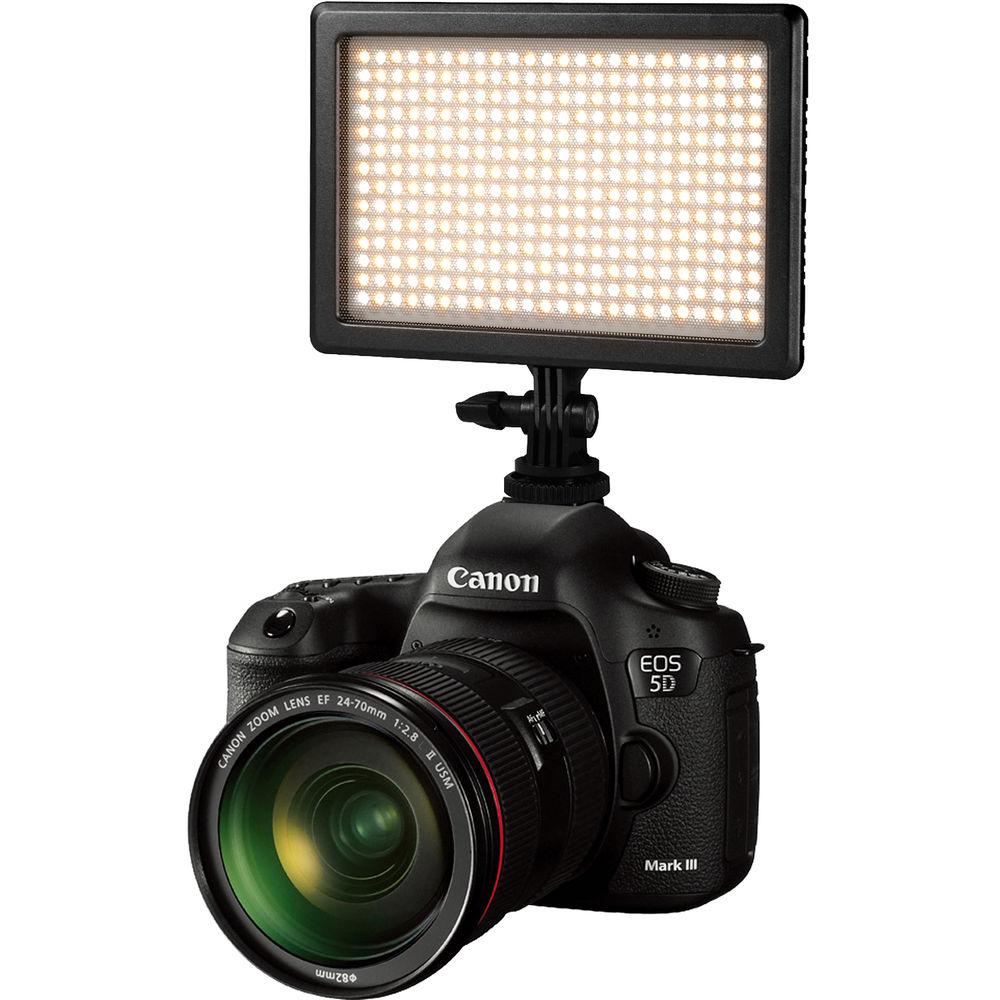

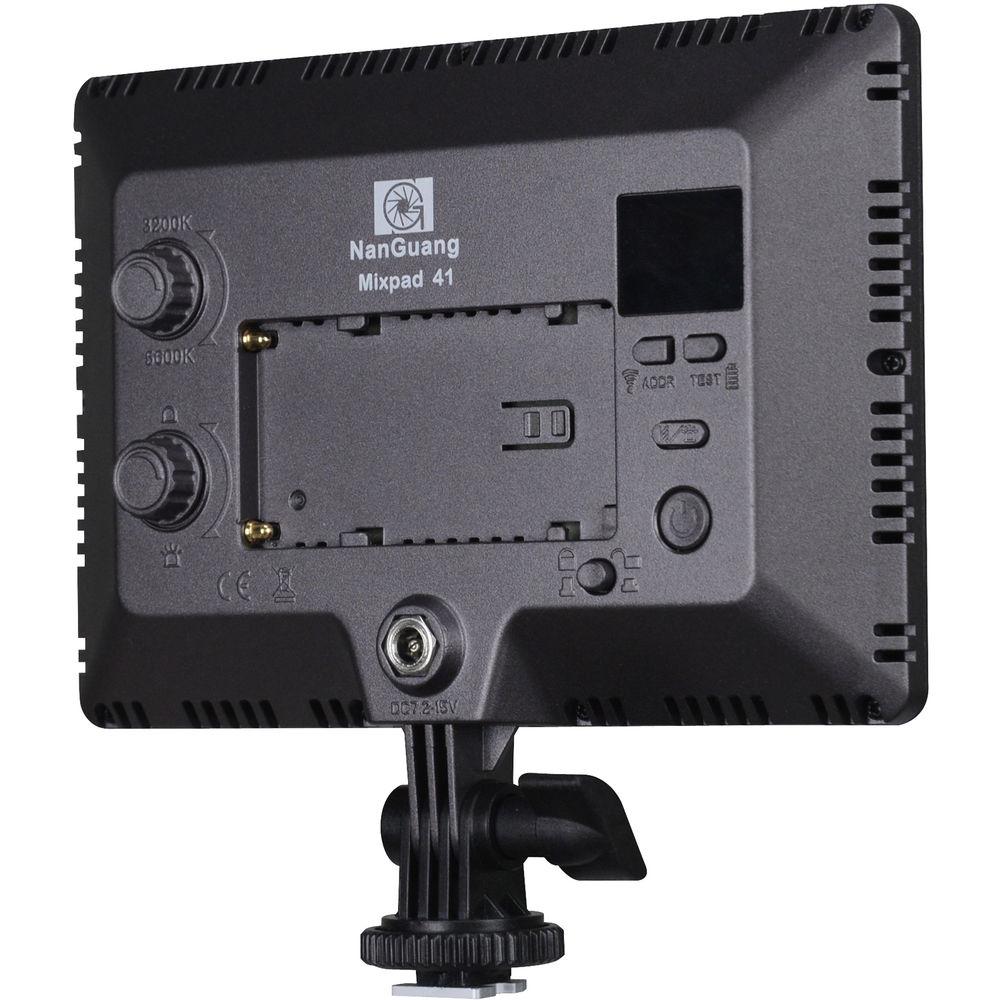

Product description The MixPad41 Bi-Color Hard/Soft On-Camera LED Light from Nanguang is a slim, compact unit that enables you to switch between hard and soft light at the touch of a button. This 6.7 x 6.4 x 1.3" light outputs up to 841 lumens of hard light and up to 869 lumens in soft light mode. An LCD screen displays the chosen color temperature and brightness level.Vary the color temperature from 3200 to 5600K and dim the fixture from 0 to 100% using the rear knobs or via Wi-Fi remote control. The light is CRI-rated at 95 for accurate rendering, and variable from 3200 to 5600K to blend with ambient light or with other fixtures.The MixPad41 Bi-Color LED features quiet passive cooling, a battery level indicator, and a combo cold shoe and 1/4"-20 thread mount for attaching to your camera rig or stand. Power this fixture using a separately available Sony L-series type battery. Features -
- Combo 841-lumen hard light / 869-lumen soft light
- Variable 3200 to 5600K color temperature
- Remote control via Wi-Fi
- Power using a separately available Sony L-series type battery
- LCD displays color temperature and brightness level
- Compact, lightweight design
- Knob dimming from 1 to 100%
In the Box Nanguang MixPad41 Bi-Color Hard/Soft On-Camera LED Light Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang MixPad41 Bi-Color Hard Soft On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang Mixpad41 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 93 | | Lumens | 869 (at 5600K)
841 (at 5600K) Hard Light Mode
Soft Light Mode | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | Display | LCD | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.2 to 15 VDC | | Max Power Consumption | 10 W | | | | Wireless Protocol | Wi-Fi (Unspecified Type) | | Wireless Frequency Bands | 2.4 GHz | | | | Mount Type | 1/4"-20 Female, Cold Shoe | | Dimensions | 6.7 x 6.4 x 1.3" / 17 x 16.3 x 3.2 cm | | Weight | 10.58 oz / 0.3 kg |
