Product description - Nanguang Pavolite RGB Tube Product Video
- NanGuang #Pavolite LED Tube Battery-Powered RGBW Light for Photo & Video

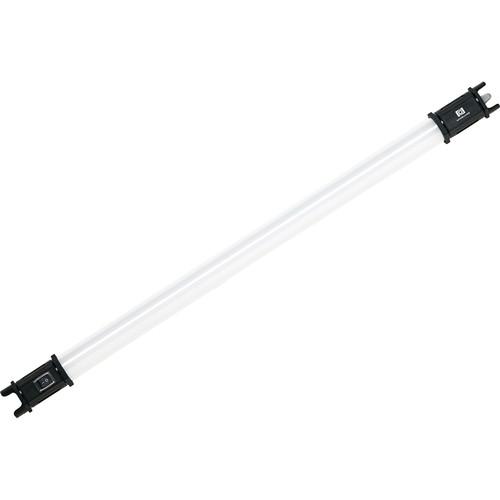

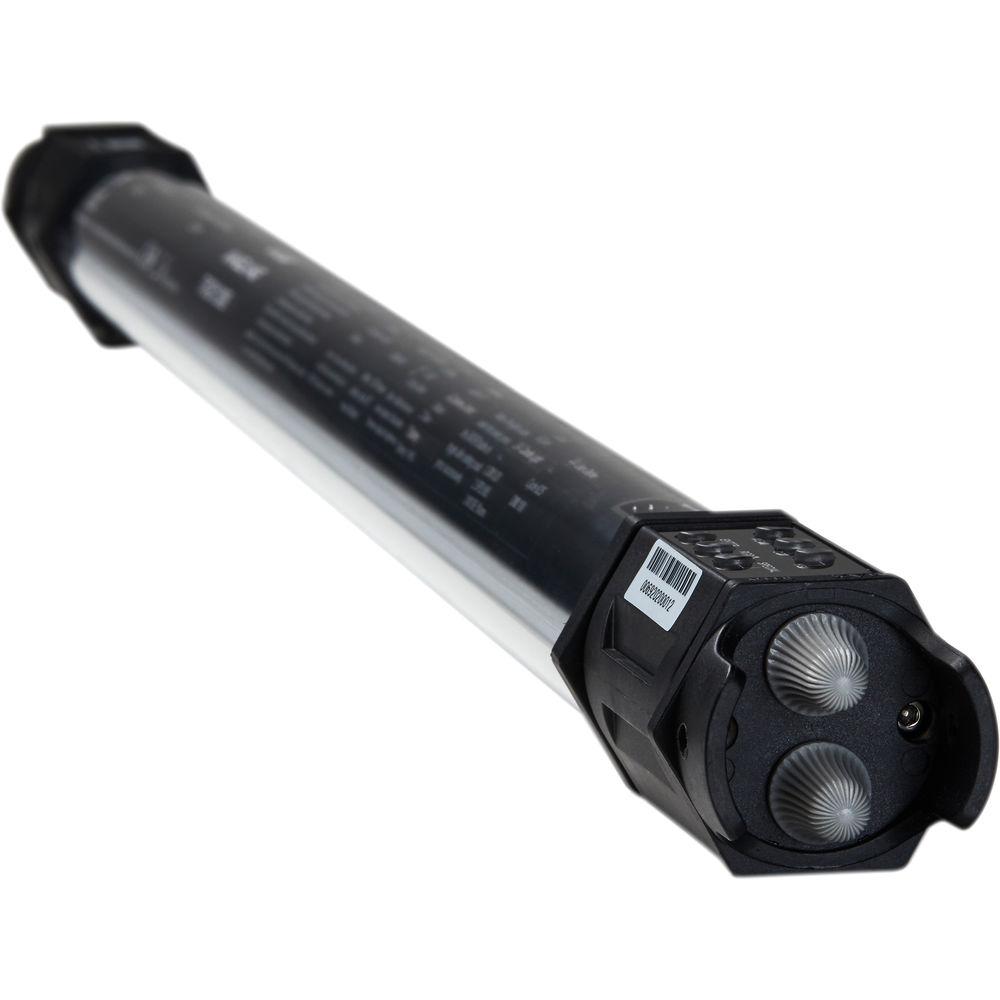

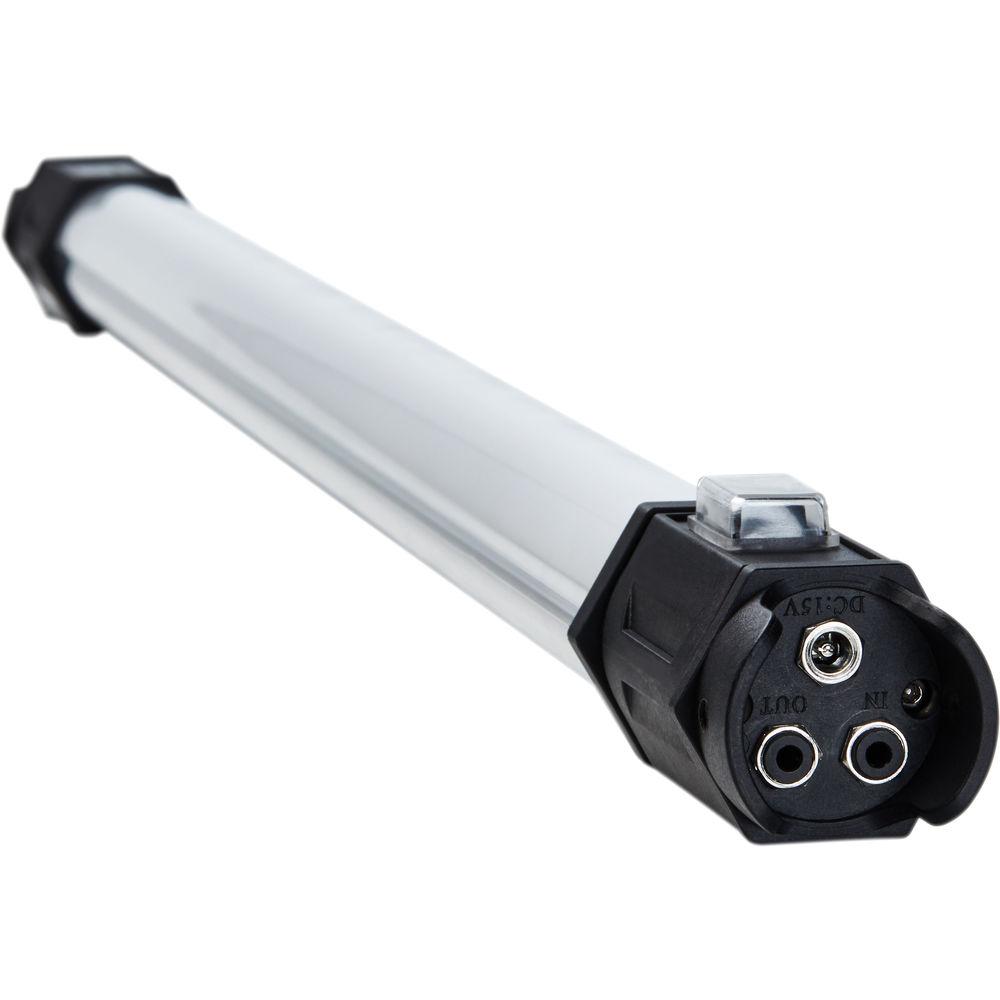

Ideal for discreet placement for subtle and nuanced effects especially in close quarters, the 2' Pavolite TRGB1208B LED Tube Light from Nanguang has impressive color control, light intensity, and power options. The tube employs RGB+W LEDs that not only enable color temperatures of 2700 to 6500K, but has hue and saturation control giving you access to literally millions of color combinations. The tube also has pre-programmed color effects such as Storm, Flash, Candlelight, and Color Cycle. The fixture's TLCI rating of 93 is proof of notable and precise rendition of color. Light intensity is variable from 0 to 100% and while you can make these adjustments locally on the light, Wi-Fi compatibility means that you can also do it wirelessly.The Pavolite TRGB1208B is AC/DC. The included 100 to 240 VAC adapter allows you to use it worldwide, but it will also run for up to 2.2 hours at full power using its two built-in 2200 mAh batteries. The intelligently designed fixture also has octagonal ends, allowing it to be placed on a surface at the specific angle to meet your lighting design. The only thing better than a Pavolite TRGB1208B Tube Light is several of them. Nanguang has that covered with the inclusion of a sync cord to connect to another light or several of them with additional cords. Using the first light in the chain as a master, you can synchronize the effects of all the lights simultaneously. - Studio-Quality Lighting
- A versatile studio lighting fixture that features 0 to 100% dimming, a maximum output of 2850 lumens, adjustable color temperature from 6500 to 2700K as well as full spectrum RGB and pre-programmed special lighting effects.
- Full Creative Control

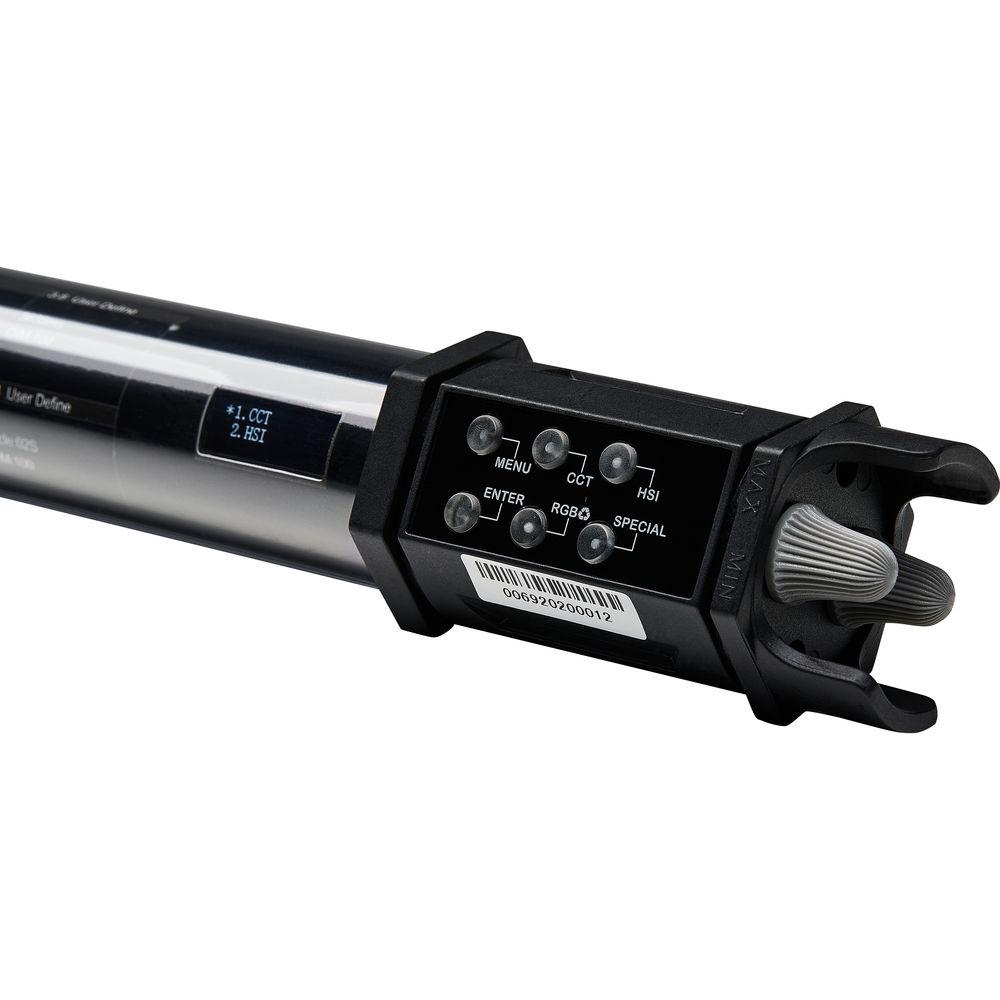

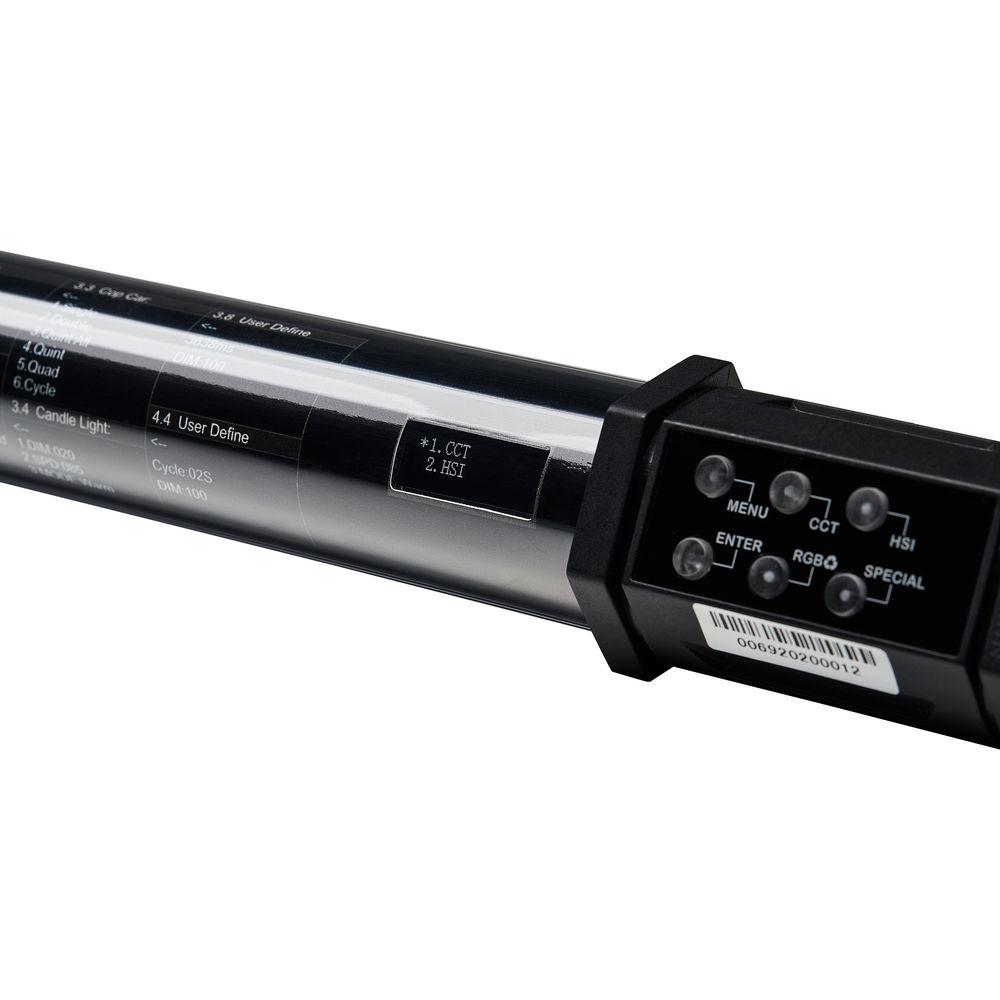

- Easily achieve impressive results without adding plastic filters or gels. The Pavolite Tube's easy-to-use dials and buttons enable you to dial temperatures from warm to cold or hue and saturation in RGB mode.
- Power Anywhere
- Ideal for use in the studio or on location, Pavolite RGB+W Tubes can run off the included AC adapter or their internal Li-ion batteries for up to 2.2 hours at full brightness when no mains power is available.
- Myriad of Possibilities

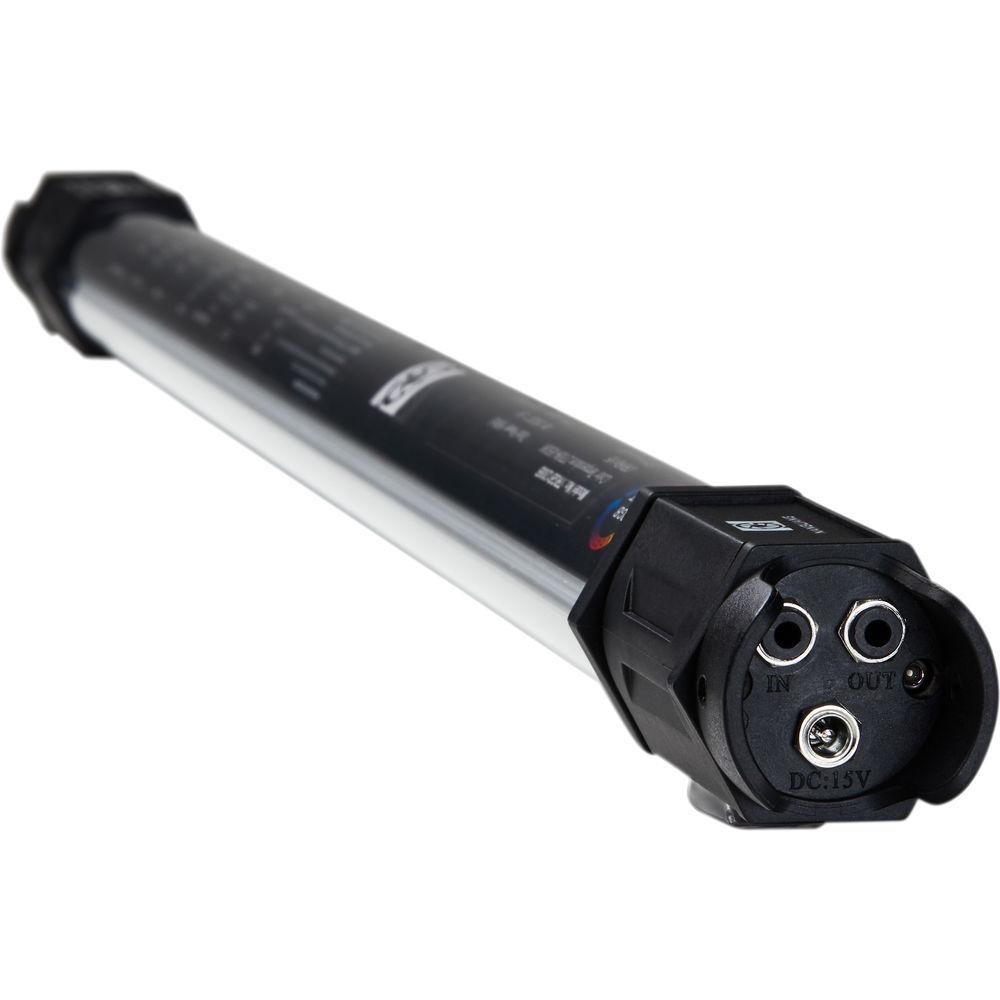

- Simply connect multiple Pavolite RGB+W Tubes together via the included sync cord to build and shape a powerful bank of lights with synchronized adjustments and effects.

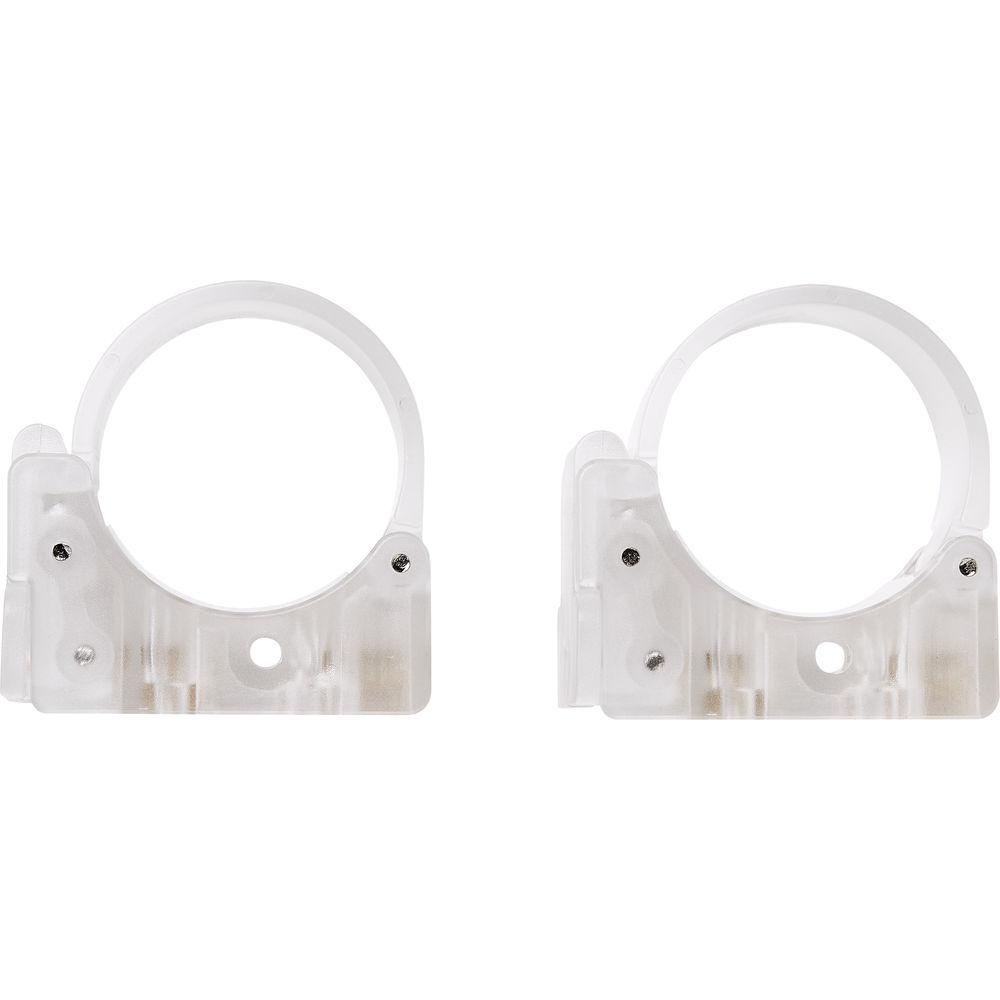

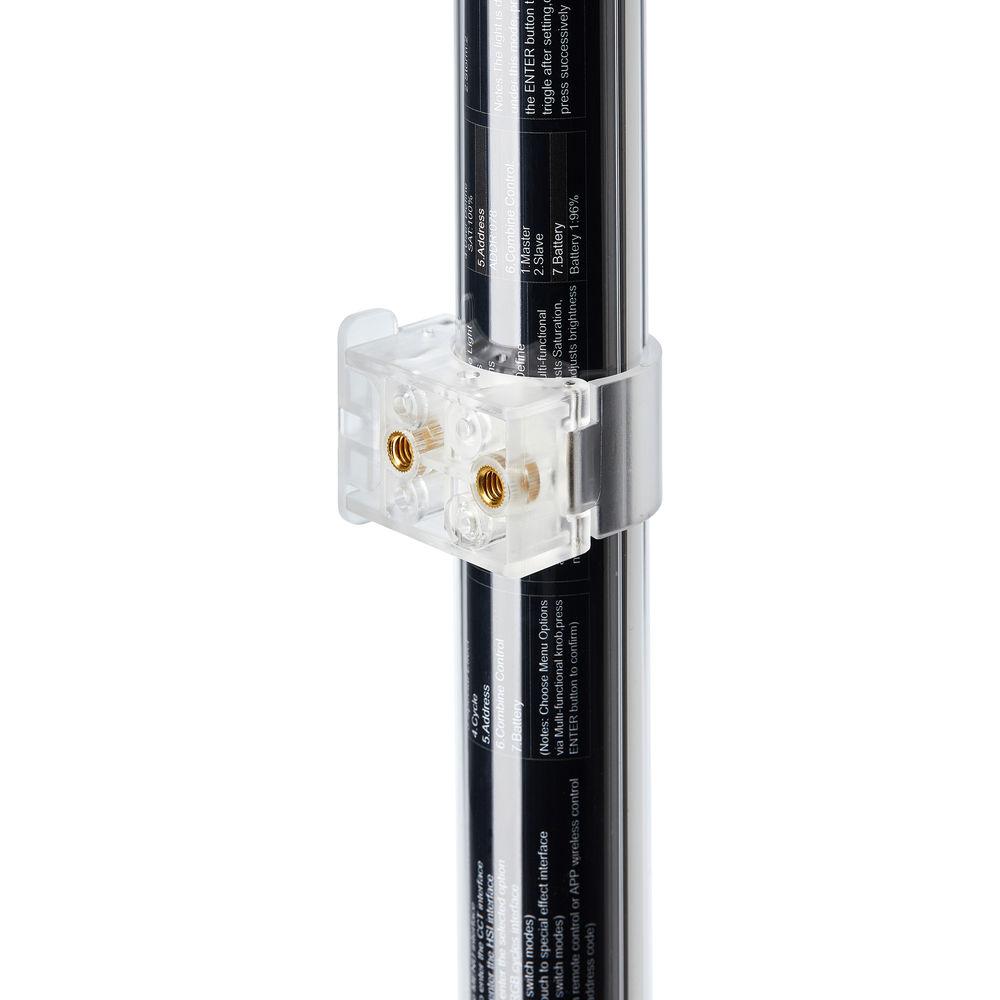

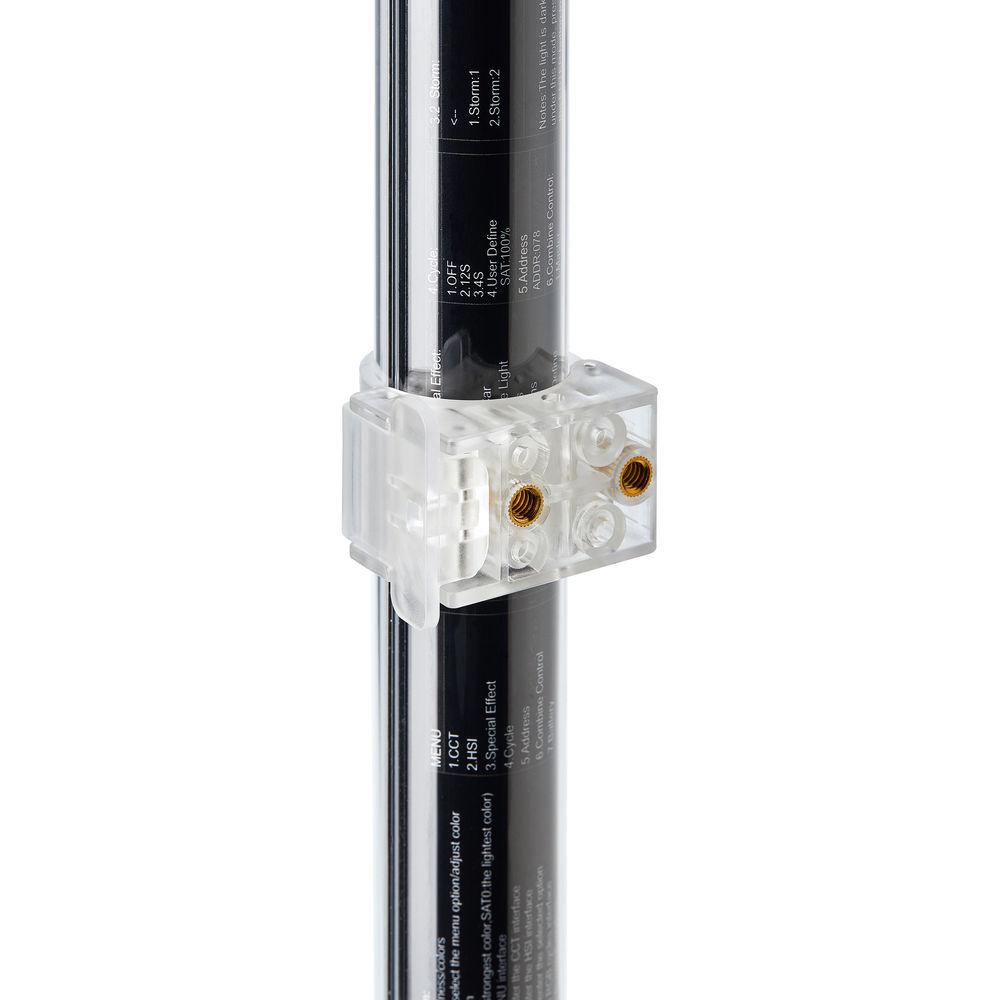

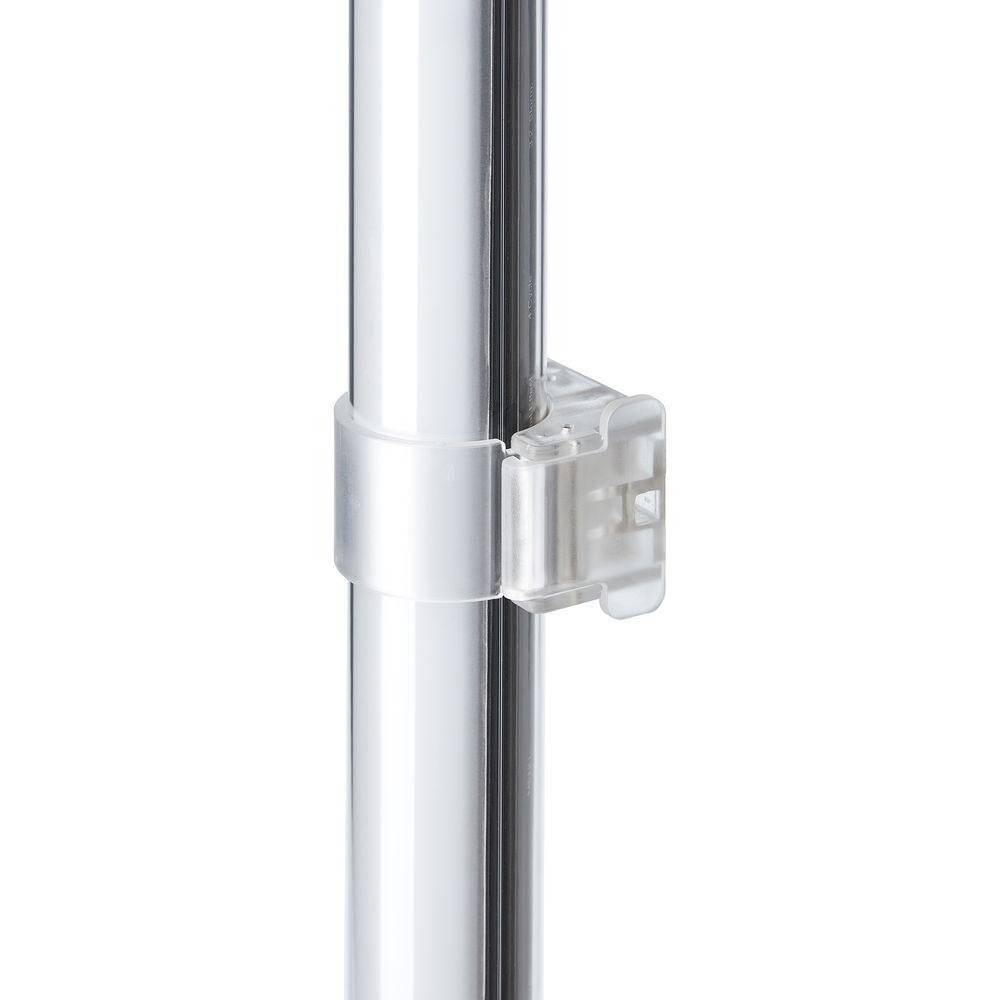

In the Box Nanguang Pavolite TRGB1208B LED Tube Light (2') Set of Mounting Clips Sync Cable Padded Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang Pavolite TRGB1208B LED Tube Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang LED Tube Specs | | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 93 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Lumens | 1400 (at 5600K) | | Photometrics | 5600K:
32.7 fc / 352 lux at 3.28' / 1 m | | Fixture Dimensions | 1.9 x 30.3" / 4.8 x 77.0 cm | | Fixture Weight | 1.9 lb / 0.86 kg | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | Wi-Fi, Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, Integrated Battery | | Max Power Consumption | 16 W | | | | Run Time | 2.2 Hours at Full Power | | Charging Time | 4 Hours | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 34.0 x 6.0 x 5.0" |
