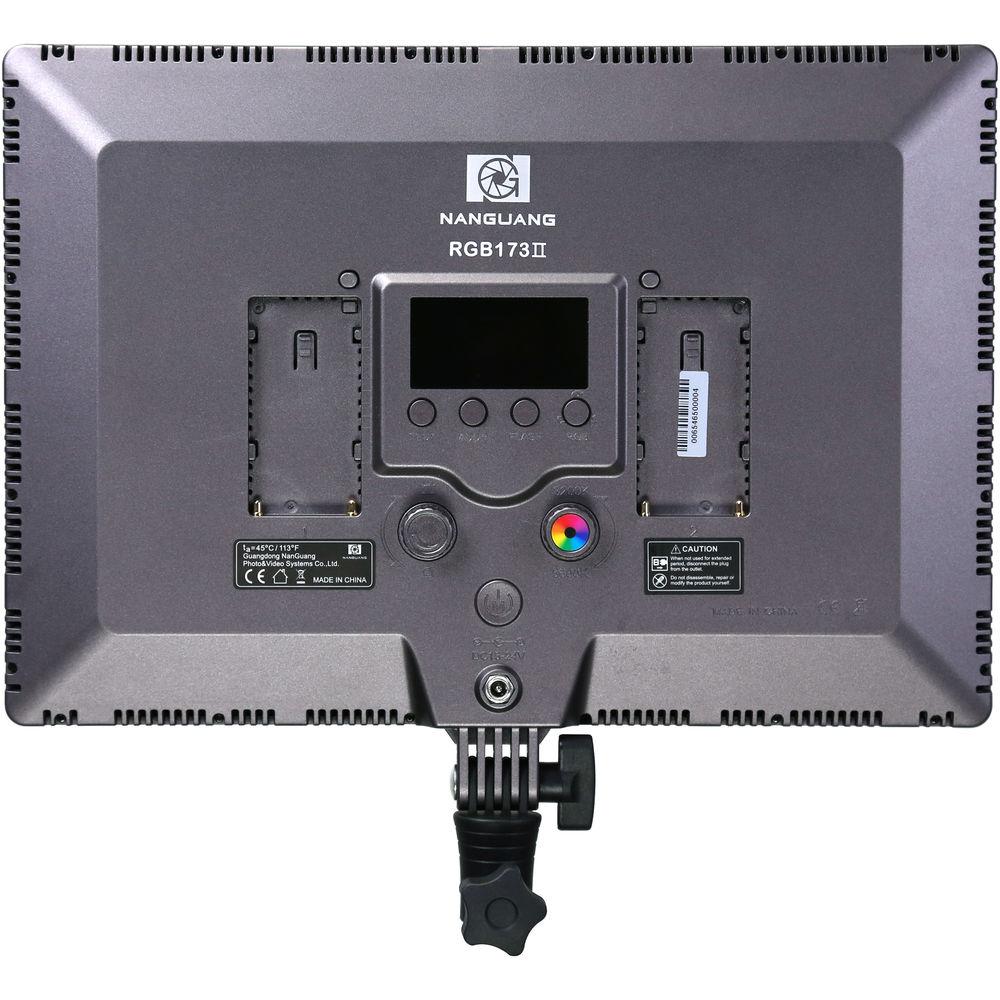

User Manual for Nanguang RGB173 II Bi-Color RGB, Hard, and Soft Light LED Panel Click to enlarge the picture
Contents of the user manual for the Nanguang RGB173 II Bi-Color RGB, Hard,
- Product category: LED Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang LED Lights
 |
User manual for the Nanguang RGB173 II Bi-Color RGB, Hard, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

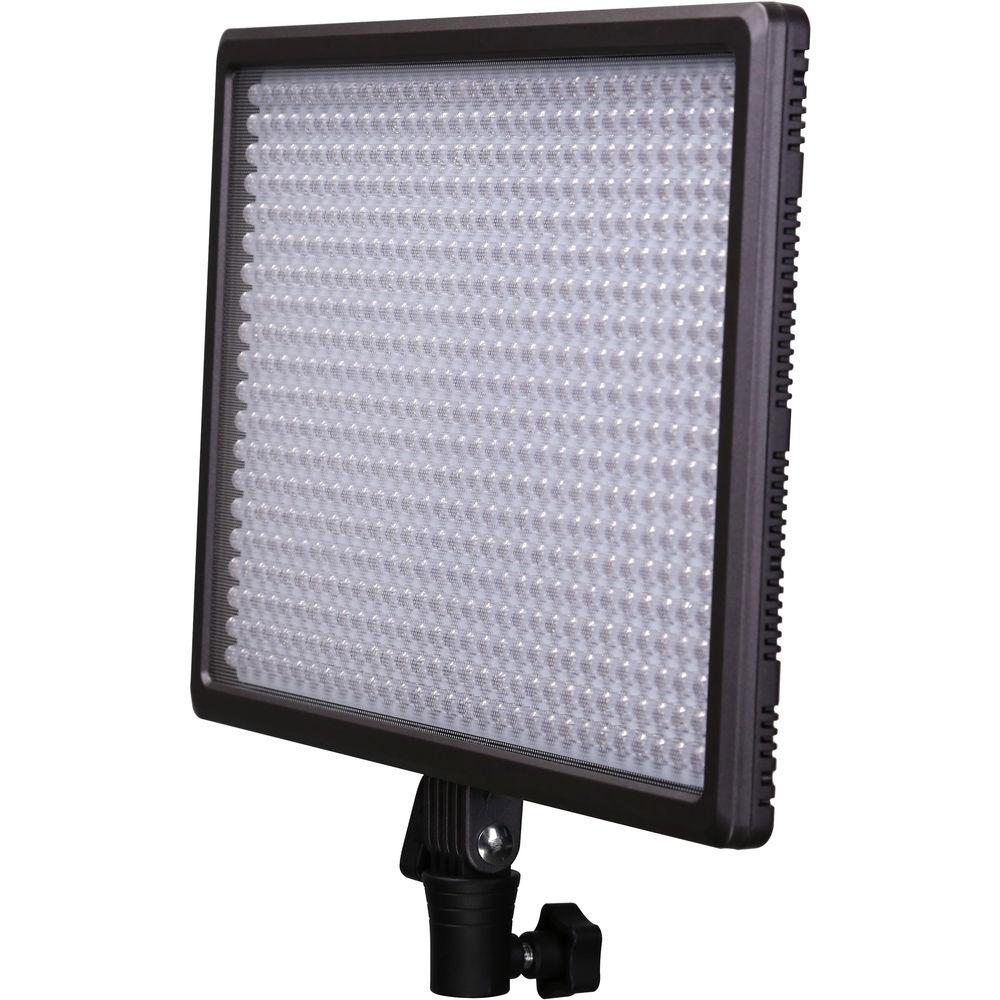

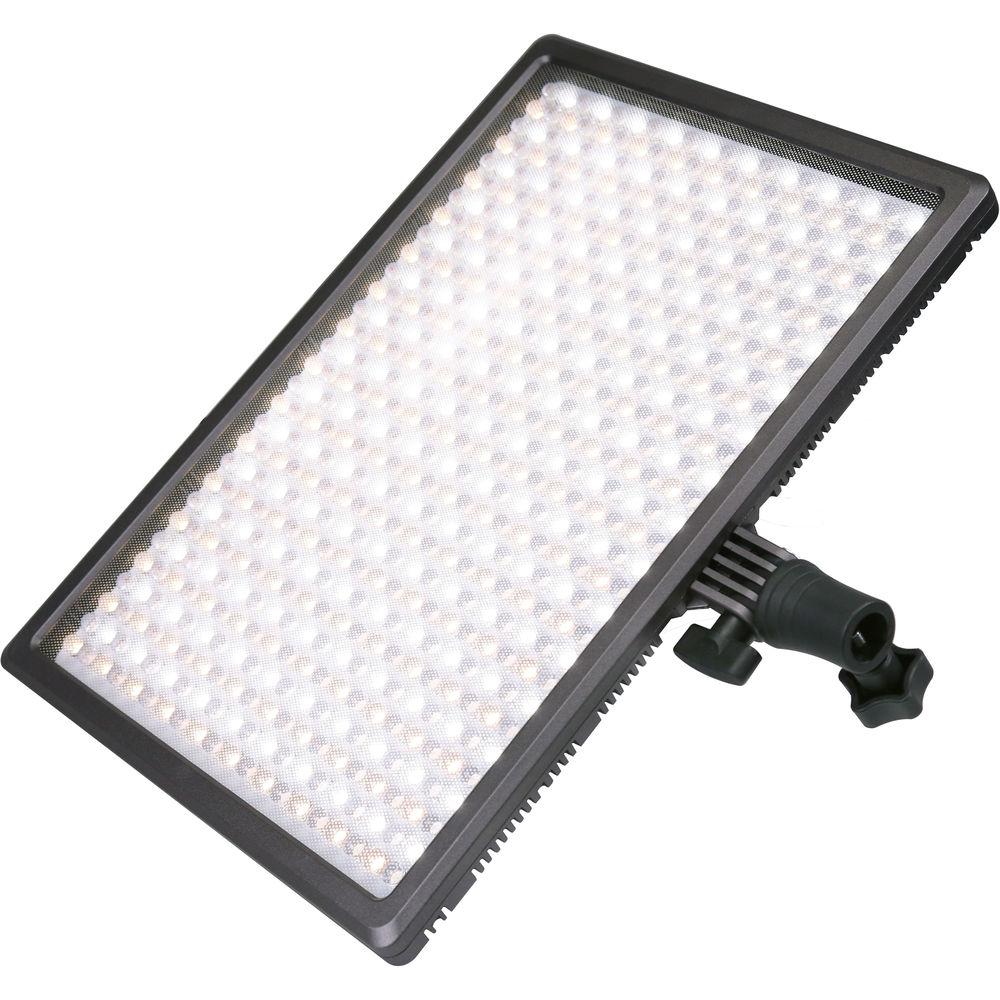

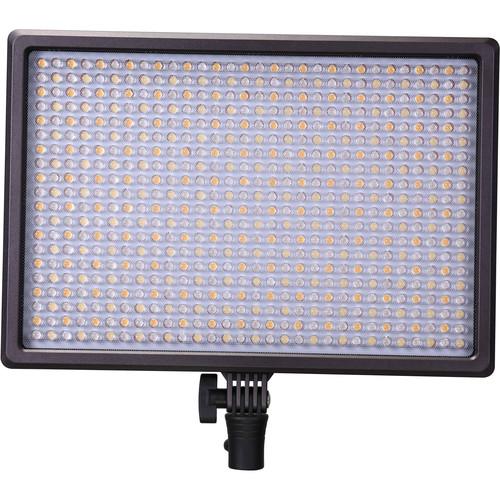

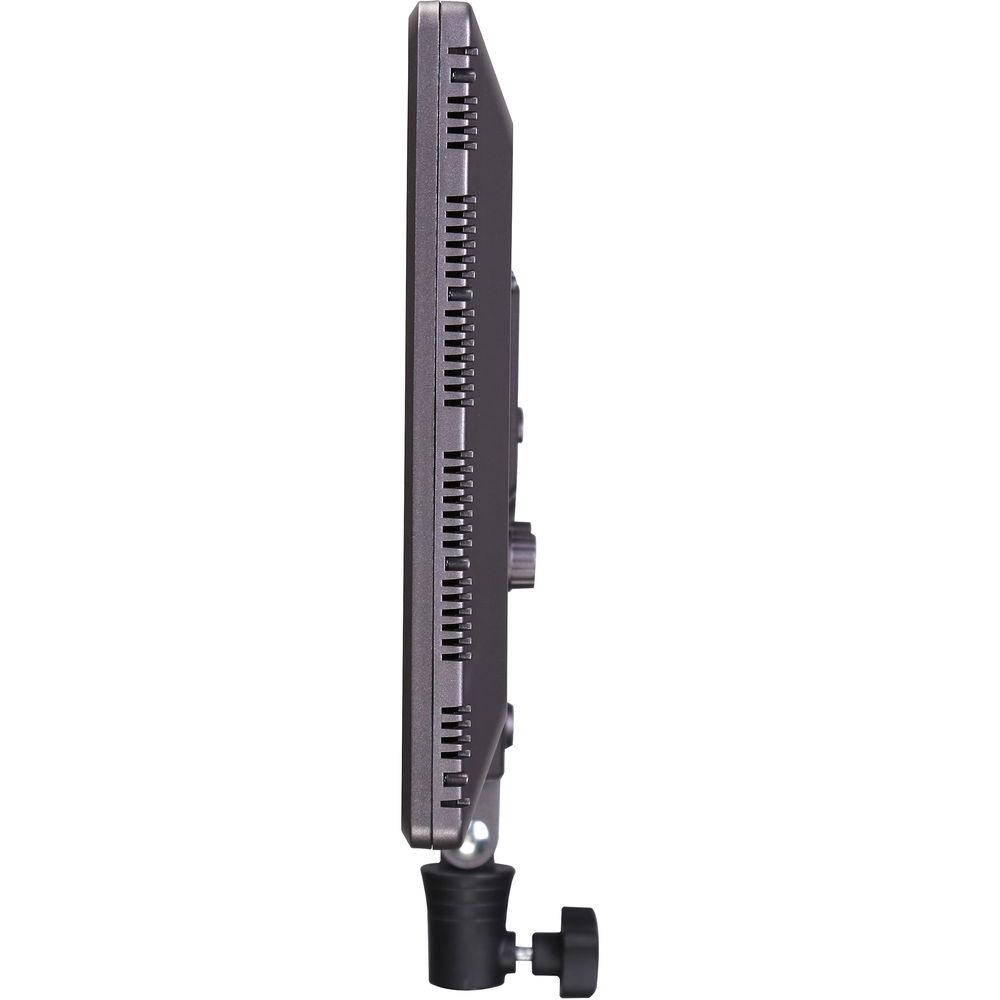

Product description Ideal for live streaming, vlogging, photography or video lighting, photo booths, and more, the RGB173 II Bi-Color + RGB, Hard, and Soft Light LED Panel from Nanguang is actually three lights in one. The RGB173 II features variable color temperature from 3200 to 5600K with a high CRI/TLCI rating of 95/93 indicating impressive accuracy in color rendering. The panel also has a RGB mode that gives you access to a myriad of hues for complete color control. Light intensity is variable from 0 to 100%. The light also has settings for a soft, flattering quality of light or for a hard light that is well suited for uses such as long-throw work. The RGB173 II runs dead quiet thanks to its passive cooling—a real asset in sound-sensitive environments. The light has power options too. It's ready for use worldwide via the included 100 to 240 VAC adapter but it can also run on two separately purchased Sony NP-F-style batteries when mains power is unavailable. - Studio-Quality Lighting
- Nanguang RGB series LED panels create bright, color accurate studio lighting with minimal set up and zero complications. Perfect for live streaming, vlogging, photography lighting, video lighting, photo booths, and more.
- 3 LED Light Sources in One Panel
- Switch between a traditional multi-LED panel for hard light, a diffused SMD LED panel for soft light, and a tuneable RGB panel for colorful creative effects at the push of a button.
- Full Creative Control

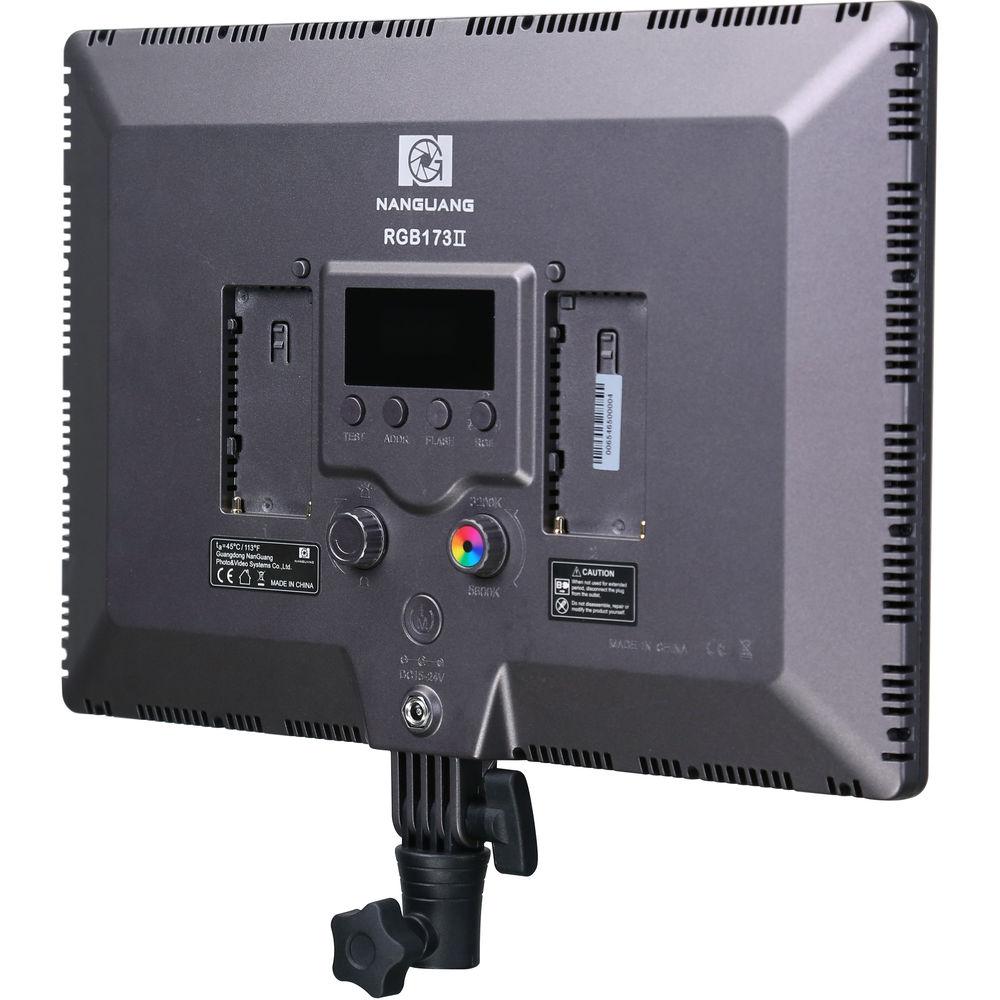

- Easily achieve impressive results without adding plastic filters or cloth diffusion. The RGB173 II's control knobs enable you to dial in brightness from 0 to 100%, temperature from warm to cold (3200 to 5600K), or hue when in RGB mode.
- Power Anywhere

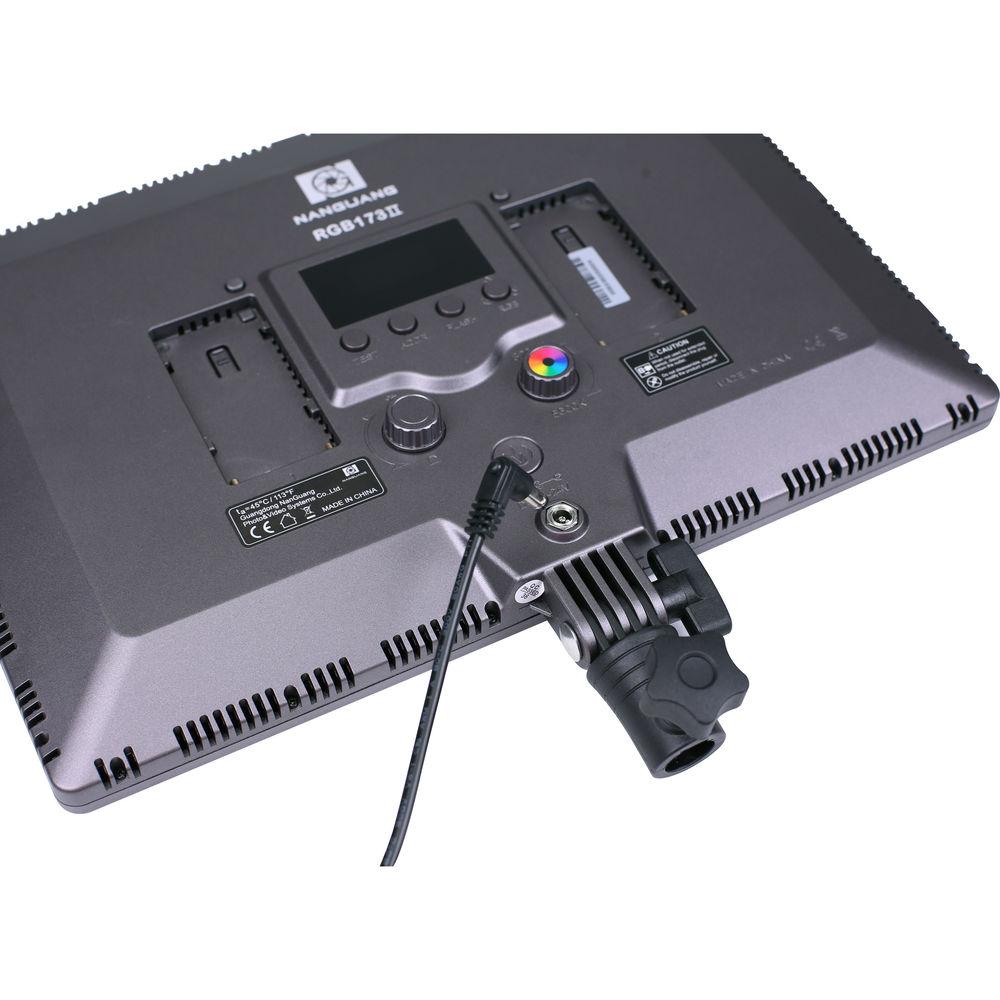

- Ideal for use in the studio or on location, the RGB173 II can run off either the included AC adapter or two compatible Sony NP-F-style batteries (not included) so you can operate in any location in the world regardless of power availability.
In the Box Nanguang RGB173 II Bi-Color + RGB, Hard, and Soft Light LED Panel AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang RGB173 II Bi-Color RGB, Hard, and Soft Light LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang RGB 173II Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 93 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Lumens | 2508 (at 5600K) | | Photometrics | 203.3 fc / 2188 lux at 3.28" / 0.08 m | | Fixture Dimensions | 13.7 x 9.4 x 1.6" / 34.8 x 23.9 x 4.1 cm | | Fixture Weight | 3.3 lb / 1.50 kg | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 27 W | | | | Package Weight | 6.365 lb | | Box Dimensions (LxWxH) | 19.3 x 15.3 x 14.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
