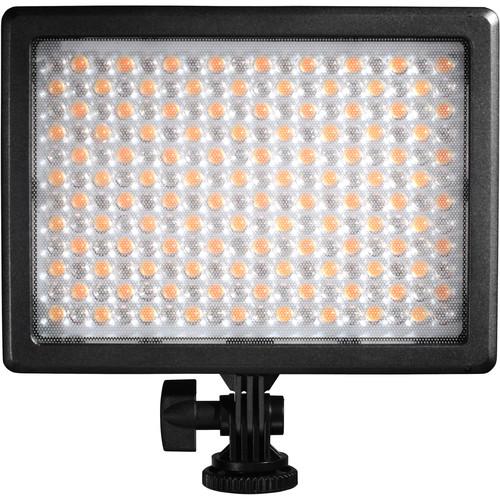

User Manual for Nanguang RGB66 LED On-Camera Light Click to enlarge the picture
Contents of the user manual for the Nanguang RGB66 LED On-Camera Light
- Product category: On Camera Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang On Camera Lights
 |
User manual for the Nanguang RGB66 LED On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

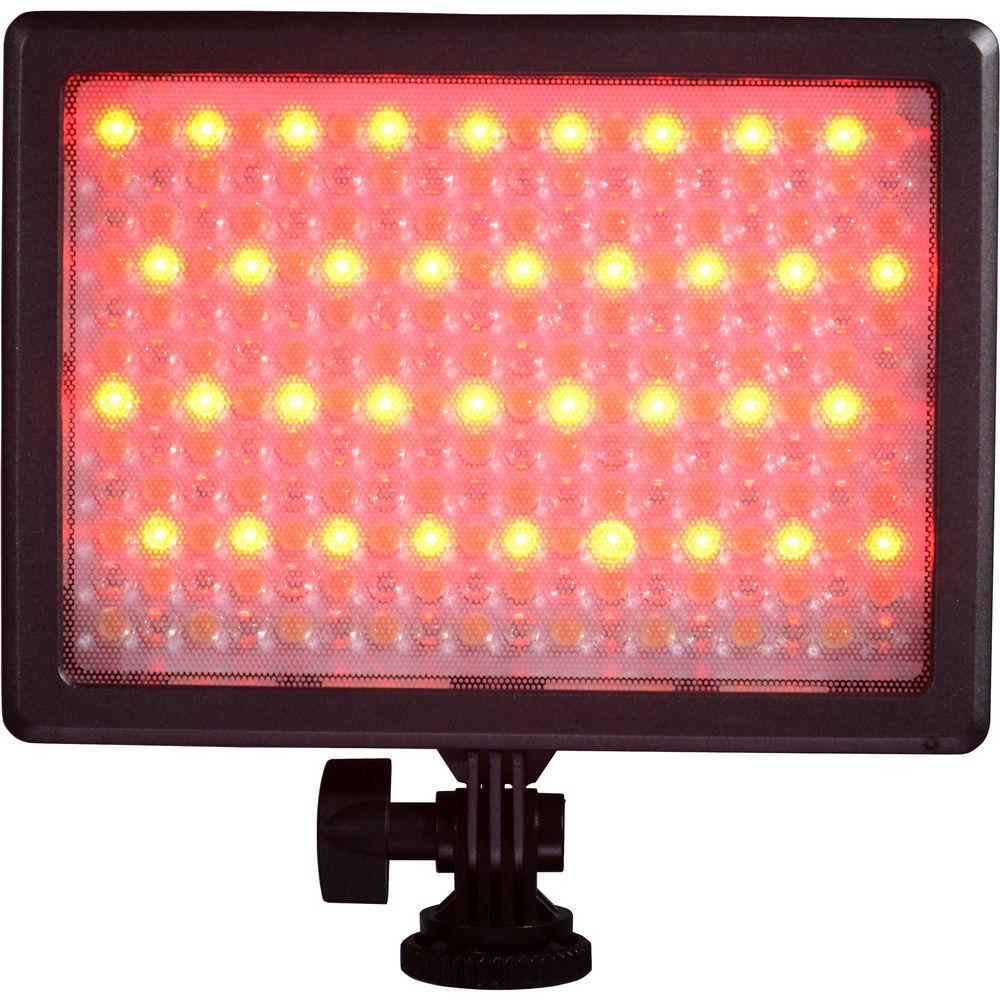

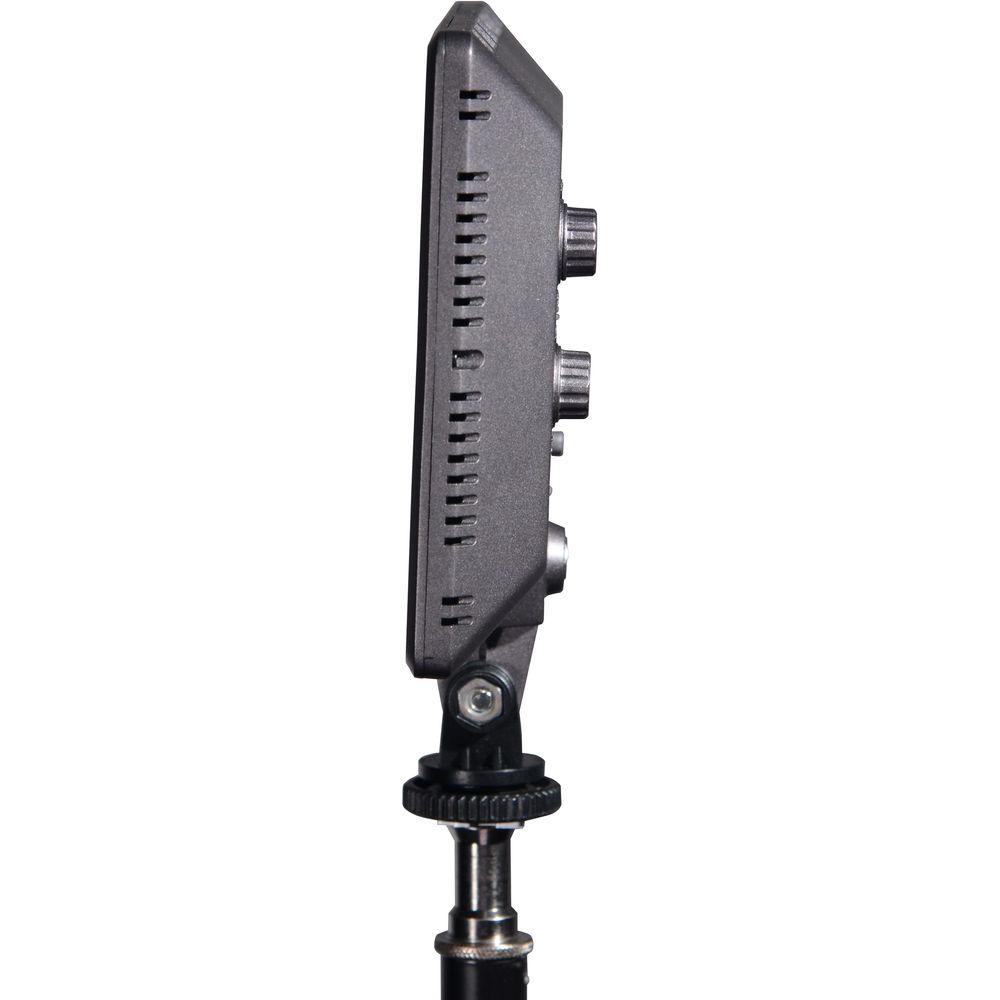

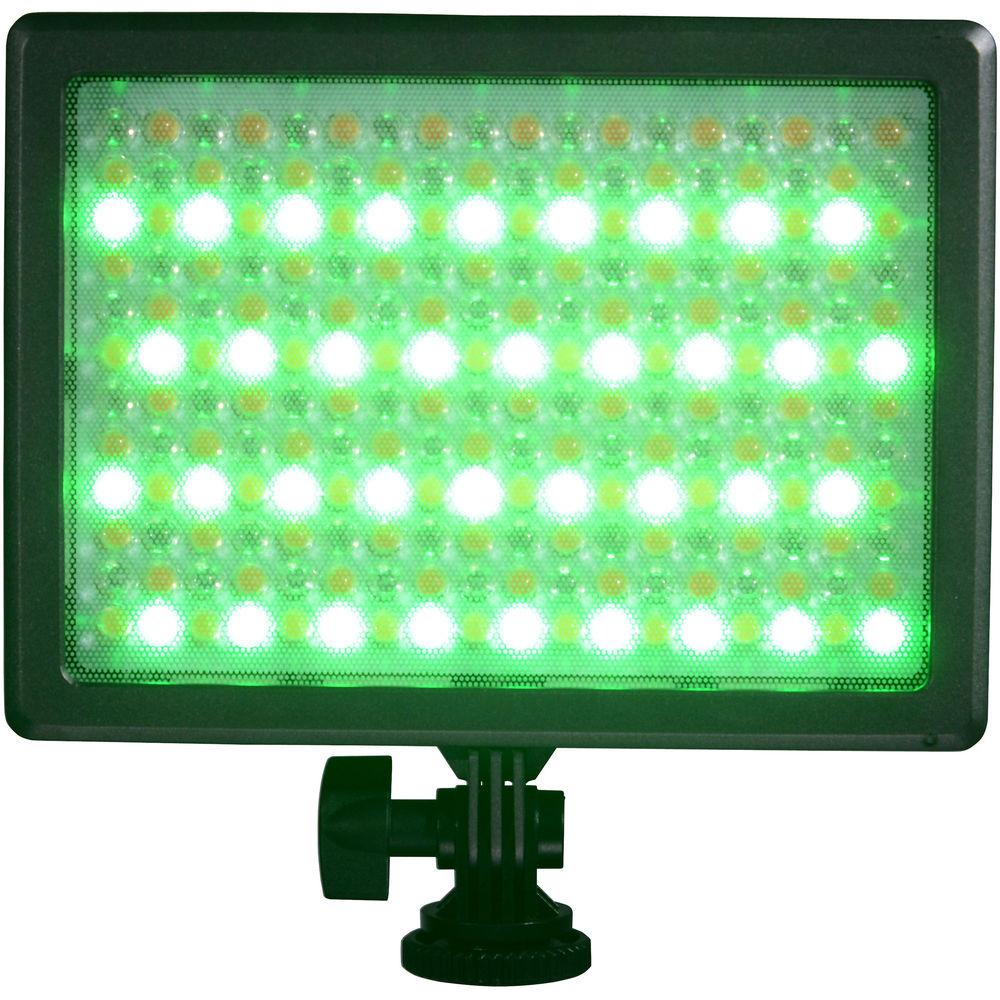

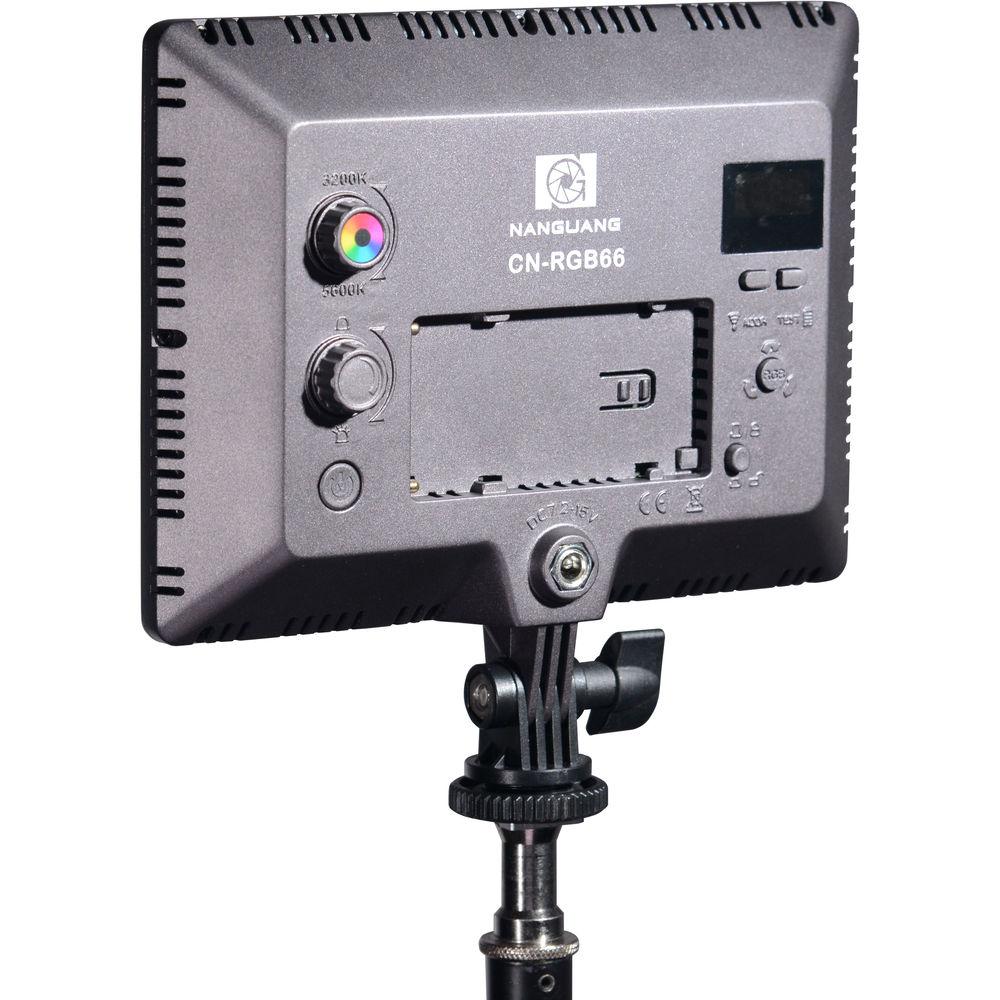

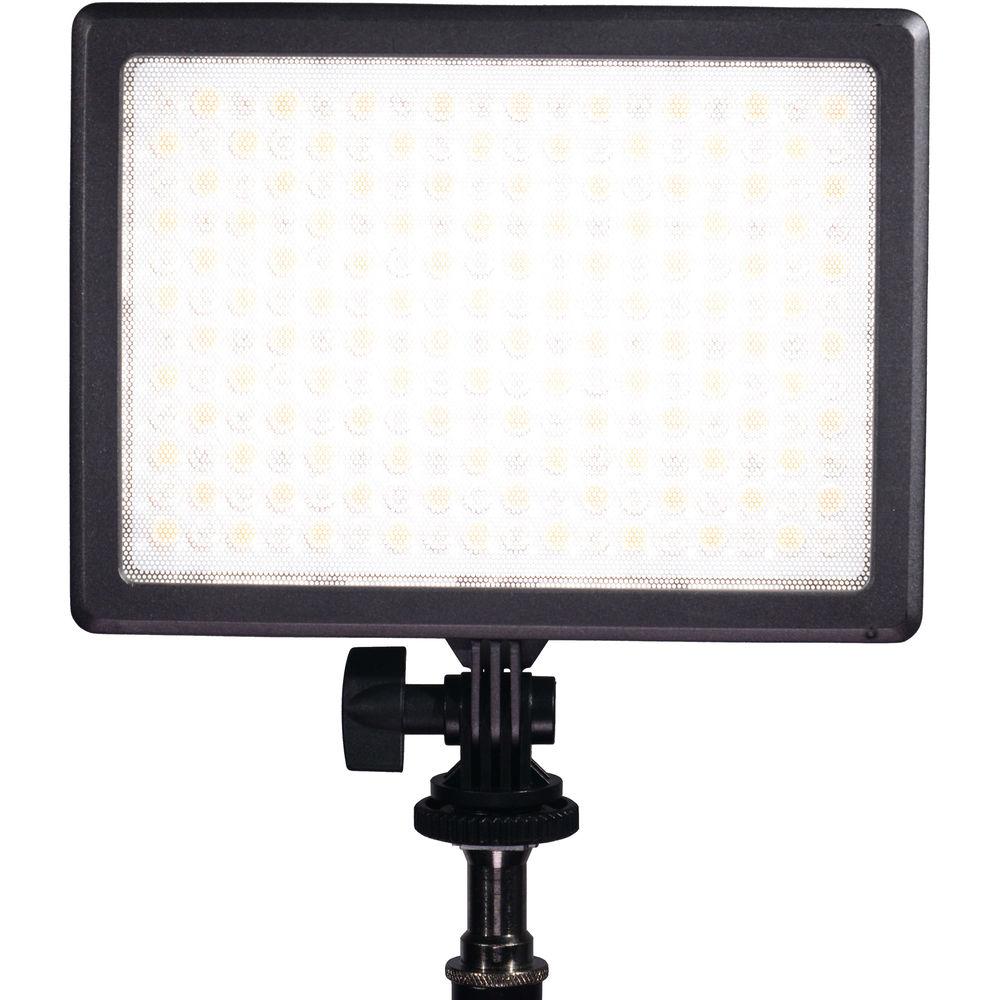

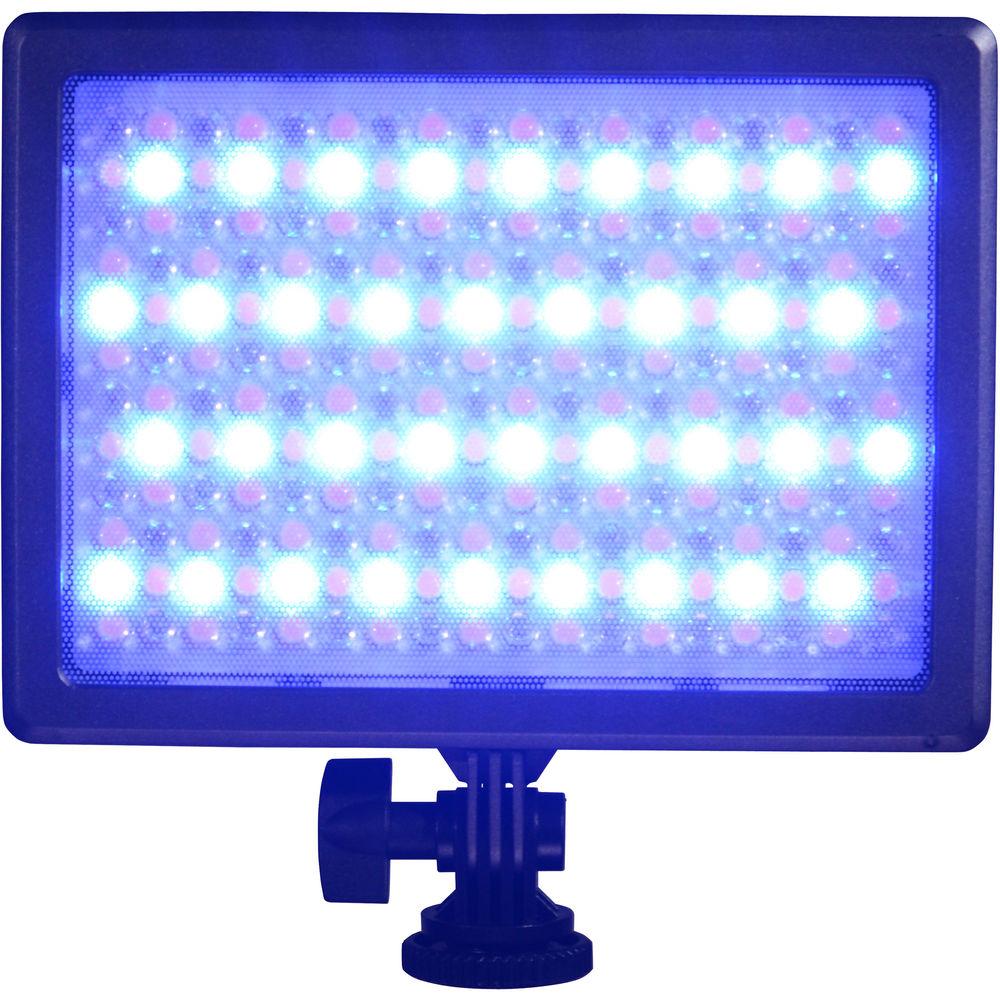

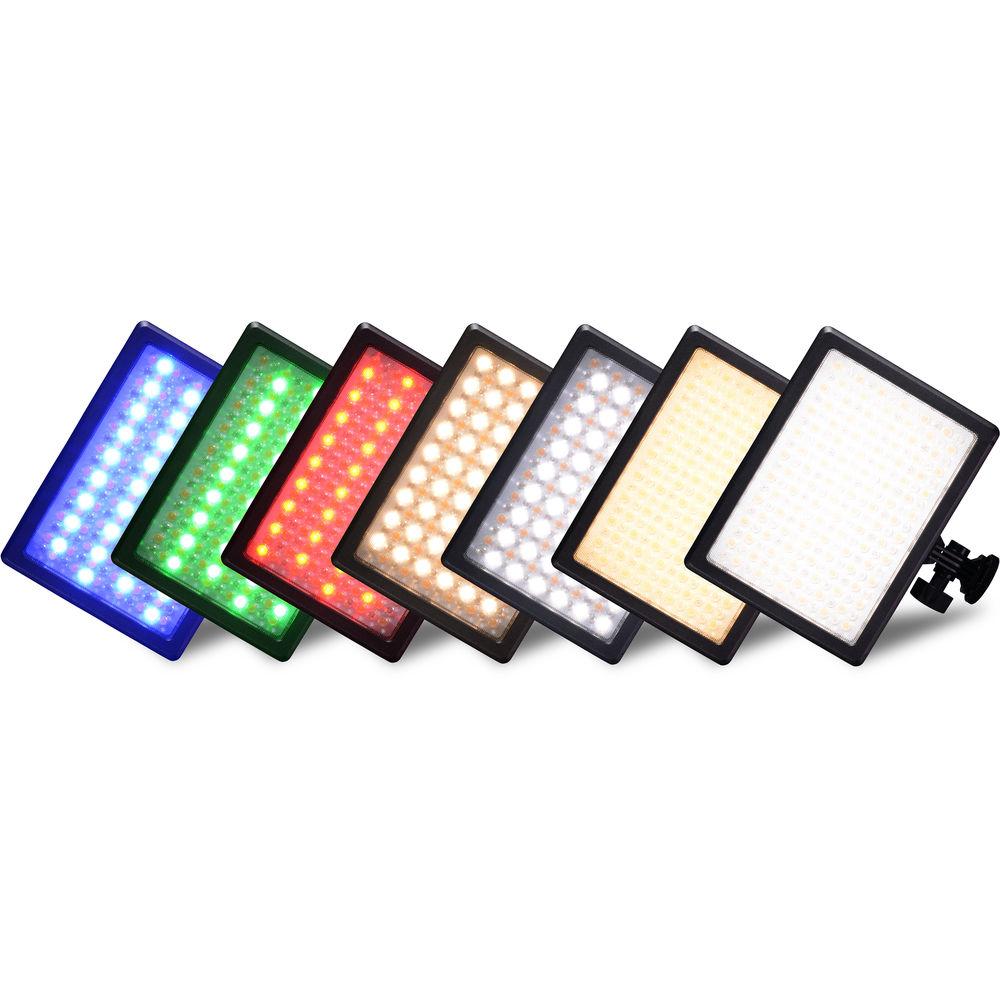

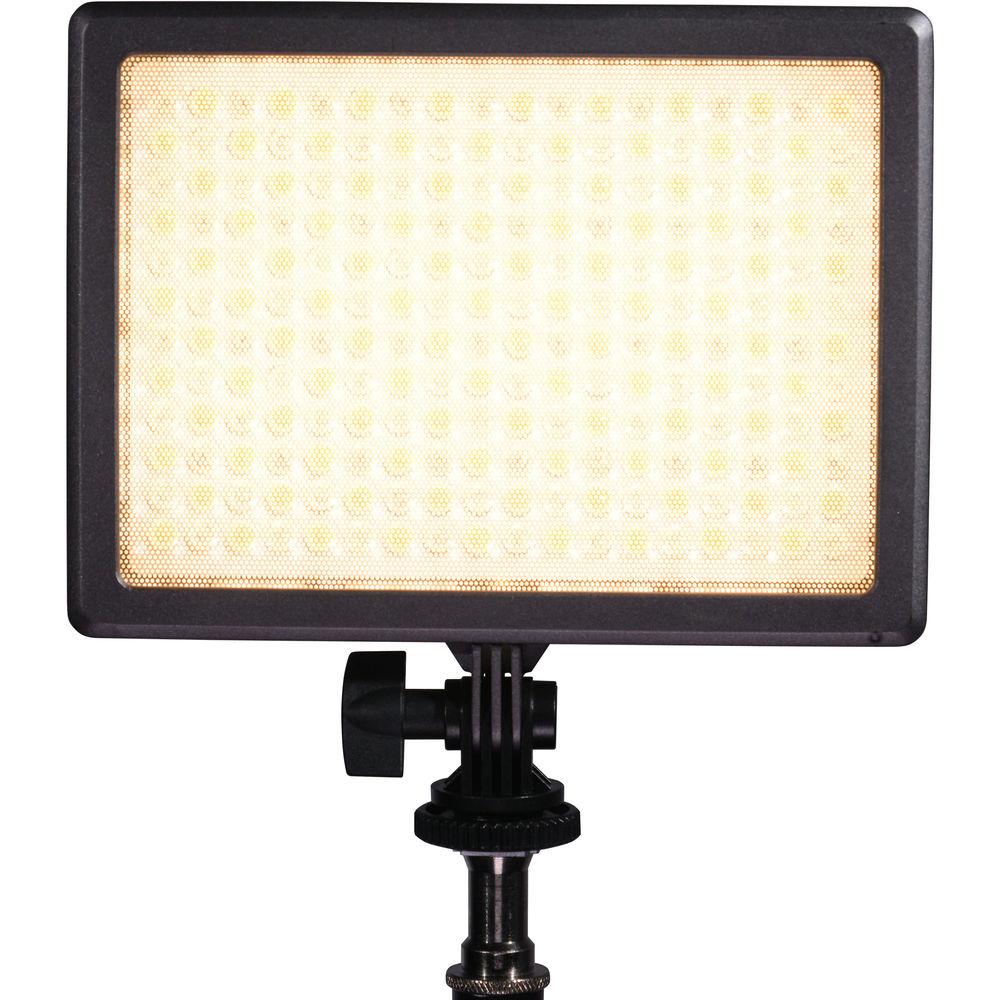

Product description The Nanguang RGB66 LED On-Camera Light features 324 LED lighting elements with white and RGB elements for conventional and creative lighting effects. The rear brightness control can dim the light output fully from 0-100%. A second control knob adjusts the color output. In white light mode, the color temperature can be adjusted from 3200 to 5600K, enabling you to match ambient light from tungsten or daylight-balanced sources. Switch over to RGB mode and you can use that same knob to choose from colors in the RGB color wheel, from 0-360°. The built-in LCD display shows mode options and parameter adjustments. Additionally, you can access creative lighting effects that switch colors or flashing patterns. For power, mount a Sony L-Series battery to the built-in plate, or connect a separately available AC adapter via the barrel jack. In the Box Nanguang RGB66 LED On-Camera Light Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang RGB66 LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang RGB66 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 0 to 100% | | Display | LCD | | Number of LEDs | 324 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.2 to 15 VDC | | Power Input Connector | Barrel | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 7 x 5 x 1" / 17.8 x 12.7 x 2.5 cm | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.5 x 8.0 x 2.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
