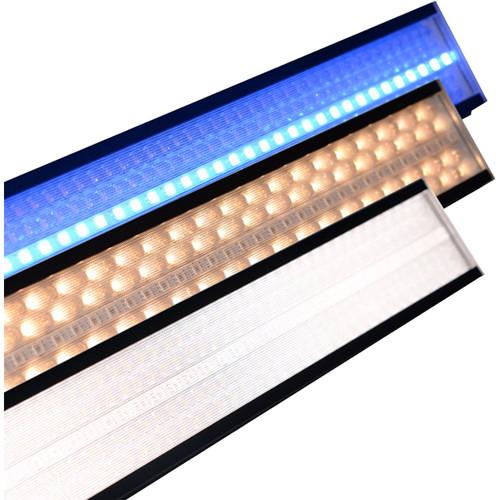

User Manual for Nanguang RGB88 LED RGB Light Click to enlarge the picture
Contents of the user manual for the Nanguang RGB88 LED RGB Light
- Product category: LED Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang LED Lights
 |
User manual for the Nanguang RGB88 LED RGB Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

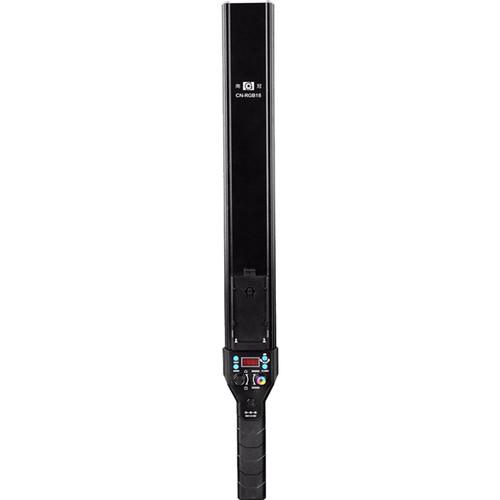

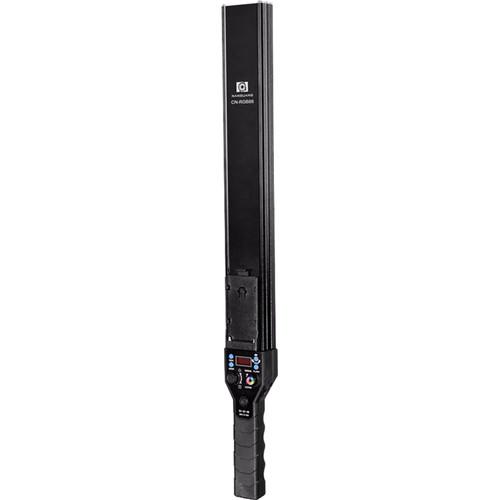

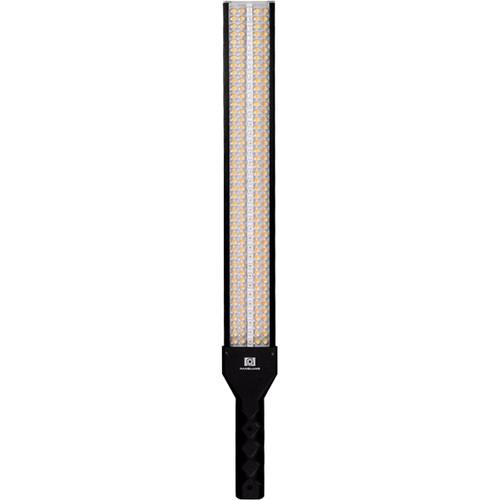

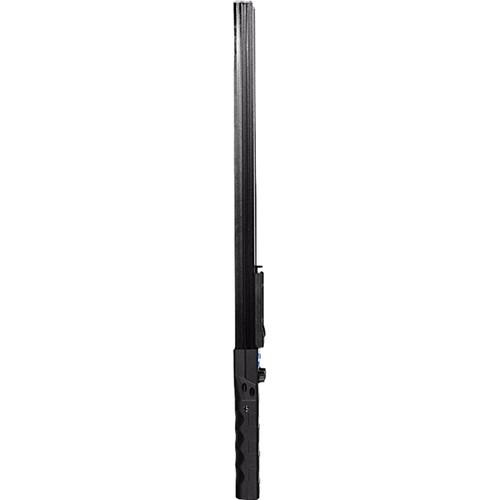

Product description Ideal for motion effects, edge or selective lighting, the RGB88 LED RGB Light from Nanguang is a 23.3 x 2.6 x 1.4" wand-shaped light source with significant flexibility in color control. The dimmable light has color that's variable from 3200 to 5600K to match other fixtures, ambient light conditions, or just for creative effects. You can also choose a hard or soft output of color. The RGB88 has a CRI rating of 95 indicating an accurate rendition of color. For even further control, the light has an RGB (red, green, blue) mode that allows you to custom-combine the colors to create any color in the spectrum. The RGB88 runs on AC current but it can also be powered by a separately purchased NP-F-type battery when mains power is unavailable. - Photometrics
- 5600K Flat LED: 44 lux @ 6.56' (2.0 m)
3200K Flat LED: 45 lux @ 6.56' (2.0 m)
5600K LED Bulb: 320 lux @ 6.56' (2.0 m)
3200K LED Bulb: 293 lux @ 6.56' (2.0 m)
Red Flat LED: 55 lux @ 6.56' (2.0 m)
Green Flat LED: 89 lux @ 6.56' (2.0 m)

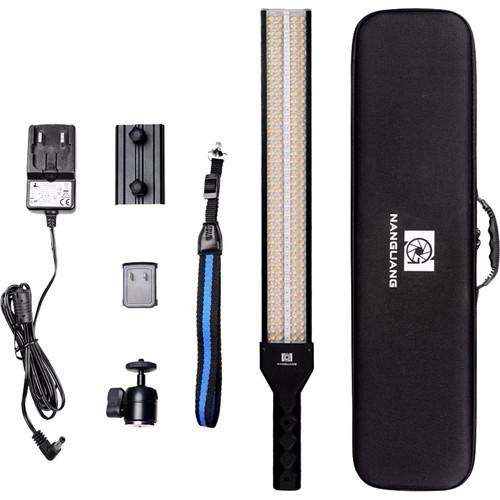

Blue Flat LED: 22 lux @ 6.56' (2.0 m) In the Box Nanguang RGB88 LED RGB Light Power Adapter Wrist Strap Mini-Ball Head Holder Plug Adapter Carrying Bag Limited 1-Year Warranty User Manual PDF 2.2mbczfsaetztyaabe Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang RGB88 LED RGB Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang RGB88 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes | | Display | None | | Housing Material | Metal | | Lumens | 3365 | | Number of LEDs | 380 | | Fixture Dimensions | 2.6 x 23.3 x 1.4" / 67.0 x 592.0 x 36.0 mm | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DMX Connector | None | | | | Yoke Mount | None | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | Wi-Fi, Proprietary Wireless Purchased Separately | | | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 18 W | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 26.0 x 7.1 x 3.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
