User Manual for Nanguang TPad23-2 Bi-Color LED Panel with Front Controls Click to enlarge the picture
Contents of the user manual for the Nanguang TPad23-2 Bi-Color LED Panel with
- Product category: On Camera Lights Nanguang
- Brand: Nanguang
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanguang On Camera Lights
 |
User manual for the Nanguang TPad23-2 Bi-Color LED Panel with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanguang product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanguang user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanguang product will considerably shorten its lifespan!
|

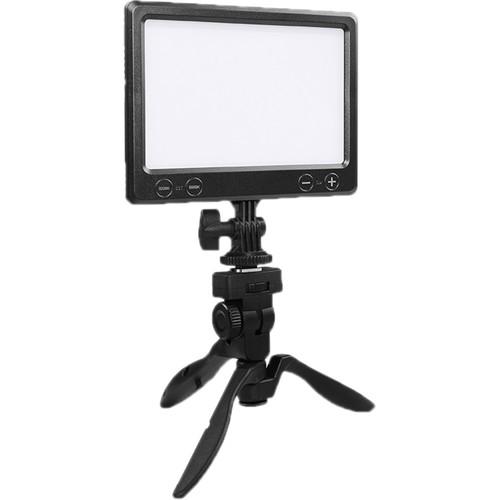

Product description The TPad23-2 Bi-Color LED Panel from Nanguang is a slim, bright yet soft 6.5 x 4.5 x 1.4" light with front controls. This unit is especially suitable for live streaming and vlogging with its front controls enabling you to make adjustments without having to reach around to the back of the light.Vary the color temperature from 3200 to 5600K and dim the light output from 0 to 100% using the panel's control knobs. The TPad23-2's thin 1.4" profile enables it to mount where larger lights would be a hindrance. The light is CRI-rated at 95 for accurate rendering and variable from 3200 to 5600K to blend with ambient light or with other fixtures.The TPad23-2 Bi-Color LED Panel features quiet passive cooling, a battery level indicator, and a combo cold shoe and 1/4"-20 thread mount for attaching to your camera rig or stand. The included mini tripod can be used for both tabletop and handheld applications. Power this fixture using a separately available Sony L-series type battery. Features -
- Variable 3200 to 5600K color temperature

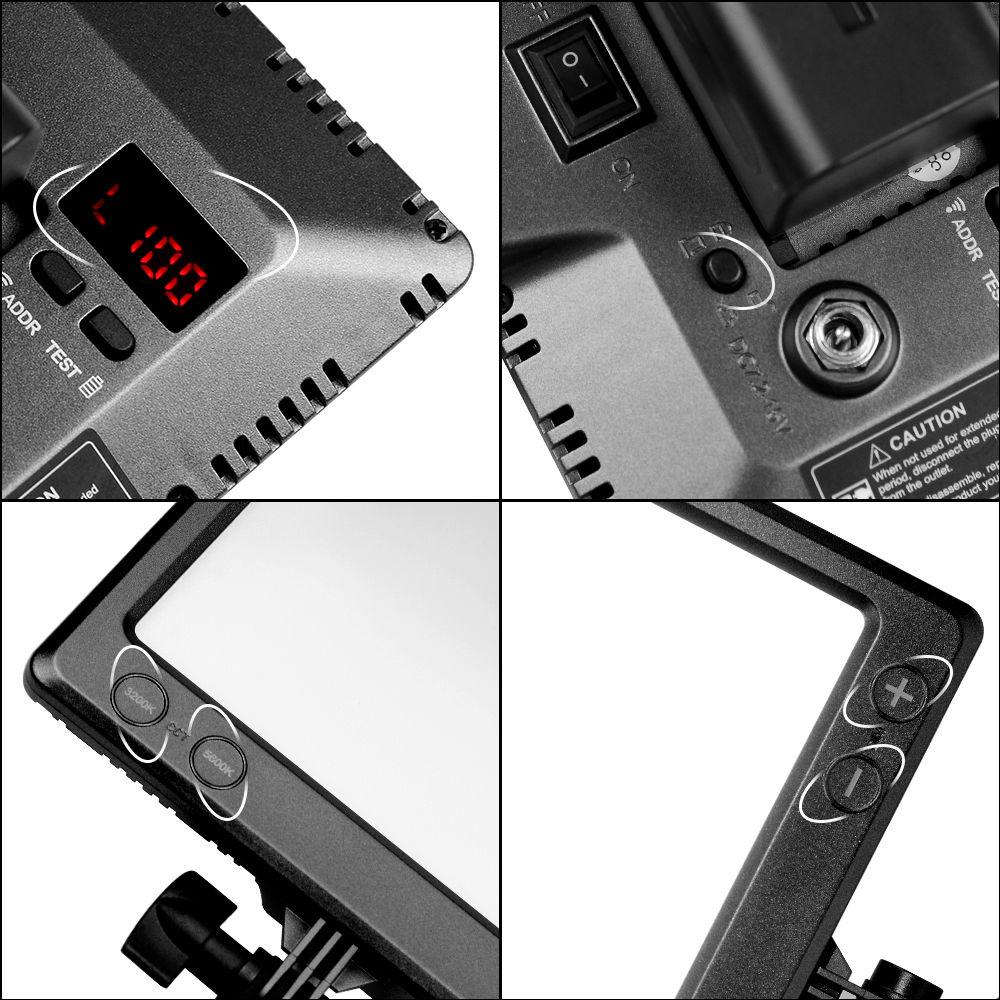

- Front controls offer convenient adjusting while streaming or vlogging
- Power using a separately available Sony L-series type battery
- Includes a mini tripod for tabletop mounting or hand-holding
- Compact, lightweight design
- Bright yet soft output
- Knob dimming from 1 to 100%

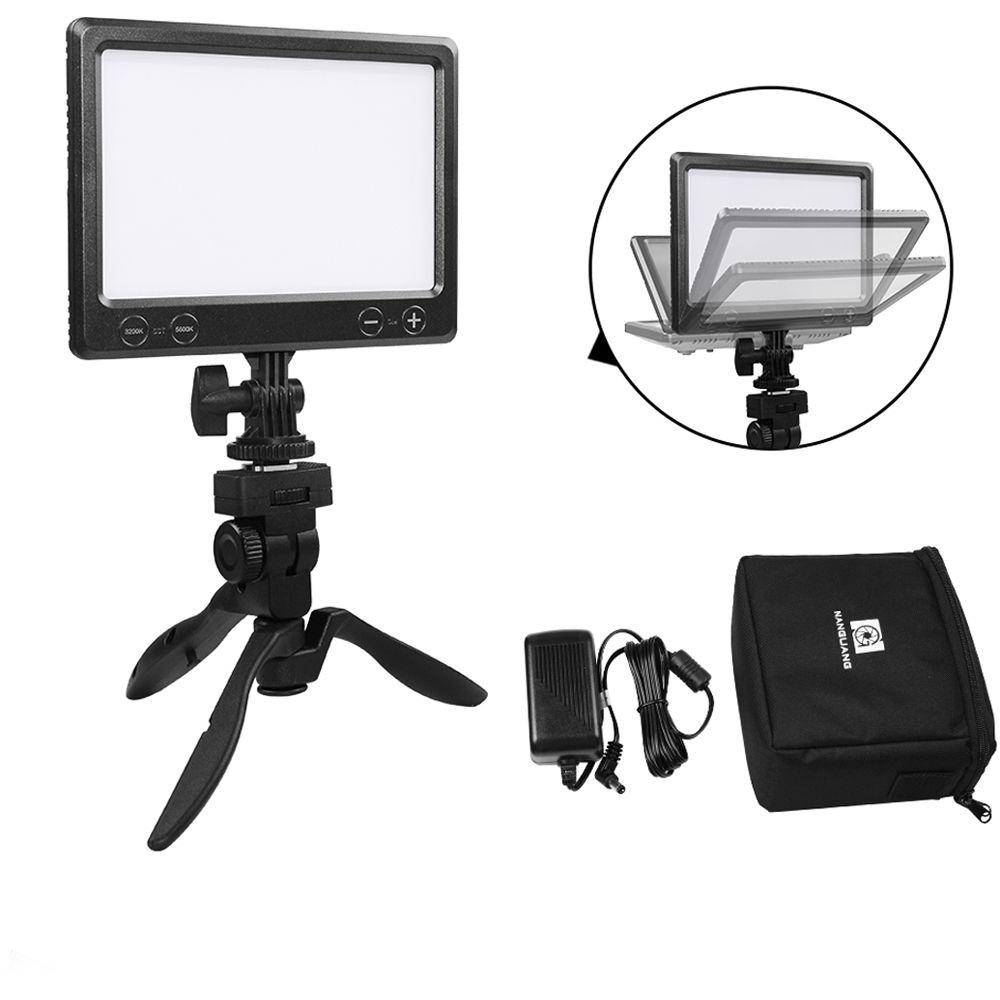

In the Box Nanguang TPad23-2 Bi-Color LED Panel with Front Controls Convertible Mini Tripod Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanguang TPad23-2 Bi-Color LED Panel with Front Controls in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanguang Tpad23-2 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 93 | | Lumens | 969 | | Dimming | Yes, 0 to 100% | | Cooling System | Passive | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.2 to 15 VDC | | Max Power Consumption | 11.6 W | | | | Mount Type | 1/4"-20 Female, Cold Shoe | | Dimensions | 6.5 x 4.5 x 1.4" / 16.5 x 11.4 x 3.6 cm | | Weight | 10.58 oz / 0.3 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
