User Manual for Nanuk 908 Case with Foam Click to enlarge the picture
Contents of the user manual for the Nanuk 908 Case with Foam
- Product category: Hard & Watertight Cases Nanuk
- Brand: Nanuk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nanuk Hard & Watertight Cases
 |
User manual for the Nanuk 908 Case with Foam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nanuk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nanuk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nanuk product will considerably shorten its lifespan!
|

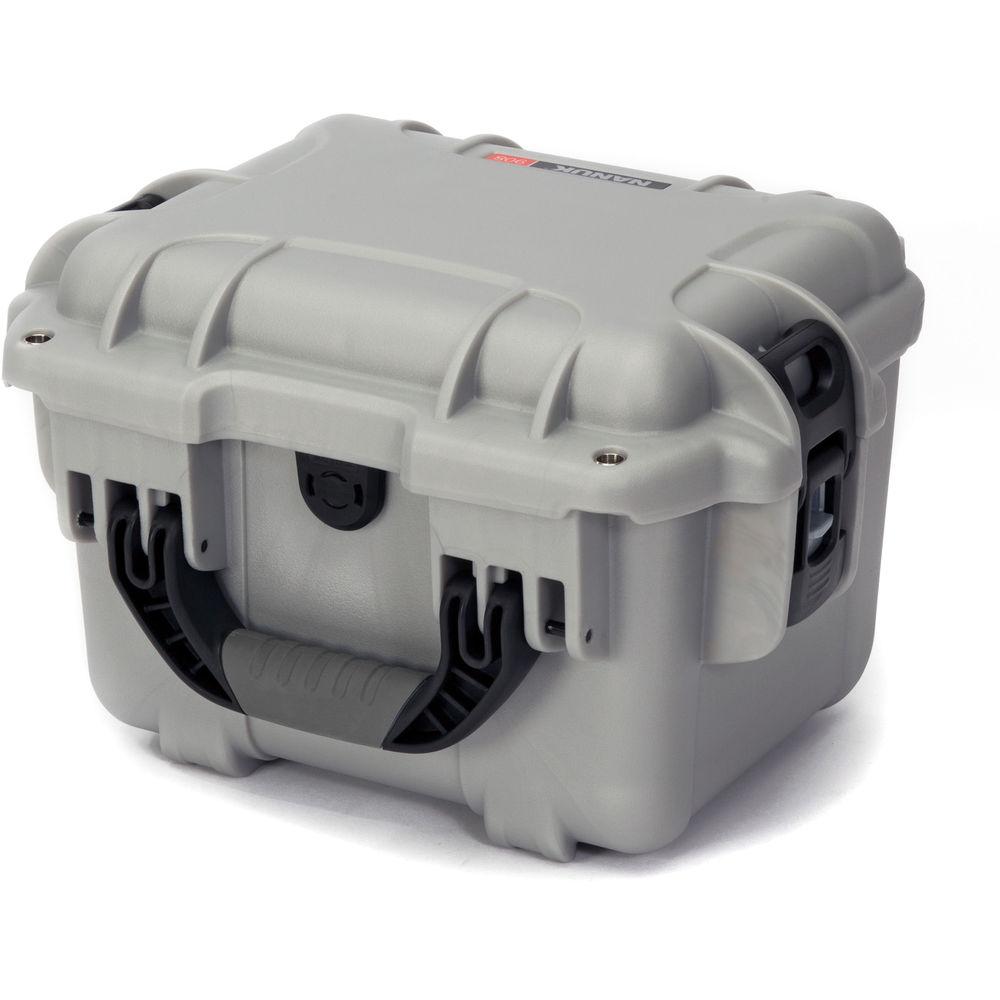

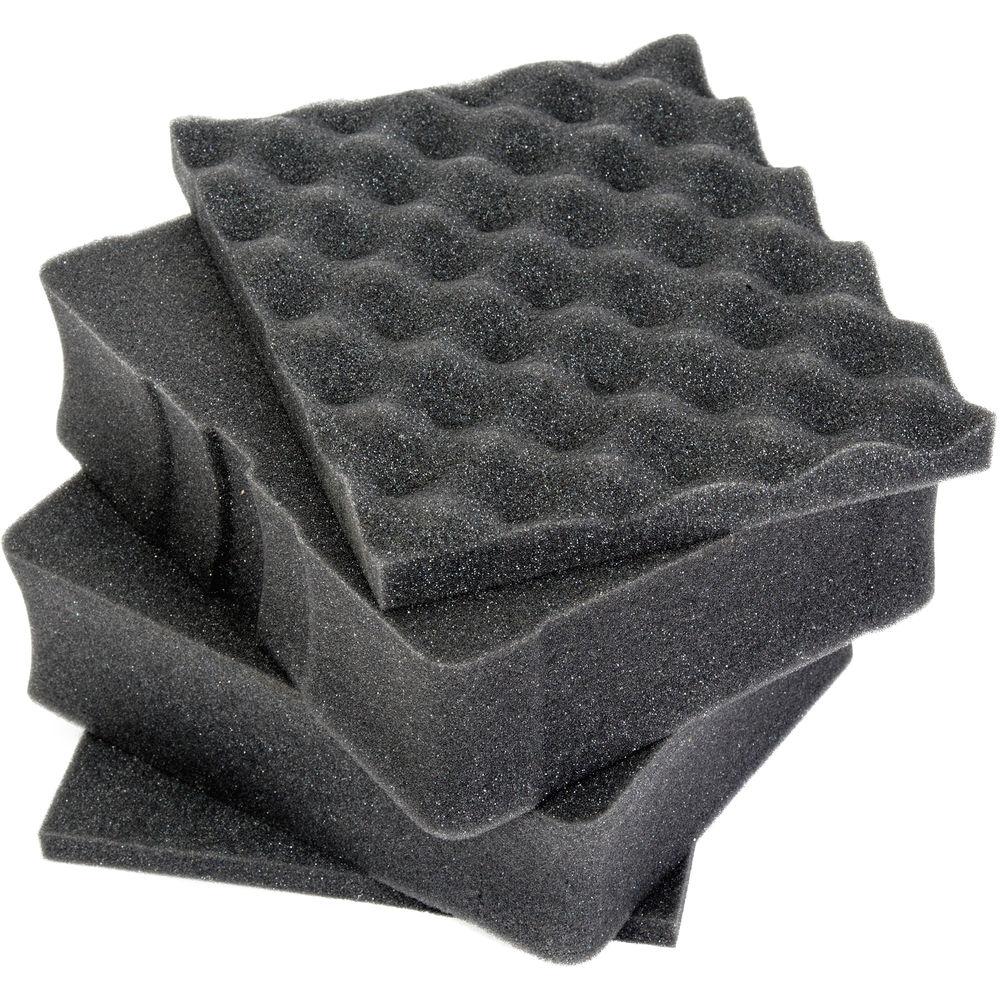

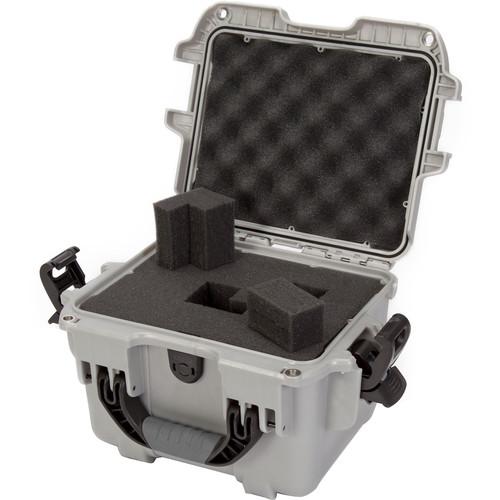

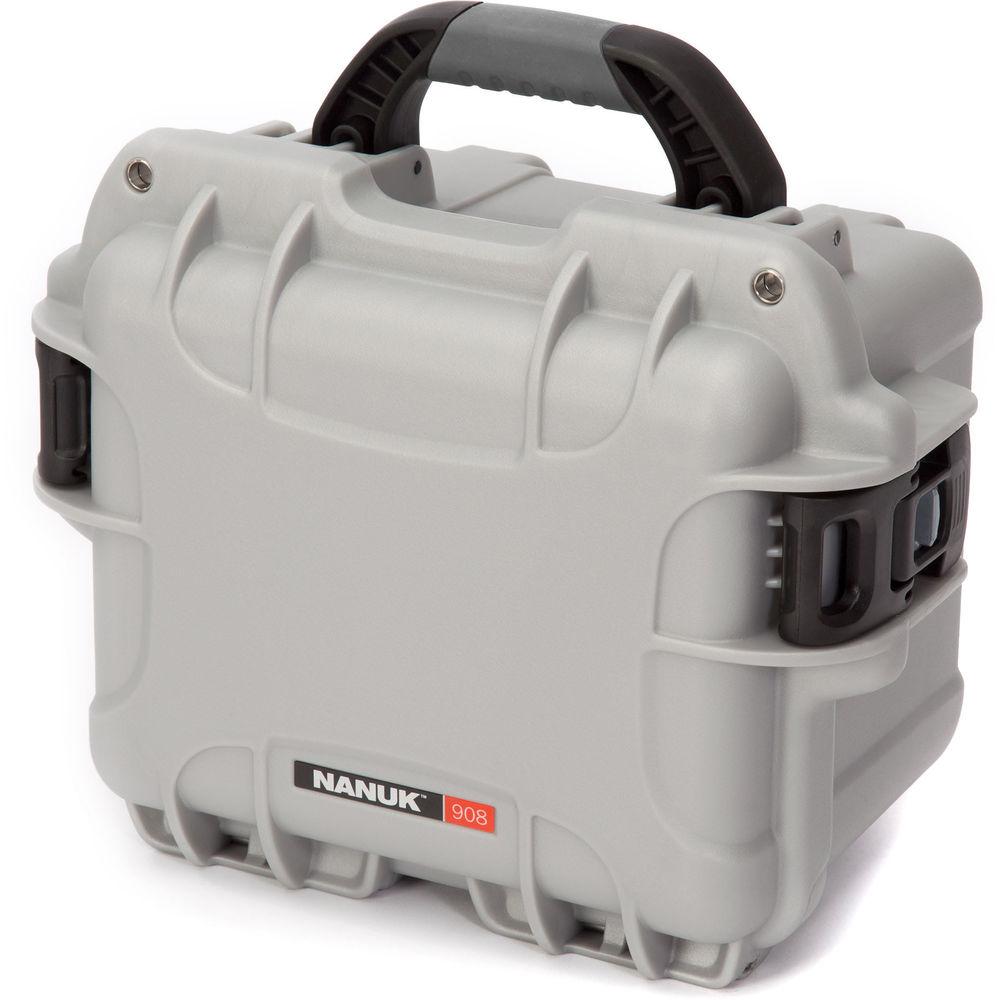

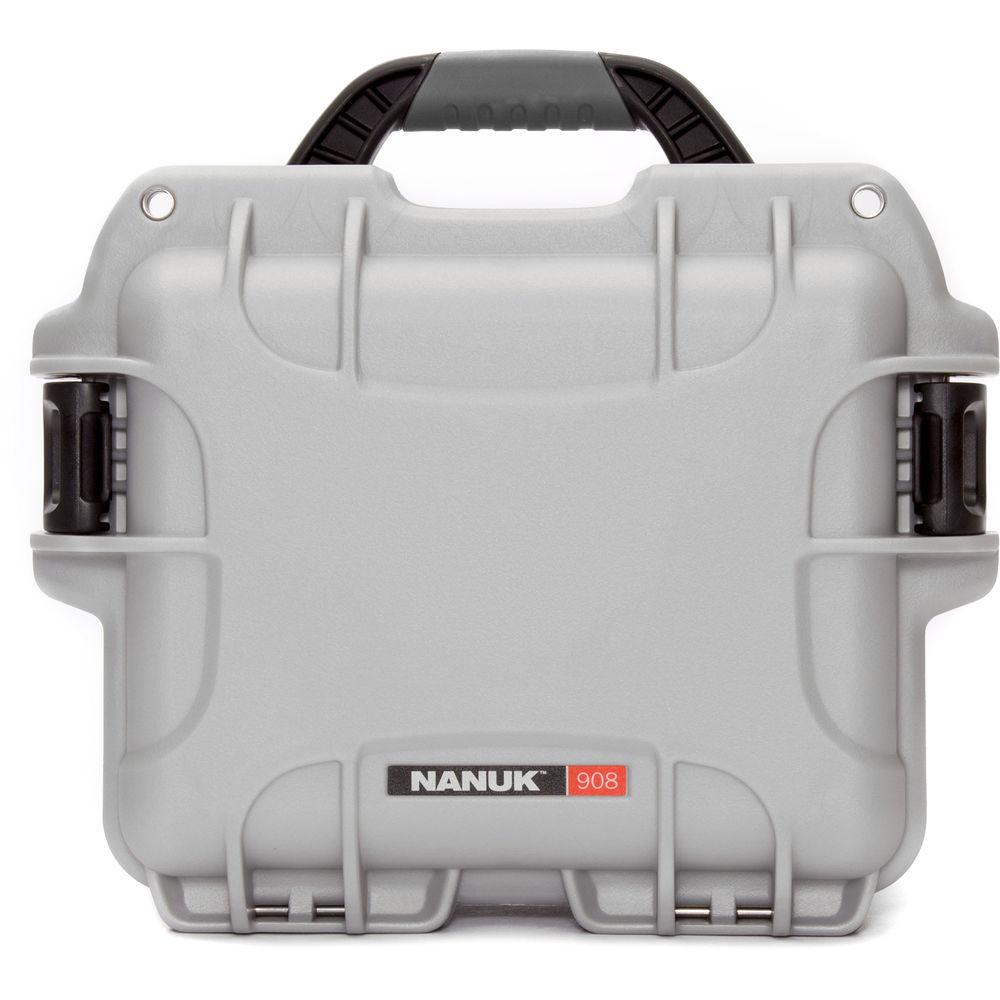

Product description Studio Storage Solutions Read More ddyyyacvxfdtxwfsrbadvxvw The waterproof 908 Case with Foam from Nanuk is a small, crushproof, hard silver case made from lightweight NK-7 resin to protect and store your compact gear, such as a point-and-shoot camera or a pair of binoculars with pre-scored, cubed foam. Alternatively, an optional insert with padded dividers is available.

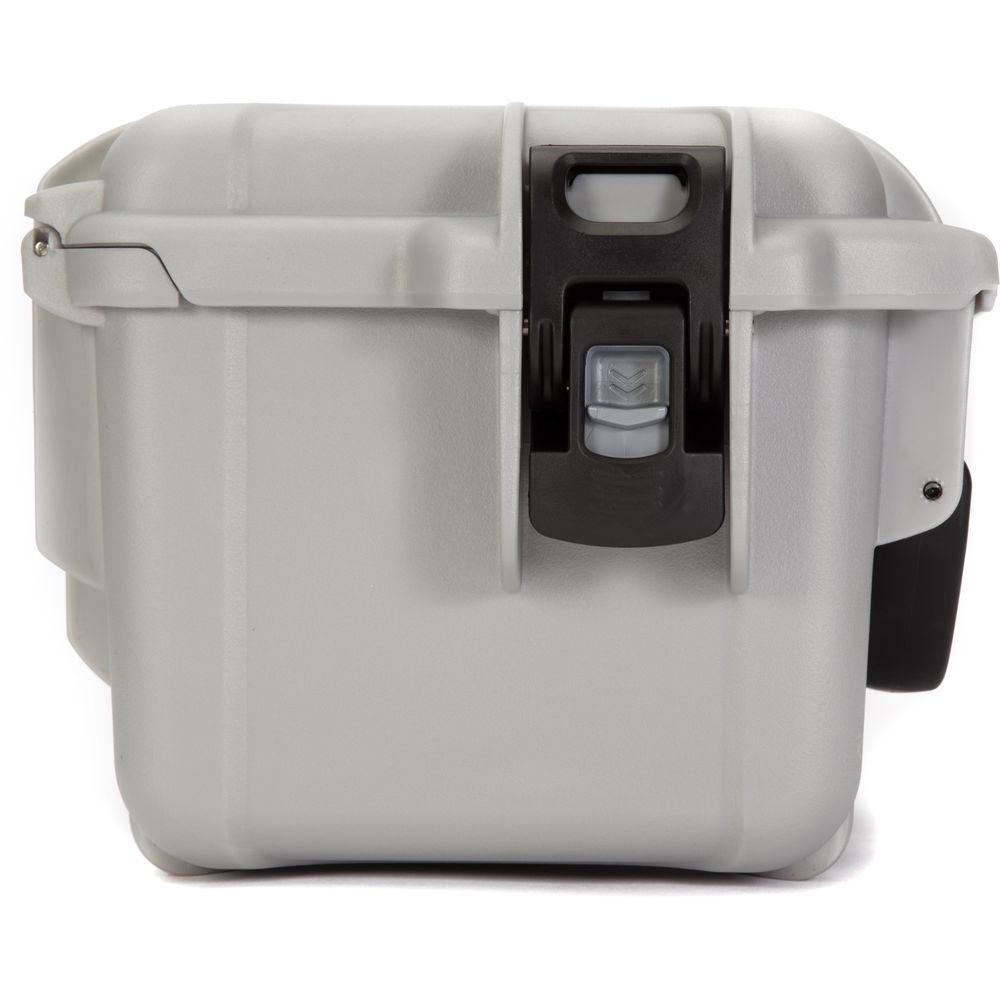

The dustproof case secures with the Powerclaw latching system, which includes a patented latch that uses compressive force to tightly clamp the case shut, plus an integrated slide lock that prevents the case from opening during transport or when dropped. For additional security, there are hasps for adding optional 900 Series Nanuk padlocks or a tie lock when traveling.

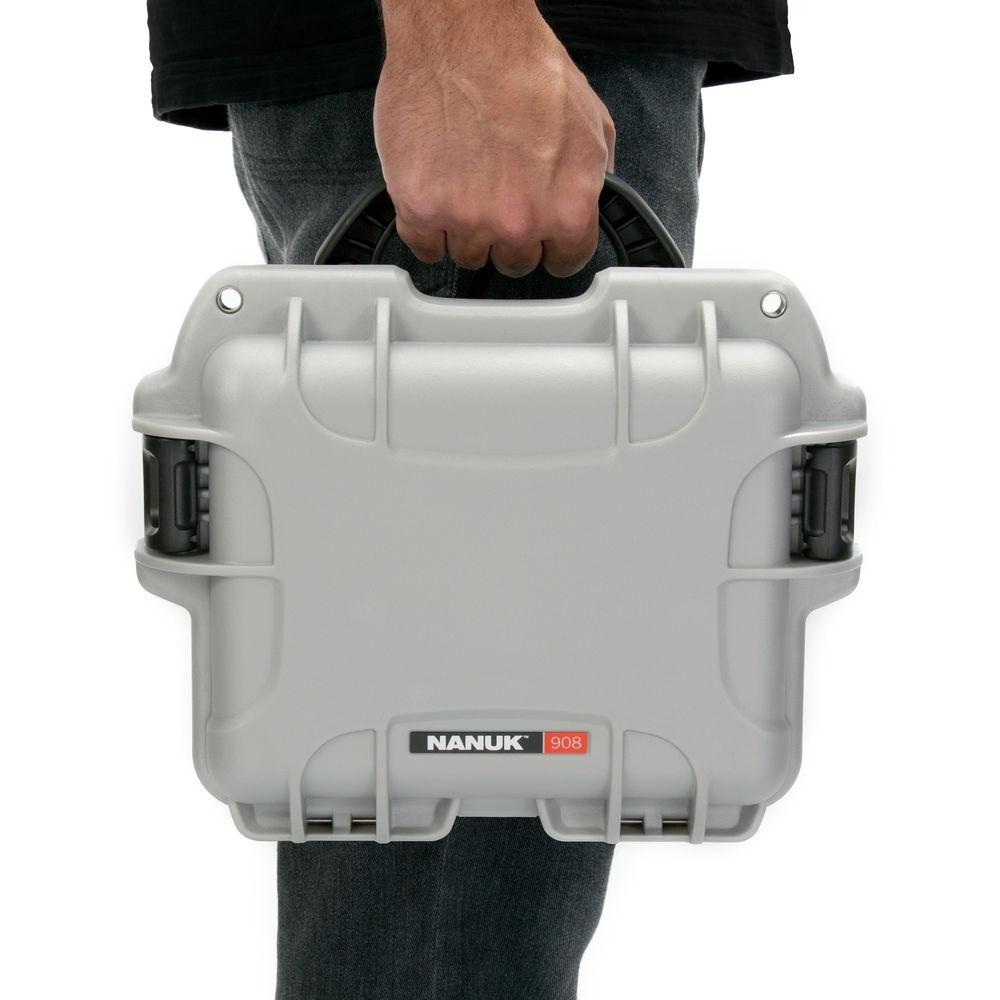

The case features stainless-steel hardware and can be carried using the foldable soft-grip handle at the top. The handle structure is molded with NK-7 resin and covered with soft shock-absorbing rubber for comfort in carrying heavy loads. Integrated stays in the handle keep it folded down, avoiding damage during transport or shipping. For additional comfort when transporting the case, an optional stretchable neoprene shoulder strap can be easily attached without extra hardware. - Automatic pressure valve guards against the vacuum caused by changes in altitude and geographic location that tend to seal watertight cases shut
- Pressure valve equalizes atmospheric pressure using micro vents, which allow air to pass through, but prevent water from getting inside
- Waterproof, custom-fit gasket, or seal, is made from high-quality EPDM rubber and resists deformation and fatigue
- NK-7 resin is UV-resistant to protect against discoloration and material degradation
- Molded-in bezel system includes detailing on the lower portion of the case for installing a panel kit without using a secondary bracket or drilling holes in the side of the case
- Bezel system accommodates an optional Waterproof Case Panel Kit or mounted electronic, measurement, or test equipment to use case as independent mobile test or control unit
- Integrated lid stay prevents lid from closing while you access your gear
- Grooves on the front interlock with built-in feet at the base when stacking multiple cases of the same size, which saves space for transport
UPC: 666365019097 In the Box Nanuk 908 Case with Foam (Silver) Multi-Layered Cubed Foam Insert for the 908 Case Limited Lifetime Warranty Specification PDF 3.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanuk 908 Case with Foam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanuk 908-1005 Specs | Material | Lightweight NK-7 resin, stainless-steel hardware | | Type of Closure | Powerclaw latching system, optional padlocks | | Carrying/Transport Options | Foldable soft-grip handle | | Maximum Buoyancy | 18 lb / 8.2 kg | | Temperature Range | -20 to 140˚F / -29 to 60˚C | | Certifications | IP67 Ingress Protection Standards
MIL-STD-810F Immersion test
ASTM D4169 Falling rain, vibration, drop tests
ATA 300 Impact test | | Lid Depth | 1.4" / 3.6 cm | | Base Depth | 6.1" / 15.5 cm | | Interior Dimensions | 9.5 x 7.5 x 7.5" / 24.1 x 19 x 19 cm | | Exterior Dimensions | 12.5 x 9.8 x 8" / 31.8 x 24.9 x 20.3 cm | | Weight | 3.2 lb / 1.47 kg |
