Product description - 940 DJI RONIN
- 940 DJI RONIN
- NANUK 940 DJI-Ronin-M

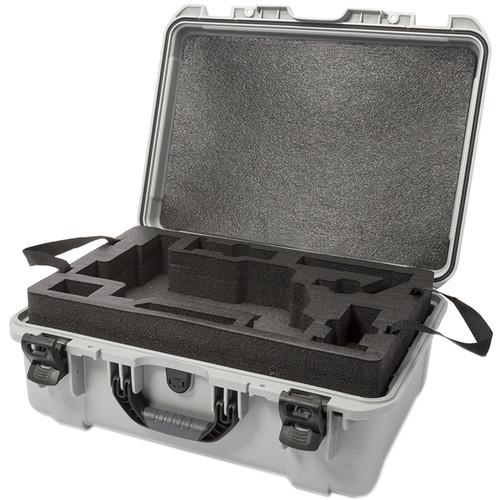

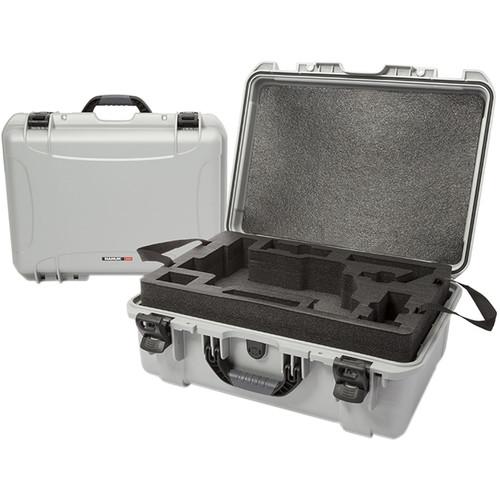

This Nanuk 940 Waterproof Hard Case for DJI Ronin-M, in silver, is designed to withstand the rigors of your daily production grind. It is an IP67 case, which means that when properly closed and latched, it is dustproof and can be submerged up to 3 feet in water for up to half an hour without significant water intrusion. It is made from NK-7 resin, which is lightweight yet impact and vibration resistant.

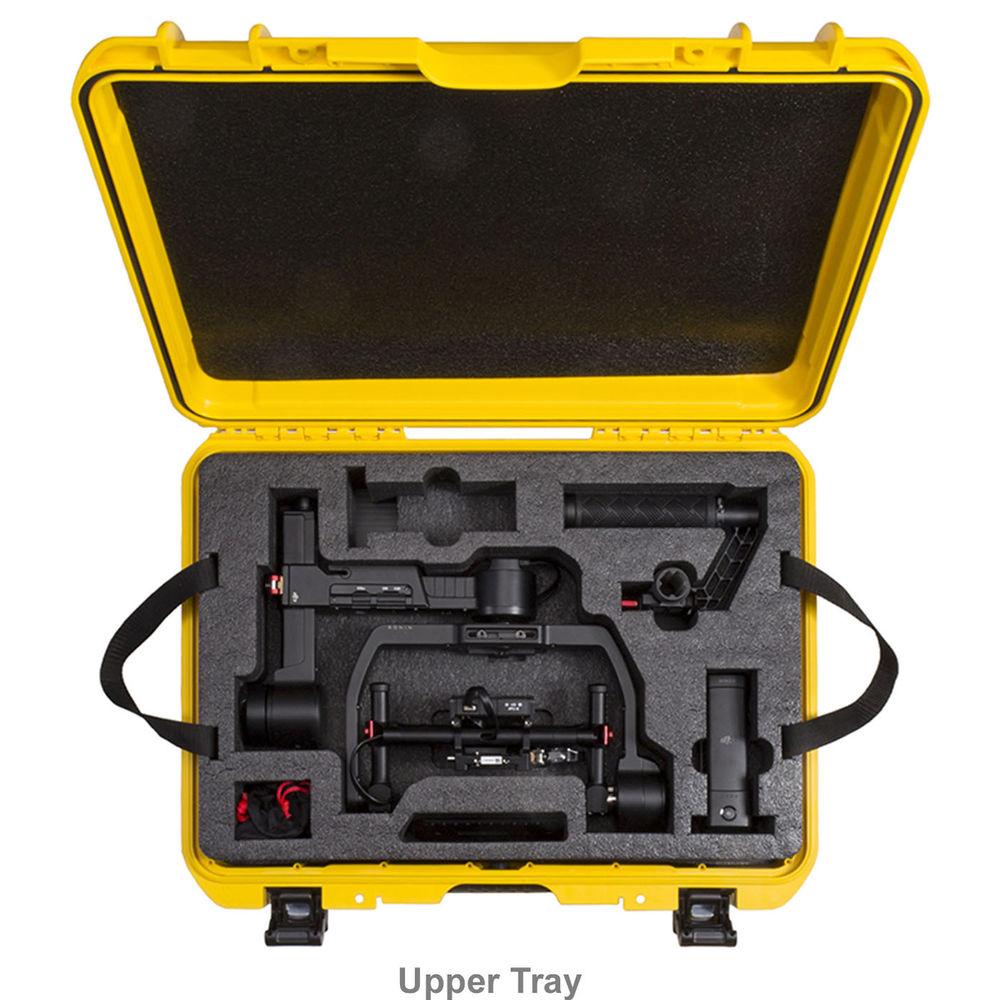

The custom cut foam insert holds the Ronin-M with all variations of tuning arms. The power claw latching system holds your case tightly shut. The integrated pressure relief valve, allows you to equalize the pressure within the case - especially useful when traveling by airplane. If you want increased security, you can take advantage of the integrated padlock tabs (padlocks not included). An integrated folding handle folds flat and features a cushioned grip for comfort. - The integrated pressure relief valve allows the case to equalize to the surrounding pressure. This allows the case to vent without compromising its dustproof or water resistant capability if the air pressure around a closed case drops, such as when traveling on an airplane.
- Dustproof, water resistant, impact and vibration resistant.

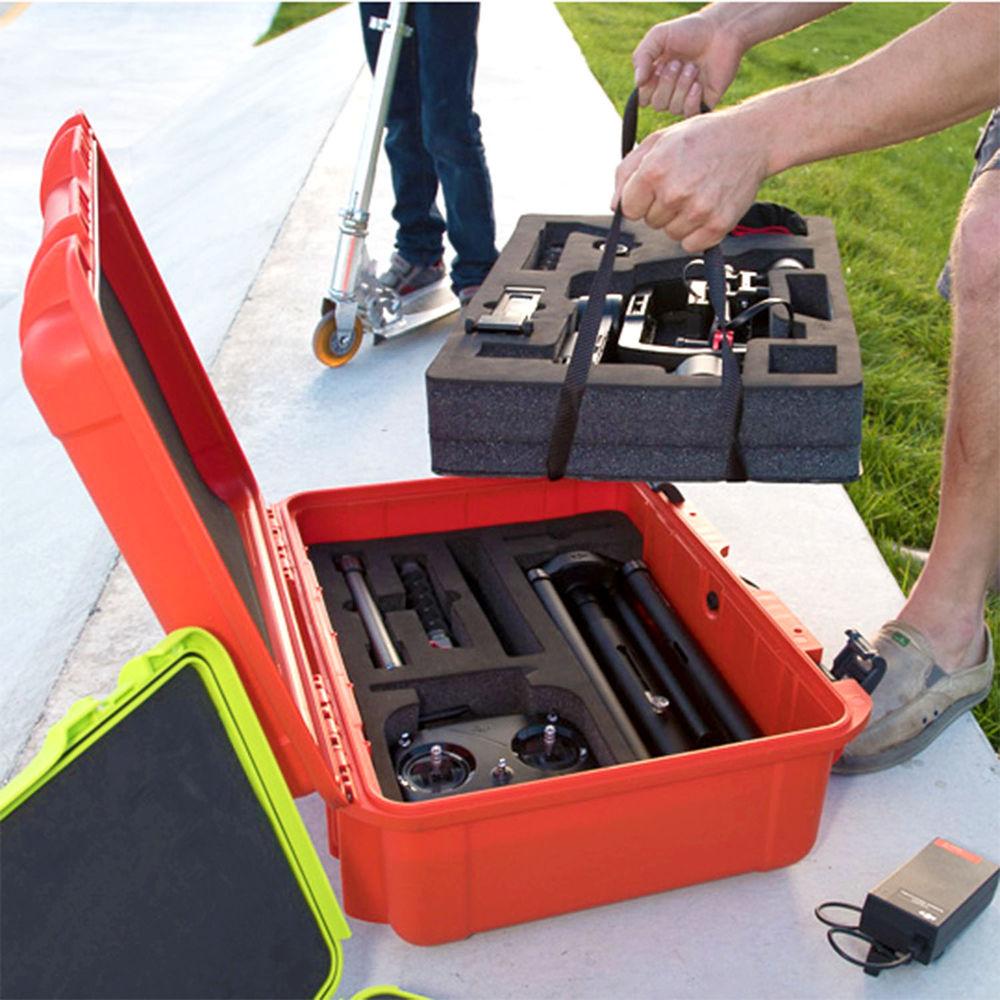

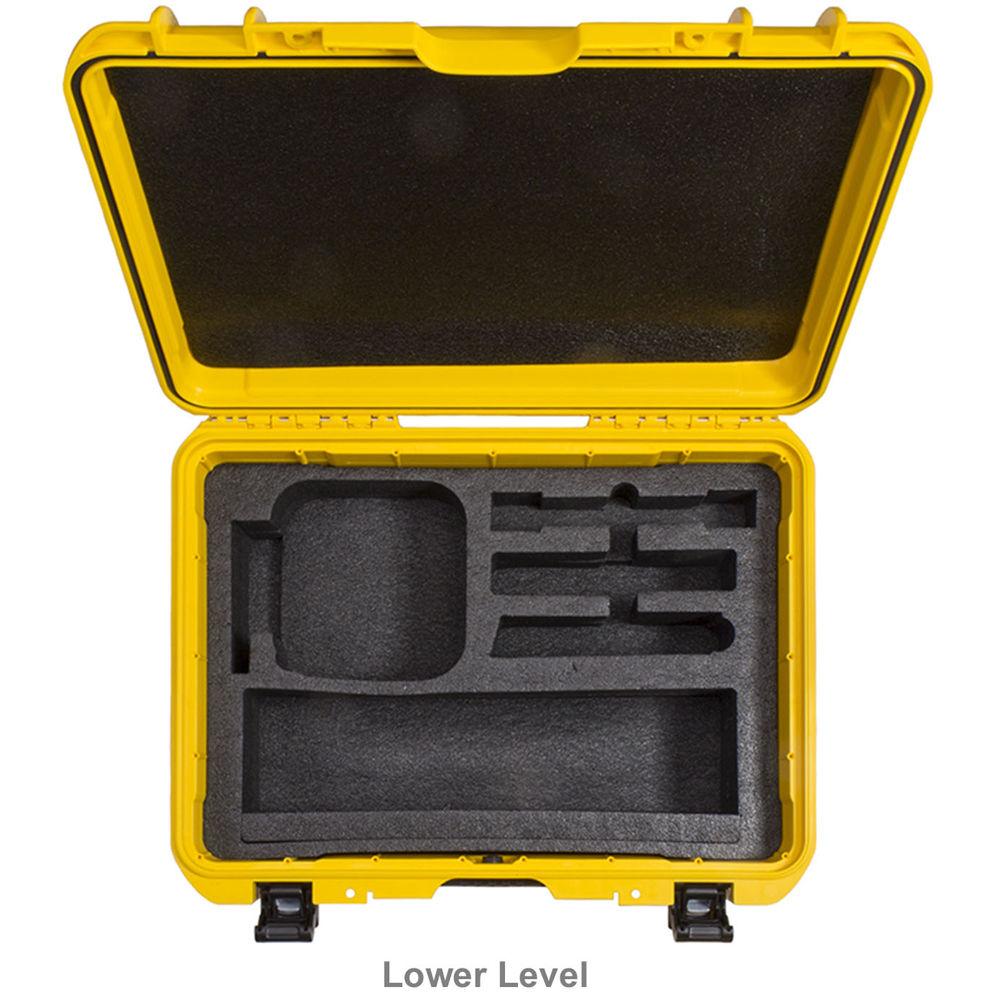

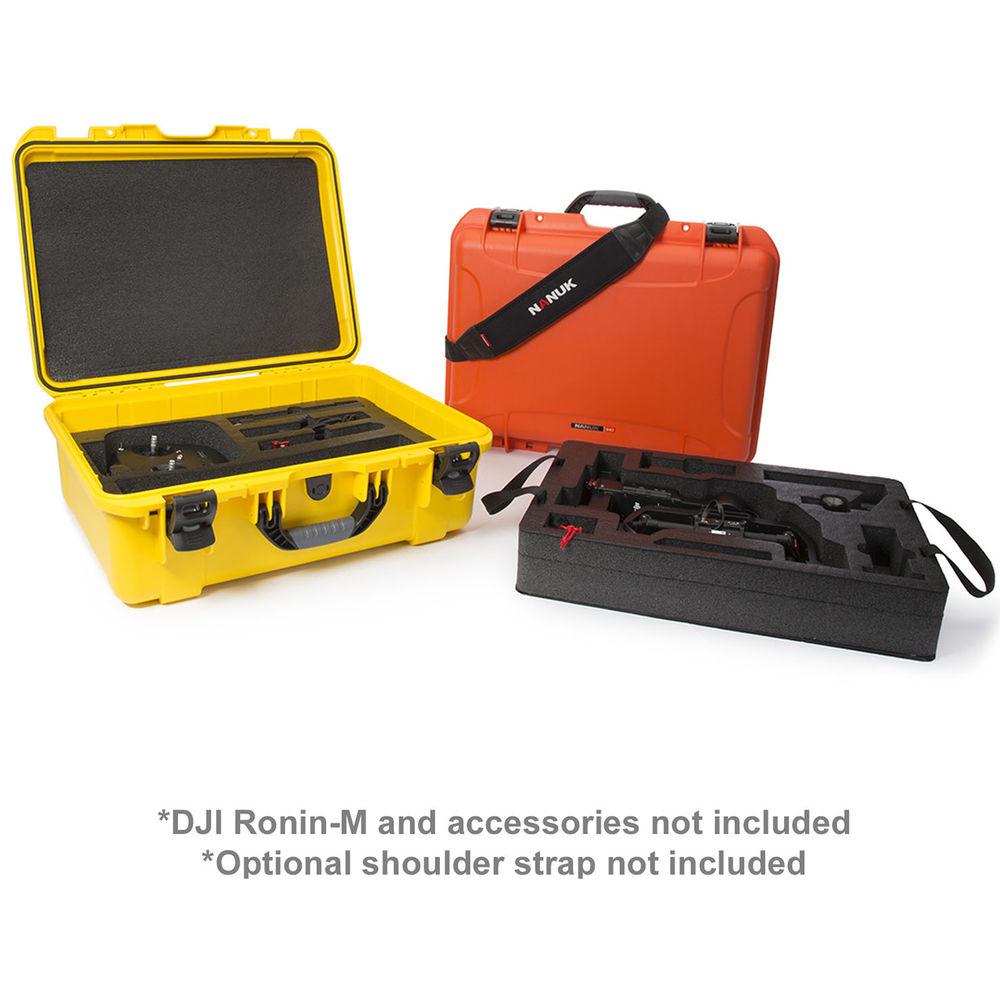

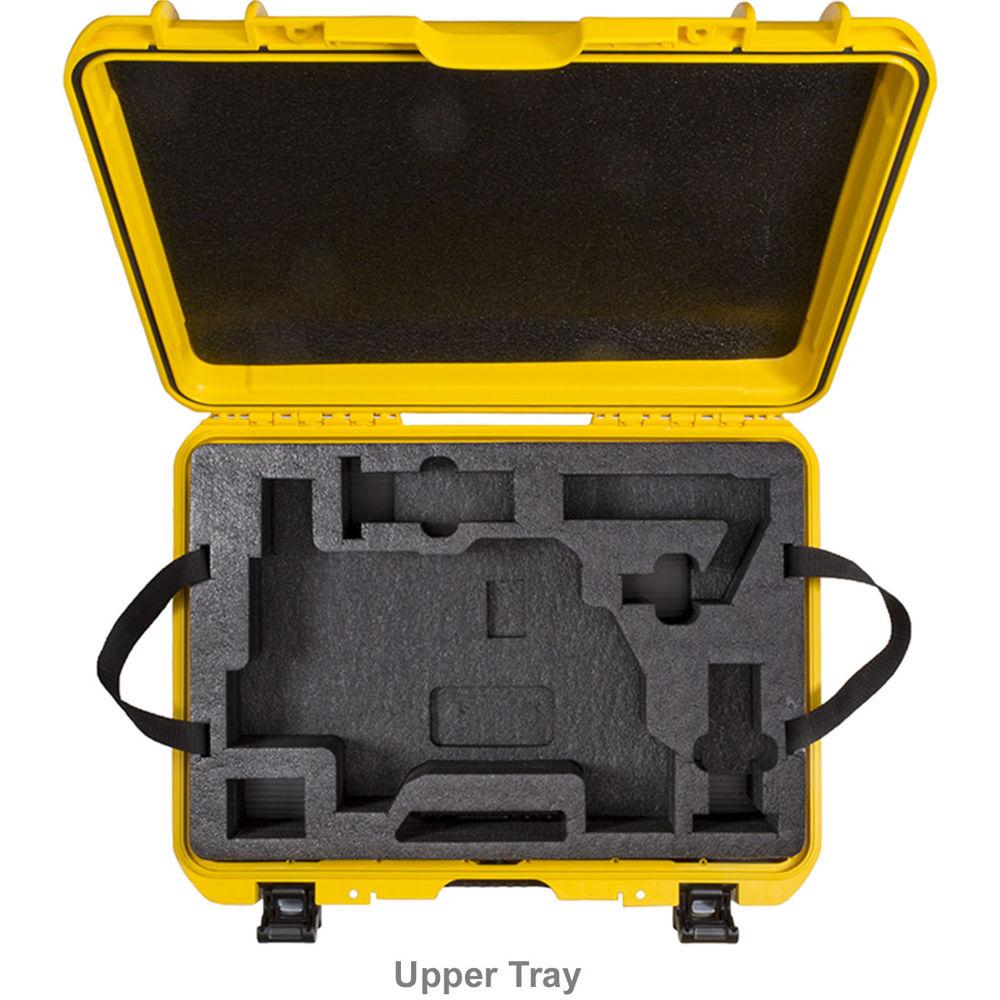

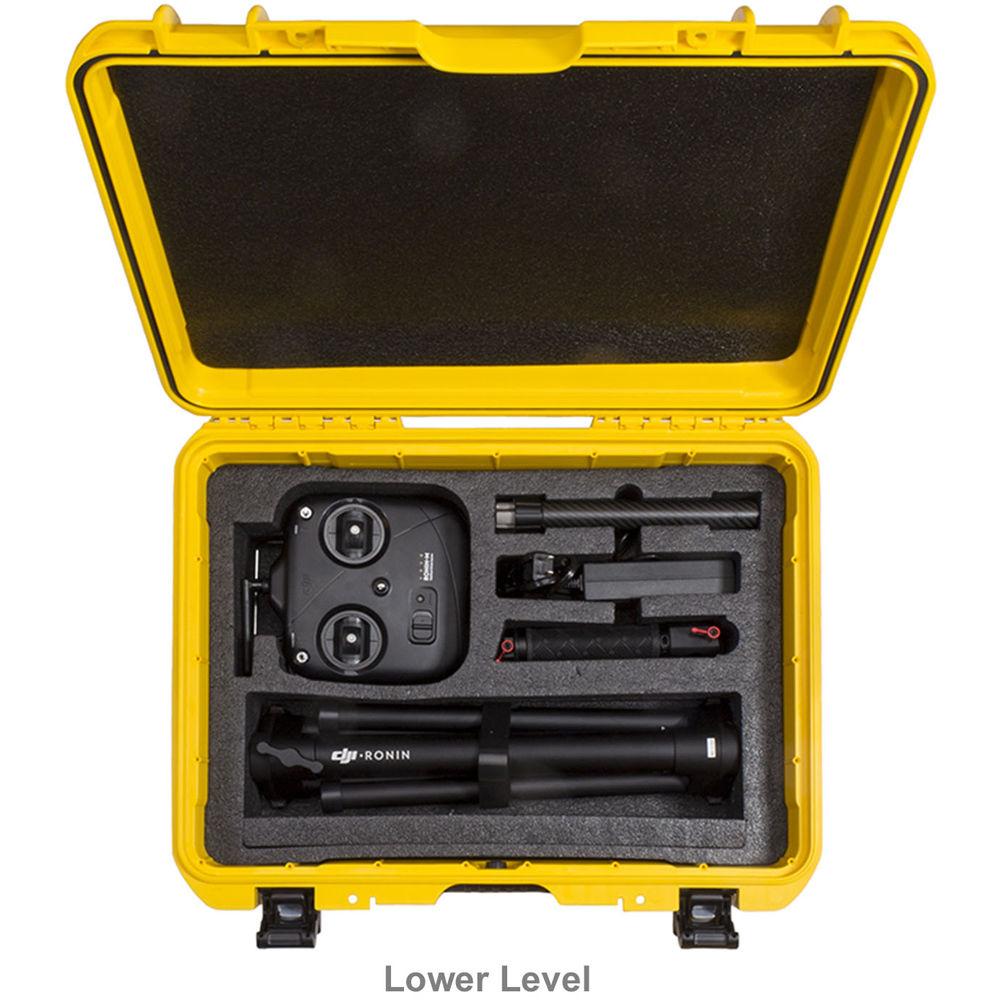

- The case comes with foam in the lid and custom cut foam in the base to fit the DJI Ronin.
- The case has a maximum buoyancy of 80 pounds, which means that depending on what is loaded inside, it will most likely float in water.
- Made of ultra-high impact structural resin that makes it extremely strong and durable.
- Carrying Options
- Front large folding handle.
- Padlock protectors provide added strength and extra security against cutting and theft.
Certifications - IPX7 Ingress Protection
- NANUK cases can be submerged in up to 3 feet of water for a period of 30 minutes without significant water intrusion.
- IP6X Ingress Protection
- NANUK cases provide 100% protection against dust intrusion.
- ATA Specification 300 Category 1 Impact
- Resists damage from a 13.2-pound dart dropped onto the case's weakest point from a height of 1.6'.
- ASTM D-4169 DC-18 Drop Test
- For the drop test, weights ranging from 15 to 70.1 pounds fall on to the case from a height of no less than 19".
- ASTM D-4169 DC-18 Vibration
- Nanuk stands up to this test of repetitive shocks that can happen during loose load transportation.
- ASTM D-4169 DC-18 Rainfall
- Simulated rainfall lasts 20 minutes per case side at a rate of 3.9"/hr. During a second test, rain falls at the same rate while the case is heated 18 degrees F higher than the water temperature. The second test lasts 4 hours and there is no water penetration.
- MIL-STD-810F Immersion
- The case is submerged in up to 3.3' of water for 1 hour while being heated up to 40 degrees above the temperature of the water.
UPC: 666365016140 In the Box Nanuk 940 Waterproof Hard Case for DJI Ronin-M (Silver) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nanuk 940 Waterproof Hard Case for DJI Ronin-M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNanuk 940-RON5 Specs | Material of Construction | NK-7 resin | | Buoyancy | Max: 80 lb / 36.3 kg | | Dimensions | Interior: 20 x 14 x 8" / 508 x 356 x 203 mm
Exterior: 21.7 x 16.9 x 8.5" / 557 x 429 x 216 mm
Lid Depth: 2.1" / 53 mm
Base Depth: 5.9" / 150 mm | | Weight | 10.4 lb / 8 kb (with foam) | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 22.0 x 17.5 x 9.0" |
