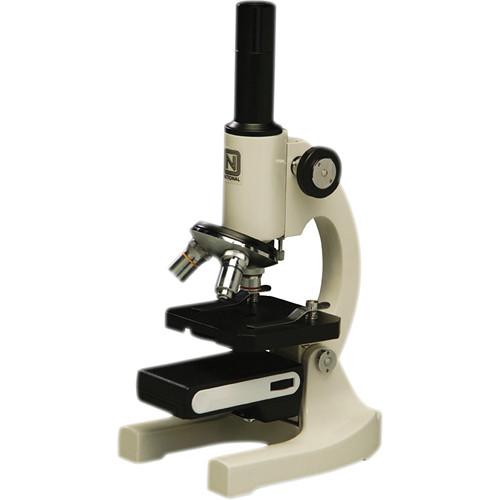

User Manual for National 106-LED Compound Microscope Click to enlarge the picture
Contents of the user manual for the National 106-LED Compound Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 106-LED Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The 106-LED Compound Microscope from National Optical is a three-objective intro-level microscope designed for elementary school students. Achromatic eyepiece and objectives minimize image distortions and deliver consistent images on all three magnification settings. The user-friendly microscope design has dual coarse-focusing knobs and features that are intended to prevent mishandling by novice users. National Optical engineered this vertical compound microscope to be easy to use, durable, and feature-rich enough to help transition older elementary school students to more sophisticated microscopes. - Optical System
-
- 10x eyepiece with revolving pointer
- 4x,10x,40xR achromatic and color-coded objectives
- 40x,100x, 400x magnification
- Rotating objective turret with click stops
- Focusing
-
- Dual coarse focusing knobs
- Rack-and-pinion focus system
- Slip clutch prevents over-turning
- Tension adjustment prevents focus drift
- Rack stop prevents damage to slides and protects lenses
- Lighting
-
- LED illuminator (20 watt equivalent)
- On/Off with rheostat switch
- 6-hole disc diaphragm
- Cordless LED illuminator; powered by NiMH batteries
- Construction Details
-
- 3.5x3.25" (8.8x8.2cm) stage with locked-on spring-activated clips
- Cast metal body with inclination joint
- Grey enamel finish
- 11.75" (29.5cm) height
- 3.7lb (1.7kg) weight
In the Box National 106-LED Compound Microscope Rechargeable NiMH Power Supply w/ Auto-Cutoff Recharger Dustcover Limited 5-Year Warranty (Excluding Bulb) Table of Contents
|
Upload User Manual
Have you got an user manual for the National 106-LED Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 106-LED Specs | Microscope Type | Compound | | Body Type | Vertical monocular | | Eyepiece | 10.0x with revolving pointer | | Nosepiece | 3-hole | | Objective(s) | 4.0x, 10.0x, 40.0xR | | Focuser | Dual rack-and-pinion | | Light Source | LED illuminator (20 watt equivalent) | | Light Control | On/Off with rheostat | | Specimen Stage | 3.5 x 3.25" (8.8 x 8.2 cm) with spring clips | | Height | 11.75" (29.5 cm) | | Weight | 3.75 lb (1.7 kg) |
