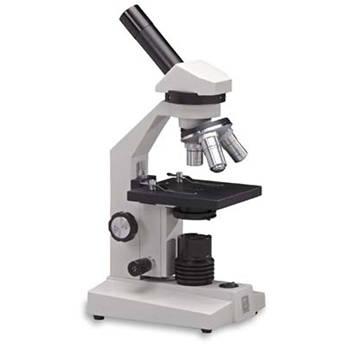

User Manual for National 131-RLED Inclined Monocular Microscope with Cordless LED Illumination Click to enlarge the picture
Contents of the user manual for the National 131-RLED Inclined Monocular Microscope with
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 131-RLED Inclined Monocular Microscope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments 131-RLED Inclined Monocular Microscope with Cordless LED Illumination is a budget-friendly tool for the classroom. In addition to its low price point it also keeps the cost of powering the LED light at minimum. Three rechargeable AA Ni-MH batteries run the light. With the ability to be recharged up to 1000 times, they're a cost-effective solution. The microscope also features a battery charging adapter which automatically shuts off when the batteries are ready for use, preventing damage due to overcharging. The optical system of the 131-RLED is centered around 4x, 10x, and 40xR DIN standard objectives. Controlled by a 3-hole objective turret, magnification can be easily adjusted from 40-400x. The 45° inclined monocular is obviously a vital part of the microscope. It features a widefield 10x eyepiece with a revolving pointer and the ability to rotate 360° for sharing with other students. When it comes to focusing the 131-RLED has low position coarse and fine controls. Safety features such as the slip clutch, tension adjustment, and safety rack stop all ensure that students can't over turn or otherwise damage the system. - Optical System
-
- Widefield 10x eyepiece with revolving pointer. Accepts optional #965-160 eyepiece reticle
- 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) objectives are supplied for 40x, 100x and 400x magnification. All are achromatic, parfocalled, parcentered and color-coded
- 3-hole objective turret, ball-bearing mounted for smooth, precise changes in magnification
- Focusing
-
- Low position coarse and fine focusing controls
- Slip clutch prevents damage from over focusing
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objectives lenses
- Illumination
-
- Cool running LED light rated up to 50,000 hours of life
- Rechargeable batteries can be recharged up to 1000 times
- Battery recharge adapter with auto shut-off (included)
In the Box National 131-RLED Inclined Monocular Microscope with Cordless LED Illumination Battery Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National 131-RLED Inclined Monocular Microscope with Cordless LED Illumination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 131-RLED Specs | Microscope Type | Compound | | Head | Monocular | | Magnification | 40x, 100x, 400x | | Objectives | DIN Achromat 4x, 10x, 40xR | | Eyepiece | Widefield 10x, 18mm | | Light Source | LED | | Electrical | 3 rechargeable AA Ni-MH batteries (recharge up to 1000 times) | | Stage | 4.3 x 4.7" (110mm x 120mm) stage, with locked-on spring mounted stage clips, drilled and tapped to accept optional mechanical stage | | Nosepiece | 3-hole click stop, ball-bearing mounted | | Lens (Condenser) | Built-in 0.65 N.A. condenser lens, calibrated 5-hole disc diaphragm | | Overall Dimensions | Height: 14.2" / 360mm | | Weight | 6.8 lb / 3.1kg |
