User Manual for National 215-RLED ASC Cordless Four Objective Binocular Cordless Microscope Click to enlarge the picture
Contents of the user manual for the National 215-RLED ASC Cordless Four Objective
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 215-RLED ASC Cordless Four Objective contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|

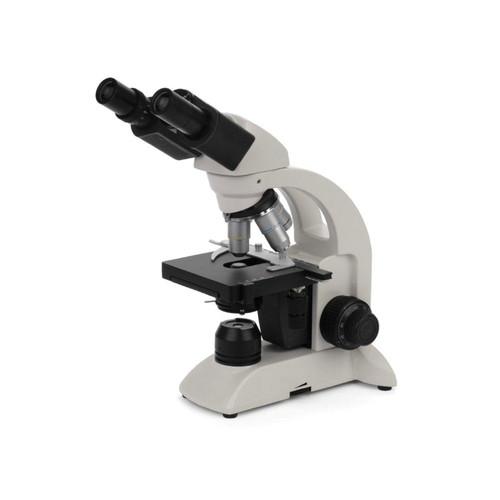

Product description The 215-RLED ASC Cordless Microscope from National Optical is a four-objective microscope with a 30° inclined binocular viewing and a Siedentopf head. The four ASC high contrast objectives are 4x, 10x, 40xR, and 100xR. The 40x and 100xR objectives are retractable and the 100xR objective ought to be used with immersion oil to achieve maximum resolution. The retractable 40xR and 100xR objectives have a spring-loaded lens which will retract when it touches the slide thereby protecting the lens and the slide. Both the turret and the included objectives adhere to DIN microscope objective standard. This means that you can use any DIN objective with this microscope without worrying about your microscope ever becoming obsolete. The Siedentopf head design allows for a comfortable interpupillary distance adjustment.
The supplied Achromatic Super Contrast (ASC) objectives reduce color distortions introduced by imperfections in optical elements better than regular achromatic objectives and provide higher contrast images. The parfocalled and parcentered design allows for switching objectives without having to realign your sample and without losing focus. The focusing system has a scale and can perform fine and coarse adjustments. The wide field 10x eyepieces have a pointer and can accommodate an optional reticle.
To view details of our specimens more easily, the microscope features an LED illumination system with adjustable brightness. It delivers light intensity equivalent to that of a 20W incandescent bulb. The white light from the bottom LED emitter is focused on the sample with 1.25 NA Abbe condenser.
The microscope also features a 5.3 x 5.3" mechanical stage with adjustable height. It has a movable slide holder and allows you to move your specimen slides in X-Y plane. The frame of the microscope is made of cast metal with gray enamel finish.
Included with the microscope are three rechargeable AA NiMH batteries, a battery charger, a dustcover and two Allen wrenches for rack stop and eyepiece socket tension adjustment. To recharge your microscope's batteries, just connect the microscope to the wall power adapter. Optical System -
- Achromatic Super Contrast objectives
- DIN 4x, 10x, 40xR, 100xR
- Objective 40xR and 100xR are retractable
- Use the 100xR objective with immersion oil
- Total magnification: 40x, 100x, 400x and 1000x
- Parfocalled and parcentered
- Siedentopf head with interpupillary and diopter adjustment
- Binocular viewing is 30° inclined
- Head rotates 360°
Focusing -
- Separate fine and coarse focusing with scale
- Slip clutch prevents damage to focusing system
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objective lenses
Illumination -
- LED illumination equivalent to a 20W tungsten bulb
- 1.25 N.A. Abbe condenser lens with spiral focusing mount
- Iris diaphragm, built-in neutral density filter
- Cordless operation using included rechargeable batteries
- Rheostat intensity control
Stage -
- Mechanical stage
- X-Y slide motion control
- Stage size: 5.3 x 5.3"
- Adjustable stage height
- Movable specimen slide holder
Construction Details -
- Objective turret:
- Four objective holes
- Reverse position
- Mount with ball bearings - Cast metal frame with handles
- Gray enamel finish
In the Box National 215-RLED ASC Cordless Four Objective Binocular Cordless Microscope - 3 x AA NiMH, Rechargeable Batteries
- 802-003 Auto Cut-Off Recharger
- Dustcover
- 2 x Allen Wrenches
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the National 215-RLED ASC Cordless Four Objective Binocular Cordless Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 215-RLED-ASC Specs | Microscope Type | Compound | | Eyepiece | 10x, wide field | | Nosepiece | Reverse | | Objective(s) | DIN 4x, 10x, 40xR, 100xR | | Head | Rotating 360° | | Focuser | Fine / Coarse | | Light Source | LED | | Light Control | Rheostat | | Specimen Stage | 5.3 x 5.3" (135 x 135 mm) | | Battery / Runtime | 3 x AA NiMH, rechargeable / 50 hr max | | Charging Time | 8 hr minimum | | Overall Dimensions | 22 x 16 x 10" (56 x 41 x 25 cm) | | Weight | 14 lb (6.4 kg) |
