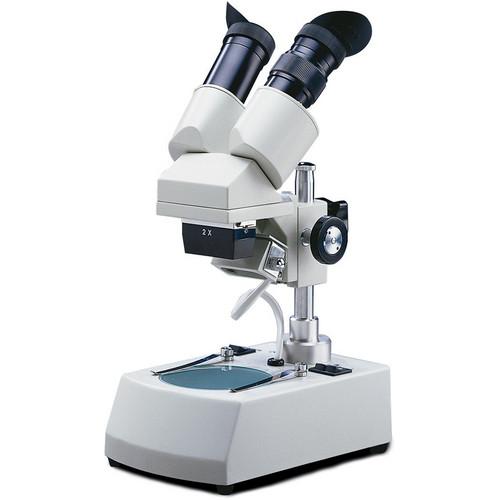

User Manual for National 405-TBL-10-2 Stereo Microscope Click to enlarge the picture
Contents of the user manual for the National 405-TBL-10-2 Stereo Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 405-TBL-10-2 Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments 405-TBL-10-2 Stereo Microscope has many things going for it in addition to its budget-friendly price point. This pared down yet rugged microscope features an upright, unreversed image, 2x objectives for 20x magnification, the option to add eyepieces for increased magnification, and 360° rotation of the post mount, among others. A 5-year limited warranty also backs up the 405-TBL-10-2, ensuring its tenure in your facility is hassle-free. The optical system's paired widefield 10x eyepieces feature left-side diopter adjustment, interpupillary adjustment, and are equipped with a reticle holder/retainer. The viewing head adjusts up or down on the post mount and it can be rotated 360° for sharing. The paired objectives are parfocalled, parcentered, and achromatic. Tungsten illumination provides a clear, accurate view of your specimens with a top and bottom light. A 4-position light control allows you to choose the top or bottom light only, both lights, or to two the illumination off all together. Rack and pinion focusing also allows you to tweak the view of the specimen until it's to your liking. A slip clutch and tension adjustment provides back-up support, preventing damage to the system, while locked-on stage clips keep specimens in their place. The microscope includes two 80mm stage plates as well. - Optical System
-
- Paired widefield 10x eyepieces, left-side diopter adjustment, interpupillary adjustment from 55mm to 75mm
- Eyepieces equipped with reticle holder/retainer to accept reticle with 23mm O.D.
- Viewing head adjusts up or down on post mount to accommodate difference size specimen
- Paired objectives are parfocalled, parcentered and achromatic
- Standard magnification of 20x is considered ideal. Higher magnification possible by selecting models with 3x or 4x objectives. Optional WF15x eyepieces increase magnification 50 percent
- Illumination
-
- Top light (incidental) is 12v, 10 watt tungsten with adjustable beam
- Bottom light (transmitted) is 12V, 10 watt tungsten
- 4-position light control: top only / bottom only / top & bottom / off
- Base
-
- Rack & pinion focusing with slip clutch and tension adjustment
- Includes two 80mm stage plates: frosted glass and reversible black/white plastic contrast plate
- Locked-on stage clips
In the Box National 405-TBL-10-2 Stereo Microscope Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National 405-TBL-10-2 Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 405TBL-10-2 Specs | Microscope Type | Stereo | | Head | Binocular | | Magnification | 20x (fixed) | | Objectives | Paired 2x | | Eyepiece | Widefield 10x, 20mm | | Light Source | Tungsten | | Stage | 80mm, frosted glass, reversible black & white contrast plate | | Overall Dimensions | Height: 10.9" / 275mm | | Weight | 6 lb / 2.7kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
