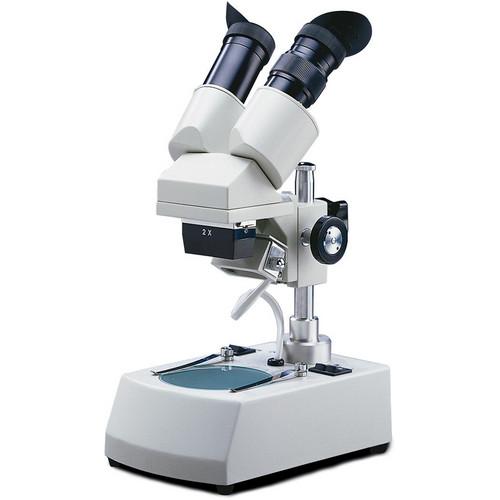

User Manual for National 405TBL-10-3 3x Stereo Microscope Click to enlarge the picture
Contents of the user manual for the National 405TBL-10-3 3x Stereo Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 405TBL-10-3 3x Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The 405TBL-10-3 3x Stereo Microscope from National Optical is a single magnification stereoscopic microscope fit for laboratories, high school and university students. The stereo (dual) eyepiece configuration is preferred by most researchers and students because of the superior depth of field and comfort compared to monocular microscopes. This model of the 405 microscope has a paired 10x eyepiece delivering 30x magnification. The stage can be illuminated from above, below, or both using 10W tungsten lights activated by separate base-mounted On/Off switches.A user-friendly design complements the range of features that make the 405 series a welcome addition to labs as well as classrooms. This microscope has a single focusing dial and an adjustable post for raising the viewing head to accommodate specimens up 35mm / 1.4". The rack and pinion focus system also includes a slip clutch mechanism to prevent mishandling. An adjustable interpupillary distance, left-side diopter correction, and reticle holder/retainer provide the 405 series stereo microscope with the flexibility needed to create a customized viewing experience. - Optical System
-
- Paired 10x inclined eyepiece
- 3x achromatic objective lens
- 30x magnification
- Parfocalled, parcentered, paired objectives
- Eyepiece with diopter adjustment and reticle holder/retainer
- 55-75mm / 2.2-3" interpupillary distance
- Focusing
-
- Rack and pinion focus system
- Slip clutch prevents over-turning
- Tension adjustment prevents focus drift
- Lighting
-
- Incidental (top) 10 watt adjustable tungsten illumination
- Transmitted (bottom) 10 watt tungsten illumination
- Dual base-mounted On/Off switches
- Construction Details
-
- 80mm frosted glass and 80mm reversible black and white stage plates
- Locked on metal stage clips
- Cast metal body
- Grey enamel finish
- 11" (27.5 cm) height
- 6 lb (2.7 kg) weight
In the Box National 405TBL-10-3 3x Stereo Microscope Eyeshields Dustcover Limited 5-Year Warranty (Excluding Bulb) Table of Contents
|
Upload User Manual
Have you got an user manual for the National 405TBL-10-3 3x Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 405TBL-10-3 Specs | Microscope Type | Stereo | | Eyepiece | 10.0x | | Objective(s) | 3.0x | | Head | Inclined | | Light Source | 12 V, 10 W tungsten (incidental and transmitted) | | Light Control | 4-position On/Off | | Stage | 80 mm frosted glass with reversible black/white contrast plate | | Interpupillary Adjustment | 2.2 - 3" (55 - 75 mm) | | Maximum Specimen Height | (1.4") 35 mm | | Height | 11" (27.5 cm) | | Weight | 6 lb (2.7 kg) |
