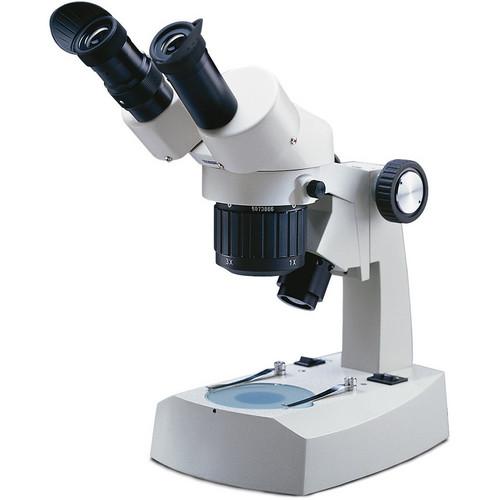

User Manual for National 410TBL-15 1x 3x Stereo Microscope Click to enlarge the picture
Contents of the user manual for the National 410TBL-15 1x 3x Stereo Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 410TBL-15 1x 3x Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The 410TBL-15 1x/3x Stereo Microscope from National Optical is a dual magnification stereoscopic microscope fit for laboratories, high school and university students. The stereo (two) eyepiece configuration is preferred by most researchers and students because of the superior depth of field and comfort compared to monocular microscopes. This model of the 410 microscope has a paired 15x eyepiece delivering 15x and 45x magnification. The stage can be illuminated from above using a 10W tungsten light and/or from under stage using a 15W tungsten light, both activated by separate base-mounted On/Off switches. A user-friendly design complements the range of features that make the 410 series a welcome addition to labs as well as classrooms. This microscope has a single focusing dial and a 360° rotating viewing head to help share the eyepiece among colleagues and students without moving the microscope. The rack and pinion focus system also includes a slip clutch mechanism to prevent mishandling. An adjustable interpupillary distance, left-side diopter correction, and reticle holder provide the 410 series stereo microscope with the flexibility needed to create a customized viewing experience. - Optical System
-
- Paired 15x stereo eyepiece, inclined 45°
- 1x and 3x achromatic objectives
- 15x and 45x magnification
- Parfocalled, parcentered, paired objectives
- 95mm working distance, 27mm maximum specimen height
- Eyepiece with diopter adjustment and reticle holder/retainer
- 55-75mm interpupillary distance
- Focusing
-
- Rack and pinion focus system
- Slip clutch prevents over-turning
- Tension adjustment prevents focus drift
- Lighting
-
- Incidental (top) 10 watt tungsten illumination
- Transmitted (bottom) 15 watt tungsten illumination with blue filter
- Dual base-mounted On/Off switches
- Construction Details
-
- 80mm frosted glass and 80mm reversible black and white stage plates
- Locked on metal stage clips
- 360° rotating viewing head
- Cast metal frame
- Grey enamel finish
- 14.6" (37 cm) maximum height
- 9 lb (4.1 kg) weight
In the Box National 410TBL-15 1x/3x Stereo Microscope Eyeshields Dustcover Limited Lifetime Warranty (Excluding Bulb) Table of Contents
|
Upload User Manual
Have you got an user manual for the National 410TBL-15 1x 3x Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 410TBL-15 Specs | Microscope Type | Stereo | | Eyepiece | 15.0x | | Objective(s) | 1.0x / 3.0x | | Head | Inclined | | Light Source | 12v 10W tungsten (incidental); 110v 15W tungsten (transmitted) with blue filter | | Light Control | 4-position On/Off | | Stage | 80 mm frosted glass and reversible black/white contrast plate | | Interpupillary Adjustment | 55 - 75 mm | | Maximum Specimen Height | 27 mm | | Maximum Height | 14.6" (37 cm) | | Weight | 9 lb (4.1 kg) |
