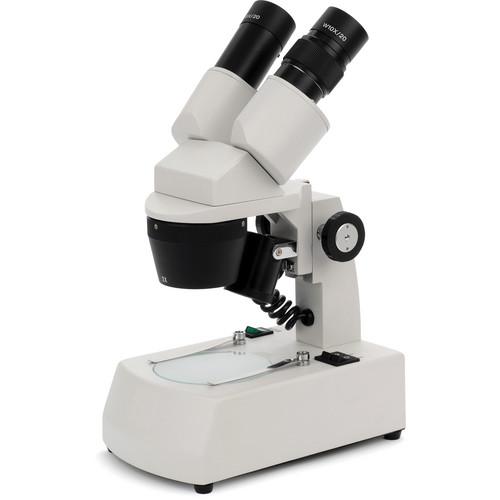

User Manual for National 453-TBL-10 Stereo Microscope Click to enlarge the picture
Contents of the user manual for the National 453-TBL-10 Stereo Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 453-TBL-10 Stereo Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments 453-TBL-10 Stereo Microscope sets itself apart from the rest of the 450 series with 2x and 4x magnification and tungsten illumination. Created with younger students in mind, the 453-TBL-10 is ideal for use by elementary, middle, and even high school students. A true testament to its rugged design, to be sure. Another feature aimed at this group of users is the upright, unreversed image provided by the microscope. Additionally, three dimensional objects can be placed on the stage for viewing. The optical system of the microscope consists of 2 widefield 10x eyepieces, a left-side diopter adjustment, and a reticle holder/retainer. Magnification is changed by rotating the objective turret 90° to positive click stops. - Optical System
-
- Paired widefield 10x eyepieces, left-side diopter adjustment, interpupillary adjustment from 55mm to 75mm
- Eyepieces equipped with reticle holder/retainer to accept reticle with 23mm O.D.
- Fixed head
- Paired objectives are parfocalled, pacentered and achromatic
- Magnification changed by rotating objective turret 90° to positive click stops
- Illumination
-
- 4-position light control: top only / bottom only / top and bottom / off
- Top light (incidental) and bottom light (transmitted) corded 12V 10 watt tungsten illumination
- Base
-
- Rack and pinion focusing with slip clutch and tension adjustment
- Includes two 80mm stage plates: frosted glass and reversible black and white plastic contrast plate
- Two locked-on stage clips
In the Box National 453-TBL-10 Stereo Microscope Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National 453-TBL-10 Stereo Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 453TBL-10 Specs | Microscope Type | Stereo | | Magnification | 2x, 4x | | Objectives | Not specified by manufacturer | | Eyepiece | Widefield 10x, 20mm | | Light Source | Top light: 12V 10 watt tungsten | | Overall Dimensions | Height: 12.25" / 310mm | | Weight | 5.5 lb / 2.5kg |
