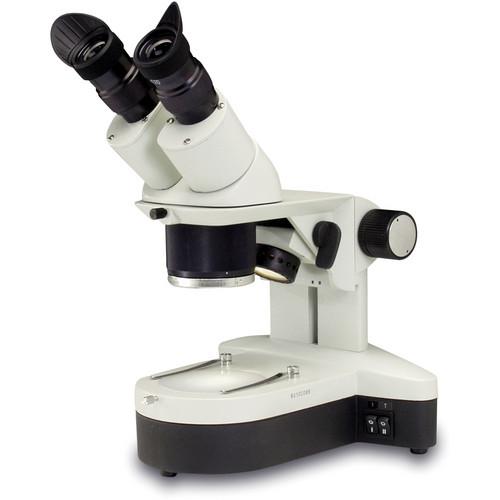

User Manual for National 460TBL-10 Stereoscopic Microscope Click to enlarge the picture
Contents of the user manual for the National 460TBL-10 Stereoscopic Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National 460TBL-10 Stereoscopic Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments 460TBL-10 Stereoscopic Microscope is a cost-effective model with superior capabilities. Designed for students, the 460TBL-10 provides 10x to 30x continuous zoom magnification. Paired widefield 10x eyepieces that sit at a 45° incline make for comfortable viewing, while the 360° rotating head allows for sharing between students. The halogen top and bottom lights are operated via base mounted controls, permitting top only, bottom only, or dual illumination. The lighting system is 3-wire grounded for safety and efficiency. The 460TBL-10 uses rack and pinion focusing. Large dual focusing knobs enable smooth, precise focusing, while a slip clutch prevents damage to the mechanism. The tension adjustment eliminates focus drift. Additionally, the microscope comes with two 80mm stage plates - one black plastic contrast plate and one translucent white plate. Other features include a blue filter for transmitted light and locked-on stage clips. - Optical System
-
- Paired widefield 10x eyepieces are 45° inclined, with left diopter adjustment, interpupillary adjustment from 55mm to 75mm. Accepts 23mm eyepiece reticle
- Viewing head rotates 360°
- Achromatic, color corrected lenses
- Continuous magnification from 10x through 30x
- Illumination
-
- Top light is 12V, 10 watt halogen with reflector with directional lever which puts the light where you need it
- Bottom light is 110V, 5 watt fluorescent for cool operation, greater light efficiency
- Base mounted light controls permit choice of top only, bottom only, or dual illumination
- Heavy-duty 3-wire grounded cord and plug
- Focusing
-
- Large dual focusing knobs with slip clutch to prevent damage to mechanism
- Heavy-duty rack and pinion focusing
- Tension adjustment eliminates focus 'drift'
- Stage
-
- 80mm stage plate ( black plastic contrast)
- 80mm stage plate (translucent white plate)
- Blue filter for transmitted light
- Locked-on stage clips
- Frame
-
- Professional, all-metal frame, gray enamel finish
- Heavy-duty fixed arm with ergonomic design
- Height: 12.5" (317mm)
Base width: 8.5" (215mm), Base depth: 8-3/4" (220mm)
- Net wt: 9 lbs (4kg)
In the Box National 460TBL-10 Stereoscopic Microscope Rubber Eyeshields Vinyl Dustcover Instruction Manual Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National 460TBL-10 Stereoscopic Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational 460TBL-10 Specs | Microscope Type | Stereo | | Head | Binocular | | Magnification | 10x, 30x | | Objectives | 1x, 3x | | Eyepiece | Widefield 10x | | Light Source | Halogen | | Stage | 2 x 80mm stage plates (black plastic contrast / translucent white plate) | | Overall Dimensions | Height: 12.5" / 317mm | | Weight | 9 lb / 4kg |
