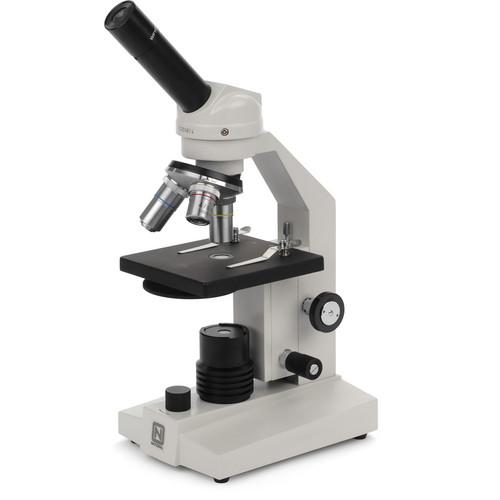

User Manual for National C1028 Inclined Monocular Microscope Click to enlarge the picture
Contents of the user manual for the National C1028 Inclined Monocular Microscope
- Product category: Microscopes National
- Brand: National
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for National Microscopes
|
User manual for the National C1028 Inclined Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any National product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official National user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a National product will considerably shorten its lifespan!
|
Product description The National Optical & Scientific Instruments C1028 Inclined Monocular Microscope is a budget-friendly model, designed with high school use in mind. The C1028 features LED illumination, sharp optics, and safety controls. In addition, a 3-year limited warranty backs the life of the microscope. The cool running LED illumination is rated up to 50,000 hours of use. It also makes viewing life specimens a possibility. Low position coarse and fine focusing controls make it easy to get the best image possible. Slip clutch and tension adjustments prevent damage to the system and eliminate stage drift respectively. Additionally, the safety rack stop prevents damage to slides and objective lenses. The optics of the C1028 include a monocular 10x eyepiece with revolving pointer. This eyepiece sits on a 45° inclined head which rotates 360° for sharing by multiple students. The DIN standard objectives are 4x, 10x, and 40xR, resulting in 40x, 100x, and 400x magnification. - Optical System
-
- Widefield 10x eyepiece with revolving pointer
- 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.) and 40xR (0.65 N.A.) objectives are supplied for 40x, 100x and 400x magnification. All are achromatic, parfocalled, parcentered and color-coded
- 3-hole objective turret, ball-bearing mounted for smooth, precise changes in magnification
- Focusing
-
- Low position coarse and fine focusing controls
- Slip clutch prevents damage from over focusing
- Tension adjustment eliminates stage drift
- Safety rack stop prevents damage to slides and objectives lenses
- Illumination
-
- Cool running LED light rated up to 50,000 hours of life
- 110-220V power supply with removable cord
In the Box National C1028 Inclined Monocular Microscope Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the National C1028 Inclined Monocular Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNational C1028 Specs | Microscope Type | Monocular | | Magnification | 40x, 100x, 400x | | Objectives | 4x, 10x, 40xR | | Eyepiece | Widefield 10x, 18mm | | Light Source | LED | | Overall Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
